TM1814 vs SK6812, What Is The Difference

Views: 0     Author: Tracy     Publish Time: 2022-12-22      Origin: https://www.suntechleds.com/

Our website has published a lot of addressable strip comparison blogs (you can see at the bottom of this post), this article will help you better understand the difference between TM1814 and SK6812, thus you can choose the more suitable strip lights to your projects.


Table-1: TM1814 VS SK6812

Subject

TM1814

SK6812

IC Type

External IC

Built-in IC

Voltage

DC12/24V

DC5V

Color

RGBW

RGB/W

LED Quantity

60led/m

60led/m

Cut Size

12V: 3LED

24v: 6LED

1LED

Power Consumption

14.4w/m

14.4w/m

Break Continue

No

No

PWM Rate

1000HZ

1200HZ



What is the difference between TM1814 LED strip and SK6812 LED strip?


TM1814 VS SK6812

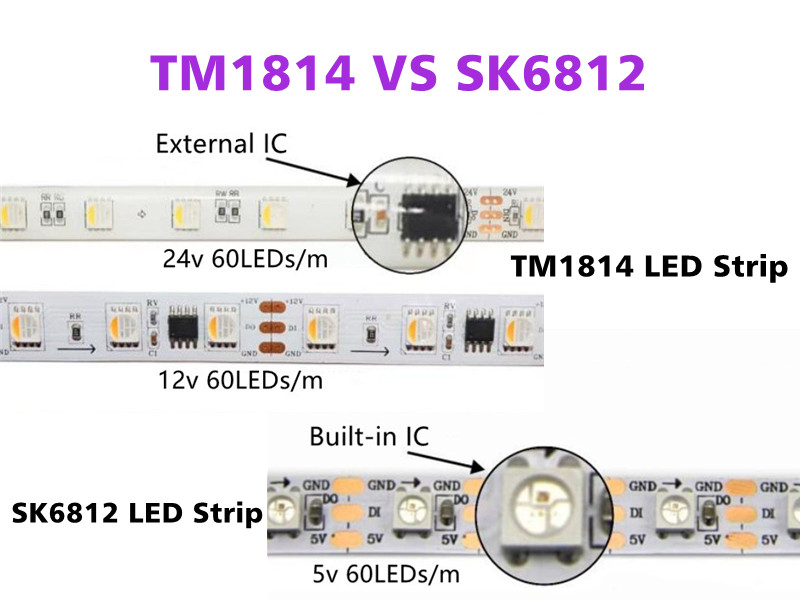

Picture-1: TM1814 vs SK6812



TM1814 LED Strip

TM1814 LED Strip

SK6812 LED Strip

SK6812 LED Strip


TM1814 LED Strip


The pixel protocol was designed by Titan Micro Electronics in China. It is an improved design of its predecessor, TM1804, offering RGBW functionality as well as faster PWM. The control circuit adopts SOP8 package, which can choose LED more flexibly. TM1814-Specification.pdf


tm1814 strip

Features of TM1814:

1) Addressable DC12/24V TM1814 RGBW LED Strips, long life span more than 50,000 hours

2) Super bright 5050 SMD top LED, high intensity and reliability.

3) Absolutely addressable, TM1814 IC built outside.

4) TM1814 has 3 wires input and output: Data, GND and Power+

5) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect


TM1814 LED Strip Applications:

1) Light up colorful home life, like DIY corridors, stairs, paths and windows.

2) For hotel decoration, theaters, clubs, shopping malls, festivals and performances.

3) Architectural decorative lighting like arches, canopies and bridge edge lighting, security lighting and emergency lighting.

4) Widely used in signage back lighting, concealed lighting and advertising sign lighting.



SK6812 LED Strip


SK6812 RGBW led strip is individually addressable, it has an extra white channel total 4 channels besides RED, BLUE and GREEN,256 gray levels and 8 bit color display each color . This programmable RGBW is compatible with Arduino platform. SK6812 Specification.pdf

sk6812 strip

Features of SK6812:

1) SK6812 has the same function as WS2812B with built-in IC that could be independently addressable, with extra white channel, you can set them to any color or animation you want

2) SK6812 support many controllers such as Arduino, FastLED library, Raspberry Pi, Fadecandy, T1000S, K1000C etc

3) 30leds 60leds 72leds and 144leds per meter are available for option.

4) 32-bit color control (8-bit PWM per channel);

5) Designed with 3pin JST-SM connectors on both ends for easy connection


SK6812 LED Strip Applications:

1) Widely used for home decoration use like hotels, clubs, shopping malls

2) KTV Bar Amusement decoration lighting.

3) Advertising sign illumination

4) Decorative lights for holiday, event, show exhibition

5) Applicable for automobile and bicycle decoration, border or contour lighting


Advantage and disadvantage of TM1814


TM1814 advantages

1.Up to 32V, allowing long cable lengths

2.High PWM rates allow these pixels to be captured with cameras up to 34fps

3.The presence of white LEDs allows for higher brightness and more color mixing options


TM1814 disadvantages

1.Data-only limit The refresh rate is limited by the speed of the protocol, which is generally slower

2.Only 8 bits of data per color makes the dimming curve less smooth

3.No data redundancy


Advantage and disadvantage of SK6812


SK6812 advantages

1.The high PWM rate of 1.20KHZ allows to capture pixels at 30fps.

2.Driving 4-color LEDs enables hues that were previously difficult to achieve with a single RGB strip.

3.RGB and white can be controlled independently, allowing us to create bolder, more vibrant colors than RGB alone.

4.Integrated with 5050 LEDs, it can provide high-density single-control RGBW light strips.


SK6812 disadvantages

1.8-bit color resolution, 256 levels of grayscale per color, making the dimming curve less smooth.

2.The refresh rate of the No Clock data line is limited by the speed of the protocol, which is generally slower.

3.Compared to external IC chip solutions, integrated LEDs have poor heat dissipation capabilities.

4.Limited to 5V, greater voltage drop.


Conclusion


If you are looking for high quality and affordable led strip for your project or interior decoration, feel free to contact us at sales@suntechleds.com.
