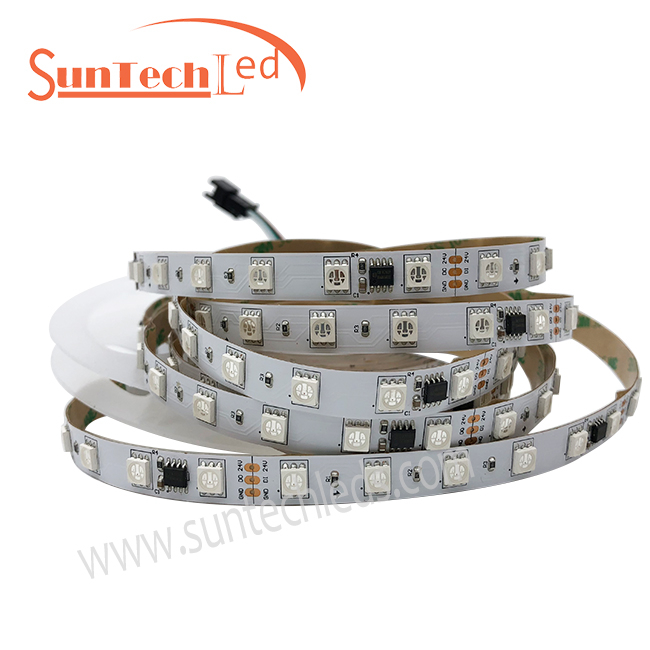

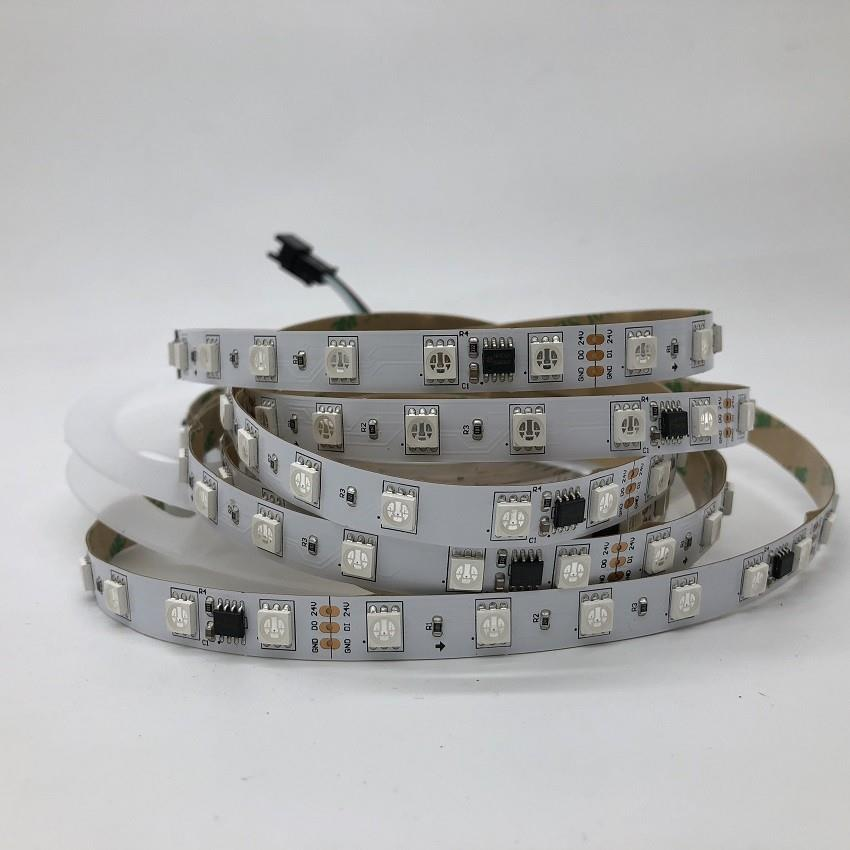

Magic rgb led strip is 24v input , each SM16703 IC controls 6 RGB led chips.
6 chips as one programmable unit.
Numerous lighting effects can be realized by controller.
We are magic color strip supplier based in Shenzhen city, China
Product introduction:
Magic rgb led strip is 24v input , each SM16703 IC controls 6 RGB led chips.
6 chips as one programmable unit.
Numerous lighting effects can be realized by controller.
We are magic color strip supplier based in Shenzhen city, China
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM16703RGB-60-24V | 10 | Addressable RGB | 60 | ≤14.4W | 24v | Double Copper PCB 5000*10mm |
If you are interested in the DMX LED strip, please click: DMX LED strip lights
Product details
1. White PCB and black PCB are all available
2. SM16703 is updated version of WS2811, WS2811 can only support 5v and 12v, besides that SM16703 can support 24v too.
3. 24v can ensure no voltage drop compared to 12v or 5v
4. This 24 volt pixel strip light is compatible with Arduino, FastLED library, Raspberry Pi platform
5. We adapt 99.9% gold wire led chip , pure copper PCB which ensure good quality
6. 30 leds per meter and 60 leds per meter both are available
7. Life as long as 50,000 hours.
8. Flexible PCB and 24v voltage is easy and safe install

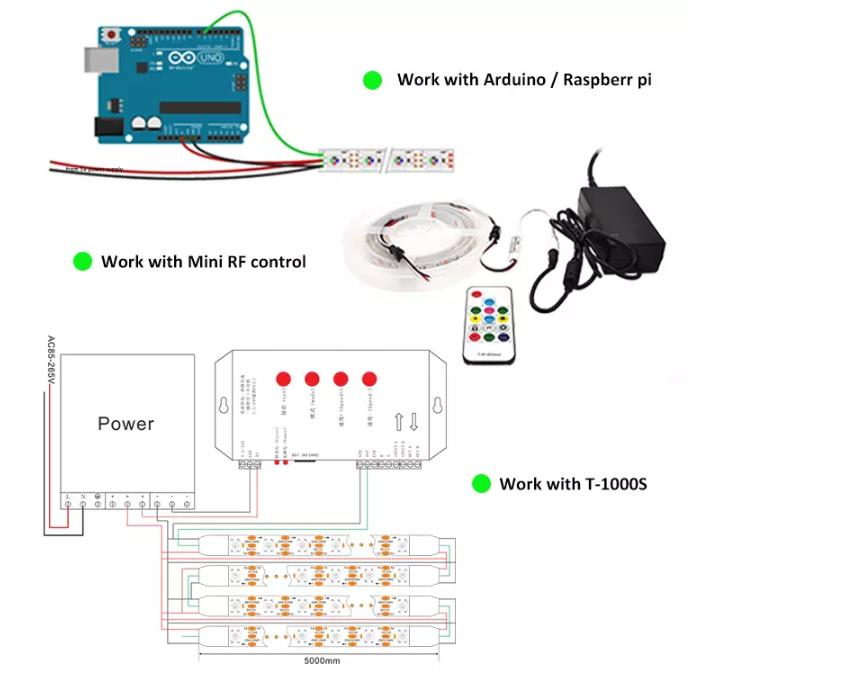

Magic programmable led strip connection
Arduino , Raspberr pi , RF controller , T-1000s are all workable with the WS2811 strip light

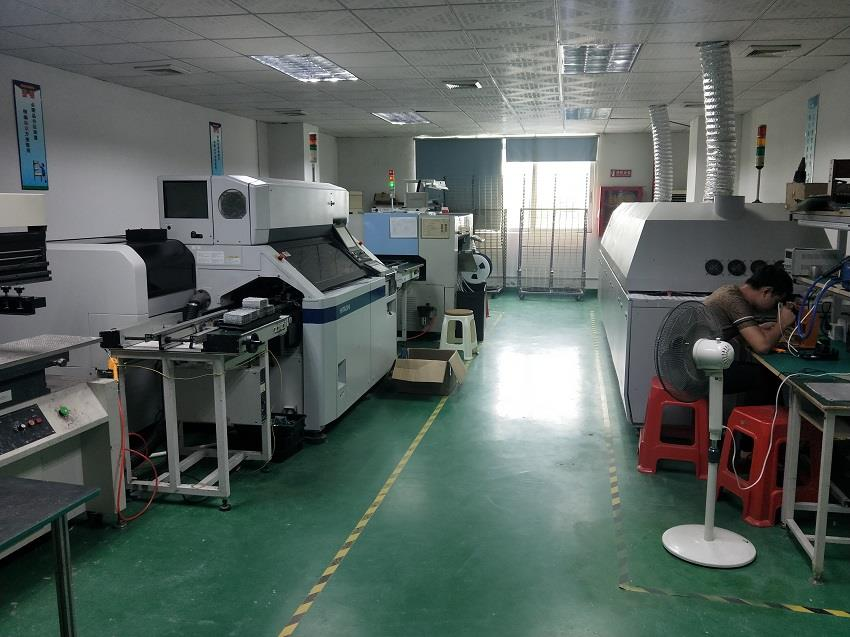

SMT machine workshop

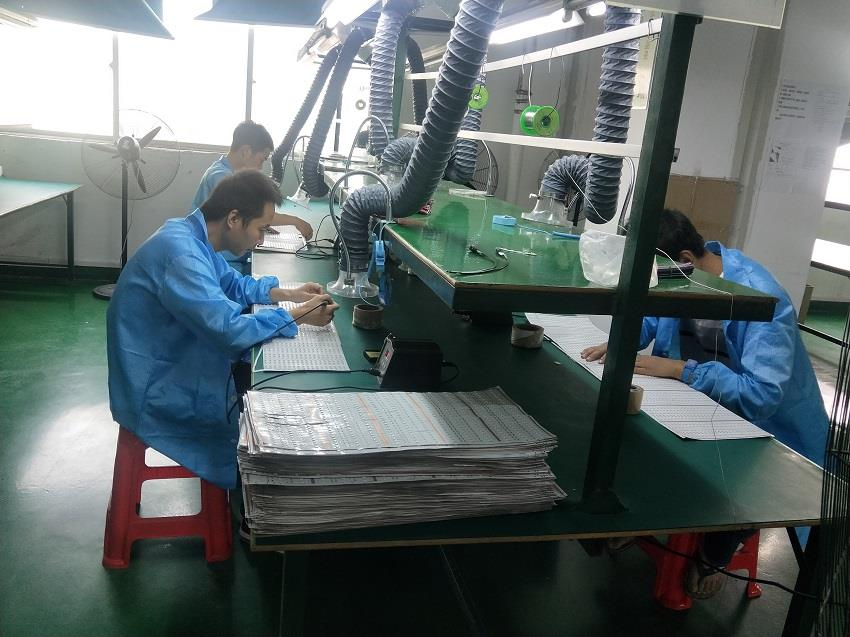

The production workshop

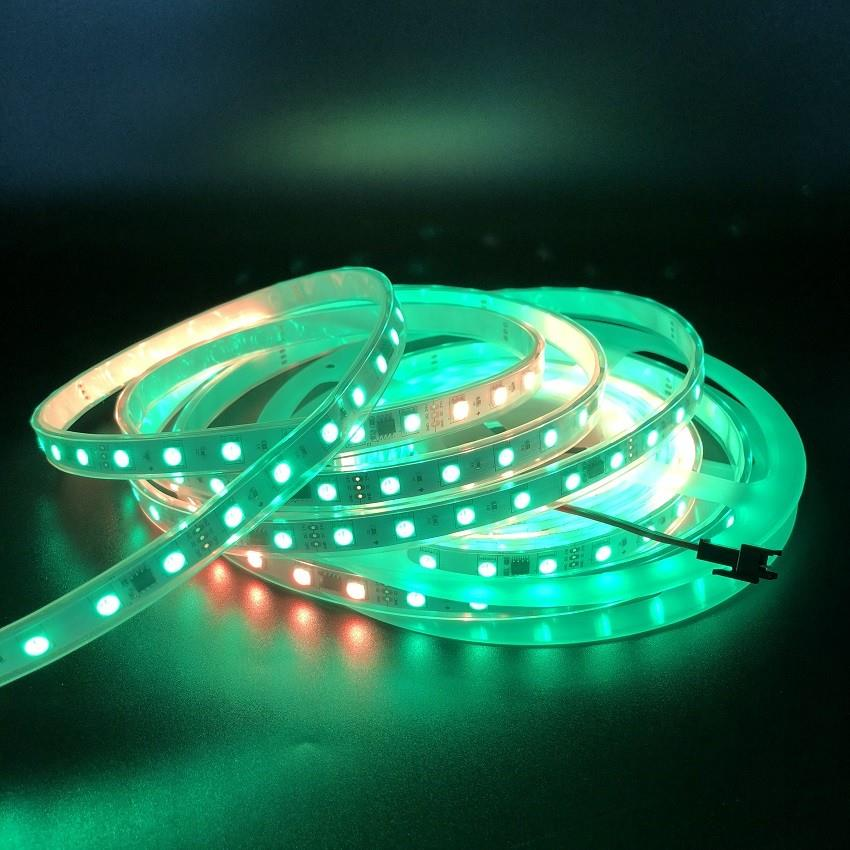

24v magic rgb led strip Application
1 with landmark buildings, pavilions, bridges, parks and other contours, the starting point is brightening effects
2, lighting signals (such as various lighting indicators)
3, Edge-Lighting transparent or diffused material
FAQ
1: Do your LED strips emit UV light?
No. But you should never point an LED light into your eyes. The light is very bright and could cause damage.
2:Is there cheap shipping cost to import to our country?
For small order, express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
3:Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you to find the best solution for you.
