SM16703 VS WS2811 digital strip light

Views: 0     Author: Site Editor     Publish Time: 2019-08-02      Origin: Site

SM16703 LED strip DC24v



WS2811 LED strip DC12v





WS2811 strip light is the external IC addressable pixel tape that launched firstly in the market, earlier than WS2812B, WS2813 and WS2815. It only has one data line but is stable , can be made to DC12v , technology is mature. Clients all know this and need a lot.



How to select IC model for SM16703 strip light in controller?

SM16703 digital LED strip has external IC SM16703 which all controllers support too, if you cannot find SM16703 in your controller, you can choose UCS1903, SM16703 has the same function as UCS1903 LED strip.



Why we have SM16703 strip light?

SM16703 has the same function as WS2811, out looking is the same too. You cannot figure out which is the WS2811 and which is SM16703 unless you check carefully on the IC which indicates the IC module. Both are 3pins, Positive + negative + single data line



You may ask why we have SM16703? it is a updated clone based on WS2811  , just like SK6812 is an updated versions based on WS2812B. With more stable function.



SM16703 advantage compared to WS2811 strip light

SM16703 can be made to DC24v while WS2811 strip light can only be made to DC12v, now some factories launch DC24v version WS2811 but not stable enough. SM16703 DC24v is quite stable and is popular in market for long time.





We make a table for clear comparison among IC WS2811, SM16703 strip light.


SM16703 LED strip

WS2811 LED strip

IC

External IC

External IC

Voltage

DC12v & DC24v

DC12v

Color

RGB

RGB

LED per meter

60 leds/m

60 leds/m

Power consumption

14w/m

14w/m

Wires

Positive + Negative
 +Single Data line

Positive + Negative
 +Single Data line


Where to buy WS2811 LED strip ? Click here


Other pixel products maybe you are interested in:


3mm-RGB-led-strip

3mm Addressable LED Strip

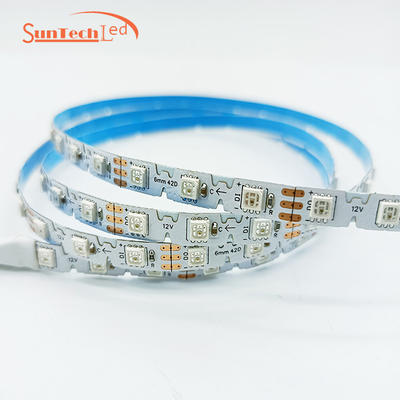

Bendable-zigzag-addressable-RGB-LED-strip-light-DC12v-6mm

Bendable Zigzag RGB LED Strip

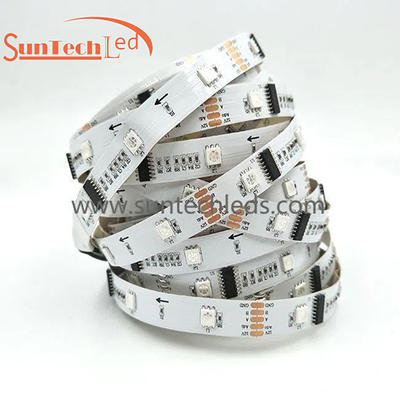

DMX-LED-Strip-Lights-Addressable

DMX LED Strip

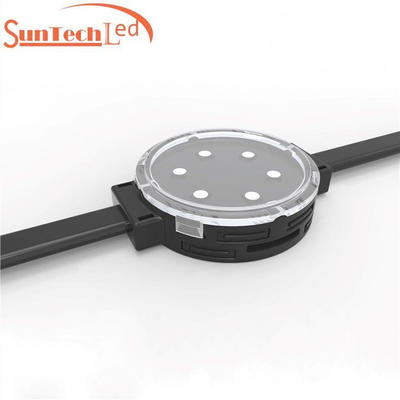

led-pixel-dot-light-for-facade-landscapeLED Pixel Dot Light
