3D Pixel LED Tube

360 degree vertical 3D pixel LED tube for nightclub DJ lighting application

Availability:
3D Pixel LED Tube

Product introduction:

360 degree vertical 3D pixel LED tube for nightclub DJ lighting application



3D pixel LED tube product parameters:

Model

IC

Color

LED Qty
 per piece

Power Consumption

Voltage

Size

W/M

V/DC

mm

STTU-L50-UCS

UCS1903

Addressable RGB

32pcs/pcs

≤11W

12v

500mm

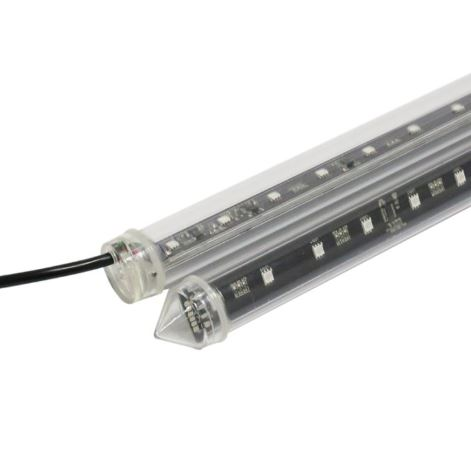

3D pendant LED tube product details

1. Customized length 0.5m , 1m ,1.5m and 2m are all available.

2. High brightness SMD5050 RGB LED chip, DC12v input easy installation ..

3. Full color design, with UCS1903 inside, can be programmable with Madrix to realize amazing visual impact.

4. IP65 design is good .

5. This led vertical meteor tube is environment friendly, no harsh glare and buzzing noise, no flicker.

6.  With waterproof IP65,this 3D rgb pixel LED tube can be used in outdoor decoration...

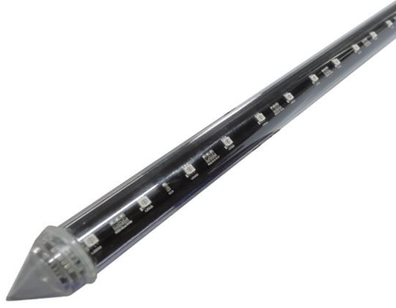

3d-pixel-led-tube36204148299-400-400



How to connect 3D RGB digital tube light?
1. Signal wire:DC+, DAT, GND
2. DC+ and GND connect to power supplier; DAT CLK and GND connect to controller
3. Relative Controller: SPI controller, DMX controller
4. SPI Signal:LED pixels + LED Power Supply + LED Controller
5. DMX Control:LED pixels + LED Power Supply + DMX Controller + DMX Decoder

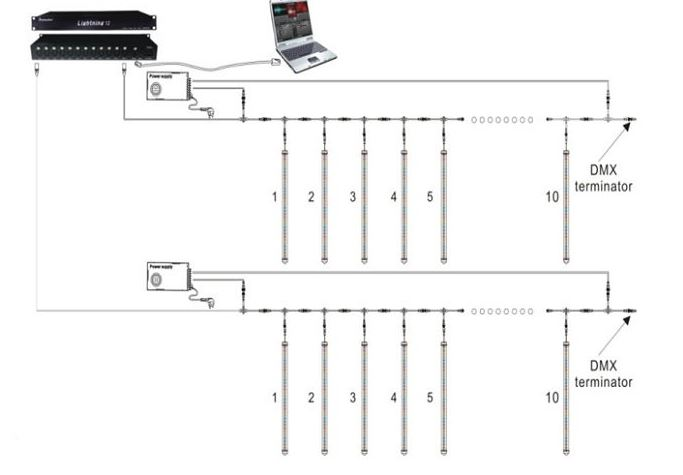

3D rgb tube connection

How to Control 3D LED Pixel Tube Light

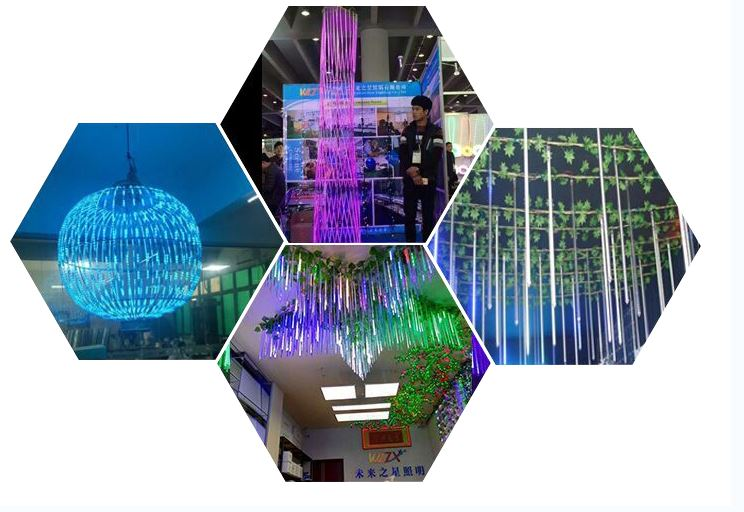

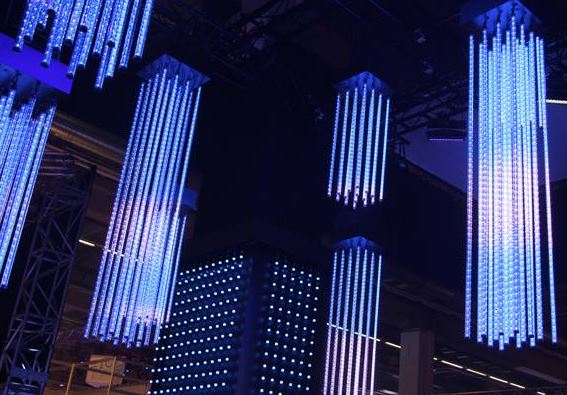

Application of pixel 3D RGB pixel LED tube light
