3D pixel LED ball for amusement industry application
| Item No： | ST-XBL1903-12 |
| LED Light Source： | 3535 High Brightness RGB |
| Light Sources QTY： | 2pcs |
| Color Range： | 16.77 million RGB composite colors |
| Color Resolution： | 3x8bit |
| Beam Angle： | 360 degree |
| Lamp Luminous Flux： | 16 LM |
| Lighting Effect： | 22 LM/W |
| Center Spacing： | 60mm (Customized≥50MM) |
| Lamp Body Material： | PVC Rubber |
| QTY： | 20PCS/Chain（Customized） |
| Light Size： | ￠23X34.1mm |
| Lamp Weight： | 3.5g |
| Certification： | CE RoHS |
| IP Rating： | IP65 |
| ANTI-UV level： | 4 Level |
| Working Temperature： | -25～+45℃ |
| Storage Temperature： | -40～+80℃ |
| Working Condition： | Indoor/Outdoor |
| Remarks: Standard parameters allow for a range of errors | |
For more product details, please see the product specifications.
3D-Pixel-Light-Specifications-Suntech.pdf
1. Made of imported PC material, fireproof, UV resistant, yellowing resistant.
2. Imported brand LED chip, high-quality assurance.
3. SD card controller playback pre-design Single string pixel, easy to install and disassemble.
4. 360° illumination angle, even light mixing, the lighting effect is distinctive.
5. It can be used to connect images and texts, images, etc. in real-time with the controller and computer.
6. The product supports the standard DMX512 communication protocol and can be controlled by the standard DMX console.
7. With UCS1903 IC controlling, this programmable pixel LED ball light can be compatible with Madrix software.
8. Both IP20 for indoor use and IP65 for outdoor use are for choices.
9. These pixel 360-degree ball lights can be controlled both online and offline. It depends on which controller to choose.
Widely used in holidays and celebrations, technology exhibitions, lighting art, music and art can sound control 3D effects, stage stereo lights, SD card controller playback and other effects.
1. Packaging material
Name | Description | Quantity | Weight of no glue | Glue Weight | Remarks |
Each | 20pcs/tie | 20pcs | 0.16Kg | 0.21KG | 10CM |
Electrostatic Bag | 345*250mm | 40pcs | 0.32Kg | 0.42KG | |
Box | 505*460*335mm | 1000pcs | 9.5 Kg | 11.5KG |
2. The outer and side wheat of each carton is affixed to the outer box; Label each bag
of PE bags; Product label on each product;
3. The shipping container is sealed and delivered, and it is handled with care. The product
name, quantity, and other information are marked on the packing box；
4. Storage requirements: moisture, dust, pressure, fall, acid, and alkali, avoid direct sunlight and condensation；
5. Storage period: 1 year (after the deadline, it must be re-examined (electrical
performance) before it can be used again).

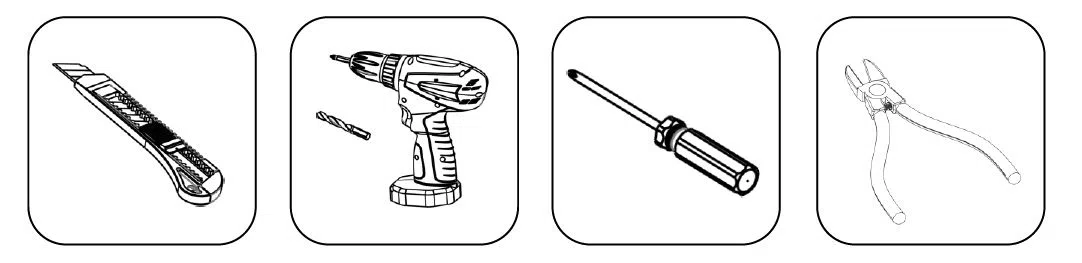

1. Installation tools

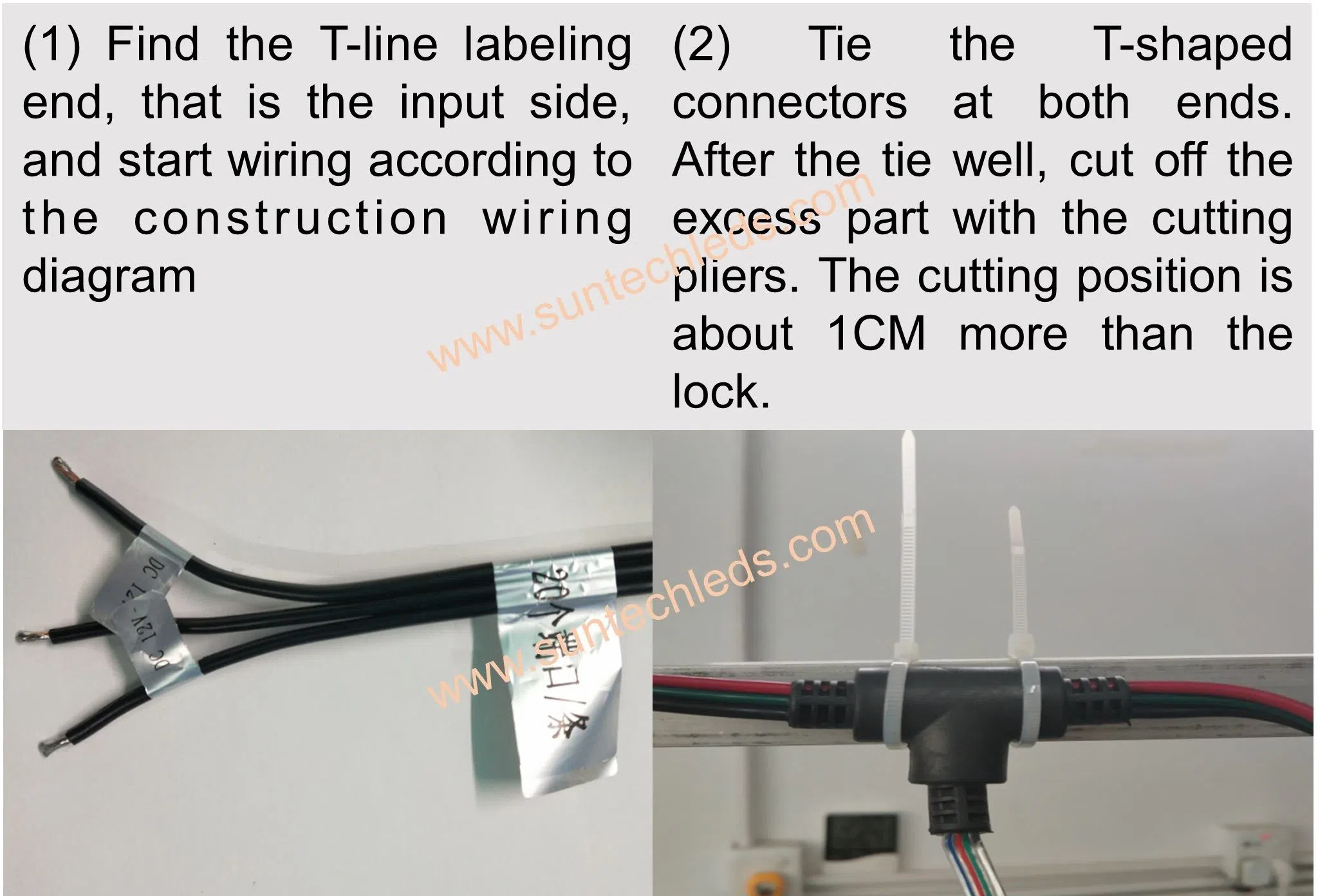

2. Aluminum tank installation method recommendations: Fix the T-line with the cable tie.
The installation suggestions are as follows:
(5) After installation, connect the main power line and signal line according to the clearness of the site.
