What is LED linear wall washer?
LED wall washer, as the name suggests, allows the light to wash through the wall like water. It is mainly used for architectural decoration lighting and also used to outline the outline of large buildings! Because LED has the characteristics of energy saving, high luminous efficiency, rich color, long life, etc., it is widely used!
What is a linear light?
LED linear light series is a high-end flexible decorative lamp, which is characterized by low power consumption, long life, high brightness, easy bending, maintenance-free and so on. It is especially suitable for indoor and outdoor entertainment venues, building outlines and billboard production. According to different needs, the product has 12V, 24V, etc., and the length is 30CM, 60CM, 90CM, 120CM, etc. Line lights of different specifications can also be customized according to customer needs.
What is the difference between led wash wall light and LED linear light?
1. Product appearance
Many led wall washers have lenses. The intuitive point is that the led wall washer has a bracket that can freely adjust the angle.
2. Application effect
The led wall washer is to let the light wash the wall like water. The led line lights are mostly used for building outlines or digital screen effects. Of course, they may also be installed on the corners to let the light find the wall, but the led wall washer is more flexible.
3. Specifications and parameters
Most led wall washers are high-power products, while led linear lights are mostly low-power. Because the led wall washer generally has a certain distance from the wall, the high-power led wall washer is more competent. And the led line lamp is made of outline, and low power is enough. LED wall washer is more difficult to dissipate and waterproof, and it needs drainage and convection design.
Linear Shape Wall Washer Light features
Aluminium alloy housing,surface polyester powder painted
★A new generation of TTL serial technology design
★ Standard DMX512 Control Protocol
★ Industry-leading wireless button-type anti-smash connection design
★ High thermal conductivity glue full potting waterproof design
★ Outdoor lightning protection and Electrostatic (ESD) special protection design
★ The top cover of the product is optional:support PC flat cover or milky white cover
★ The product uses an original hidden mounting slider
★ Support RGB/W current separately adjustable (low light and high)
Product selection table
Model | Light source quantities | Light source | Color | Control | DC Operating Voltage | Power | White light light intensity |
SLA028-48AT | 48PCS | 3535 | RGB/W | Single line serial TTL | 24V | 12W | 120cd |
SLA028-48AD | 48PCS | 3535 | RGB/W | DMX512 | 24V | 12W | 120cd |
SLA028-48XD | 48PCS | 5050 | RGBW | DMX512 | 24V | 15W | 180cd |
SLA028-48CN | 48PCS | 3535 2835 | W | No control | 24V | 12W | 240cd |
SLA028-60AT | 60PCS | 3535 | RGB/W | Single line serial TTL | 24V | 15W | 150cd |
SLA028-60AD | 60PCS | 3535 | RGB/W | DMX512 | 24V | 15W | 150cd |
SLA028-60XD | 60PCS | 5050 | RGBW | DMX512 | 24V | 20W | 225cd |
SLA028-60CN | 60PCS | 3535 2835 | W | No control | 24V | 15W | 300cd |
SLA028-72AT | 72PCS | 3535 | RGB/W | Single line serial TTL | 24V | 18W | 180cd |
SLA028-72AD | 72PCS | 3535 | RGB/W | DMX512 | 24V | 18W | 180cd |
SLA028-72CN | 72PCS | 3535 2835 | W | No control | 24V | 18W | 360cd |
Parameters of outdoor LED wall washer light
Basic parameters | |||
Color/gray | RGB/W each 256 grayscale; | ||
Light source | 3535 /5050 /2835 | LED quantities | 48-72pcs (0.25m-1m, length can be customized according to requirements) |
Material | Aluminum spray housing / anodized + optical PC cover | ||
Lifespan | 50,000h | Weight | 710g/m |
Optical parameters | |||
Operating Voltage | DC24V | Maximum power | 12~20W/m |
RGB Light intensity | 180cd/m | White light | 360cd/m |
Beam angle | 30°/45°/60°/90°/120° | Electric grade | Class III |
Other parameters | |||
Operating temperature | -20°C to 50°C | Storage temperature | -40°C to 70°C |
Protection level | IP66 | ||

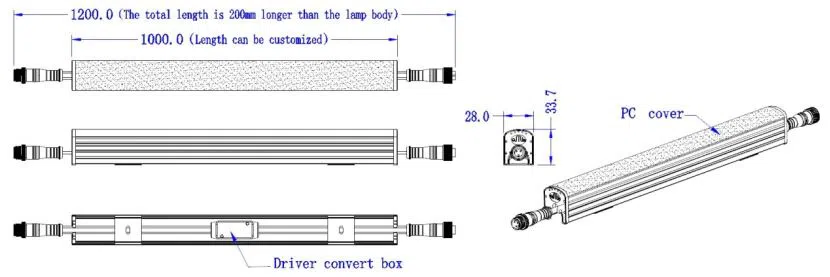

LED wall washer light Measurement (Unit:mm)

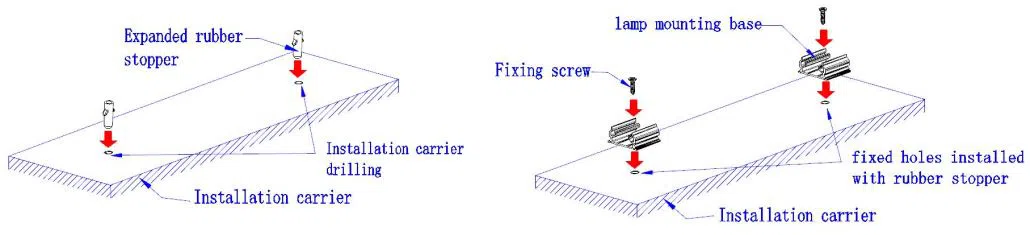

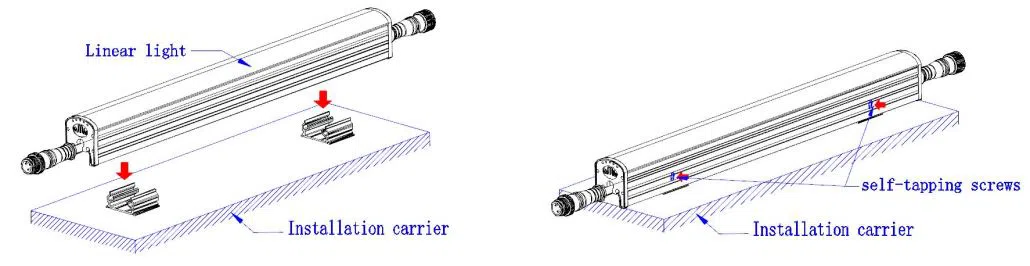

How to install led washer wall light?
For more details, please download the specifications.
Linear-light-specification.pdf
Three things to know before buying a wall wash light
1. The titanium plating process of wall washer profiles and aluminum profiles is a coating process. Good aluminum profiles are characterized by corrosion resistance, high thermal conductivity, and strong durability.
2. There are many types of wall washer in shopping malls, but one quality of LED wall washer is LED chip light source. The color temperature of the chip is indicative, and the luminosity is very important. A good light source is characterized by high luminous power, low power consumption, long life, safety and reliability, and environmental protection. The luminous efficiency of LED will reach 50~200 lumens/watt, its light monochromaticity is good, the spectrum is narrow.
3. The waterproof level of the wall washer is an important parameter of the wall washer, and it is also an important indicator that affects the quality. We must make strict requirements. The waterproof rating is above IP66, which is better. It is also required to have relevant pressure resistance, crack resistance, high and low temperature resistance, flame retardancy, impact resistance and aging resistance.

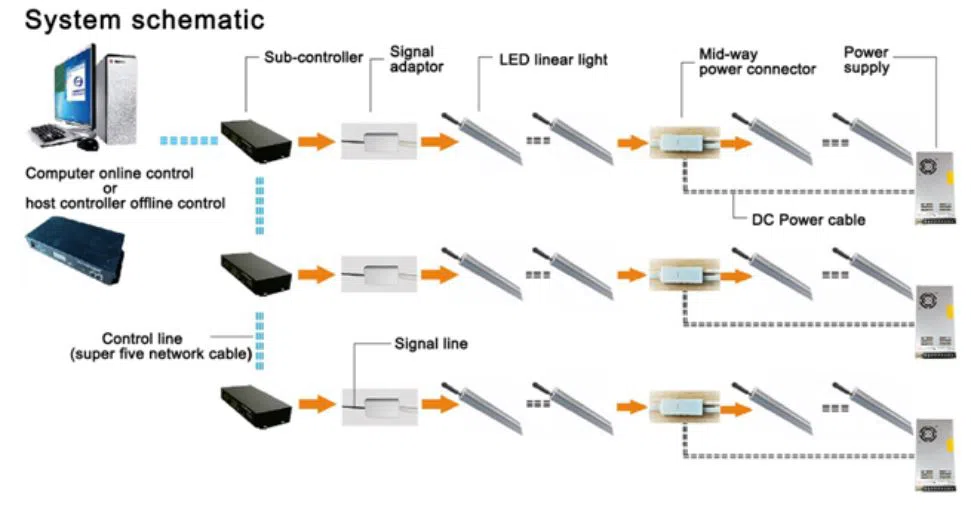

How to control and connect Linear Shape Wall Washer Light
1.The main controller is equipped with sub-controller and signal adaptor. The main control and sub-control working voltage is AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.
2. Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200 meters long distance transmission.
3.The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from the signal adaptor to the first pixel light is no more than 2 meters.
4.It is recommended that the maximum point spacing should not exceed 2.5 meters, and each intermediate power supply can support the power supply distance of 6 meters left and right (can be adjusted according to the project conditions).

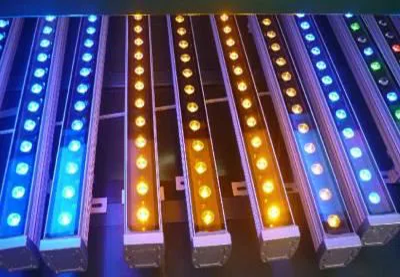

LED Wall Wash Light pictures:
FAQ
Q:What kinds of LED chip do you use ?
A: We provide products with three-year warranty and five-year warranty.
Three-year warranty : using Epistar LED chip.
Five-year warranty using CREE/OSRAM LED chip.
Q:What kinds of certificate do you have ?
A: Good quality approved by GS, CE,CB,UL,RoHS.
Q: How about the deliver time ?
A: For samples ,the lead time is 5-7days,For mass production ,the lead time is 12-15 days after receiving the deposit payment.
Q: How about shipment?
A: For small order, we can ship it by DHL,FedEx,UPS,TNT,etx. for big order ,we can ship it by sea or by air.
Q: What kinds of payment methods do you accept?
A:You can make the payment to our bank account, Western Union or PayPal etc. 30% deposit in advance,70%balance against the copy of B/L.
