IP66 RGBW DMX512 LED Facade Linear Light 12V/24V

Product code: LA018 Lamp type: LED linear lights Light source: 2835/3535/5050 Material: Aluminum Body+PC Cover IP rating: IP67 Warranty: 5 years Outdoor LED linear lighting wall washer applies to facade lighting, Landscape Lighting, and architectural lighting.


LA018 Linear Light

The LA018 linear light is a low-power LED strip product designed for outdoor landscape lighting and outdoor facade lighting. It adopts aviation-grade 6063 extruded aluminum shell, flame-retardant plastic PC end cover, and is waterproof by high thermal conductivity and weather-resistant PU glue; the light bar is small in size and exquisite in appearance; the light strips are connected by national standard flexible cable; the product length and color can be Customized, can adapt to the installation of large curves or curved surfaces; suitable for the contour of the building facade, the interior, and exterior surfaces are brightened.

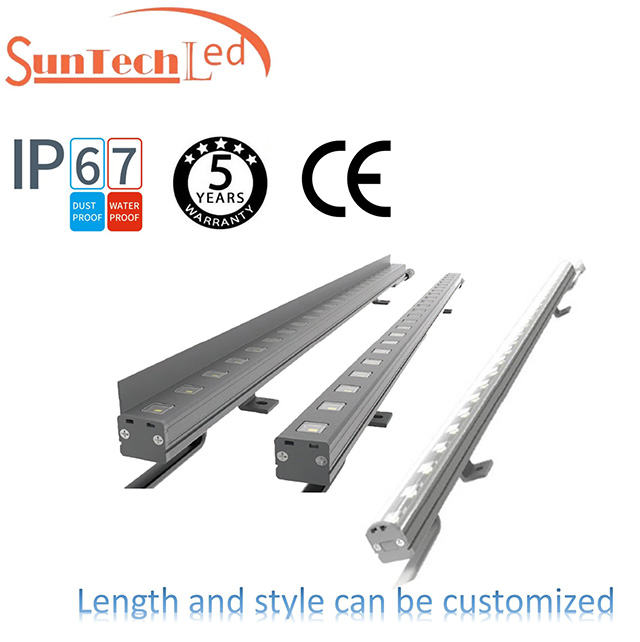

IP67 RGBW DMX512 LED Facade Linear Light 12V 24V suntech

LA018 Linear Light Features

★ New generation dual-channel real-time backup control protocol

★ Industry-leading wireless button-type anti-smash connection design

★ High thermal conductivity glue full potting waterproof design

★ Outdoor lightning protection and Electrostatic (ESD) special protection design

★ The top cover of the product is optional: support PC flat cover or aluminum punch flat cover

★ The product uses an original angle adjustable bracket design

★ Support RGB/W current separately adjustable (low light and high gray)

Product Size (Unit: mm)

linear light product size

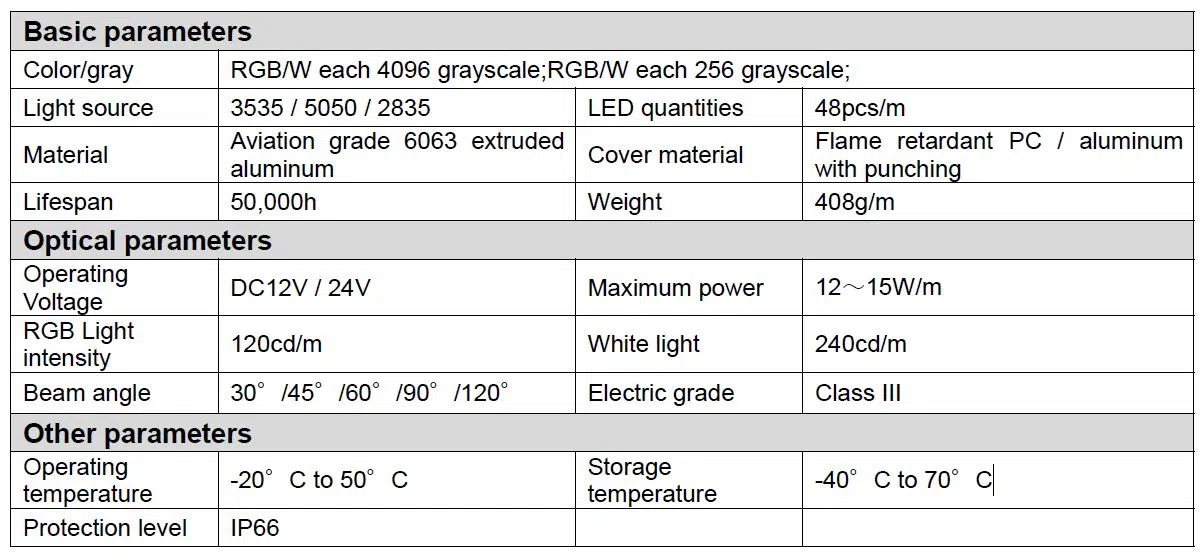

Technical Parameters

LA018 RGBW linear light Technical Parameters

* If you are looking for more architectural wall lighting products, please check here: exterior linear wall washer | exterior led spot lights

Light Distribution Curve

LED linear light Light distribution curve

Product Installation

linear light product Installation

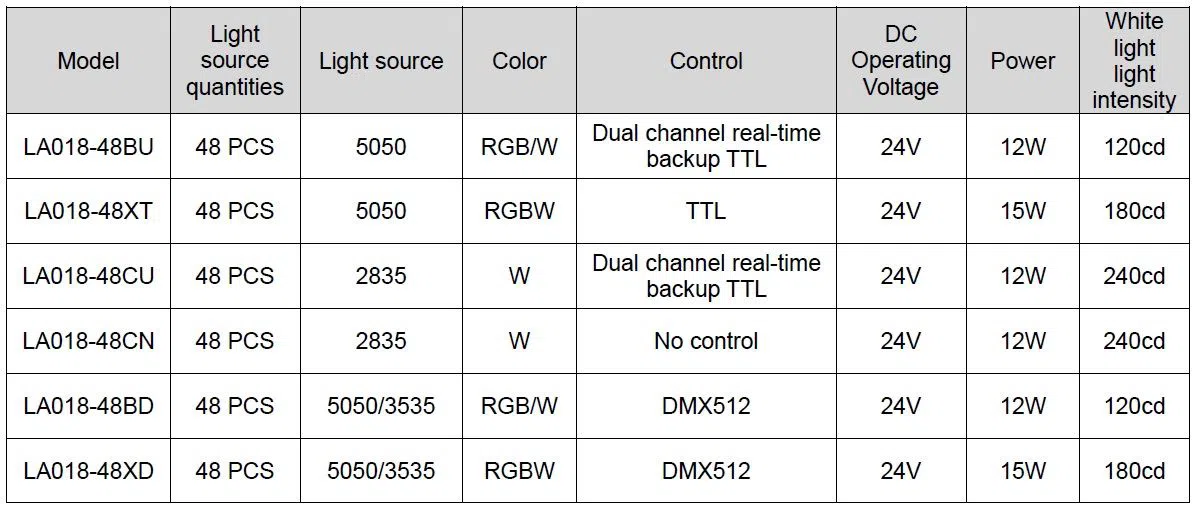

LA018 LED LinearLight Selection Table

LA018 RGBW linear light product table

View more architectural DMX LED lights: outdoor DMX lighting | DMX LED dot lights | DMX LED spotlight

Angle Adjustable Mounting Bracket Installation

Angle adjustable installation linear light

System Connection

1、The main controller is equipped with a sub-controller and signal adaptor. The main control and sub-control working voltage are AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.

2、Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX

sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200

meters long-distance transmission.

3、The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from the signal adaptor to the first pixel light is no more than 2 meters.

4、It is recommended that the maximum point spacing should not exceed 2.5 meters and each intermediate power supply can support the power supply distance of 6 meters left and right (can be adjusted according to the project conditions).

System Schematic

linear light Control system


1. Please read the installation manual carefully before using the product.

2. The product is handled gently and gently to avoid damage to the product. Installation, maintenance, and maintenance must be handled by professionals;

3. The external power supply must be cut off during wiring to prevent people from getting an electric shock or damaging the lamp;

4. When the external power cord is connected, the corresponding measures of waterproofing and water

leakage must be taken;

5. The male and female waterproof protective covers for the products shall not be removed before the

products are installed and connected;

6. Quality Assurance: Under normal conditions of use, quality assurance is based on the proper storage,

installation, use, and maintenance of the product.

(Note: Product damage caused by improper installation and use, in violation of product operating procedures, is not within the scope of product quality assurance.)

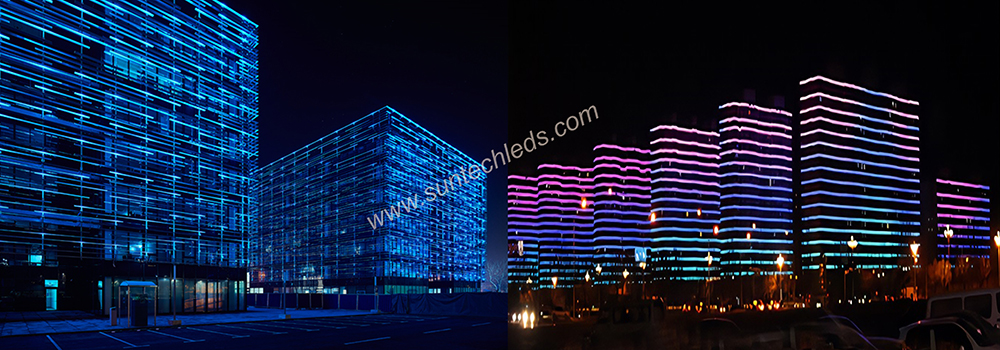

Applications of LED Linear Light

Turn common landscapes, exterior walls, or outdoor areas into unique spaces.

SLA series outdoor LED linear lights provide efficient visual comfort-not only through future-oriented light sources and control devices, but also through the best and effective lighting technology for various applications. Our product range includes flexible lighting lines, rigid lighting lines, and underground lights. Turn common landscapes, industrial areas, parking lots, exterior walls, or other outdoor areas into unique spaces.

SLA series outdoor LED linear lights combine all the advantages of LED lighting with traditional to modern designs and provide you with wattage, color temperature, aesthetics, and installation options to meet your needs.

They are exposed to dust, atmospheric influences, and extreme temperature fluctuations. Compared with other lamps, they have to withstand greater pressure.


IP66 DC12V/24V DMX led wall washer linear light. The program control, the illusion of a variety of wall washing effects, so that the lighting is extraordinarily colorful. The wall-washing lamp has a special length of use, which can ensure long-term continuous use outdoor. Our outdoor LED linear facade lighting makes ordinary landscapes, industrial areas, parking lots, facades, and other outdoor locations into one-of-a-kind environments. We cater to various wattages, color temperatures, aesthetics, and mounting options to meet your specific requirements.


Event lighting and Media lighting

We provide the most professional and most complete types of building lighting, facade lighting and landscape lighting products.

With the continuous advancement of LED technology, the appearance and performance of linear lights continue to improve. In addition to building lighting, facade lighting and landscape lighting, LED linear lights are applicable to more and more scenarios. For example, event lighting and media facade lighting. More and more linear elements are used in lighting scenes, and compact and efficient lighting methods increase the sensory experience and visual art effects of the space.

For more details, please download specifications for reference on this page.


We are the leading LED outdoor light supplier and outdoor LED linear facade lighting wholesale supplier in China. We can produce single color, RGB, RGBW color-changing LED linear facade lights. No matter if you are looking for an LED linear lights supplier or if you need custom-made linear lights, we can all help. Send inquiry to get an instant quote now!

If you are also looking for LED wall washer light suppliers, Suntech will be your best choice.
