1. Patented private design , RGB & RGBW & Single colors available. 2. Luminaire lengths are available in 500mm（ 1.64ft) and 1000mm(3.2ft). 3. Beam angles. choose from narrow (10° ,10 by 60°),medium (40,20° x 60°),or wide (60° ,100°) . 4. Top quality LED Lens, top performance for lighting distribution. 5. IP66 design, Structural waterproof + glue waterproof double protection.
6. CREE or Osram LED chip
7. Regular or DMX type are both available.
DMX LED wall washer light parameters | DMX Wall wahser light LED chip parameters | ||
Beam angle | 25 * 45°/ 30°/ 60° | LED chip Brand | Osram / Cree |
Wall washer body material | Aluminium profile , | Chip size | SMD5050 |
Wall washer lamp cover | Color | Singlce color & RGB | |
IP Rate | IP65 | Lifespan | 50000 hours |
Power | 12w | Other parameters | |
Input voltage | DC24v | Wire standard | Silicone or PVC |
Lighting efficiency | 80lumen/w | Wire's connector | Φ16mm Aluminum alloy |

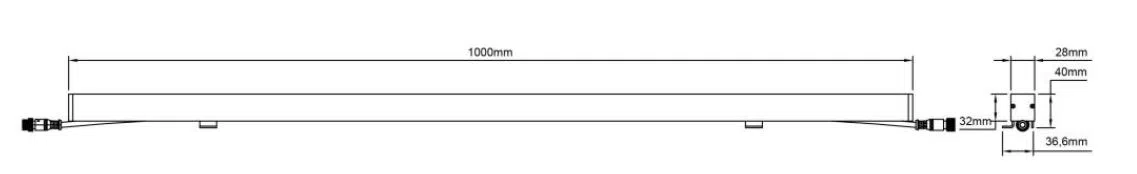

Beam angle adjustment | Size | L1000*H40*W30mm | |

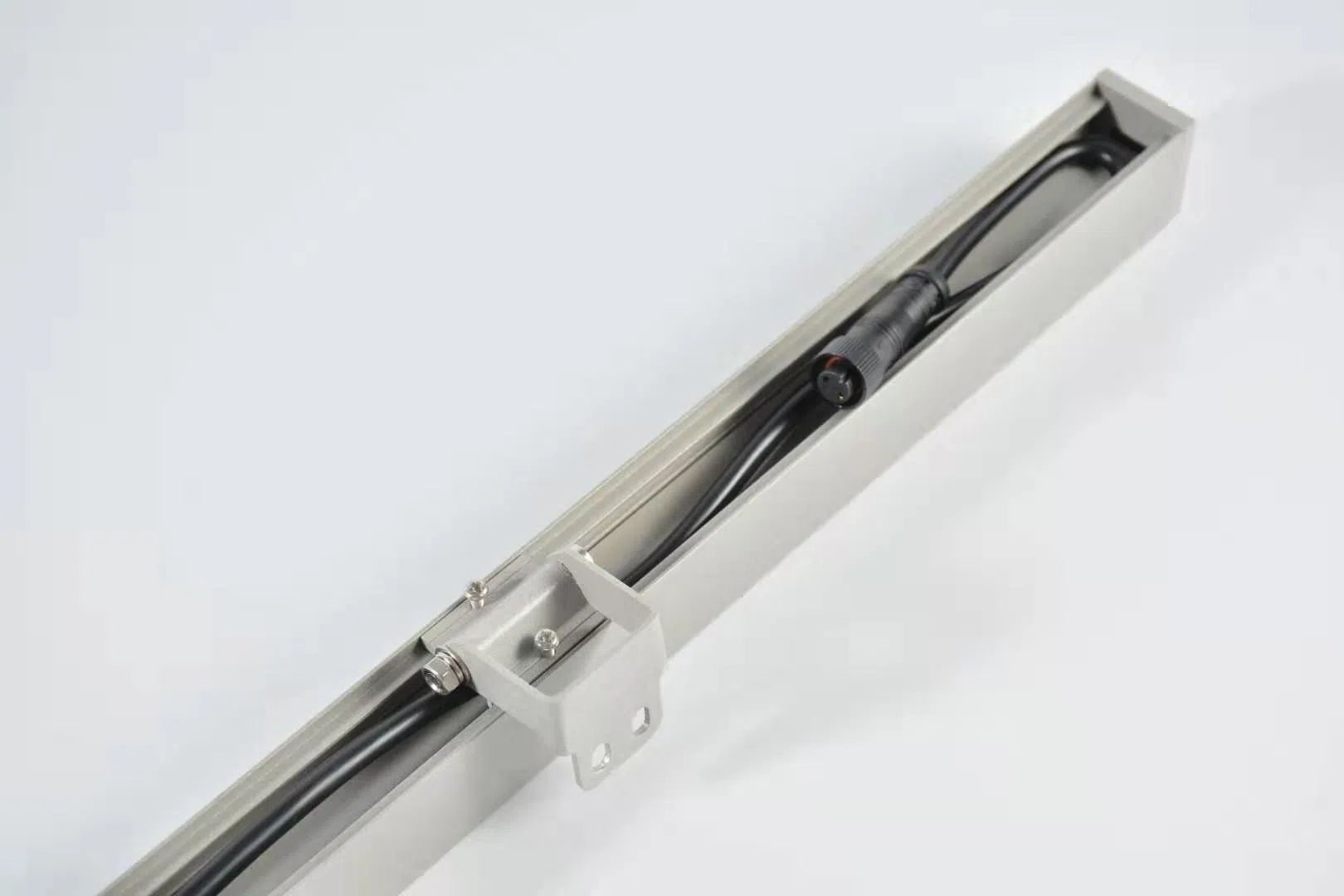

Wires's direction | Middle of bottom | Wire's length | 55cm |
Max connection quantity | 10pcs | Mounting brackets | 6063 aluminium |
Control way | Single color/DMX512 | Net weight | 1.07kg |
Working temperature | -20℃-55℃ | ||
