Programmable Landscape LED Linear Lighting

Product code: SLB023 Lamp type: LED linear lights Light source: 2835/3535/5050 Material: Aluminum Body+PC Cover IP rating: IP67 Warranty: 5 years Outdoor LED linear lighting wall washer applies to facade lighting, Landscape Lighting, and architectural lighting.

Availability:
Programmable Landscape LED Linear Lighting
Programmable Landscape LED Linear Lighting

SLB023  Linear Light

SLB023 is a low-power LED strip product specially designed for outdoor landscape lighting and outdoor facade lighting. Adopt high thermal conductivity extruded aluminum shell, flame-retardant plastic PC end cover, sealed and waterproof with high thermal conductivity and weather-resistant PU glue; the small size of the light bar, exquisite appearance, uniform light mixing; the light bar is connected through the national standard customized flexible cable. The length and color of the product can be customized, which can be adapted to the installation of large curves or curved surfaces; it is suitable for contouring of building facades, and decoration and brightening of internal and external surfaces.

landscape--Linear-Lighting-suntechleds


Features of SLB023 Linear Light


★ Standard DMX512/TTL/Resume transmission control protocol

★ Professional design of outlet mode, simpler power supply mode

★ Special protection design for outdoor lightning protection and static electricity

★ Adopt intelligent control products, support RGB/W current separate high brightness adjustable and special effect

★ Uniform light mixing, seamless splicing

★ Good heat dissipation performance, high waterproof level (IP67)

★ High thermal conductivity adhesive, fully potted and waterproof design

★ Professional optical design, fine and uniform light mixing

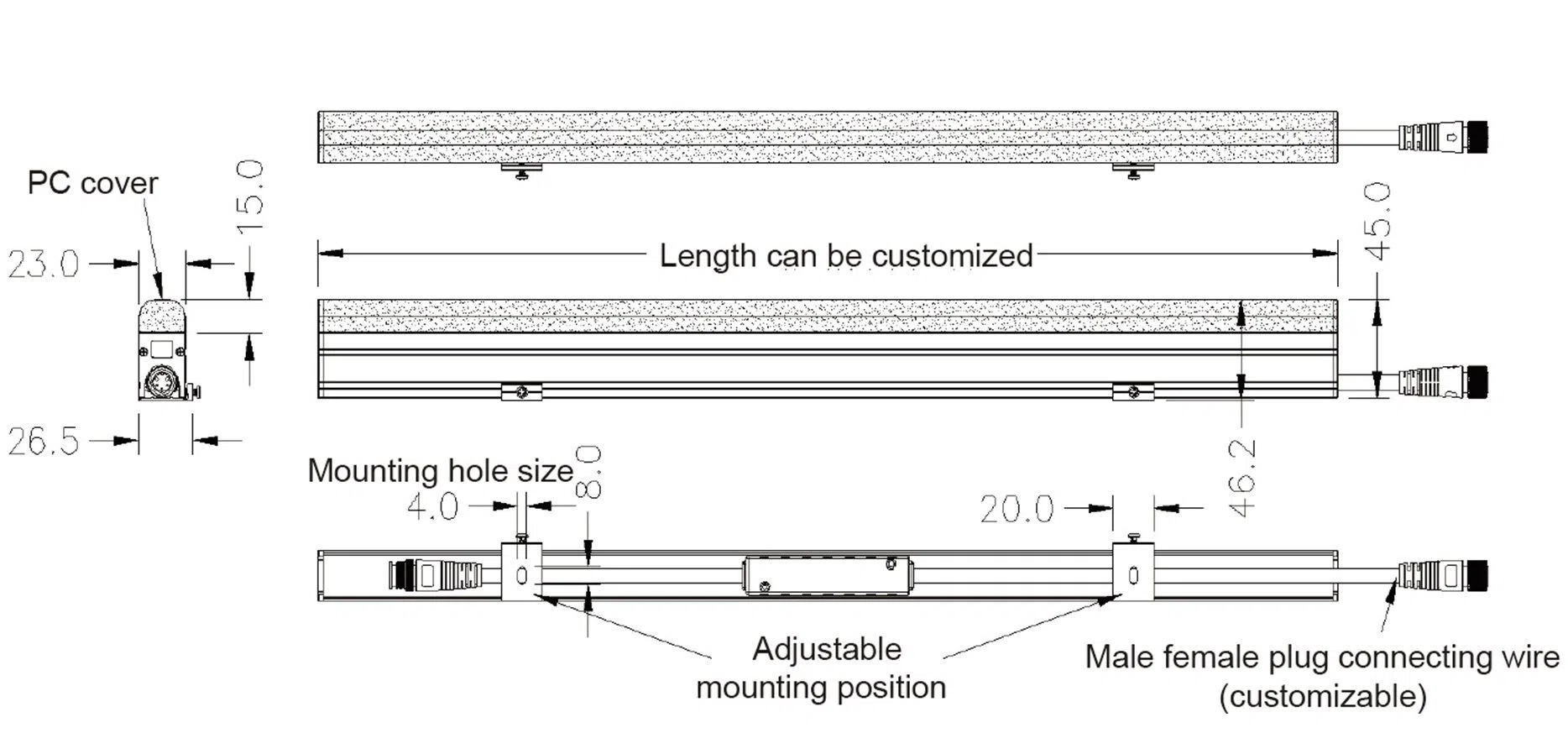

Product Size (Unit: mm)

Programmable Recessed landscape Linear Lighting Dimensions


Technical Parameters


Programmable Recessed landscape Linear Lighting Parameters

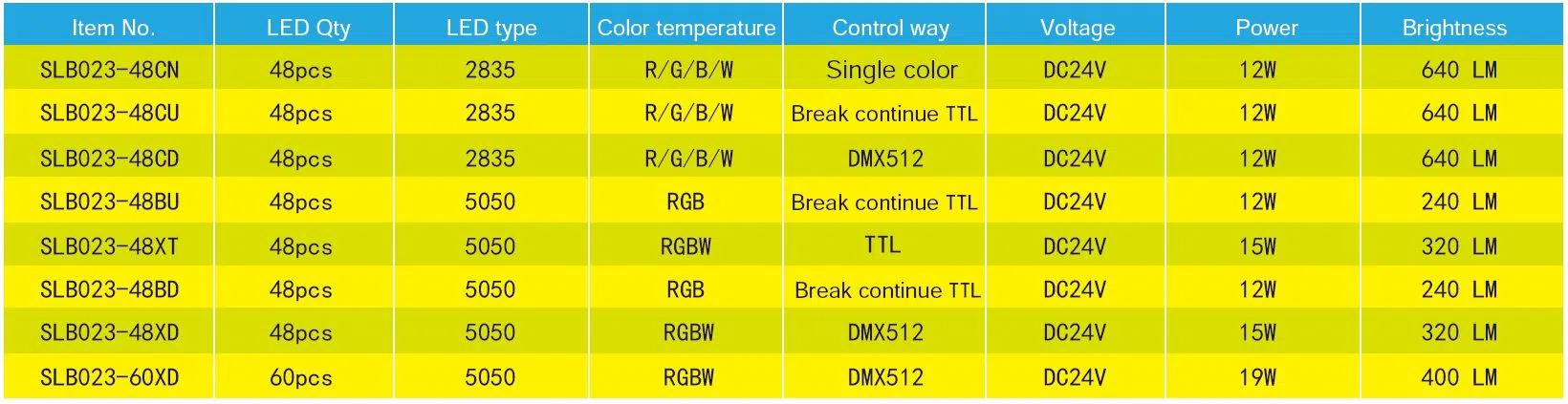

Product Selection Table


Programmable Recessed landscape LED Linear Lighting product table


* If you are looking for more architectural wall lighting products, please check here: linear wall wash light fixture | external LED spotlights



 Installation Notes


Programmable Recessed landscape Linear Lighting Installation


System Connection


1、The main controller is equipped with a sub-controller and signal adaptor. The main control and sub-control working voltage are AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.

2、Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX

sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200

meters long-distance transmission.

3、The main control and sub-control, sub-control and sub-control are connected by Category 5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the data converter is not more than 150 Meters. In this case, the maximum distance from the data converter to the first light point is not more than 2 meters..

4、It is recommended that the maximum point spacing does not exceed 3 meters, which exceeds the

recommended signal amplifier. The middle power supply box can hold the current supply of 7.5A at each of the left and right ends, and the power supply distance can be adjusted appropriately according to the actual application!

5、If the lamp is monochrome and has no control, there is no need to connect the control part of the

equipment!

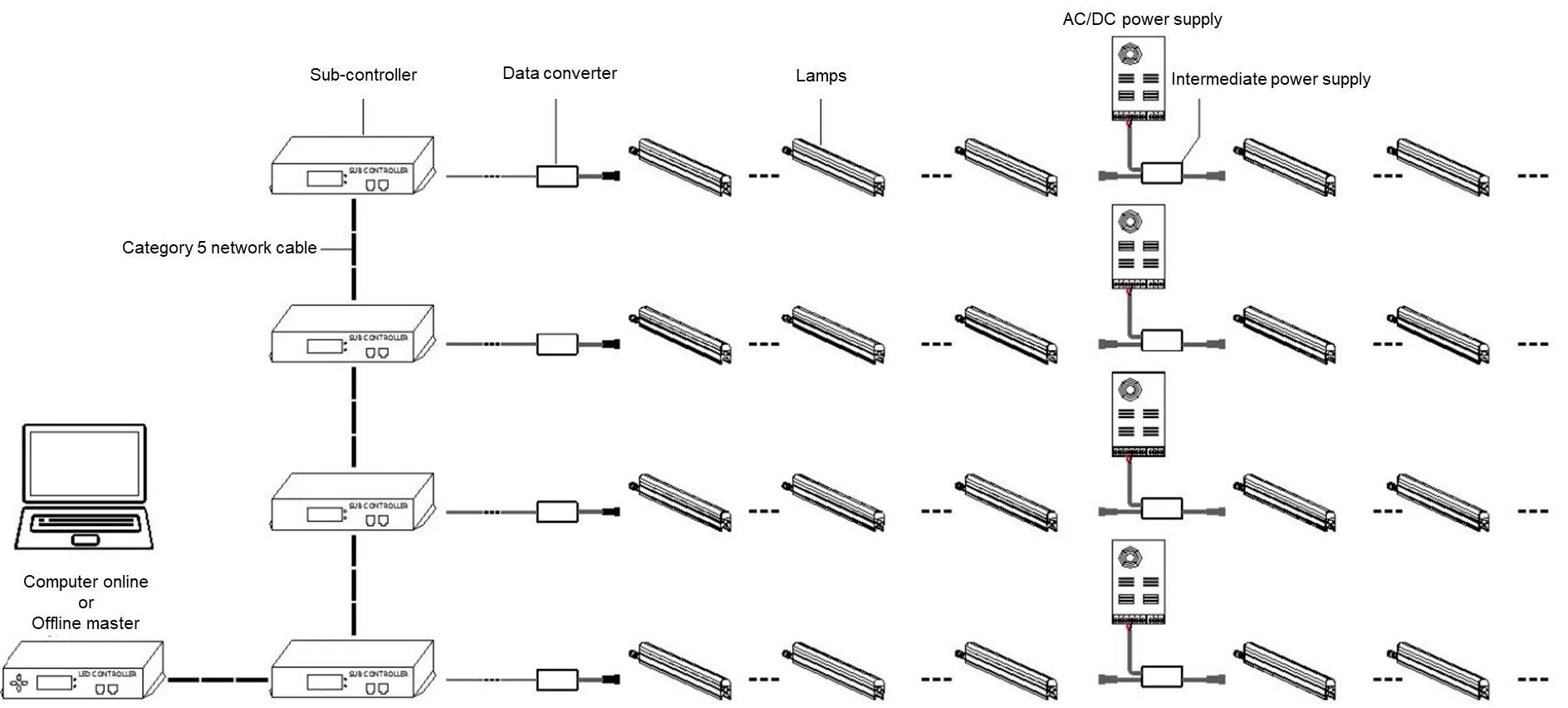

System Schematic

Programmable Recessed landscape LED Linear Lighting power supply


Notes


1. Please read the product manual carefully before installing and using the product;

2. Handle the product with care to avoid damage to the product, please leave it to a professional for installation, repair and maintenance;

3. When wiring, please understand clearly the label on the lamp connector;

4. The external power supply must be cut off when wiring to prevent electric shock or damage to the lamp;

The product must be installed before it can be energized;

5. When connecting an external power cord, you must take corresponding waterproof and leaking measures;

6. Clean the dust of the lamp housing and radiator regularly to maintain good heat dissipation performance;

7. Be careful not to clean with water or strong corrosive solutions, it is best to use a dry cloth;

8. Quality Assurance: Under normal conditions of use, quality assurance is based on the correct preservation, installation, use and maintenance of the product.

(Note: Product damage caused by improper installation and use or violation of product operating

regulations is not within the scope of product warranty.)


Applications of LED Linear Light


led-linear-light-Applications-suntech


IP67 DMX led linear light. The program control, the illusion of a variety of illumination effects, so that the lighting is extraordinarily colorful. The lamp has a special length of use, which can ensure long-term continuous use outdoor. SuntechLED is a premier LED outdoor light supplier and manufacturer in China, our outdoor LED linear facade lighting makes ordinary landscapes, industrial areas, parking lots, facades, and other outdoor locations into one-of-a-kind environments. We cater to various wattages, color temperatures, aesthetics, and mounting options to meet your specific requirements.


This video shows a Five-star international hotel building lighting project with a DMX512 controller of Linear LED Lights. We provide the most professional LED lighting project solutions and installation instructions.



How to brighten the architectural facade with LED linear lights?


It is very important and widely used to extend one's perception and define space constraints on night walls or building facades. A narrow-beam LED linear wall washer installed on the floor or embedded in a recess and illuminate vertically is the most commonly used method in the visual environment to identify areas based on their form, whether they are exterior walls or walls covered with climbing plants.  The goal may be to achieve uniform wall washing comparable to indoor areas or to lightly illuminate the building in a night environment.

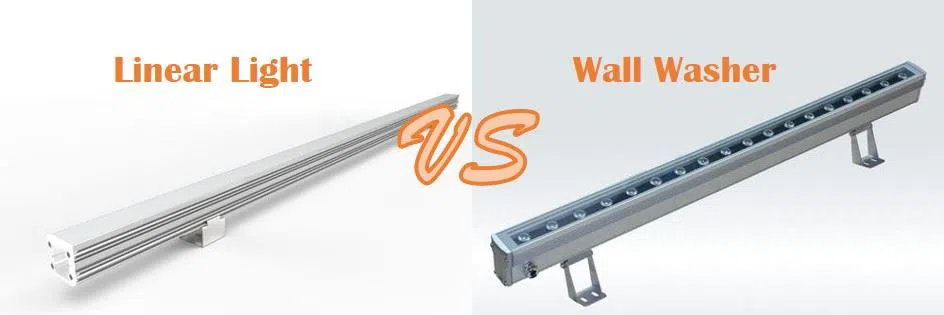

The Difference Between LED Wall Washer And LED Linear Light


difference between LED wall washer and LED linear light suntech

the difference between LED wall washer and LED linear light suntechleds


For more details, please download specifications for reference on this page.

SLB023 Linear light specification SuntechLED.pdf


We are the leading outdoor LED linear facade lighting manufacturer and wholesale supplier in China. We can produce single color, RGB, RGBW color-changing LED linear facade lights. No matter if you are looking for an LED linear lights supplier or if you need custom-made linear lights, we can all help. Send inquiry to get an instant quote now!
