Outdoor Indoor Architectural Linear LED Lighting For Bridge, Museum, Hall

Product Code: SLB030 Lamp type: LED linear lights Light source: 2835/3535/5050 Material: Aluminum Body+PC Cover IP rating: IP67 Warranty: 5 years Outdoor LED linear lighting wall washer applies to facade lighting, Landscape Lighting, and architectural lighting.

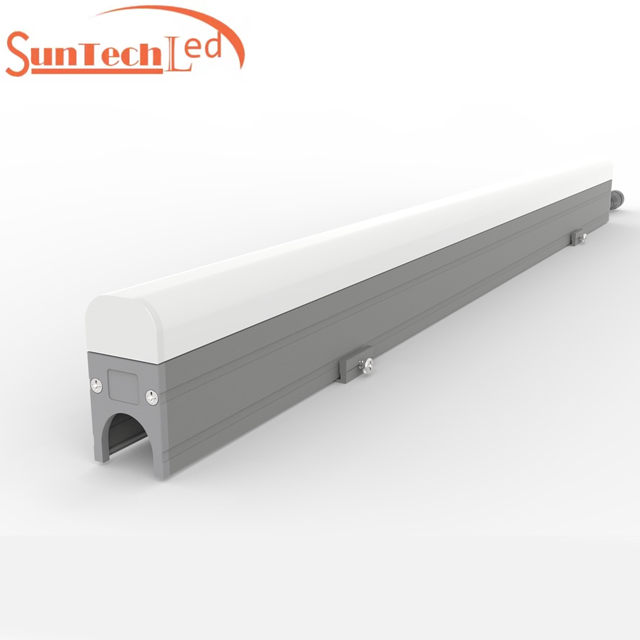

SLB030 Linear Light

SLB030 linear light is a low-power LED strip product specially designed for outdoor landscape lighting and media facade lighting. Adopt high thermal conductivity extruded aluminum shell, flame-retardant plastic PC end cover, and waterproof with high thermal conductivity and weather-resistant PU glue; the small size of the light bar, exquisite appearance; the connection between the light bars through the national standard customized flexible cable; product length and color can be customized, Can adapt to the installation of large curves or curved surfaces; suitable for contouring of building facades, and decorative and brightening of internal and external surfaces.

Product Features

★ Standard DMX512 control protocol/ Dual channel real-time backup TTL

★ Built-in anti-pull connection design for waterproof connector

★ High thermal conductivity adhesive, fully potted, and waterproof design

★ Special protection design for outdoor lightning protection and static electricity (ESD)

★ Product flexibility, wide application, multiple installation methods

★ Professional optical design, fine and uniform light mixing, seamless splicing, no dark areas

★ Support RGB/W current individually adjustable (low brightness and high gray)

Product Size (Unit: mm)

SLB 030 linear light product size

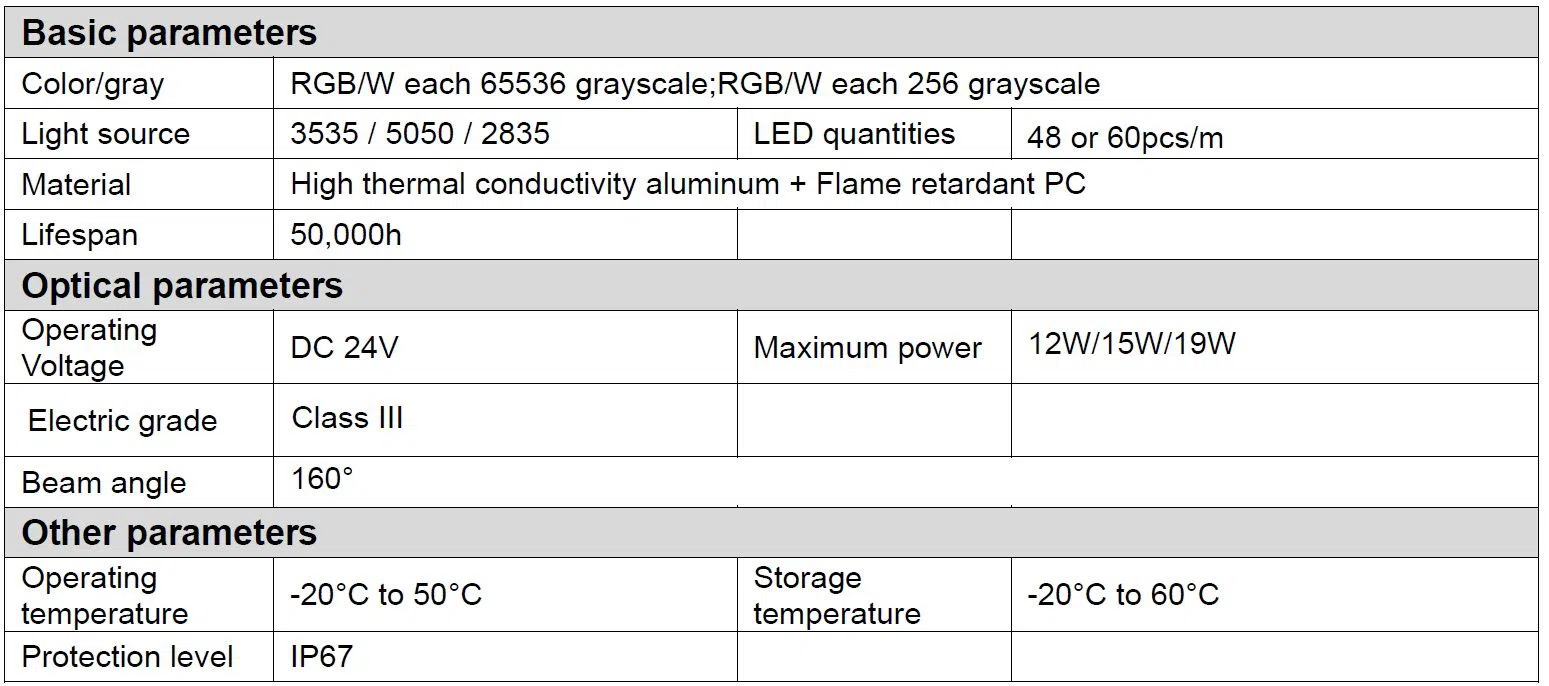

Technical Parameters of LED Linear Light

SLB 030 linear light Technical Parameters

Product Selection Table

SLB 030 linear light product table

If you are looking for more DMX LED lights, please click here: DMX lighting system | DMX LED spotlight | LED pixel bar DMX

More LED Linear Light for you to choose from:

SLB023 Programmable LED Linear Light

SLA028 DMX RGB LED Linear Light

SLA018 DC24V LED Linear Light

Suntech LED is a professional LED outdoor light supplier, we also have DMX LED dot lights, exterior linear wall washer, LED floodlight outdoor, etc. We can customize the LED lighting fixtures according to your needs. Welcome to contact us now!

Installation Method

SLB030 linear light Installation


1. Please read the installation manual carefully before using the product.

2. The product is handled gently and gently to avoid damage to the product. Installation, maintenance and maintenance must be handled by professionals;

3. The external power supply must be cut off during wiring to prevent people from getting an electric shock or damaging the lamp;

4. When the external power cord is connected, the corresponding measures of waterproofing and water

leakage must be taken;

5. The male and female waterproof protective covers for the products shall not be removed before the

products are installed and connected;

6. Quality Assurance: Under normal conditions of use, quality assurance is based on the proper storage,

installation, use and maintenance of the product.

For more product details, please download SLB030 specification. SLB030 Linear light specification Suntech.pdf

Product Applications

led linear light Applications

We provide professional LED lighting solutions, installation, and products. This is a commercial complex, a lighting rendering of a shopping mall. Using DMX-controlled LED linear lights, programmable remote control lighting effects, to create a colorful world, attract more people to come.


What is a linear LED light?

LEDs or "light-emitting diodes" provide efficient and long-lasting light sources. When multiple LEDs are packaged in a long and narrow housing, they produce a light strip, also known as linear lighting. This relatively simple design concept has completely changed the way LEDs are used in lighting applications. Previously, lighting for longer spaces was a real challenge for the available technology. Incandescent bulbs are not suitable for linear lighting applications. Fluorescent tubes lack the ability to connect lamps together, resulting in black spots between lamps. Now, LED linear lighting produces uninterrupted light without leaving black or dark spots. Linear LED lights use fewer watts to emit the same or higher level of lumens (brightness), they have a longer life span (up to 50,000 hours of use), and they contain no mercury or other harmful substances. With the development of technology, aesthetics and performance have become better.

What is linear lighting?

Linear lighting is defined as a luminaire with a linear shape (as opposed to a square or circle). Compared with traditional lighting, these lamps use long optical elements to distribute light in a narrower area. Generally, these lamps are very long and can be hung from the ceiling, surface mounted on the wall or ceiling, or embedded in the wall or ceiling.

Where can I buy linear LED lights?

The range and types of linear LED lights are very wide, and it can be confusing which option is best for your project. Our lighting experts are happy to show you how to create stunning office spaces or outstanding effects in any commercial or public area.

We are the leading outdoor LED linear facade lighting manufacturer and wholesale supplier in China. We can produce single color, RGB, RGBW color-changing LED pixel light facade lights. No matter if you are looking for an LED pixel light lights supplier or if you need custom-made pixel light lights, we can all help. Send inquiry to get an instant quote now.

If you are also looking for LED wall washer light suppliers, Suntech will be your best chice.
