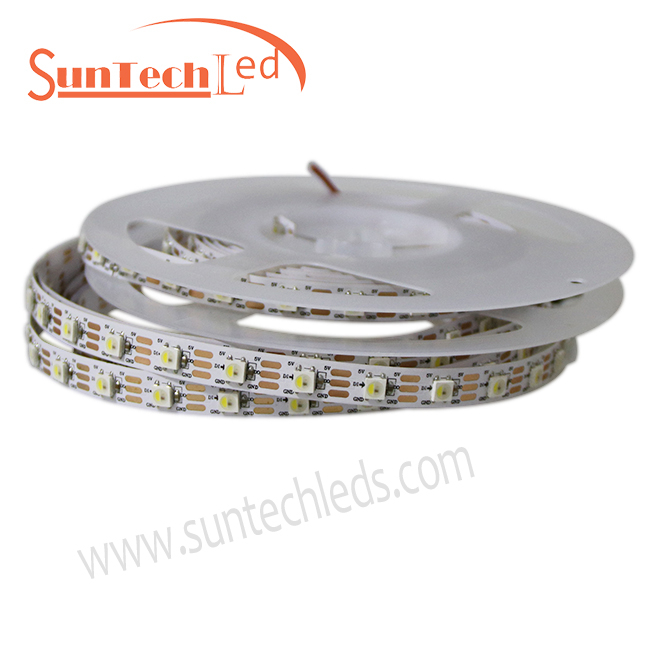

SK6812 RGBW led strip is individually addressable, it has an extra white channel total 4 channels besides RED, BLUE and GREEN, 256 gray levels and 8 bit color display each color . This programmable RGBW is compatible with arduino platform
We are a China professional factory, with professional sales team to serve you well.
Product introduction:
SK6812 RGBW led strip is individually addressable, it has an extra white channel total 4 channels besides RED, BLUE and GREEN,
256 gray levels and 8 bit color display each color . This programmable RGBW is compatible with arduino platform. We are a China
professional factory, with professional sales team to serve you well.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SK6812RGBW-60-5V | 60 | Addressable RGBW | 60 | ≤18W | 5v | Double Copper PCB 5000*10mm |
Product details

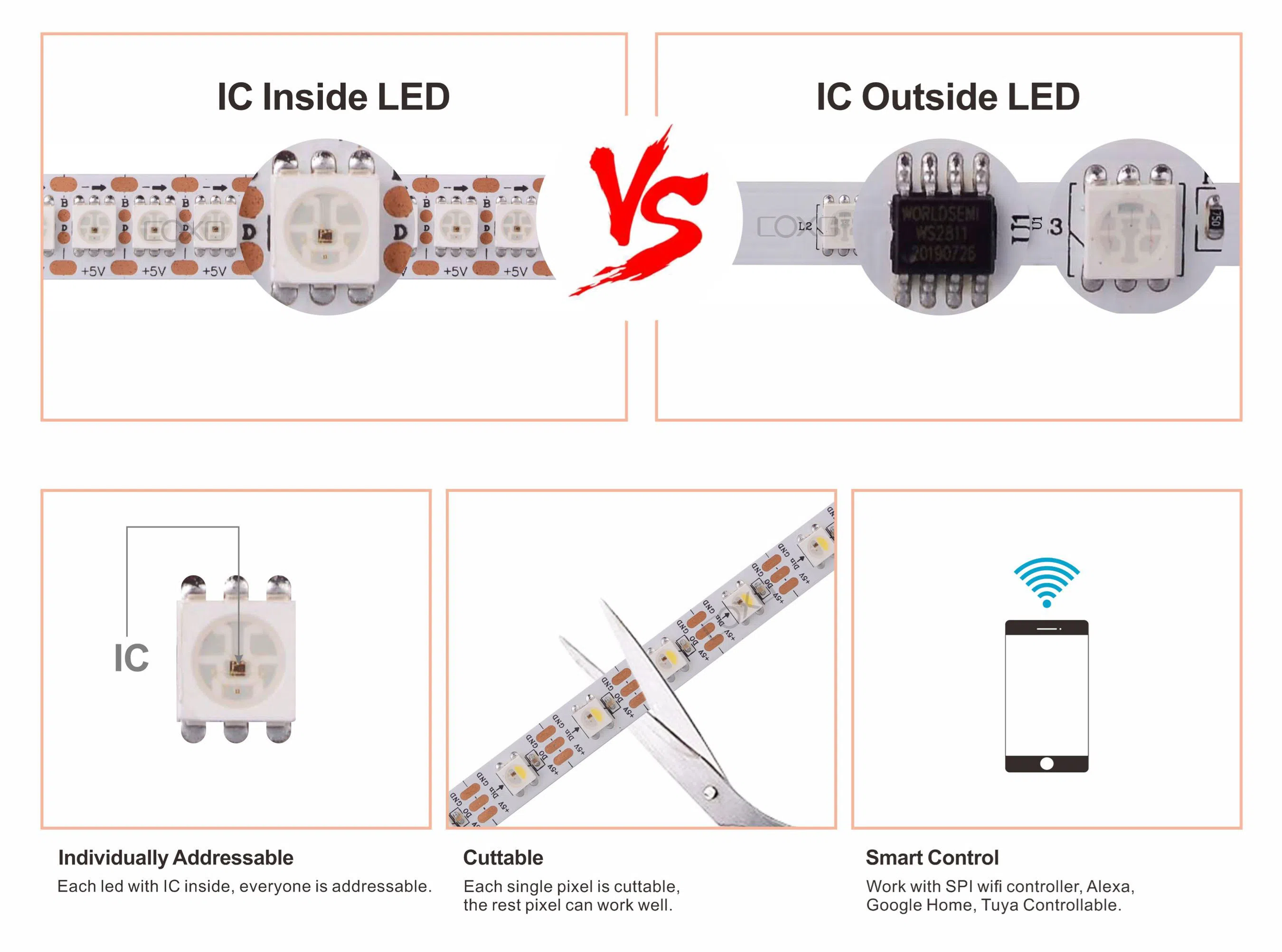

1. SK6812 has the same function as WS2812B with built-in IC that could be independently addressable, with extra white channel
you can set them to any color or animation you want
2. SK6812 / WS2812B support many controllers such as Arduino, FastLED library, Raspberry Pi, Fadecandy, T1000S, K1000C etc

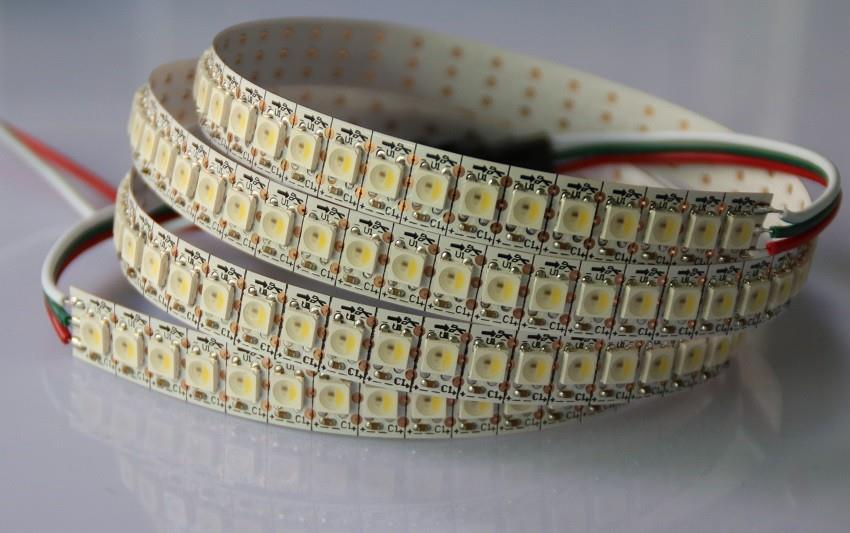

3. 30 leds 60leds 72leds and 144leds per meter are available for option.
4. 32-bit color control (8-bit PWM per channel);
5. Designed with 3pin JST-SM connectors on both ends for easy connection and

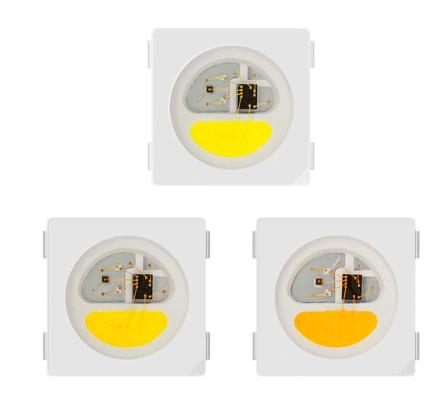

6. Please see SK6812 RGBW picture below,

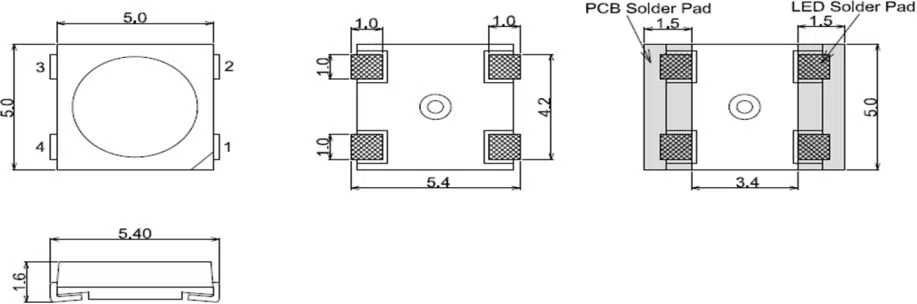

Mechanical Product Size (unit mm):
Why choose us?
● Top SMD internal integrated high quality external control line serial cascade constant current IC;
● control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
● built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
● The built-in power on reset and reset circuit, the power does not work;
● gray level adjusting circuit (256 level gray scale adjustable);
● red drive special treatment, color balance;
● plastic forward strengthening technology, the transmission distance between two points over 10M;
● data transmission frequency up to 800Kbps, when the refresh rate of 30 frames per second, a cascade of not less than 1024;
● built-in powerpolarity protection module, powerpolarity will not damage.

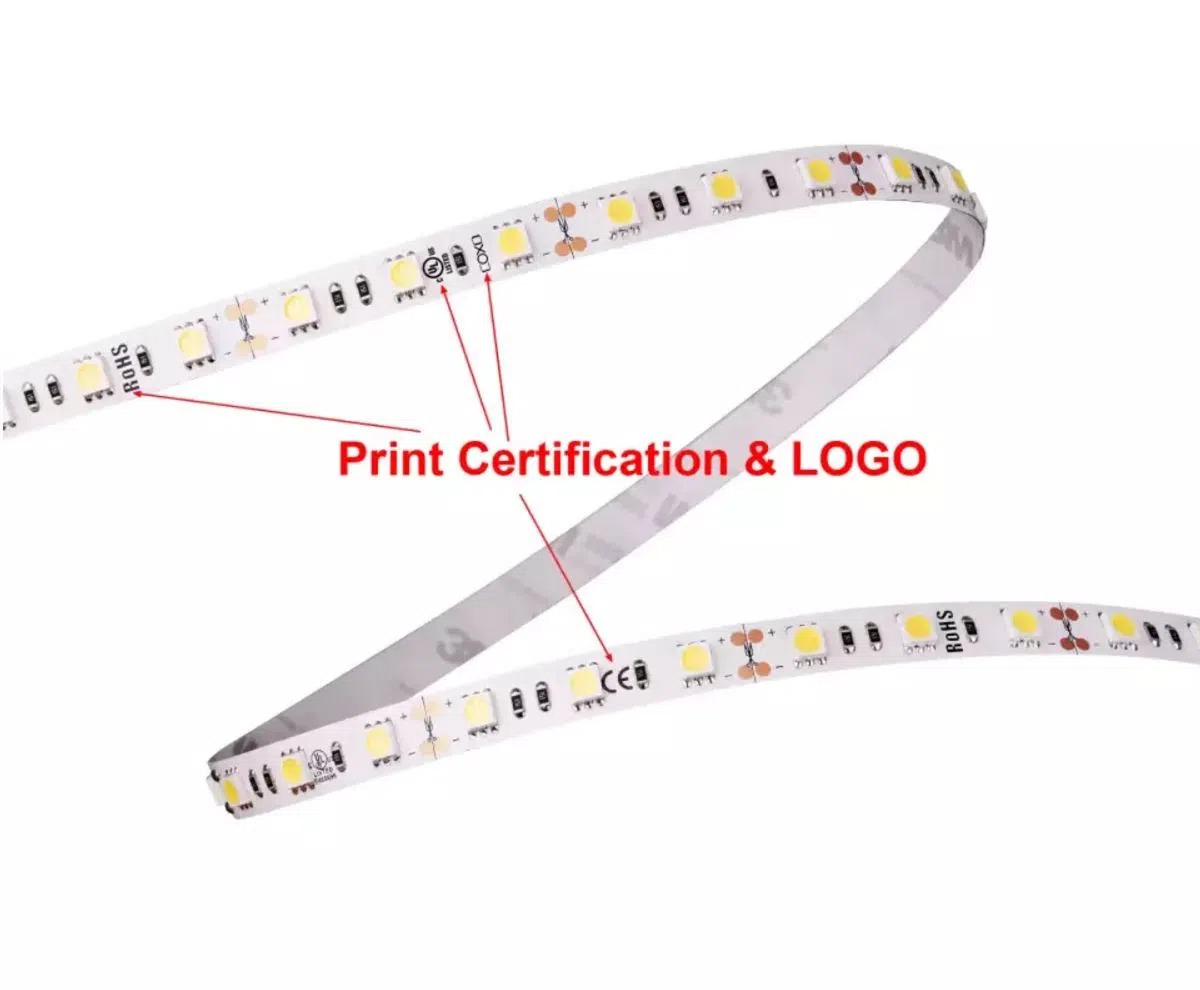

● printed LOGO for free

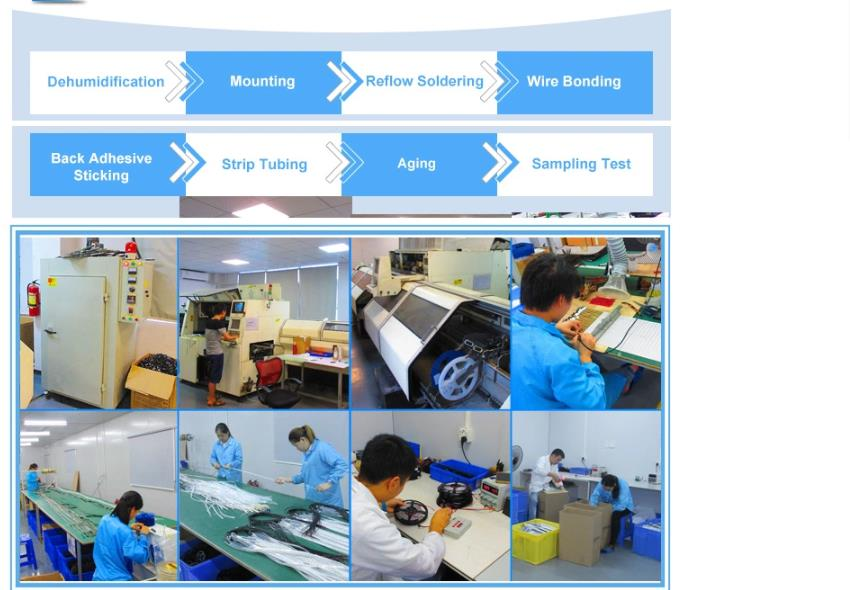

Addressable RGBW strip Production
RGBW SK6812 / WS2812B dehumidification >> LED chips mounting >> Reflow soldering >> Wire bonding >> Back adhesive sticking
>> strip tubing >> aging test >> ship out
Application:
1. Widely used for home decoration use, hotels, clubs, shopping malls
2. KTV Bar Amusement decoration lighting.
3. Advertising sign illumination
4. Decorative lights for holiday, event, show exhibition
5. Applicable for automobile and bicycle decoration, border or contour lighting
Client from Spain visited us in 2018
FAQ
1. What is your best seller?
Addressable led strip, addressable RGBW & RGB strip light
2. What is your main market for the SK6812 RGBW LED strip
Middle east, Europe and Asia
3. What is your warranty policy
We send to you if products damaged
4. Is OEM available?
Yes, we have professional engineers provide your suitable solutions.
