Projector Spot Light CREE / OSRAM for architectural building
Projector Spot Light features
1,Thick, fashionable and compact appearance
2,ADC 12 Die Cast Aluminum Lamp Body of High Density Material
3,Whole structure waterproofing design Technology
4,12mm toughened glass
5,Imported High Transmittance Optical Lens from Japan
6,Anti-UV Outdoor Spraying Treatment
7,The lamp head angle can be adjusted 180 degrees.
8,Effect: Monochrome constant brightness, gradient, running water, chase, full color. DMX512 3CH/4CH mode
9,Application: Urban lighting engineering, commercial venues, buildings, villas, indoor and outdoor lighting
Parameters of Projector Spotlight
LED flood light light parameters | LED flood light light LED chip parameters | ||
Beam angle | 25 * 45°/ 30°/ 60° | LED chip Brand | Osram / Cree |
Body material | Aluminium profile , | Chip size | SMD3030 |
Lamp cover | Acrylic or PC | Color | Singlce color |
IP Rate | IP65 | Lifespan | 50000 hours |
Power | 18-36w | Other parameters | |
Input voltage | DC24v/AC220v | Wire standard | Silicone or PVC |
Lighting efficiency | 85lumen/w | Wire's connector | |
Beam angle adjustment | 180 degree Available | Size | Φ160*H475 |
Wires's direction | Middle of bottom | Wire's length | 15cm |
Max connection quantity | Mounting brackets | 6063 aluminium | |
Control way | Single color | Net weight | 2.2kg |
Working temperature | -20℃-55℃ | ||
Different beam angle for LED Spot LED Flood Light option

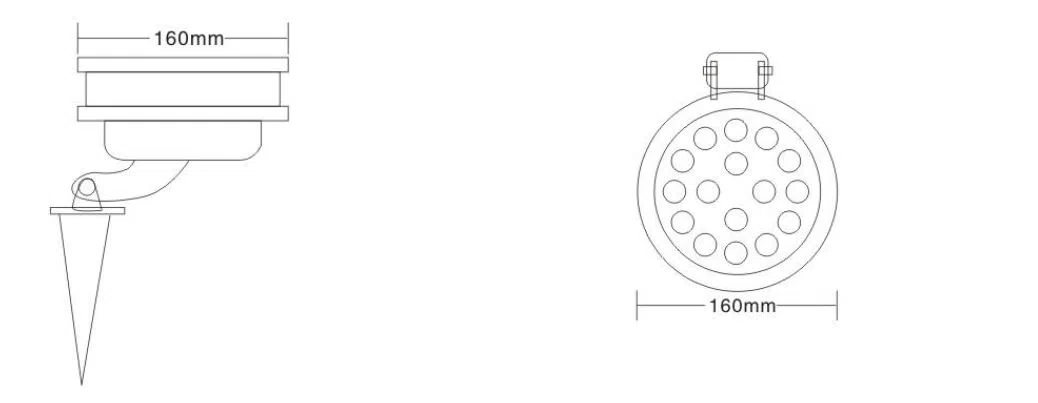

Size of Spot LED Projector Light for garden lighting
Projector Spot Light features
1,Thick, fashionable and compact appearance
2,ADC 12 Die Cast Aluminum Lamp Body of High Density Material
3,Whole structure waterproofing design Technology
4,12mm toughened glass
5,Imported High Transmittance Optical Lens from Japan
6,Anti-UV Outdoor Spraying Treatment
7,The lamp head angle can be adjusted 180 degrees.
8,Effect: Monochrome constant brightness, gradient, running water, chase, full color. DMX512 3CH/4CH mode
9,Application: Urban lighting engineering, commercial venues, buildings, villas, indoor and outdoor lighting
Parameters of Projector Spotlight
LED flood light light parameters | LED flood light light LED chip parameters | ||
Beam angle | 25 * 45°/ 30°/ 60° | LED chip Brand | Osram / Cree |
Body material | Aluminium profile , | Chip size | SMD3030 |
Lamp cover | Acrylic or PC | Color | Singlce color |
IP Rate | IP65 | Lifespan | 50000 hours |
Power | 18-36w | Other parameters | |
Input voltage | DC24v/AC220v | Wire standard | Silicone or PVC |
Lighting efficiency | 85lumen/w | Wire's connector | |
Beam angle adjustment | 180 degree Available | Size | Φ160*H475 |
Wires's direction | Middle of bottom | Wire's length | 15cm |
Max connection quantity | Mounting brackets | 6063 aluminium | |
Control way | Single color | Net weight | 2.2kg |
Working temperature | -20℃-55℃ | ||
Different beam angle for LED Spot LED Flood Light option
Size of Spot LED Projector Light for garden lighting
