Spot LED Flood Light For Landscape

Round Spot LED flood light CREE / OSRAM for architectural building

Availability:

Round Spot LED Fllood Light For Landscape features


1. Patent owned design, fashion and beautiful appearance, adopt isolated two bodies design could have the separate heat dissipation fully ensure the stability and long lifespan of LED light;


2. With multi-way rotate function of round support or “U” support available to meet the various occasions demands for outdoor projects;


3. Light body adopts high pressure die-casting aluminum, surface with electrostatic plastic coating. Lampshade adopts high strength toughened glass, resist the impact and friction.


4. Adopt American CREE original LED light source, high flus output, excellent consistency of light color; Constant current driver with PWM gray control installed inside, RGB gray level reaches to 65,536 degree equally, make the light result much beautiful;



Parameters of Spot LED Flood Light lamp

LED flood light light parameters

LED flood light light LED chip parameters

Beam angle

25 * 45°/ 30°/ 60°

LED chip Brand

Osram / Cree

Body material

Aluminium profile ,
regular color is grey can be customized

Chip size

SMD3030

Lamp cover

Acrylic or PC

Color

Singlce color

IP Rate

IP65

Lifespan

50000 hours

Power

24-36w

Other parameters

Input voltage

DC24v

Wire standard

Silicone or PVC

Lighting efficiency

85lumen/w

Wire's connector


Beam angle adjustment

180 degree Available

Size

Φ230*H260

Wires's direction

Middle of bottom

Wire's length

15cm

Max connection quantity


Mounting brackets

6063 aluminium

Control way

Single color

Net weight

2.6kg

Working temperature

 -20-55

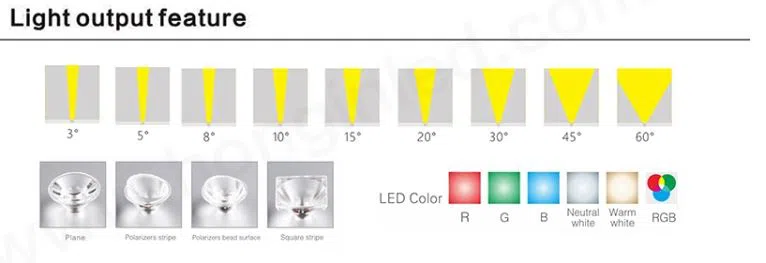

Different beam angle for Spot LED Flood Light option

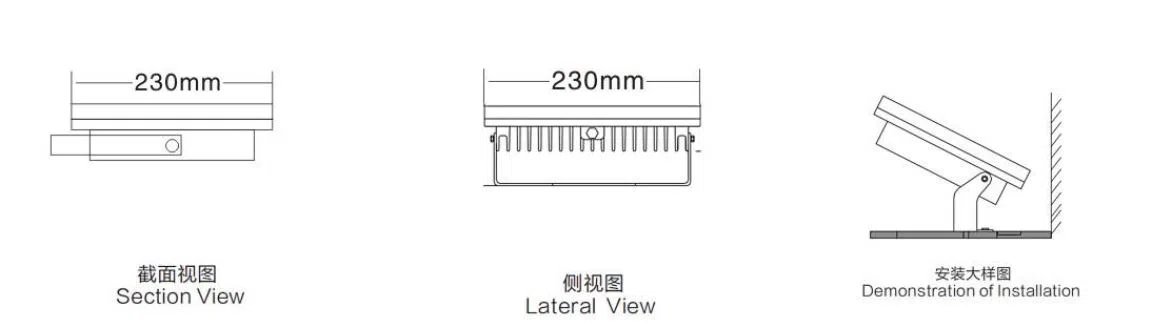

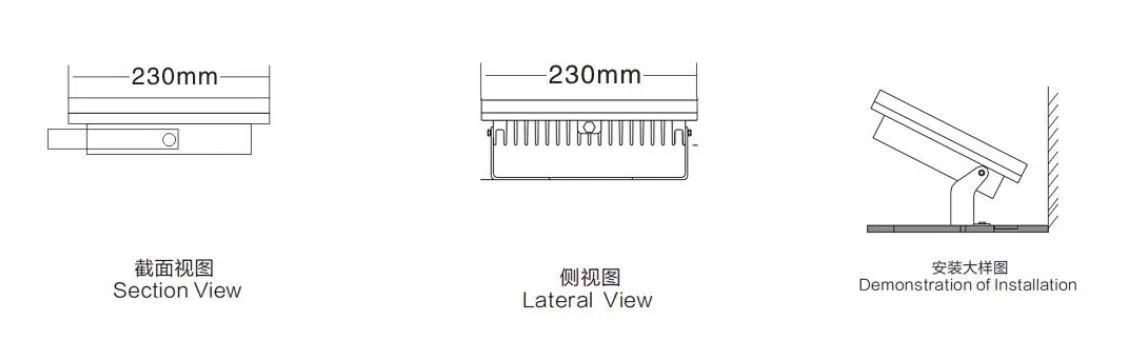

Size of Spot LED Flood Light
