Facade LED Flood Light features
1.Perfect Illumination Effect: Ultra bright light fixture on the market provides well-balanced light without glare or flickers
2.Flexible Installation: Adjustable arm angles from –90~+90 degrees
3.Durable Material: Die-casting aluminum + PC design and IP65 waterproof rating, excellent weather and erosion resistance, heat dissipation capacity
4.High Energy-efficiency: up to 80% energy saving compared to traditional lamps.
5.Reliable Quality: high quality and safe operation, eligible for participating in state and nation wide rebate programs, save more money
Light source type: single high power
Life expectancy: 50,000 hours
Light color: red, green, blue, white and RGB full color
Beam angle: 8°15°25°40°60° optional
LED drive mode: constant current drive
Control method: DMX512 or Single color
Protection level: IP65
Input voltage: DC24V/AC220V
Working temperature: -25 ° C -50 ° ° C
Parameters of facade LED flood light lamp
LED flood light light parameters | LED flood light light LED chip parameters | ||
Beam angle | 25 * 45°/ 30°/ 60° | LED chip Brand | Osram / Cree |
Body material | Aluminium profile , | Chip size | SMD3030 |
Lamp cover | Acrylic or PC | Color | Singlce color |
IP Rate | IP65 | Lifespan | 50000 hours |
Power | 24-36w | Other parameters | |
Input voltage | DC24v | Wire standard | Silicone or PVC |
Lighting efficiency | 85lumen/w | Wire's connector | |
Beam angle adjustment | 180 degree Available | Size | L190*H190*W235mm |
Wires's direction | Middle of bottom | Wire's length | 55cm |
Max connection quantity | Mounting brackets | 6063 aluminium | |
Control way | Single color | Net weight | 1.8kg |
Working temperature | -20℃-55℃ | ||
* View more: DMX LED flood light

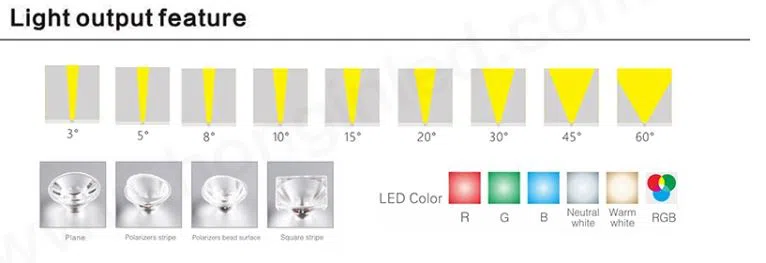

Different beam angle for facade LED flood light option

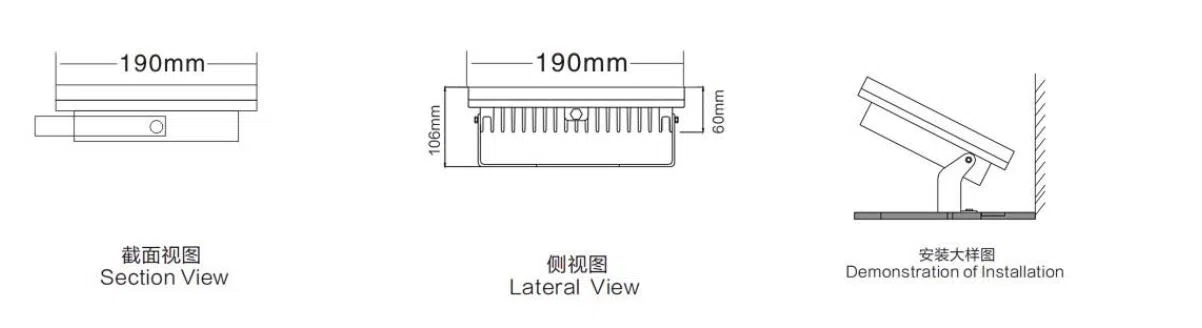

Size of LED flood light
1.Payment : T/T, (western Union or Paypal are welcome )
2.Sample lead time: 1-3days
3.delivery time: for 100~500pcs:3- 5days ;500~1000pcs 7-10days
4.Shipping port :shenzhen ,China
5.Quantity discount is available
6.Minimum Quantity:10pcs-200pcs (maximum sample :1-10pcs)
