Home / LED Blog / Facade Light / LUMENS TO WATTS CHART FOR LED OUTDOOR LIGHTING

LUMENS TO WATTS CHART FOR LED OUTDOOR LIGHTING

Views: 0     Author: Anny     Publish Time: 2022-05-10      Origin: https://www.suntechleds.com/

1. What is Lumens

2. What is Watts

3. Lumens to Watts: How to Convert

4. Luminous Efficiency Comparison

5. How many lumens do I need for outdoor lighting?

6. Choose the most suitable lights

7. Conclusion


When searching for the best lights for outdoor lighting, many people think about the watts ofo the lights, and they usually use the wattage as a measure of brightness. With the development of CFL and LED technology, the watts to brightness is no longer so important. What you need to pay attention to now is the lumens parameter which can directly reflect the brightness of the high efficiency outdoor flood light or spot light. Let's learn more about lumens and the difference between lumens and watts in this article.


Here we have a Lumen to Watt Conversion Chart for your reference.

Table 1
Lumen to Watt Conversion Chart
Lumens Watts of Incandescent Light Watts of Halogen Light Watts of LED light
10 lm   0.7 watts  0.5 watts
0.1 watts
15 lm  1 watt
    0.75 watts
 0.15 watts
20 lm   1.3 watts 1 watt    0.2 watts
30 lm 2 watts
  1.5 watts 0.3 watts
40 lm 3 watts 2 watts 0.4 watts
50 lm    3.5 watts
   2.5 watts
0.5 watts
60 lm 4 watts
3 watts
0.6 watts
80 lm 5 watts
4 watts 0.8 watts
100 lm 6 watts 5 watts 1 watt
120 lm 8 watts
6 watts
1.3 watts
140 lm 9 watts
7 watts
1.5 watts
150 lm 10 watts
7.5 watts
1.5 watts
160 lm 11 watts
8 watts
1.7 watts
200 lm 13 watts 10 watts 2 watts
230 lm 15 watts
12 watts
2.5 watts
250 lm 17 watts 13 watts 3 watts
280 lm 19 watts
14 watts
3 watts
300 lm 20 watts 15 watts 3 watts
320 lm 21 watts
16 watts
3.5 watts
330 lm 22 watts
16.5 watts
3.6 watts
345 lm 23 watts 17 watts 3.8 watts
350 lm 23 watts
17 watts 4 watts
360 lm 24 watts 18 watts
4 watts
370 lm 24.5 watts
18.5 watts 4.1 watts
380 lm 25 watts 19 watts
4.2 watts
400 lm  27 watts 20 watts 4.5 watts
420 lm 28 watts
21 watts
4.6 watts
450 lm 30 watts
22 watts 5 watts
470 lm 31 watts
23 watts
5 watts
480 lm 32 watts 24 watts
5.3 watts
500 lm 33 watts 25 watts
5.5 watts
540 lm 36 watts
27 watts
6 watts
550 lm 37 watts 28 watts
6 watts
600 lm 40 watts 30 watts 6.5 watts
620 lm 41 watts
31 watts
6.8 watts
650 lm 43 watts
33 watts
7 watts
700 lm 47 watts 35 watts
8 watts
720 lm 48 watts
36 watts
8 watts
750 lm 50 watts 38 watts 8.5 watts
760 lm 51 watts
38 watts
8.5 watts
800 lm 53 watts 40 watts 9 watts
806 lm  54 wattts
40 watts
9 watts
810 lm 54 watts
40.5 watts
9 watts
840 lm 56 watts
42 watts
9.5 watts
850 lm 57 watts 43 watts
10 watts
900 lm 60 watts 45 watts
10 watts
950 lm 63 watts
47.5 watts
10.5 watts
1000 lm 67 watts
50 watts
11 watts
1050 lm 70 watts
52 watts
12 watts
1100 lm 73 watts
55 watts 12 watts
1200 lm 78 watts 60 watts 14 watts
1250 lm 83 watts 63 watts
14 watts
1300 lm 87 watts
65 watts
14.5 watts
1350 lm 90 watts
68 watts
15 watts
1400 lm 93 watts
70 watts
16 watts
1500 lm 100 watts 75 watts 17 watts
1600 lm 107 watts
80 watts
18 watts
1700 lm 113 watts
85 watts
19 watts
1800 lm 120 watts
90 watts
20 watts
1900 lm 127 watts
95 watts
21 watts
2000 lm 133 watts 100 watts
22 watts
2100 lm 140 watts
105 watts
23 watts
2200 lm 147 watts 110 watts 24 watts
2300 lm 153 watts
115 watts
25.5 watts
2400 lm 160 watts
120 watts
27 watts
2500 lm 167 watts 125 watts
28 watts
2600 lm 173 watts 130 watts 29 watts
2700 lm 180 watts 135 watts
30 watts
2800 lm 187 watts
140 watts
31 watts
3000 lm 200 watts 150 watts 33 watts
3200 lm 213 watts 160 watts
35 watts
3500 lm 233 watts
175 watts
39 watts
3600 lm 240 watts
180 watts
40 watts
3700 lm 247 watts
185 watts
41 watts
4000 lm 267 watts
200 watts 44 watts
4500 lm 300 watts
225 watts
50 watts
5000 lm 333 watts 250 watts
55 watts
5500 lm 367 watts
275 watts
61 watts
6000 lm 400 watts 300 watts
67 watts
7000 lm 467 watts
350 watts
78 watts
8000 lm  533 watts 400 watts 89 watts
10000 lm 667 watts
500 watts
111 watts
12000 lm 800 watts
600 watts
133 watts


1. What is Lumens

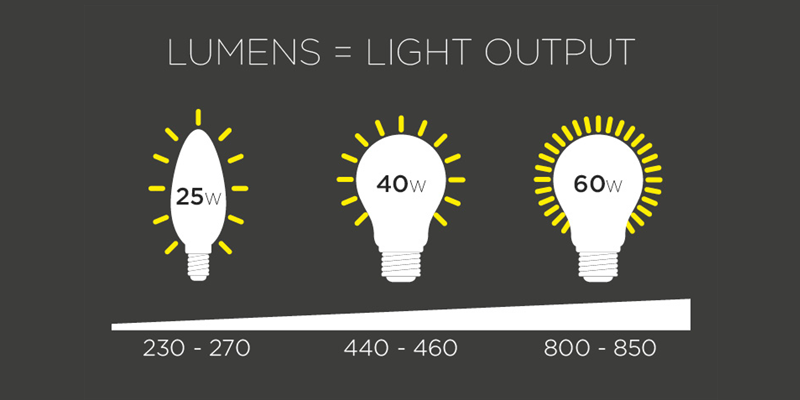

LUMENS


Lumen is "equal to the amount of light emitted per second in a unit solid angle of one steradian from a uniform source of one candela", it's a unit for measuring the rate of flow of light. In simple terms, lumen is the total amount of light produced and directly reflects the brightness of the light. The larger the lumen parameter value, the brighter the light, and the smaller the parameter value, the darker the light.

Lumens equals to the amount of light output.


Lumens is a more accurate unit of measure than watts. It can help us to differ the performance of the light fixture no matter how is the power source. Due to more advanced lighting technologies appearing, lumens are now a common unit for measuring the brightness of lamps.

Here is an simple example to show the difference between the incandescent lamps and LED lamps. For an incandescent lamp, per watt of input power can only generate 20 lumens of output power. However, a LED wall wash light can produce 100 lumens output light with per watt input. The emergence of LED lights helps to save more energy.


2. What is Watts

Watt is "equivalent to one joule per second, corresponding to the rate of energy in an electric circuit where the potential difference is one volt and the current one ampere." Simply put, the watts is the measure of the power consumed by the lamp, reflecting the input power of the lamp. Since there were only incandescent and fluorescent lamps before, their energy conversion rates were similar. The higher the wattage of incandescent and fluorescent lamps, the brighter the lamp. Therefore, people can judge the brightness of the lamp according to the wattage of the lamp, so as to buy the appropriate outdoor lighting.

Why is wattage a measure of the brightness of incandescent and fluorescent lamps? The light-emitting principle of incandescent lamps is that the current passes through the filament in the lamp, and the filament is heated to emit light. The higher the input watts, the brighter the output light. Fluorescent lamps contain mercury and phosphors. When an electric current is applied, discharges will be generated in the rare gas, and the phosphors will be excited to emit light. The higher the watts plugged in, the more current is passed through it, and the brighter the fluorescent light is.

With new CFL and LED light fixtures emerging, very little input power is required to produce the same brightness of light, so the watts unit of measure is no longer a selection criterion for newer light fixtures.


3. Lumens to Watts: How to Convert

When you're looking for the right light fixture for your outdoor LED lighting project, in addition to the type, shape, and color of the light, you also need to consider the light's lumen parameter. Sometimes, you may not find the lumens on the LED light label directly, so you need to convert the lumens to watts and then compare the watts.

LUMENS to WATTS

It can be calculated by this simple formula:Watts=Lumens/Lumen per watt

After knowing the lumens and watts, now we can come out with the lumens per watt. Lumens per watt means the efficiency of converting energy (watts) into light (lumens).  The conversion efficiency of old tungsten incandescent lamps is about 15~20 lumens per watt, but new LED light fixture can achieve the conversion efficiency to 70~110 lumens per watt. Therefore, the conversion rate of electric energy to light energy of LED lights is about 6 times that of incandescent lamps.

If you now want to replace a 60W incandescent lamp with an LED lamp, what wattage should you choose?

According to the conversion ratio of LED lamp is 6 times that of incandescent lamp, LED lamp: incandescent lamp=6:1, just divide 60 by 6, so 10W LED lamp is fine.

Of course, this calculation is only for the general situation, and the luminous efficacy of LED lamps provided by different manufacturers is not exactly the same. Please check the detailed parameters of the LED lights to get the exact result.


4. Luminous Efficiency Comparison

Different lamps have different luminous effenciey. And here is a Luminous Efficacy Comparison Chart to compare the difference between the incandescent, halogen, fluorescent, and LED light.

Table 2
Luminous Efficacy Comparison Chart
Lamp Type Typical luminous efficacy
Tungsten incandescent lamp 12-17 lm/W
Halogen lamp 15~20 lm/W
Fluorescent lamp  45-75 lm/W
LED lamp 75-110lm/W


5. How many lumens do I need for outdoor lighting?

How many lumens you need depends on where you place your LED fixtures and what kind of lighting effect you want.

Here are some tips for you to choose:

landscape spot lights: 100-480 lm

Floodlights: 960-2500 lm

Step linear lights: 100-240lm

Swimming pool lights: 200-450lm

Landscape path lights: 150-340lm


5.1 Landscape lighting

Landscape lighting refers to outdoor lighting projects that have both lighting functions and artistic decoration and landscaping functions. Landscape lighting usually covers a wide range and requires overall specifications, such as individual key lighting such as small scenes and buildings. Therefore, the lighting methods are diverse and the selection of luminaires is also complicated. The number of lumens required for landscape lighting is selected according to the role of the landscape. If using a spotlight to accentuate a landscape, usually it needs to choose 120-200 lumens. If installing path lights to illuminate sidewalks, 180 to 320 lumens is recommended. The path lights can be used to illuminate the whole path or it can also be used for decoration. If mainly for illumination, you should choose higher lumens for safety considerations. If the light is for decorative purposes only, choose low lumens to create a beautiful scenery.


5.2 Architectural lighting

Architectural lighting design is an integral part of the overall design and an important means to add luster to the building. Architectural lighting design is based on the visual needs of consumers, transforming and beautifying buildings with the ingenious mobilization of light and shadow to create a beautiful and comfortable visual environment for people. The lighting methods commonly used in architectural lighting are: light projection lighting, outline lighting, translucent lighting, flood lighting, hybrid lighting.

Architectural lighting

Light projection lighting illuminates the building surface through floodlights installed outside the building, which not only achieves energy conservation and environmental protection, but also displays the overall shape, three-dimensional effect and material of the building. In addition to the reasonable setting of the projection direction and angle of the lighting fixtures, it is also necessary to select the appropriate lumens, and pay attention to the control of the illuminance and brightness of the building facade. Typically, this requires high-lumen floodlights to illuminate the target building for overall lighting.

Outline lighting was to install incandescent lamps continuously at certain intervals to form a light band effect in the past, but the choice is to use LED linear lights to outline the outline of the building. For modern buildings with rich contours or buildings with distinctive shapes, a combination of contour lighting and local flood lighting should be adopted.

Translucent lighting is to make full use of indoor lights at night to form a luminous surface or luminous strip lighting on the glass, and let the light transmit to the outside of the building through the glass and glass curtain wall. The internal light transmission lighting method is especially suitable for buildings with glass curtain wall structure. In order to avoid dazzling lights coming out from the inside, please adjust the appropriate beam angle, and do not choose LED lights with too high lumens.

Flood lighting is a point light source that uniformly illuminates in all directions with an adjustable illumination range to produce shadows to highlight the undulations of the building facade. The shadow scale of flood lighting depends on the undulations of the building surface and the incident angle of the light. The average lighting direction angle is 45°. If the building surface has small undulations, the incident angle must be greater than 45°. Floodlights are usually installed as lighting fixtures for safety purposes. Floodlights with narrow beam angles such as 15°, 25° are used to illuminate a specific small place, and 45° and 60° floodlights can illuminate large areas, such as an entire wall or a parking lot. If you need to light a trail in your yard, you only need to choose a floodlight with a low lumen value, such as 300 to 400 lumens. But if you want to illuminate an entire area, choose an outdoor LED floodlight with a larger beam angle and higher lumen value. Floodlights with 800 to 1500 lumens are recommended for lighting the entire yard in front of the door. The brighter the lights and the more lumens they emit, the safer your space will be.

Hybrid lighting mainly adopts the combination of edge outline and flood lighting, fully based on the morphological characteristics of the building, and comprehensively uses a variety of lighting techniques to create a beautiful architectural visual art image. For mixed lighting, special attention should be paid to controlling the exit direction of the light and selecting high-lumen LED lights to illuminate the building as much as possible.

Here is a Lumens to Watts conversation chart for your reference.

Table 3
Lumens to Watts Conversation Chart
Brightness in Lumens
≥200 lm
≥400 lm ≥700 lm ≥900 lm ≥1300 lm
Incandescent lights 25W
40W
60W
75W
100W
Halogen lights 18W 25W 45W 53W 70W
CFL lights
8W 10W 15W 18W
28W
LED lights 4W 6W 10W 12W 20W


6. Choose the most suitable lights

Focus on lumens not watts:Calculate out the total lumens needed to fully illuminate the project. If you are considering replacing an old incandescent bulb or a halogen bulb, match the lumen with a new LED light. When looking for a outdoor LED floodlight or linear light, the wattage doesn't make sense because the latest technology uses much less wattage than older light fixtures. If you want to replace a 40W incandescent bulb, an LED bulb with 600 lumen output is ideal. Likewise, to replace a 150W incandescent light, you can opt for a 3000 lumen LED light. For large-scale replacement of LED-equivalent lumen lighting equipment, factors such as optics, ambient temperature, and lumen attenuation should also be considered.

Useful Lumens: This means the total lumens of light emitted from a specific angle to a place. For example, a 100W incandescent lamp emits 1400 lumens in all directions as a street light. Since you don't need to waste light energy in all directions, opt for LED fixtures with a fixed beam angle instead. hen looking for LED lights, you don't need 1300 lumens of LEDs, just 700-800 lumens is enough, because that's the total luminous flux for directional lighting.

Choose the right color temperature:2700~3000K is called warm white, it actually looks like yellow color. The most suitable LED color temperature to replace incandescent bulbs is 2700~3000K. 3000~5000K are cool colors and daylight colors, and 5000K-6500K are suitable for lighting spaces that require strong light. Please Click Here to vieiw more details about choosing the right color temperature.

Think about the CRI: color rendering index (CRI) is a quantity that describes the ability of a light source to render the color of real objects. When using CFL lamps and fluorescent lamps, you need to more attention on this. For LED lights, The higher the color rendering index, the lower the brightness. In outdoor lighting, a certain degree of color rendering is required while ensuring brightness. Suntech recommends LED outdoor fixtures with a CRI of 70 or 80. To know more about CRI, please take this link to have a look.


Each outdoor space has its own lighting requirements, so different levels of lumens are required to achieve the overall desired effect. The required lumens (brightness) depends on the luminaire and its purpose in the setup. For example, spotlights used to highlight particularly important features in a landscape may require a lamp with a higher light output, whereas a linear light for decoration need lower brightness. In fact, choosing a light with very high brightness can cause problems in some cases. For instance, street lights that are too bright will have a glare effect that affects the driver's vision. When browing our "Facade LED Lighting" products, you can find the lumens and watts parameters in the product details, and we also provide customize the lumens and color temperature as your requests.

Here are several recommendation for your outdoor landscape and facade lighting projects.

7. Conclusion

With the development of lighting technology, the luminous efficiency is rising and the power consumption is decreasing. LED lighting is a more energy-efficient option. Suntech is a professional manufacturer focusing on architectural lighting and landscape lighting in China, don't hesitate to inquire us for your lighting project now!
