What is WS 2815?
WS2815 is an intelligent control LED light source, which integrates the control circuit and RGB chip into a 5050 component package.Its internal functions are smart wireless port data latch and signal reshaping drive circuit. A version of dual-signal cable, continuous propagation of signal breakpoints.
What is difference between WS2812B and WS2815?
1. Each meter produces 30 LEDs, 60 LEDs and 144 LEDs. It can also be 72 LEDs per meter.
Built-in IC, voltage DC5V (WS2815 is DC12V), can be individually addressed.
2. It produces 30LED, 60LED and 144LED per meter, and it can also be 48LED per meter.
Built-in IC, but it is a DC12V , not DC5V, which can be individually addressed.
Individually Controlled DC12v WS2815 LED strip features:
1. Dual-signal wires: WS2815 strip light has 4pin wires, two wires connected to power supply,the other two wires are data lines.
Because of two data lines, even one LED is damaged, the signal can still pass through.
2. Individually addressable: Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
3. Easy installation: Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off.
4. Wide compatibility: Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.
5. High quality: High brightness RGB SMD5050 LED chip, long lifespan 3000 hours.You can design many different lighting effects or animations you want.
Digital RGB WS2815 strip light product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2815RGB-30-12V | 30 | Addressable RGB | 30 | ≤9W | 12v | Double Copper PCB 5000*12mm |
ST-WS2815RGB-60-12V | 60 | Addressable RGB | 60 | ≤18W | 12v | Double Copper PCB 5000*12mm |
ST-WS2815RGB-144-12V | 144 | Addressable RGB | 144 | ≤43.2W | 12v | Double Copper PCB 5000*12mm |
Package includes:
1 x 1M/5M RGB 30/60/144leds/m led strip
1 x 4pin connector
Note:
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.
WS2815 strip light detail pictures:

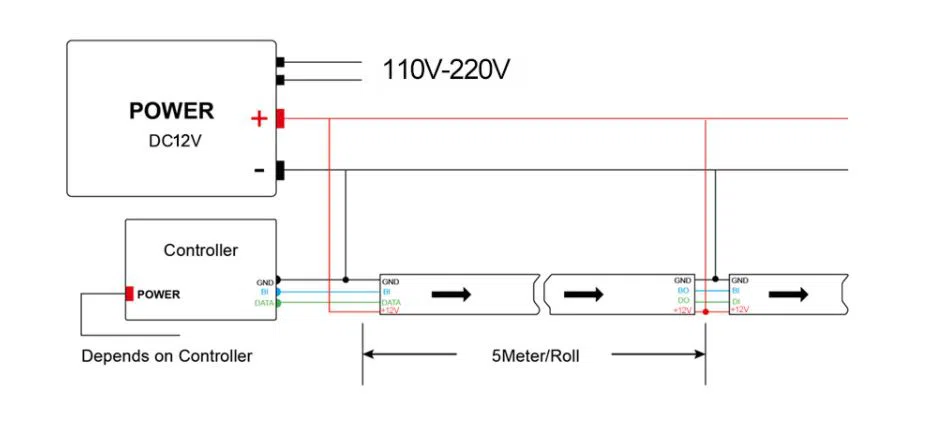

Wiring Diagram:
What is WS2815 used for?
Why choose Suntech as your WS2815 individually controlled DC12v pixel LED strip supplier ?
Strict Quality Control,We have a strict quality control system from raw material to finished 12v Addressable Led Strip. Each step must pass strict inspection, strive to produce superior products:
1. Incoming Raw Material Inspection
Comparing incoming raw material and sealed sample in terms of class, quality grade, technical data, ensuring the consistency with purchasing requirements, thus guarantee the ensuing manufactured product fulfilling customers’ requirements.
2. Led Drying
12v Addressable Led Strip will absorb humidity when exposed to air, which requires 24H drying before SMD.
3. Light-on Test after SMD
After pasting of leds onto the PCB board, each strip panels will be powered to see if any insufficient soldering, slanted leds, and dead leds, if yes, they have to be repaired until qualified; if no, then flowing to the next stream.
4. Light-on and beating test
12v Addressable Led Strip after SMD (0.5M) should be soldered to 5M roll, after which they have to be lighted again to check if any dead leds, and together with beating test to see if leds fixed tight on pcb board
5. Aging Test
Finished 12v Addressable Led Strip must undergo at least 8 hours' aging test 100%
6. Light-on test of finished product
Finished 12v Addressable Led Strip, before packing, must be lighted again after aging to check if any dead leds.
7. Pre-shipment Inspection
Proofing finished product with customers’ requirements again before shipment, to ensure the consistency of products with customers' needs.
FAQ:
1. Are you a factory or a trading company?
We are a professional factory with 13 years of experience, located in Shenzhen City, Guangdong Province.
2. Can I provide samples for testing?
Yes, we are happy to provide samples for testing, and can also provide mixed samples.
3. What is the delivery time?
Sample: 1~4 working days. Mass production: 5~15 working days after confirmation.
4. How do you ship the goods and how long will it take to arrive?
We usually ship by DHL, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea transportation are also optional.
5. Do you provide guarantees for the products?
Answer: Yes, we provide a 5-year warranty for all our products.
