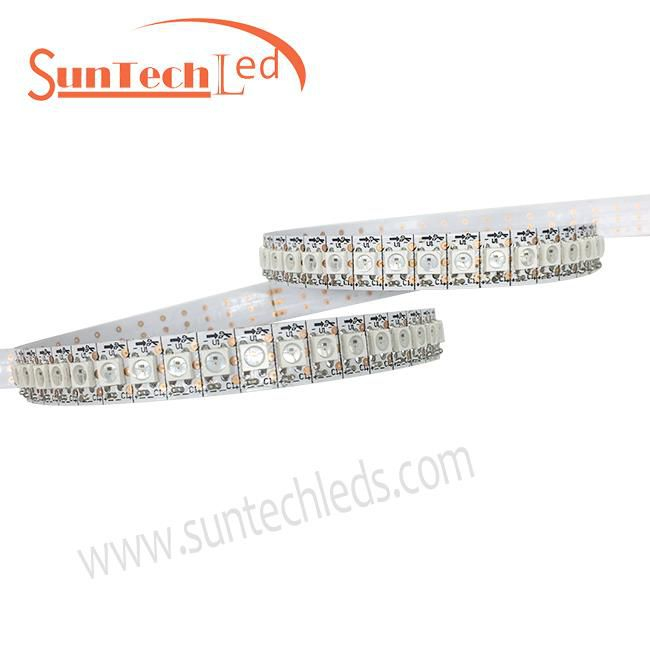

144 led per meter addressable full color led strips ——WS2812B / SK6812 IC built-in
Product introduction:
144 led per meter addressable full color led strips ——WS2812B / SK6812 IC built-in

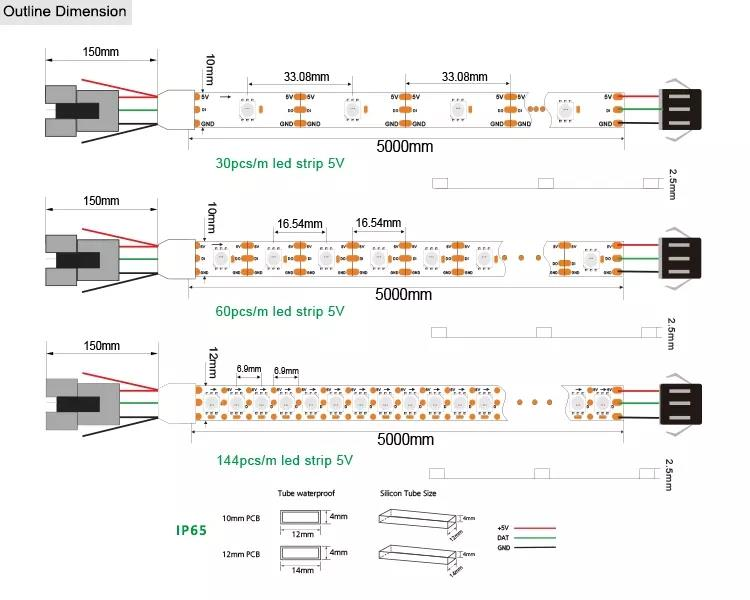

144 LED strip WS2812B /SK6812 product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2812BRGB-144-5V | 144 | Addressable RGB | 144 | ≤43.2W | 5v | Double Copper PCB 5000*10mm |

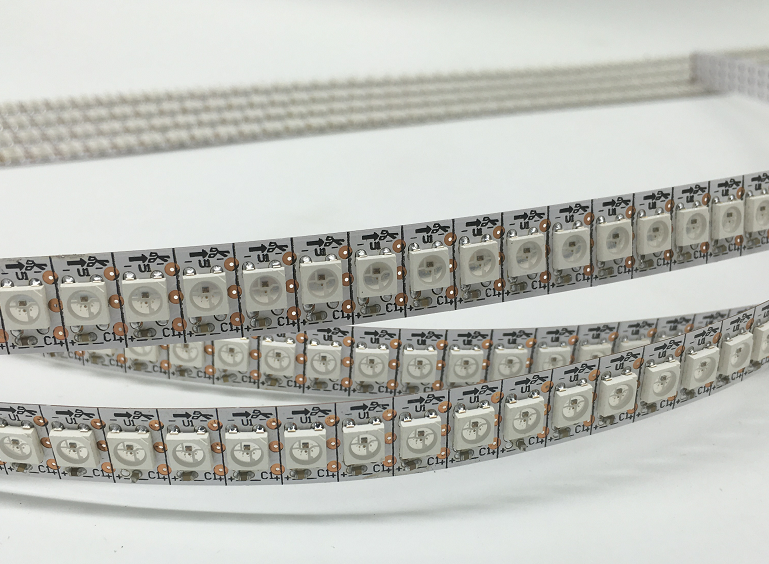

Full coor 144 pixels LED strip product details
1. Individually programmable —— 1 IC & I LED chip.
2. Compatible with raspberry pi , arduino LED controller

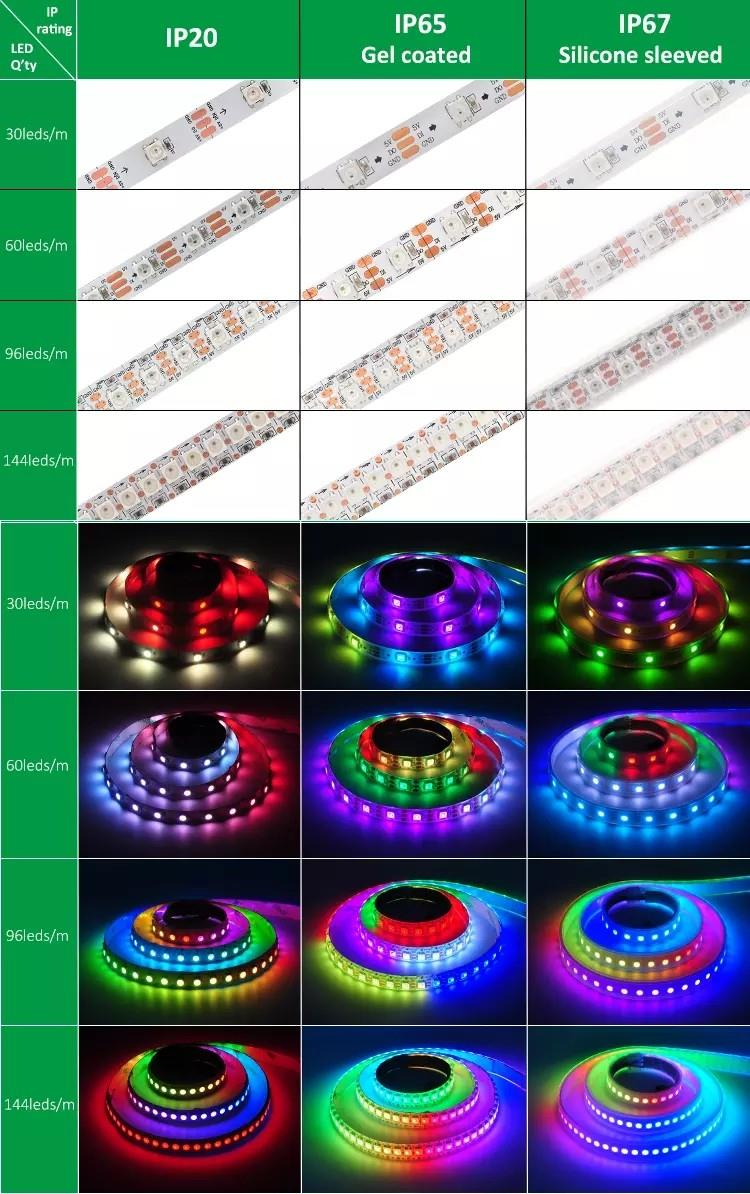

3. RGB an RGBW are both avaiable.
4.Power supply: You must use a 5V DC power supply to power this strip, do not use higher than 6V or you can destroy the entire strip.
4. Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display
5. SK6812 has same function as WS2812B, and more stable than WS2812B

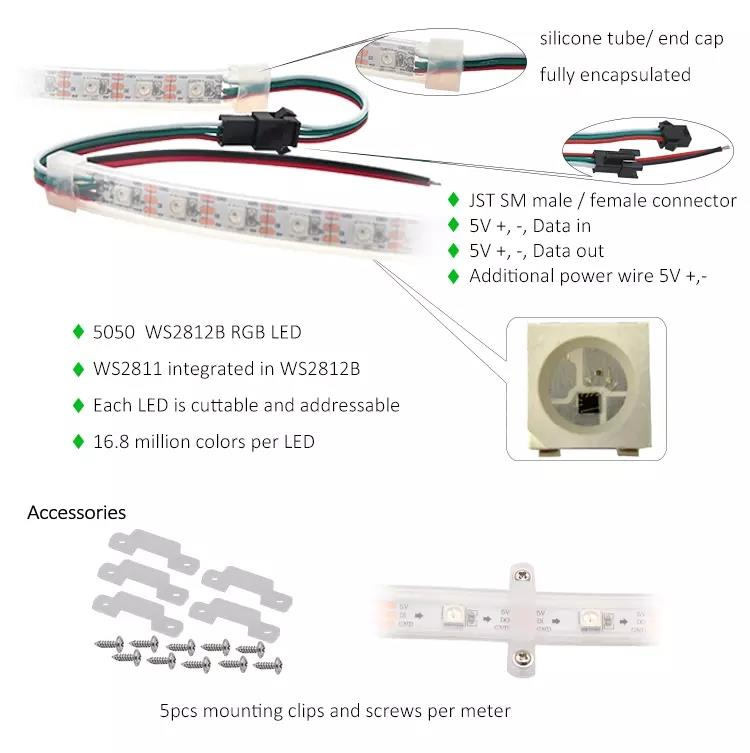

3 PIN wire stands for
Red : + 5V
Green : DAT
Black : GND
Connection:
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2812B/WS2811 ; when use DMX decorder, can connect to DMX system
