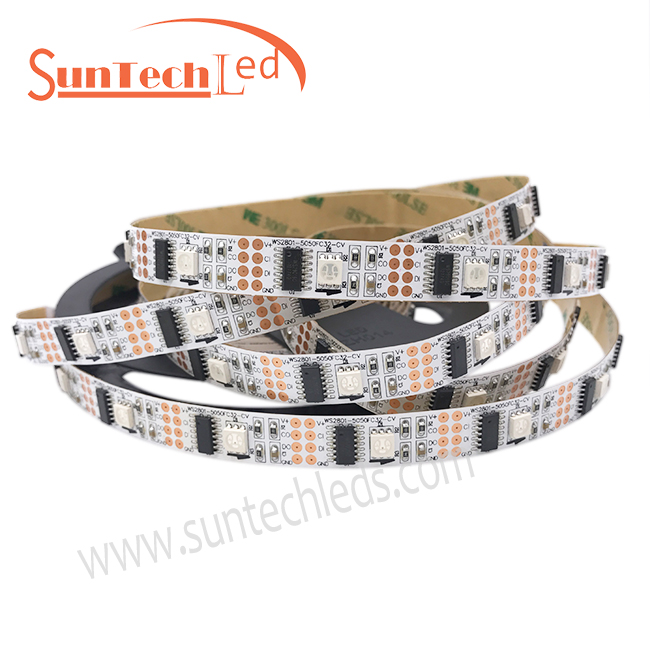

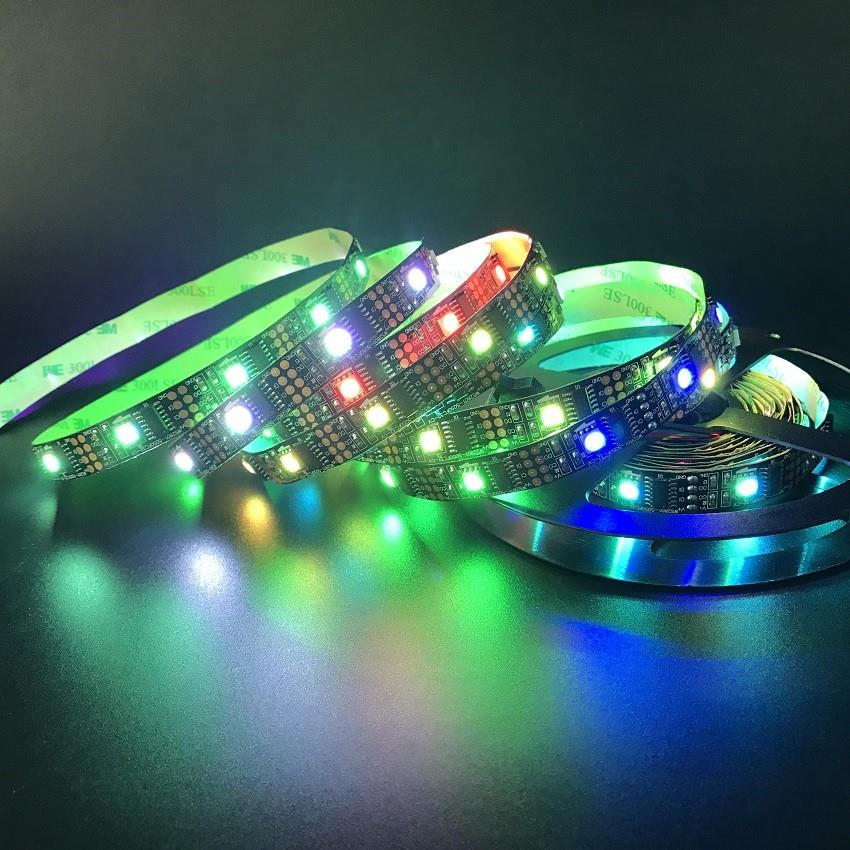

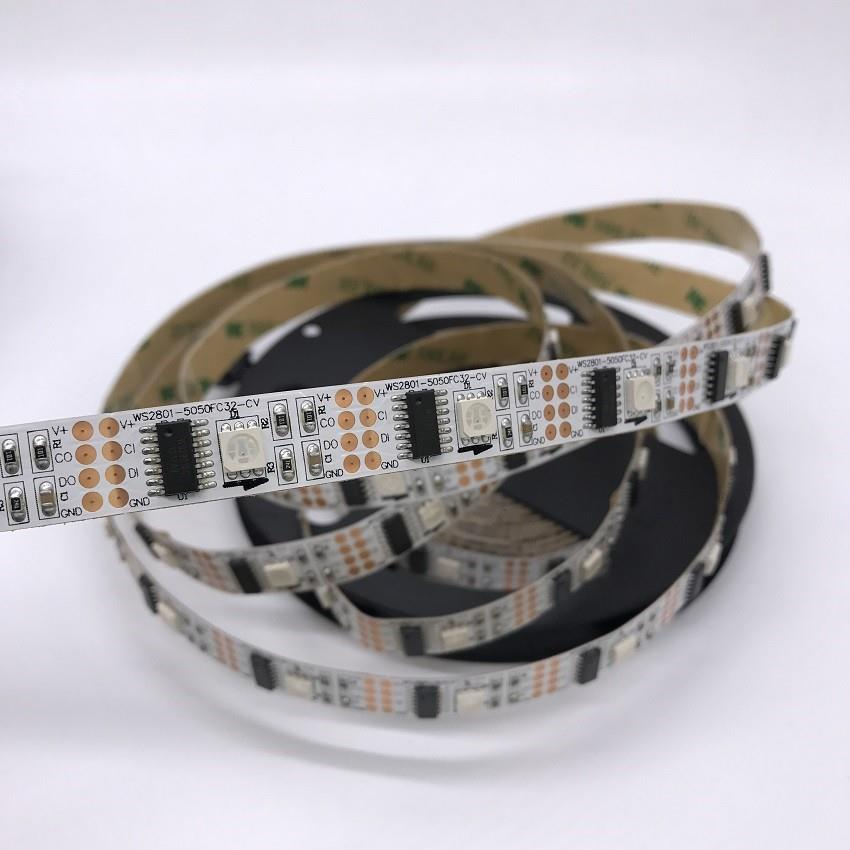

WS2801 led strip PMW rate is much faster than WS2811 WS2812B, 2.5k Hz VS 400 Hz, besides that , it has an additional clock line.
WS2801 could be made to both 5v and 12v input addressable strip light.
We could supply you direct factory price digital rgb strips with quite good quality
Availability: | |
---|---|
Product introduction:
WS2801 led strip PMW rate is much faster than WS2811 WS2812B, 2.5k Hz VS 400 Hz, besides that , it has an additional clock line.
WS2801 could be made to both 5v and 12v input addressable strip light.
We could supply you direct factory price digital rgb strips with quite good quality
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM2801RGB-32-5V | 32 | Addressable RGB | 32 | ≤9.6W | 5v | Double Copper PCB 5000*12mm |
Product details
1. WS2801 is outside IC , 5v input , each led individually controlled
2. 12v is also available, each 3 led can be cut and programmable
3. Besides one data line, it has clock line too
4. Compatible with Arduino, FastLED library, Raspberry Pi,platform
5. The PMW frequency is 2500 Hz, much faster than regular WS2811 WS2812B WS2813 strip light
6. Data speed of WS2801 is quicker than WS2811 WS2812B too, around 1Mbps
7. Each LED could be cut.
8. IP20, IP65 IP67, can be used inside ,outside

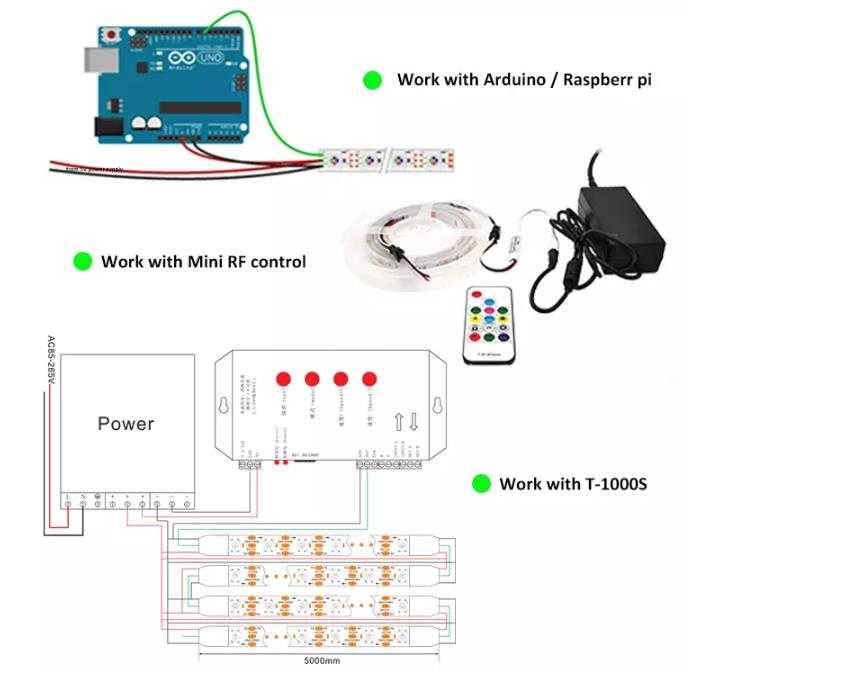

Connection picture you can set the lighting effects required though many different controllers please see reference below:

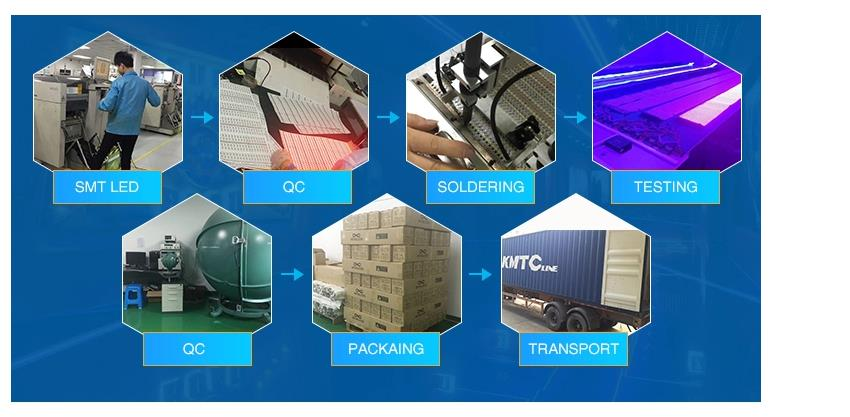

Production
Our booth in Guangzhou lighting fair
WS2801 digital LED strip application:
1.Led screen, advertising industry.
2.Car beauty industry,
3.Used as toy and speaker accessories
FAQ:
1 Can Suntech do custom assembly product?
Yes we can, our engineer team will make the layout and do customized PCB design.
2 How long is the warranty for the digital led strip?
2 years warranty we can provide for WS2801 pixel led strip light.
3 How do you make the delivery?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4 How to print Logo?
Yes, just email us the LOGO format we then design for your reference, if all fine , we make do the next step.
