Product introduction:

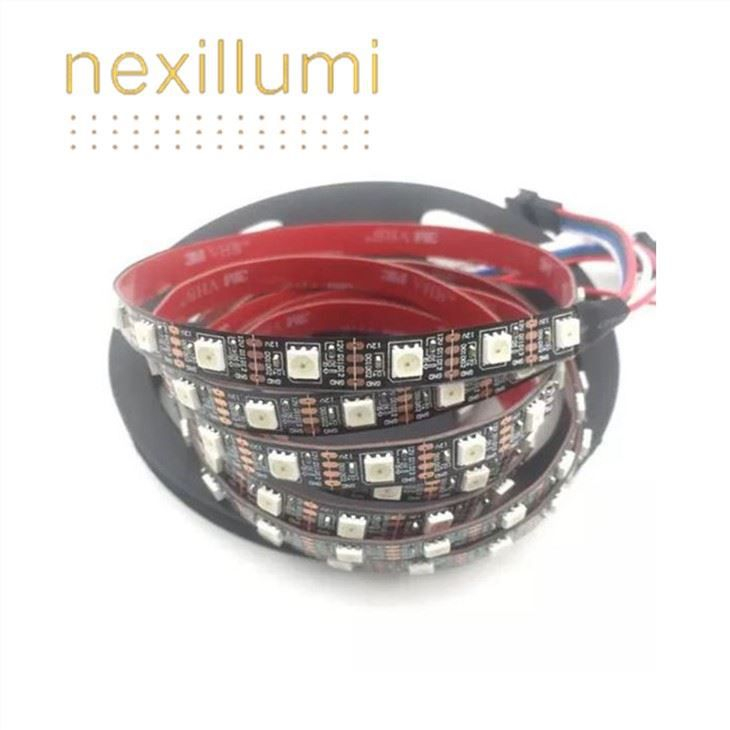

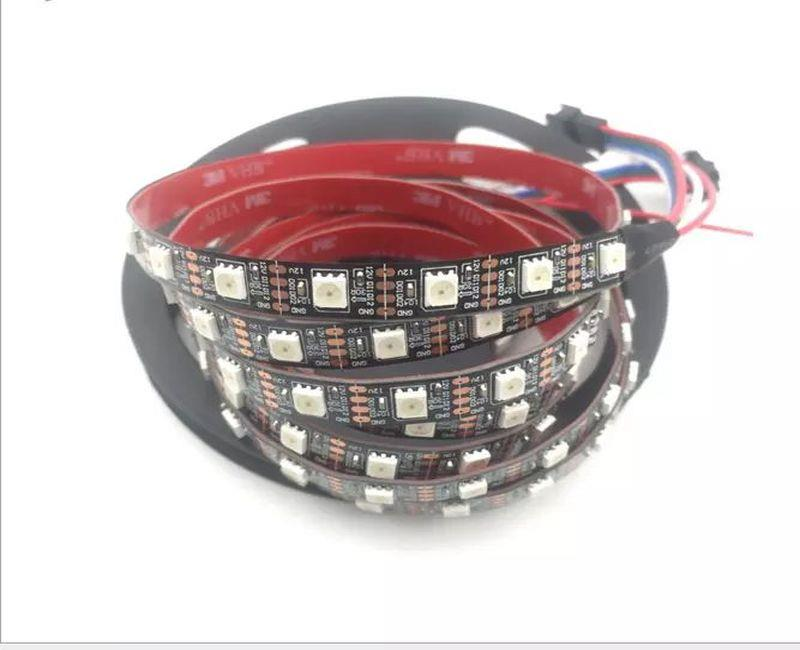

WS2815 LED strip DC12v 60 pixels per meter.
Digital RGB WS2815 strip light product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2815RGB-60-12V | 60 | Addressable RGB | 60 | ≤18W | 12v | Double Copper PCB 5000*10mm |

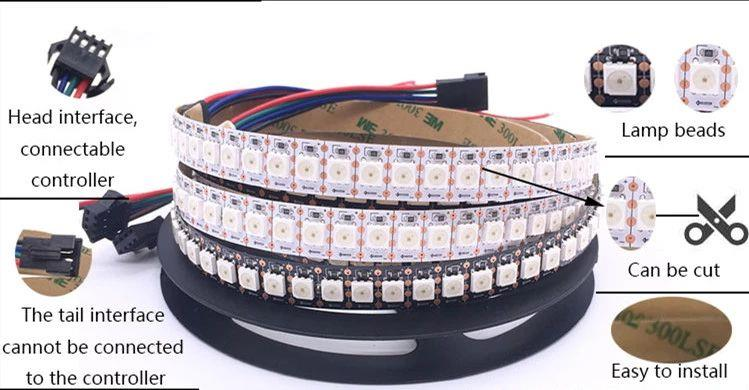

WS2815 pixel LED strip product details
1. WS2815 strip has 4 wires , negative + positive + two data wires. Even one WS2815 LED chip dies, the signal can still pass
2. DC12v , Each smd 5050 (ws2815)has an IC(ws2815) inserted in,Each LED individually address controlled ,each pixel addressable. Easy to control
3. 30 pixels, 60 pixels and 144 pixels WS2815 LED strip are all available..
4. Regular flexible PCB thickness is 2oz, 3oz PCB can be customized
5. Waterproof IP65 IP66 and IP68 are both available.
6. Regular length is 5m per roll, customized length is acceptable.
