Programmable RGB strip light is full color addressable , each LED could be controlled. Break-point continue function, while one LED dies, the signal can still pass through.
We are direct factory of pixel led strip manufacturer
Availability: | |
---|---|
Product introduction:
Programmable RGB strip light is full color addressable , each LED could be controlled. Break-point continue function, while one LED dies, the signal can still pass through.
We are direct factory of pixel led strip manufacturer
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2813RGB-60-5V | 60 | Addressable RGB | 60 | ≤18W | 5v | Double Copper PCB 5000*10mm |
Product details
1. 30leds/m 60leds/m 72leds/m 144leds/m are all available
2. WS2813 is a new version based on WS2812B pixel, fre
3. Data speed: 800Kbps
4. Addressable RGB compatible with Arduino platform
5. Easy to cut and install, each one led is cuttable
6. Refresh rate 2kHz for less flickering

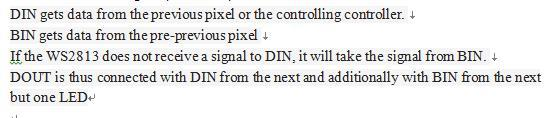

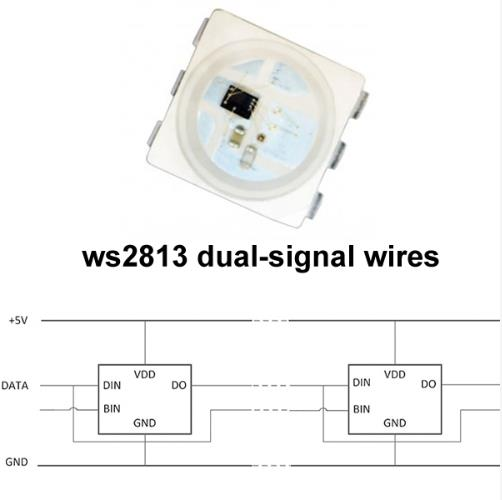

7. WS2813 IC has double signals please see picture below

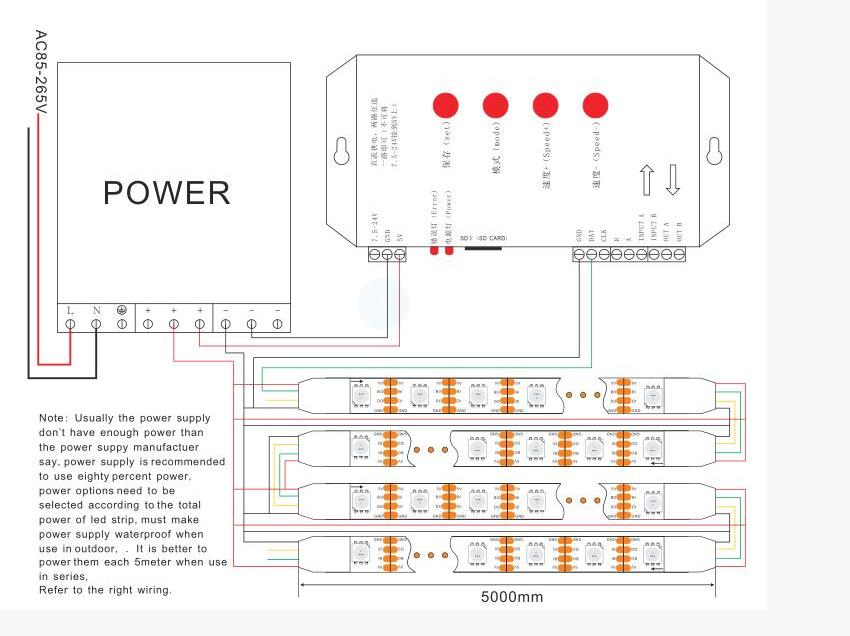

How to connect WS2813 led strip with controller

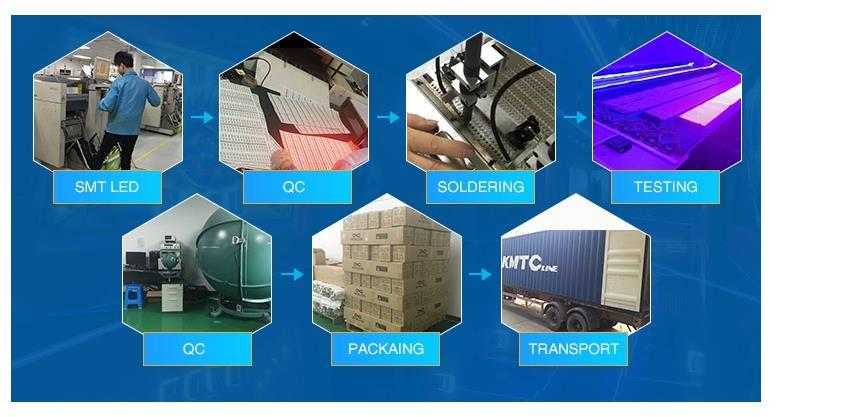

Addressable led strip production process
SMT LED -> QC -> Soldering -> Testing -> QC -> Packing-> Transport shipping

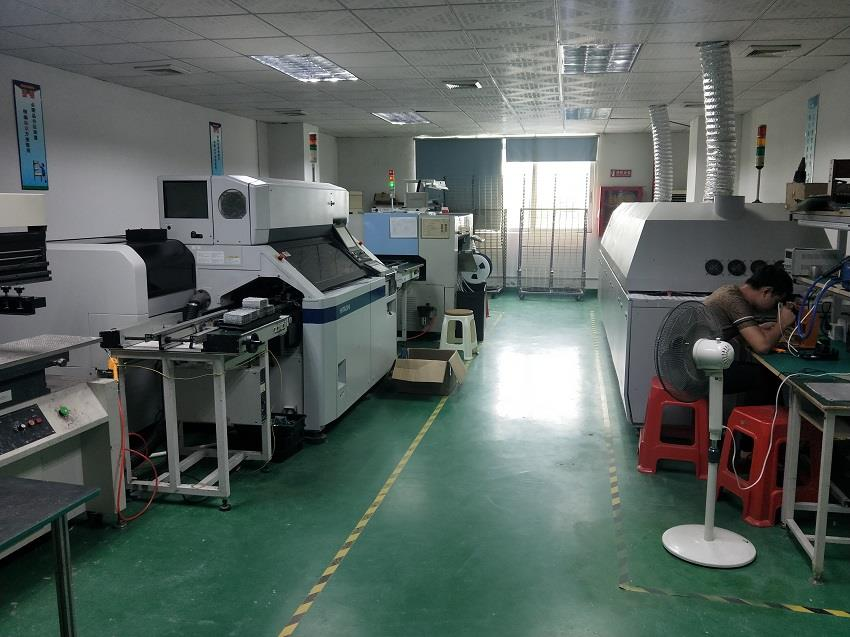

Our factory facility
Why choose us,
1. Quick reply to your questions within 24 hours
2. We accept small quantity for the Programmable RGB strip light first order
3. Samples could be free provided
4. OEM & ODM any customized product we can do for you
5. Our factory has been producing pixel led strip since 2008.
