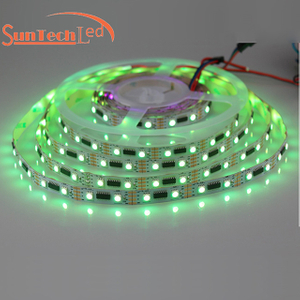

WS2813 LED ribbon is each color programmable , the signal still can pass through even one led pixel is broken. Because of WS2813 build-in IC,it is individually controlled and addressable full color led strip light.
We are one of the leading pixel led strip factories in Shenzhen, China.
Product introduction:
WS2813 LED ribbon is each color programmable , the signal still can pass through even one led pixel is broken. Because of WS2813 build-in IC,it is individually controlled and addressable full color led strip light.
We are one of the leading pixel led strip factories in Shenzhen, China.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2813RGB-60-5V | 60 | Addressable RGB | 60 | ≤18W | 5v | Double Copper PCB 5000*10mm |
Product details
1. For LED chip, we use build-in IC pixel WS2813 , 99% gold wire and pure copper frame
2. Not fake 3M tape, quite firm
3. Hongqi company reliable PCB
4. The WS2813 pixel is compatible with Arduino controller
5. For 5v led pixel, each one led is cuttable

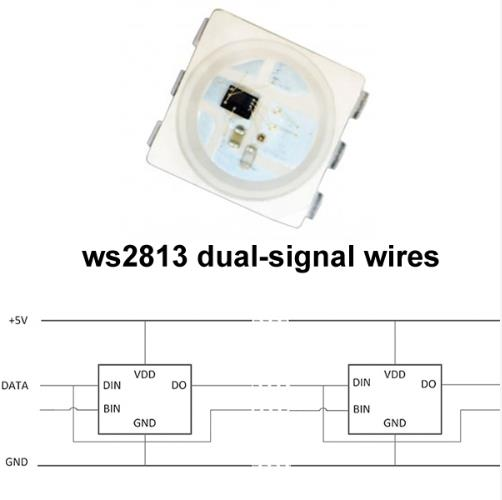

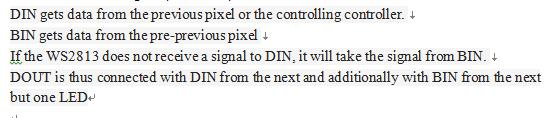

6. WS2813 LED ribbon is updated from WS2812, it has 2 signal lines to ensure stable work, structure as below:

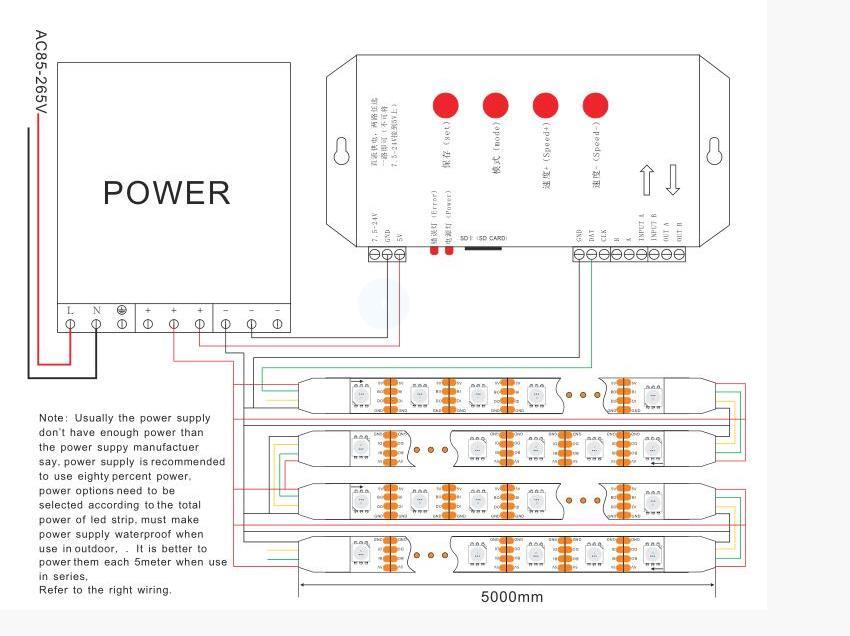

WS2813 led strip connection diagram

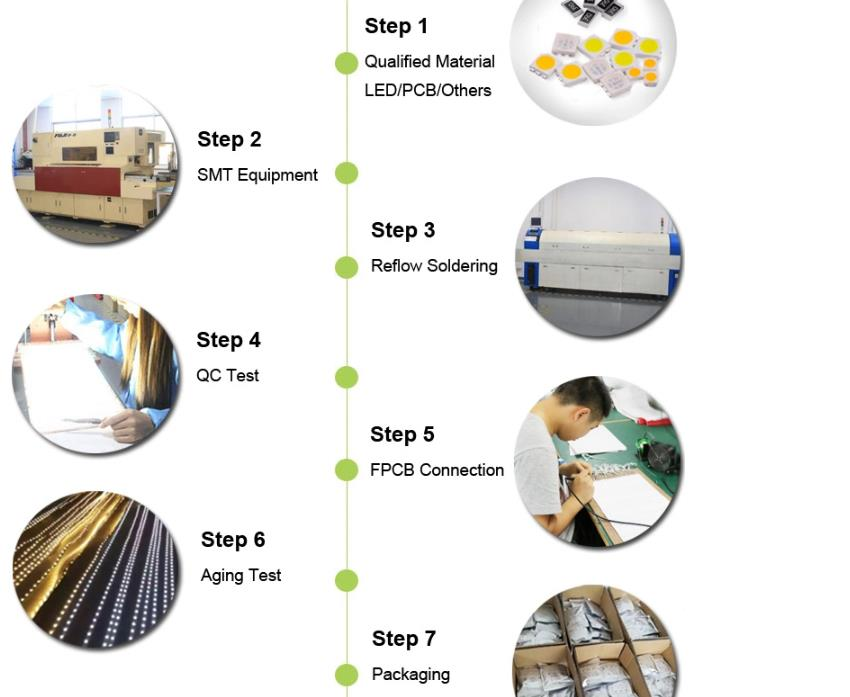

How we produce these strips? It is as below:
SMT LED -> Reflow Soldering -> QC test -> PCB connection -> Aging test -> Packing-> Transport shipping
Client visited us after HK lighting fair in October 2018
Advantage of our company,
1. Professional equipment such as reflow machine , SMT machine
2. Not only we provide you completed products, our mature engineer team could provide solutions as request
3. OEM & ODM requirements are welcome
Delivery of WS2813 RGB LED digital ribbon:
