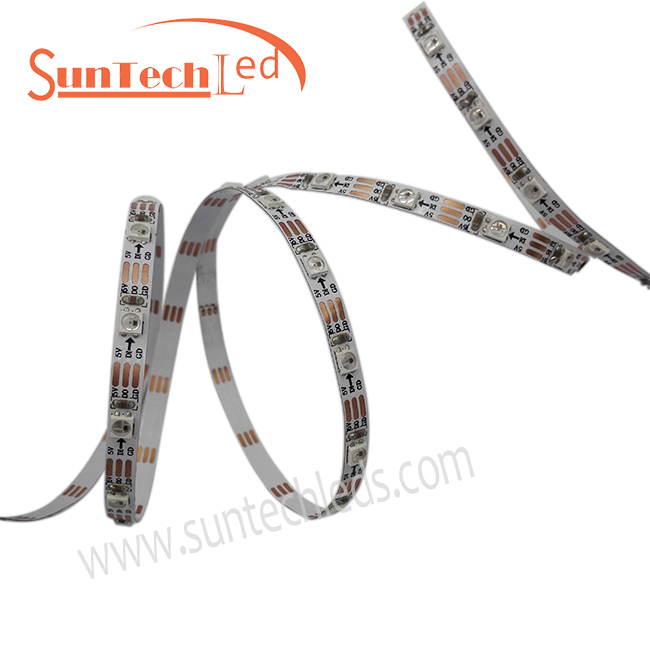

4mm width addressable strip is good option for special use especially in a narrow site application.
With IC SK6812 inside the SMD3535 RGB, each pixel could be controlled individually.
SK6812 has the same function as WS2812
Hope to be your partner in Shenzhen, China
Product introduction:
4mm width addressable strip is good option for special use especially in a narrow site application.
With IC SK6812 inside the SMD3535 RGB, each pixel could be controlled individually.
SK6812 has the same function as WS2812
Hope to be your partner in Shenzhen, China
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SK6812RGB-60-5V-4mm | 60 | Addressable RGB | 60 | ≤18W | 5v | Double Copper PCB 5000*4mm |
Product details
1. SK6812 has the same package as WS2812B with built-in IC that could be individually programmable, SK6812 could be packaged to SMD3535 which is 35*35mm

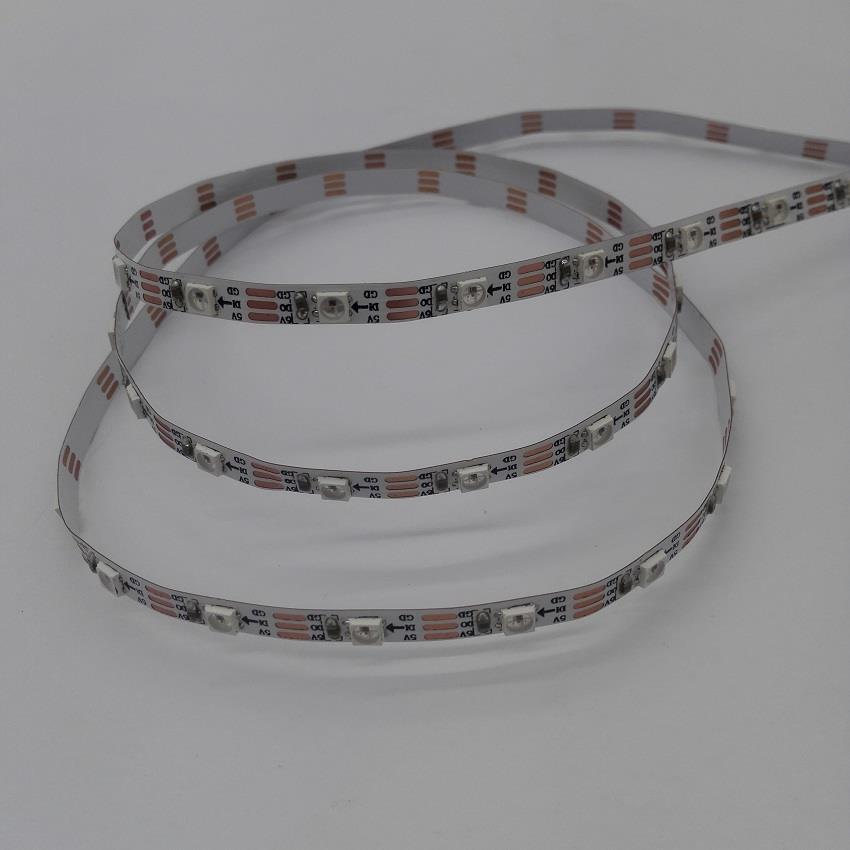

2. 4mm width PCB are available for special application
3. 5v input and 5m per roll , customized length we can also provide

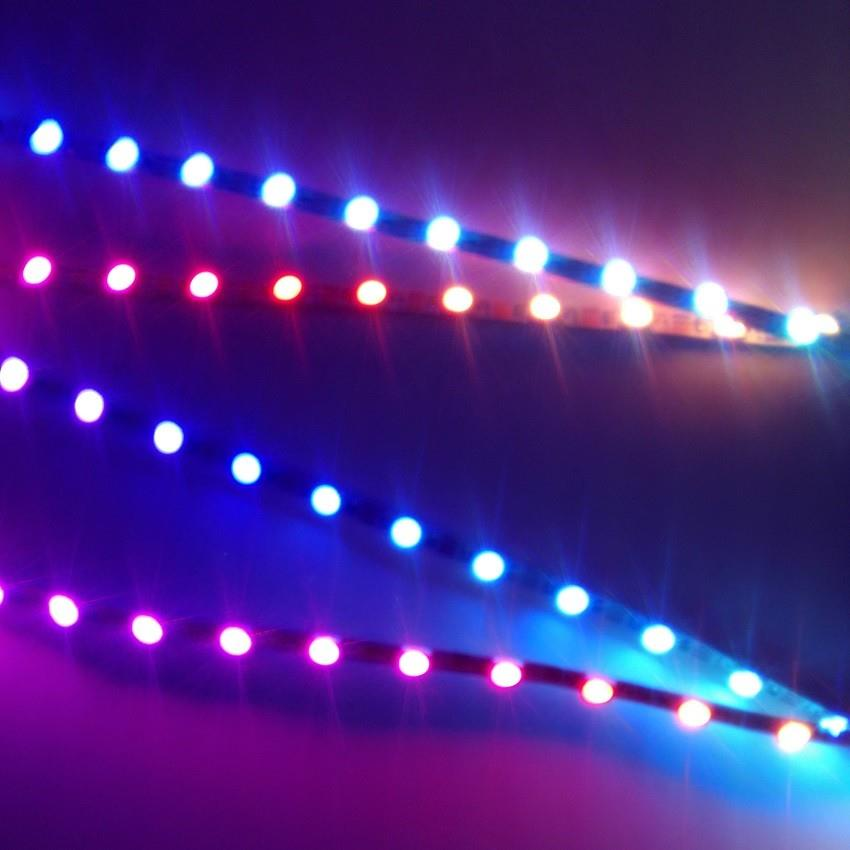

4. Numerous color-changing effects could be programmable independently
5. Flexible PCB for easier installation , 5V voltage is safer

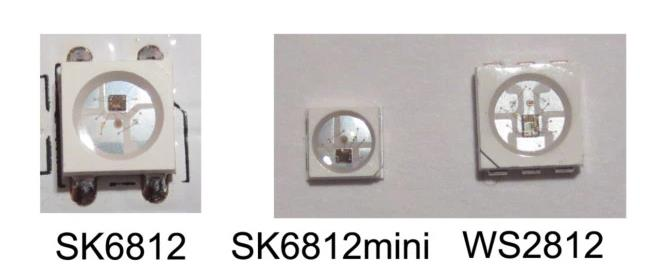

6. Please see SK6812 picture below, the mini one is SMD3535 which could be used for 4mm width

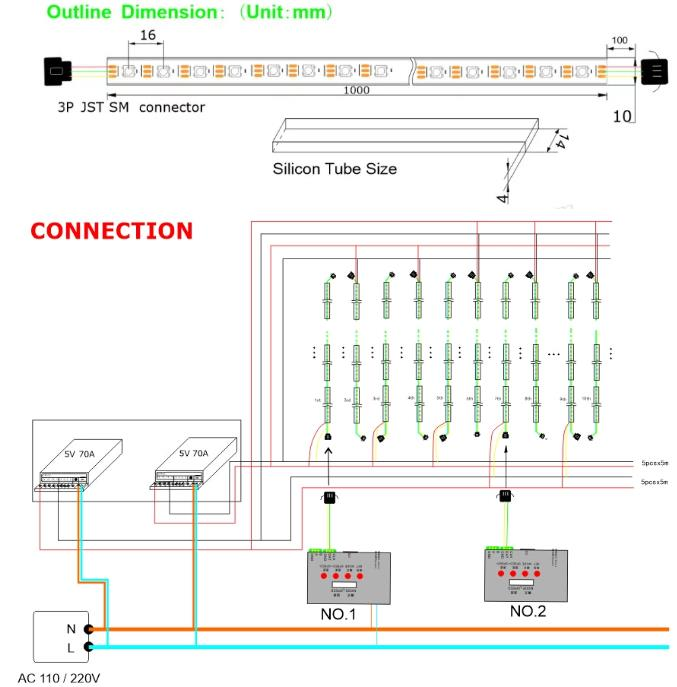

Connection diagram:
5m per roll, each roll has 300 pixels, and 72w per roll.
Each T-1000 controller can control 2000 pixels max, so can connect 5 rolls max, please see picture below:

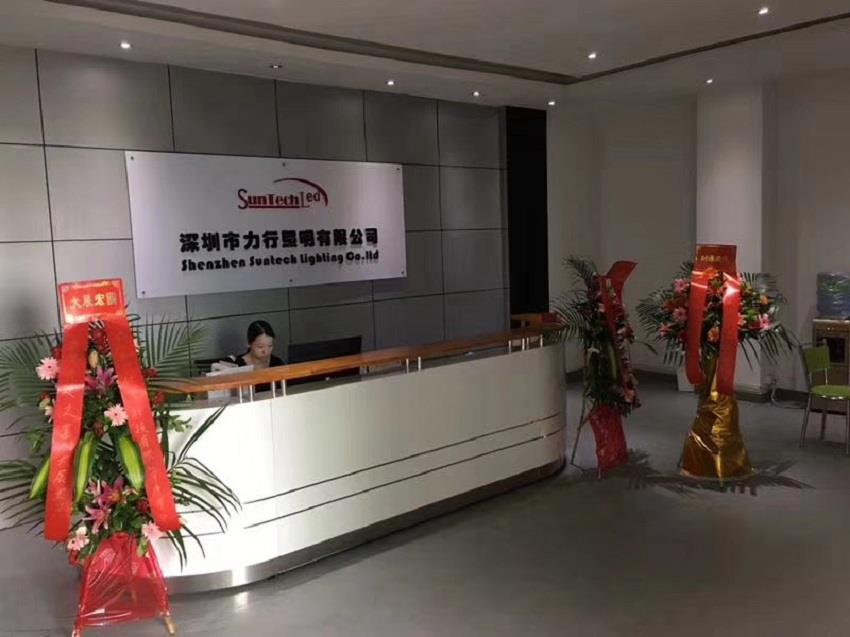

Our company
Application of 4mm addressable strip:
1. Emergency exit path lighting
2. Cove lighting.
3. Stairway accent lighting
4. Channel letter signs lighting
Our service:
1. We have been in providing the 4mm addressable strip 5 years ago, quality is quite stable with a professional engineer and sales team.
2. We can make animation design for you .
3.We have regular PCB in stock quick delivery around 7 days is less than 2000m IP 20 products.
4. OEM services. Can print your own logo on product , can customize the retail box packing and other things.
