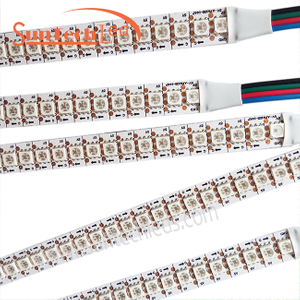

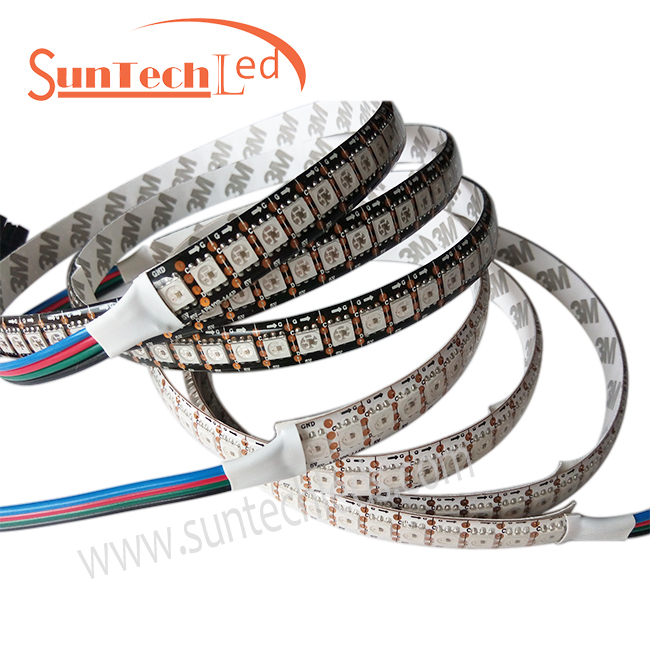

Programmable led ribbon WS2813 is full color addressable , 1 IC and 1 LED chip color changing. Break point continue function, while one LED dies, the signal can still pass through.
We focus on addressable strips manufacturing , hope to be your partner in China.
Product introduction:
Programmable led ribbon WS2813 is full color addressable , 1 IC and 1 LED chip color changing. Break point continue function, while one LED dies, the signal can still pass through.
We focus on addressable strips manufacturing , hope to be your partner in China.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2813RGB-30-5V | 30 | Addressable RGB | 60 | ≤9W | 5v | Double Copper PCB 5000*10mm |

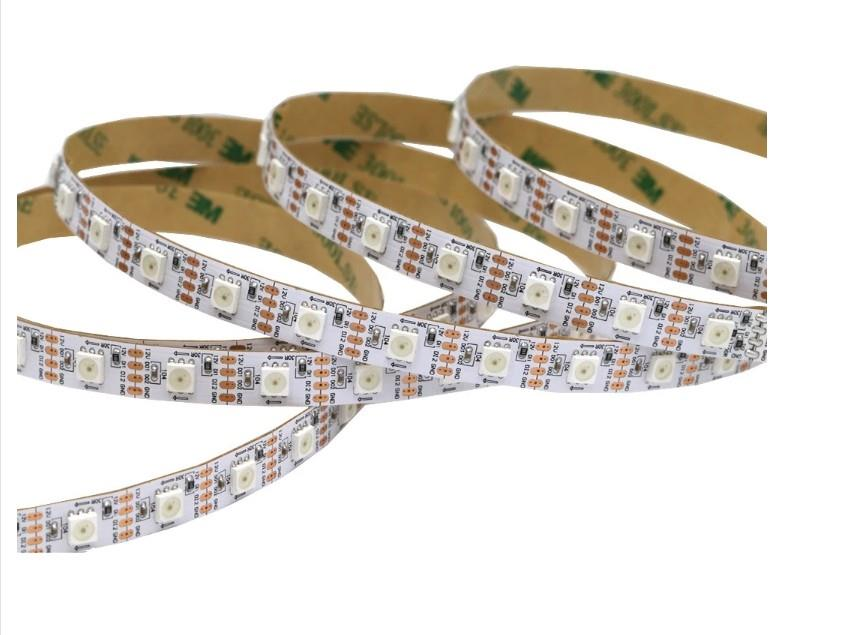

Product details
1. High Brightness, Low power dissipation, Long lifespan, Low voltage 5v, Low decline
2. A new version based on WS2812B pixel
3. Data speed: 800Kbps
4. Double line signal transfer, no clock line
5. Easy to cut and install, each one led is cuttable
6. Low voltage just 5v safe

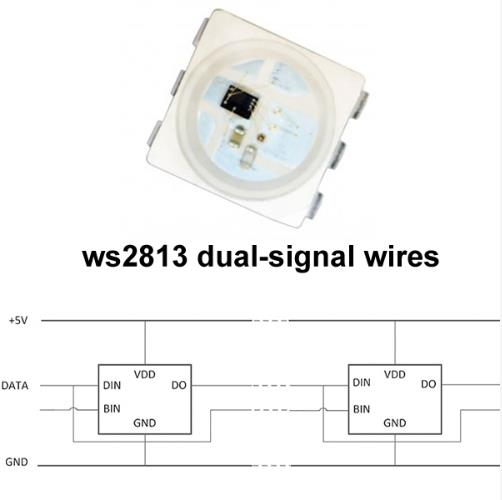

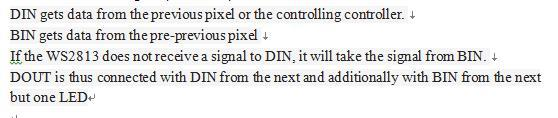

7. WS2813 IC has dual signals please see picture below

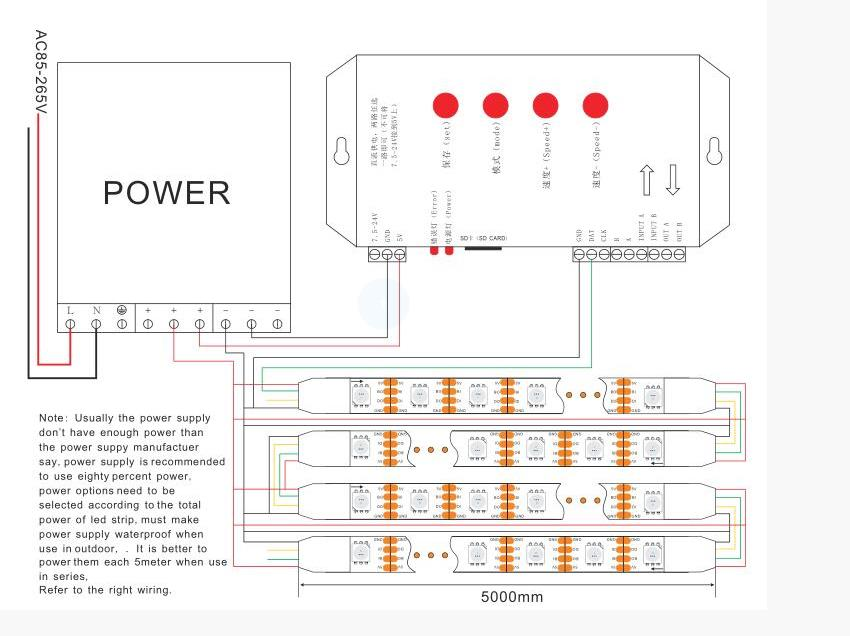

How to connect WS2813 led strip with controller

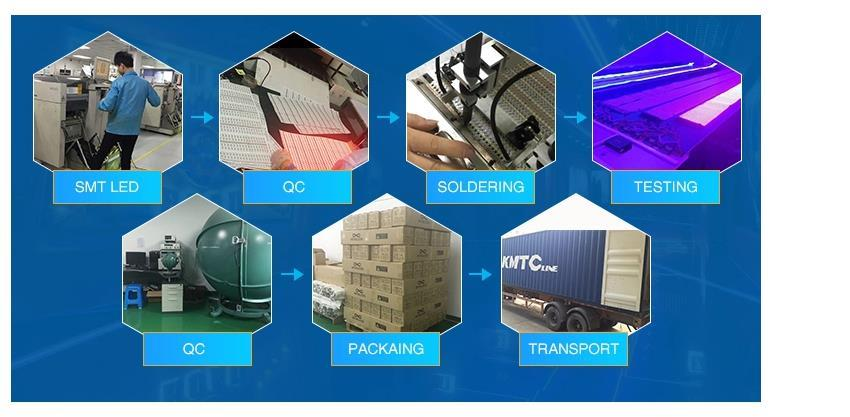

Addressable led strip production process
SMT LED -> QC -> Soldering -> Testing -> QC -> Packing-> Transport shipping

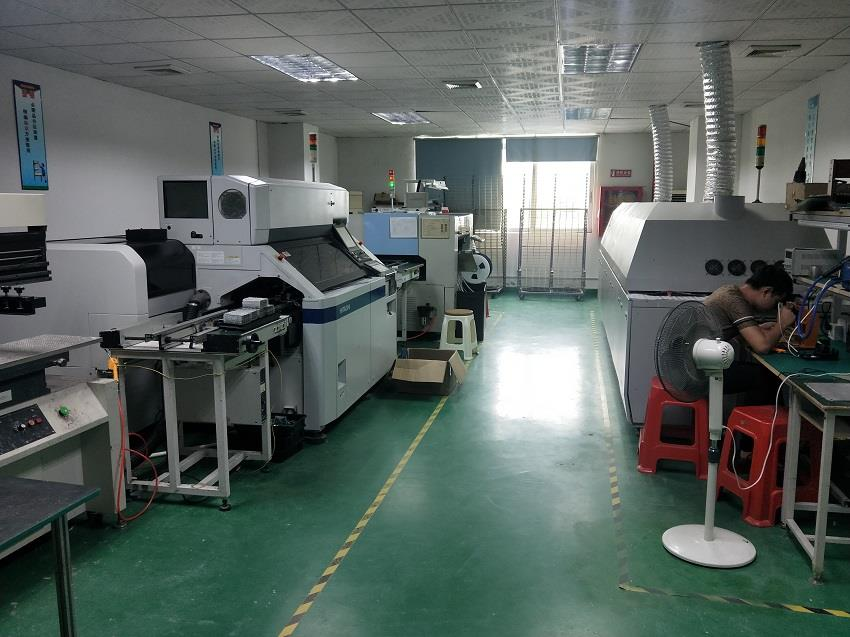

Our factory facility
Why choose us,
1. Your inquiry will be replied within 24 hours
2. No MOQ for the first order of programmable LED ribbon WS2813
3. 1m programmable led ribbon sample is free
4. OEM & ODM any customized product we can do for you
5. 8 years experience in producing LED strips
