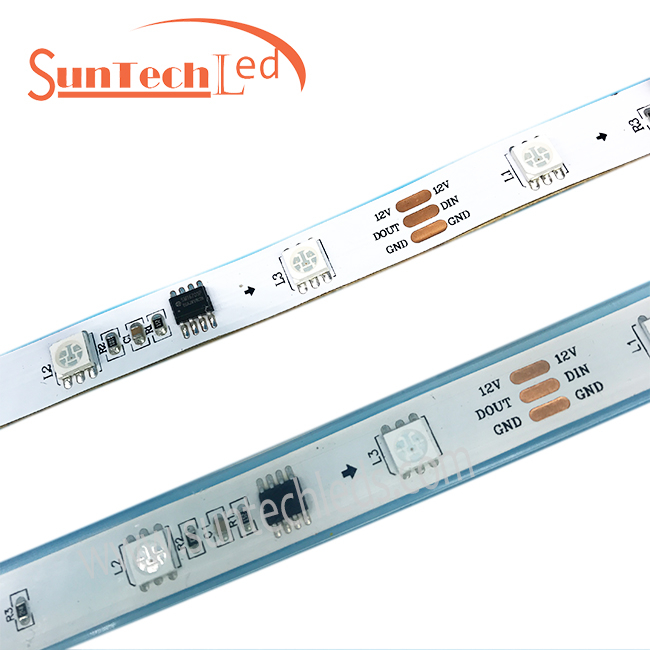

This digital RGB led strip is with IC WS2811 outside which the control circuit and RGB chip are integrated in a package of 5050 components, 48leds per meter , each 3 rgb chips addressable.
We could supply you direct factory price digital rgb strips with quite good quality
Availability: | |
---|---|
Product introduction:
This digital RGB led strip is with IC WS2811 outside which the control circuit and RGB chip are integrated in a package of 5050 components, 48leds per meter , each 3 rgb chips addressable.
We could supply you direct factory price digital rgb strips with quite good quality
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SM2811RGB-60-12V | 16 | Addressable RGB | 48 | ≤11.5W | 12v | Double Copper PCB 5000*10mm |
Product details
1. WS2811 is outside IC , cuttable each 3 RGB chips,
2. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate,
3. There is no voltage drop compared to regular 5v digital strip light such as WS2812B
4. Programmable WS2811 strip is compatible with Arduino, FastLED library, Raspberry Pi,platform
5. Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency is around 400Hz/s..
6. Data speed of WS2811 is 800kbs
7. Input voltage is 12v , if higher than 12v, the strip will be burned.
8. IP20, IP65 IP67, can be used inside ,outside

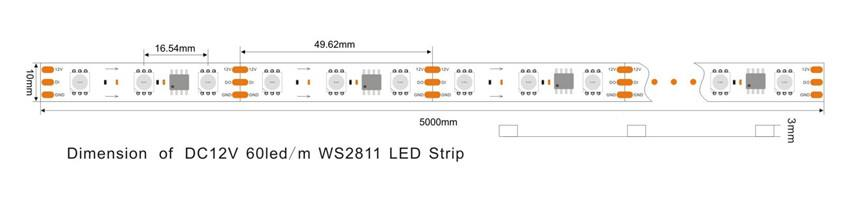

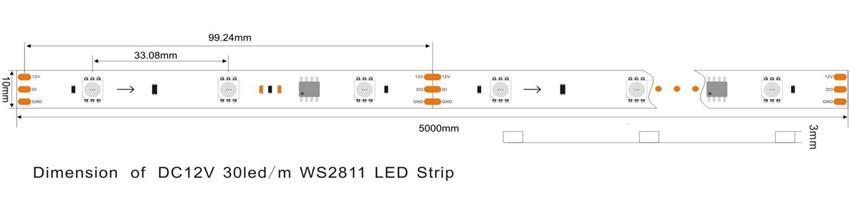

We have 30leds per meter, 60 led per meter for choices.
You can choose according to your specific requirements.

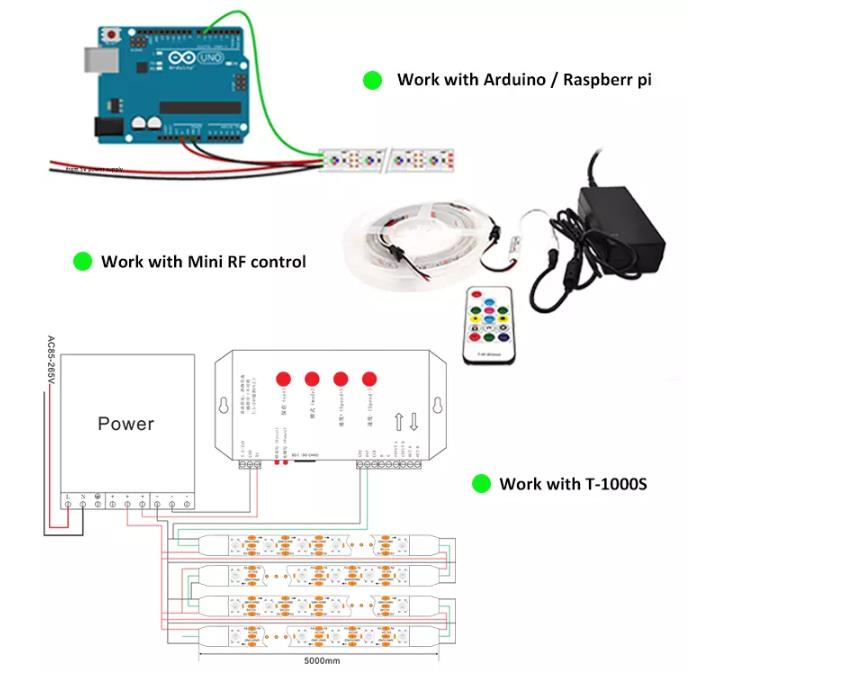

Programmable led strip connection
Arduino , Raspberr pi , RF controller , T-1000s are all workable with the WS2811 strip light

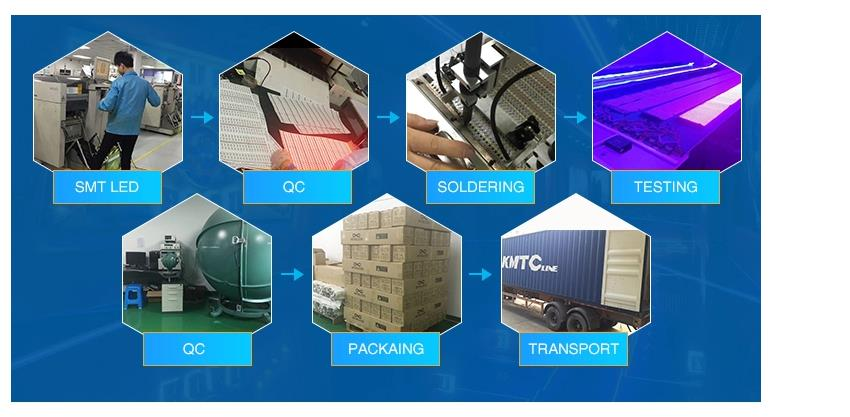

Production
Our booth in HK lighting fair
Application
1.Led screen, led wall, advertising board.
2.Apply to hotel, KTV, bars, advertisement company, decoration company,
3.For city lighting project, entertainment and leisure places lighting
FAQ:
1 Can Suntech do custom assembly product?
Suntech are experienced on OEM service for LED strip. We have engineers team for customized layout, logos and label. We will not sell your idea and customized products to other third company.
2 Do you have warranty for the digital led strip?
2 years warranty we can provide.
3 How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4 Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly base on our sample. MOQ is 1000 meters
