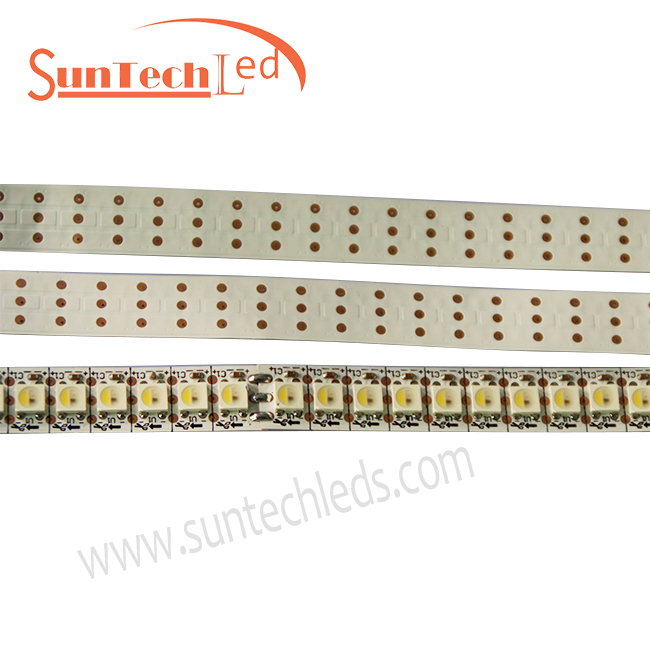

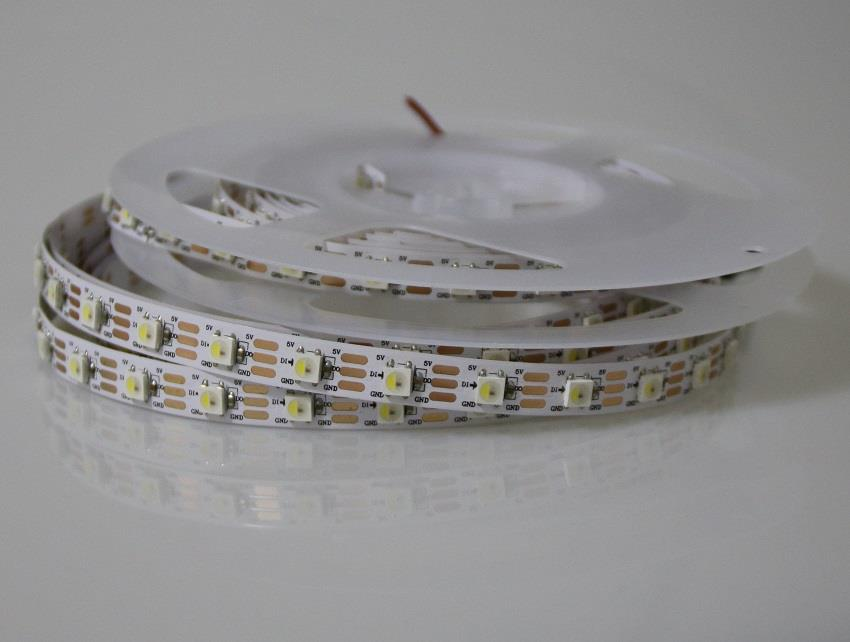

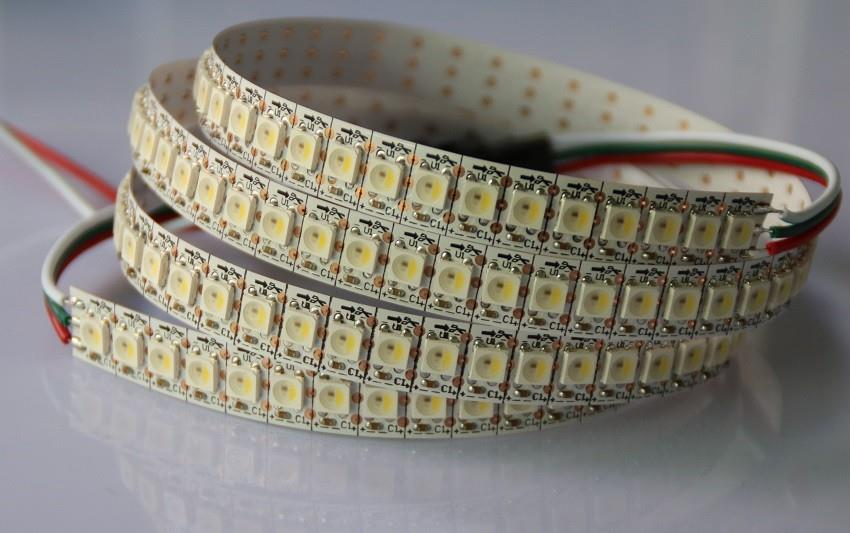

SK6812 RGBW pixel is independently programmable, SMD5050 RGB chip inserted with SK6812 IC, RGB+ 2800K - 3200K, RGB + 4000K - 4500K, RGB + 6000K- 6500K are available for option .
Based in Shenzhen, China, Suntech is a factory specialize in producing programmable strips, we can also provide you solutions if you use this addressable strip light for project.
Product introduction:
SK6812 RGBW pixel is independently programmable, SMD5050 RGB chip inserted with SK6812 IC, RGB+ 2800K - 3200K, RGB + 4000K - 4500K, RGB + 6000K- 6500K are available for option .<br>
Based in Shenzhen, China, Suntech is a factory specialize in producing programmable strips, we can also provide you solutions if you use this addressable strip light for project.
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SK6812RGBW-144-5V | 144 | Addressable RGBW | 144 | ≤43.2W | 5v | Double Copper PCB 5000*10mm |
Product details
1. SK6812 RGBW has an extra white channel, total four channels,Please note there is no clock line. Only data line.
2. SK6812 RGBW supports platforms such as SPI controller, DMX controller
3. The white channel can be customized to warm white 3000K, natural white 4000K, cool white 6000K according to your specific requirements.
4. 30 pixels, 60pixels,96 pixels and 144 pixels are available for option.

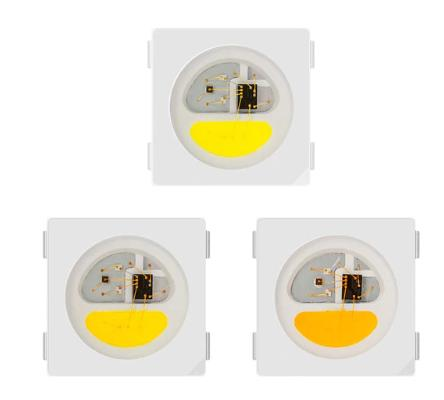

5. Please see SK6812 RGBW picture below, there are warm white, natural white and cool white.

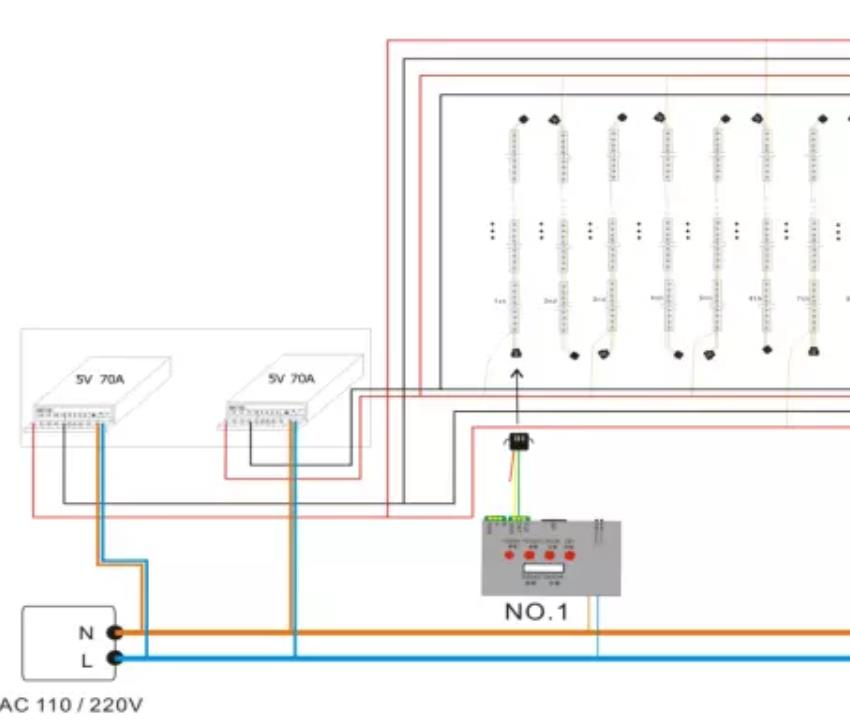

How to connect the RGBW addressable pixel led lightf?
1. Signal wires: DAT
2. DC+ and GND connect to power supplier; DAT, CLK and GND connect to controller.
3. Compatible Controller:Arduino, FastLED library, Raspberry Pi, Fadecandy, T1000S, K1000C
4. SPI platform: RGBW pixles +Power Supply + Controller.
5. DMX platform:RGBW pixels + Power Supply + DMX Controller + DMX Decoder.

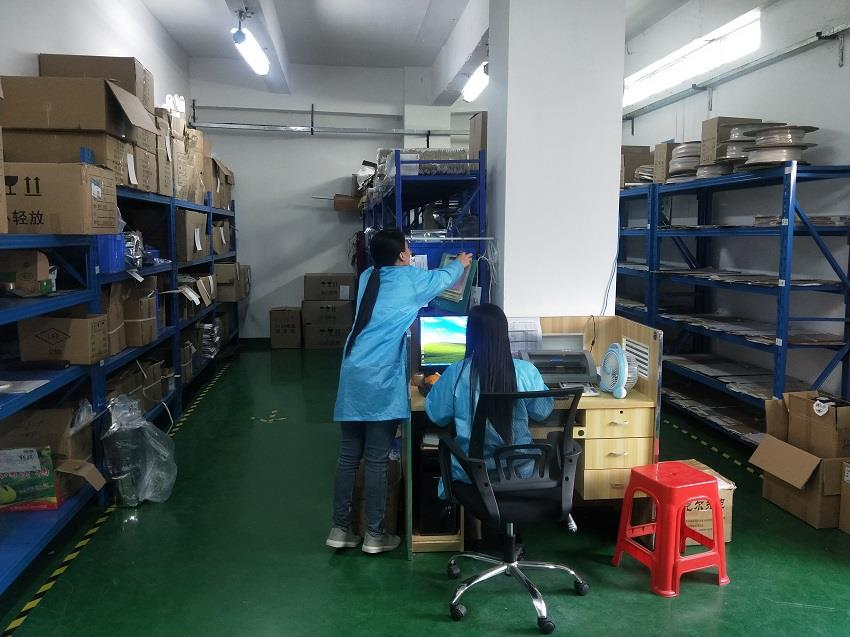

Our Warehouse

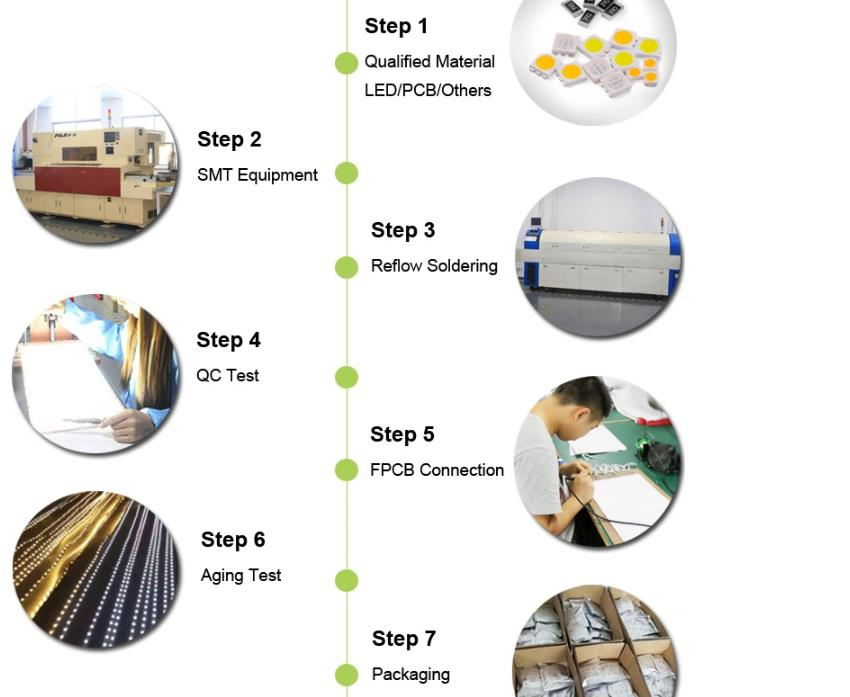

Addressable led strip production process
SMT LED -> Reflow Soldering -> QC test -> PCB connection -> Aging test -> Packing-> Transport shipping
Shipping
1.Goods will be delivered within 3-5 working days after the payment received.
2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.
Why choose us Suntech as your digital RGBW LED strip partner?
1. LED chip: 99.9% gold wire and pure copper frame LED we use, regular 3 years warranty
2. Experienced staffs answer all your questions in fluent English
3. We have 5 experienced engineers that provide customized service
4. Our products are CE & RoHS approved, export to more than 50 countries around the world.
