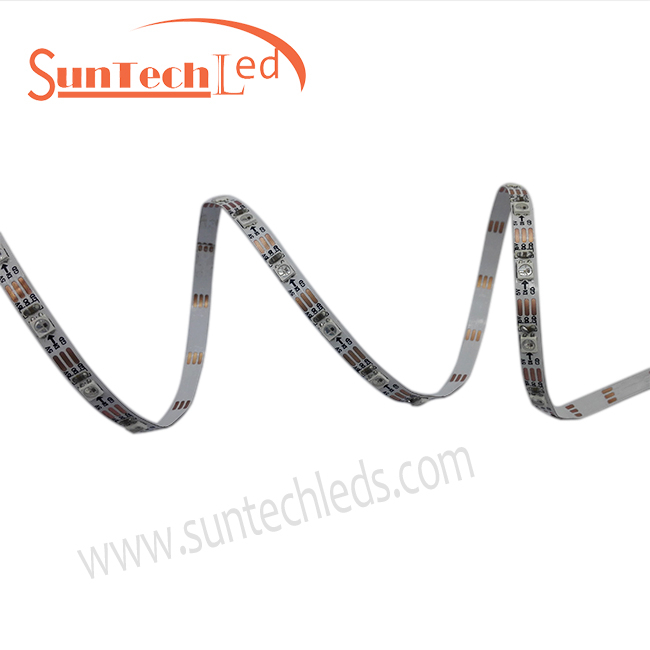

5mm width addressable strip is for application such as narrow site which is not regular.
For this led tape, each led is a pixel with built-in SK6812 so could be individually controlled.
Hope to be your partner in Shenzhen, China
Product introduction:

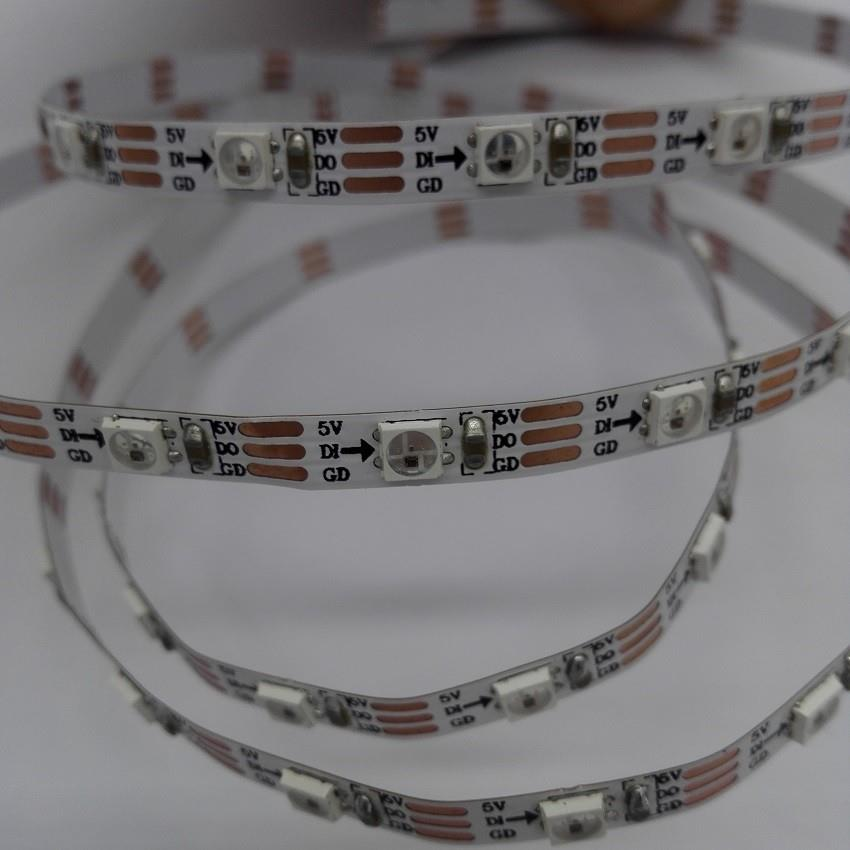

5mm width addressable strip is for application such as narrow site which is not regular.
For this led tape, each led is a pixel with built-in SK6812 so could be individually controlled.
Hope to be your partner in Shenzhen, China
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SK6812RGB-60-5V-5mm | 60 | Addressable RGB | 60 | ≤18W | 5v | Double Copper PCB 5000*5mm |
Product details

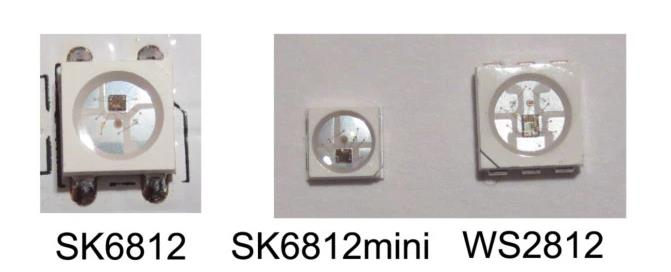

1. SK6812 has the same package as WS2812B with built-in IC, each led is a pixel and be controlled independently.
2. 5mm width PCB are good choice for special application

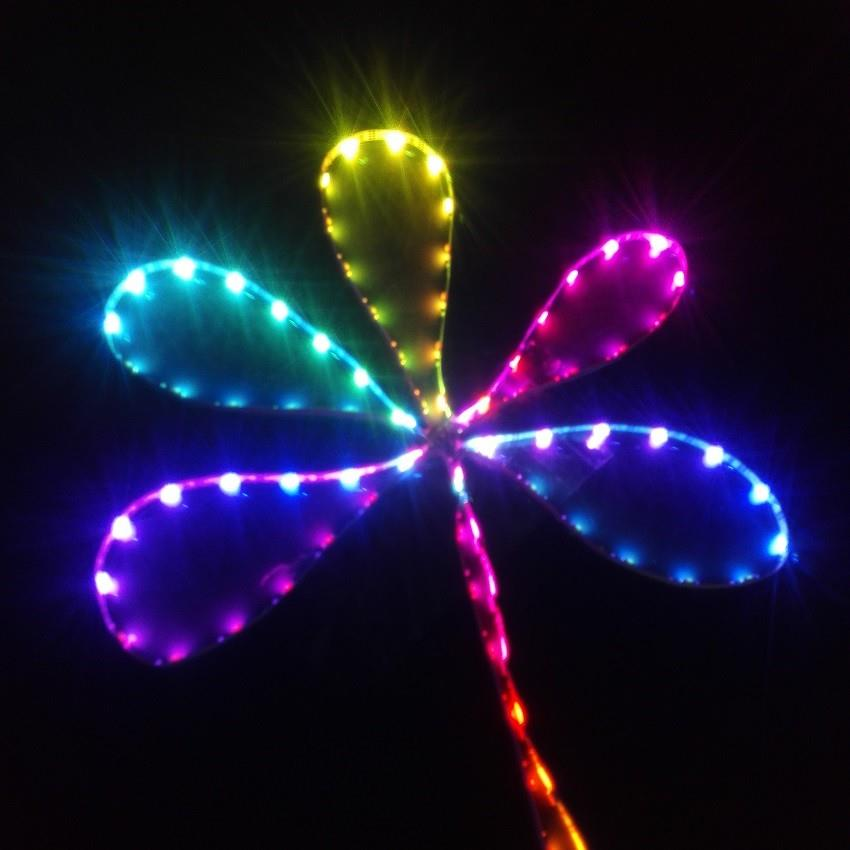

3. This narrow with pcb can achieve full color water running , chasing and scanning effect.
4. Numerous color-changing effects could be programmable also.
5. Flexible PCB for easier installation , 5V voltage is safer
6. The mini one is SK6812 SMD3535 which could be used as 4mm width

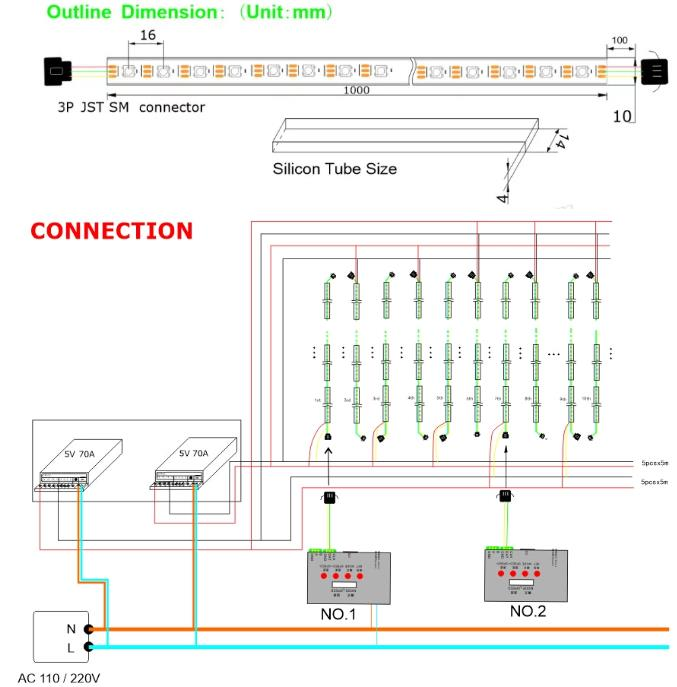

Connection diagram:
5m per roll, each roll has 300 pixels, and 72w per roll.
You can use Ardunio, Fastled spi or T-1000 controller
Our company
FAQ:
1. Is there a cheaper way for shipping the 5mm programmable strip?
For small order we usually use UPS TNT or DHL
2. What is your lead time
Small order takes 3-5 days, big order takes around 10-15 days.
3 What are the best selling products in Suntech,
Pixel led strip lights, WS2812B, SK6812, SM16703 strips.
3. Can you provide OEM service、
Yes, We have experience team who can provide you mature solution.
