Normal addressable RGBW Digital LED strip is 5v, we now have programmable RGBW 12v instead of 5v utilizes built-in IC that allows clients to fully customized color brightness and speed through DMX controller or SPI platform.
We are a factory based in Shenzhen, China.
Product introduction:
Normal addressable RGBW Digital LED strip is 5v, we now have programmable RGBW 12v instead of 5v utilizes built-in IC that allows clients to fully customized color brightness and speed through DMX controller or SPI platform.
We are a factory based in Shenzhen, China.
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SK6812RGBW-60-12V | 60 | Addressable RGBW | 60 | ≤18W | 12v | Double Copper PCB 5000*10mm |
Product details
1. Operating Voltage 12 Volt DC
2. 12v SK6812 RGBW supports many controllers such as SPI controller
3. Each LED is individually controlled
4. 256 level gray scales adjustable
5. SPI signal control system, DVI video control system,DMX console controllable..

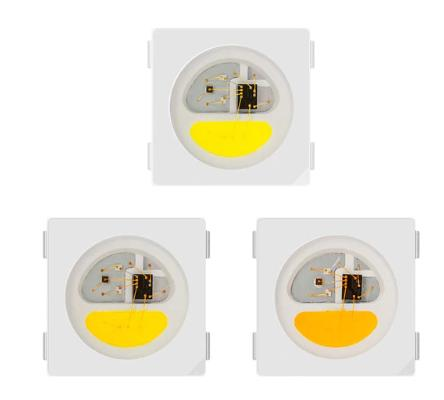

6. Please see SK6812 RGBW picture below, there are warm white, natural white and cool white.

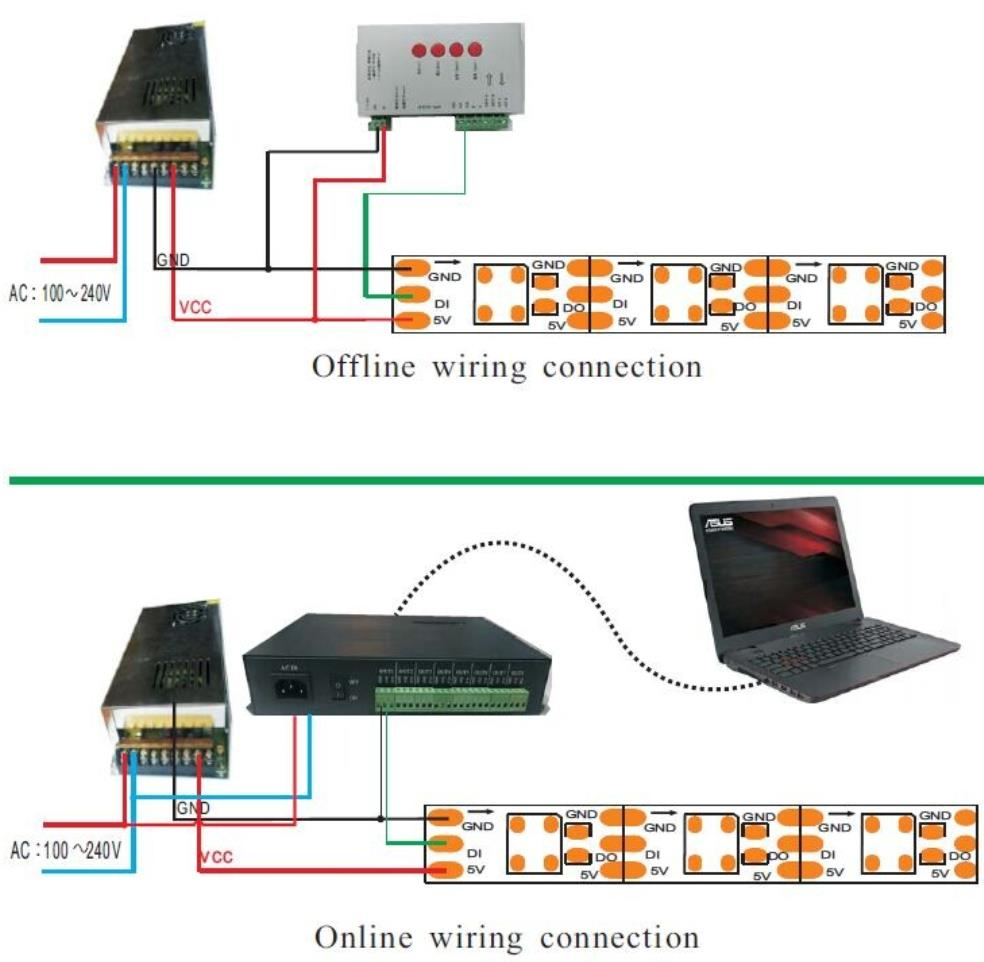

12v RGBW addressable strip connection to the led controller
Our workshop team

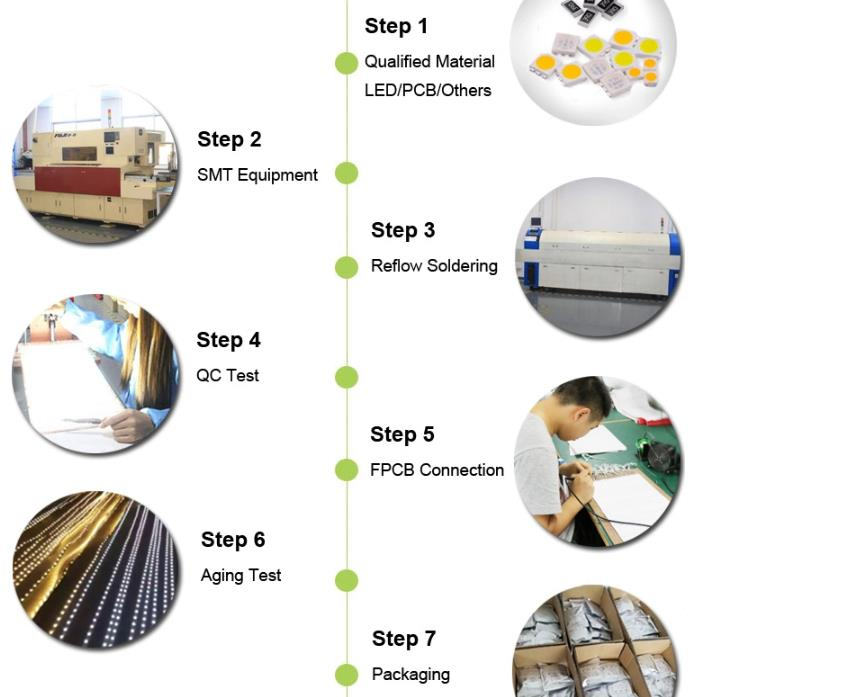

Addressable led strip production process
SMT LED -> Reflow Soldering -> QC test -> PCB connection -> Aging test -> Packing-> Transport shipping
Why choose us Suntech as your 12v digital RGBW LED strip partner?
1. Our products are CE & RoHS certificated
2. Customized design is welcome
3. Our main market is EU who prefers good quality total around 70% of our sales amount.
4. Suntech has been in LED strip industry since 2010, 8 years experience
