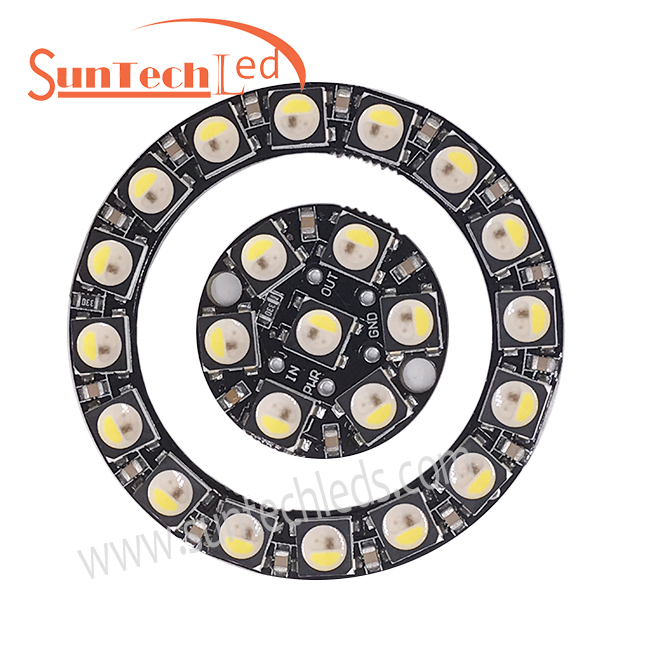

The addressable LED ring contains 16 individually controlled RGB LEDs with intelligent IC SK6812 WS2812B inside, widely used for DIY lighting. Controlled through Arduino or microcontroller, making an amazing visual impact for some electronics projects.
We are direct factory supply these neopixel rings with competitive price and quite good quality.
Product introduction:
The addressable LED ring contains 16 individually controlled RGB LEDs with intelligent IC SK6812 WS2812B inside, widely used for DIY lighting. Controlled through Arduino or microcontroller, making an amazing visual impact for some electronics projects.
We are direct factory supply these neopixel rings with competitive price and quite good quality.
Product parameters:
| Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||

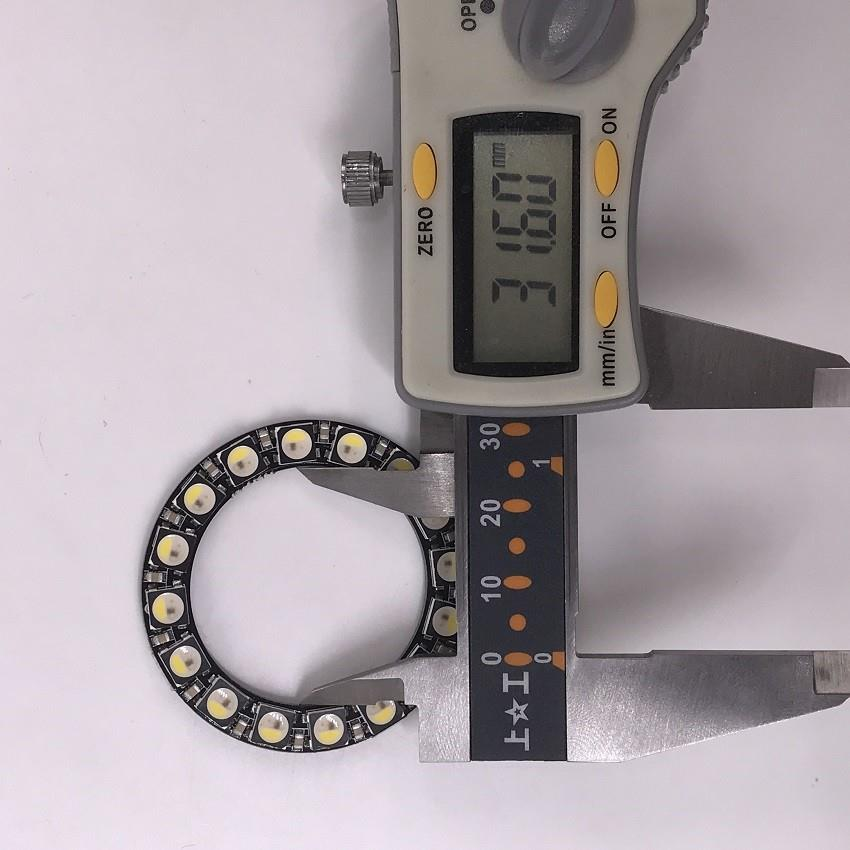

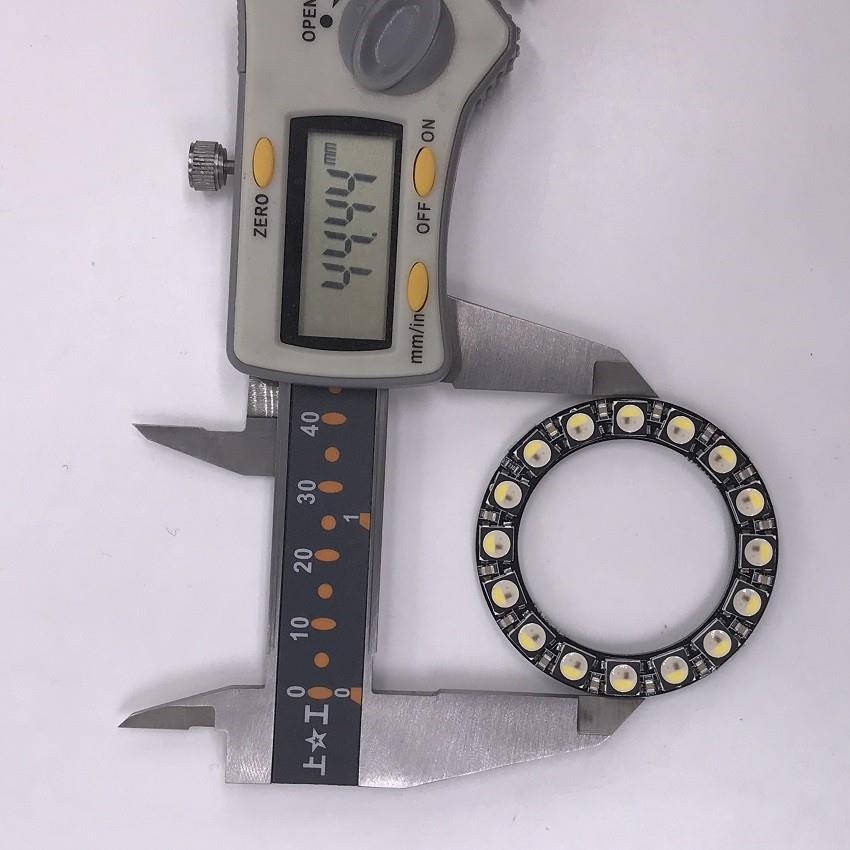

STNP-SK6816RGBW--5V | 16 | Addressable RGBW | 16 | ≤4.8W | 5v | Outer diameter: 44.5mm Inner diameter: 31.6mm |
Product details
1. 5v input ,safe for installation. 1led 12led 16led 24led are all available
2. RGBW with IC inside, individually programmable.
3. 3 pins connector, easy to connect the RGBW ring one by one.
4. Data transmission speeds of the RGBW ring is up to 800Kbps. PMW frequency is 400 kHz
5. When the refresh rate reaches 30 frames / sec, cascading number of not less than 1024 points.
6. You can set the brightness and color of each R/G/B/W with 8-bit PWM precision (so 32-bit color per pixel)
7. The LEDs are controlled by shift-registers and only 1 digital output pin are required to send data down

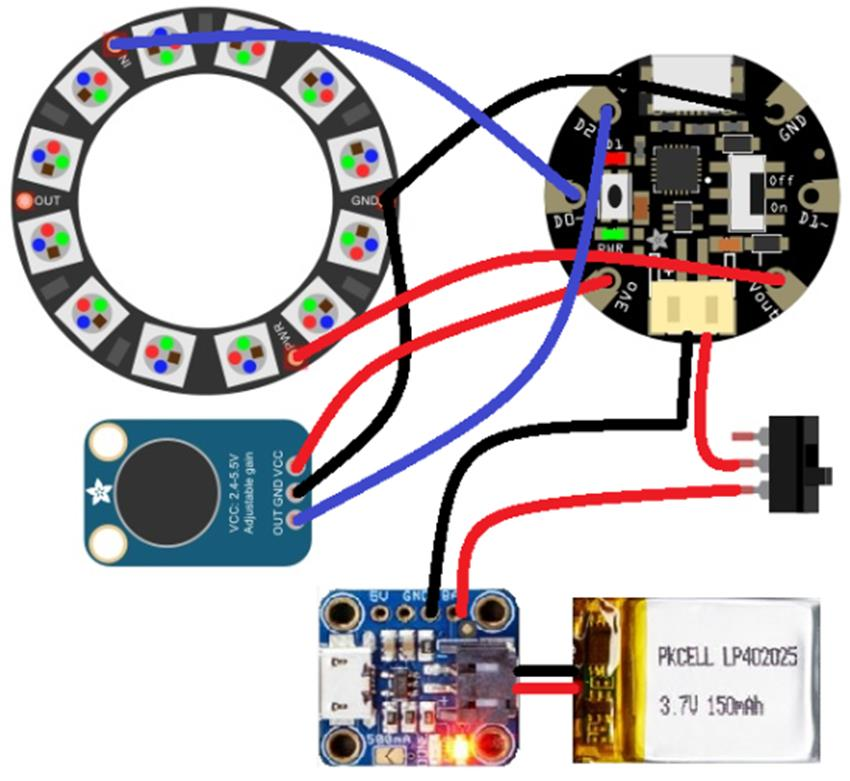

How to control the Addressable LED ring through Arduino Platform
Our staff
DIY with addressable RGBW led ring:
1. lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Our Services
1. We can help All our Customer in Installing, Design, and Accessory Free.
2. Our all customer know: our Connector, Install Clips, Wires, is free with Orders.
3. Any questions our sales team will reply you with professional suggestions.
4. We have regular PCB in stock to ensure quick production
