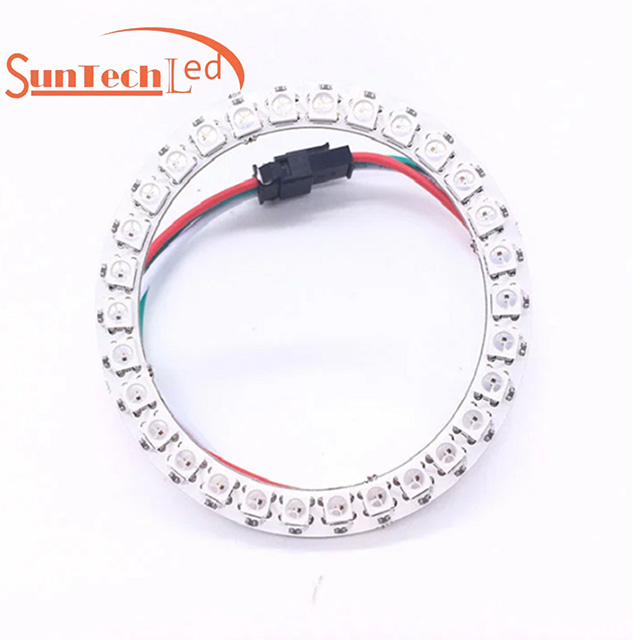

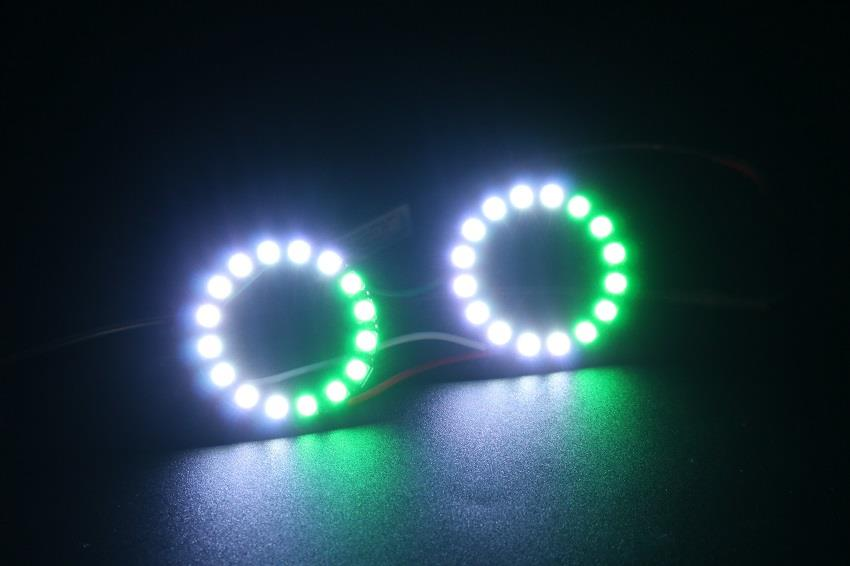

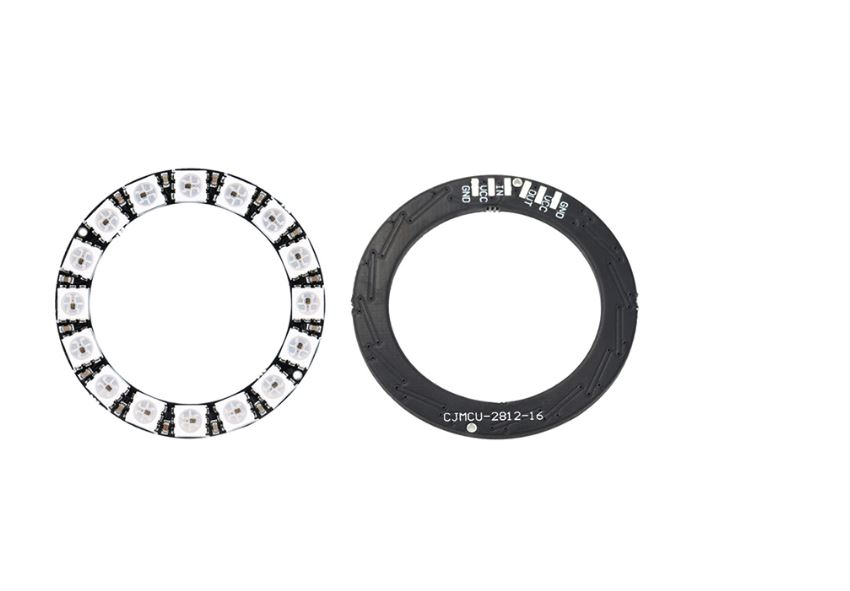

The RGB LED ring with built-in SK6812 IC could be programmable through microcontrollers or Arduino platform. 8 pixels, 16 pixels and 24 pixels are all available with different sizes.
You can get different lighting effects by programming the RGB ring.
We supply you quite good quality products, welcome to inquiry
Product introduction:
The RGB LED ring with built-in SK6812 IC could be programmable through microcontrollers or Arduino platform. 8 pixels, 16 pixels and 24 pixels are all available with different sizes.
You can get different lighting effects by programming the RGB ring.
We supply you quite good quality products, welcome to inquiry
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
STNP-SK6812RGB-12-5V | 16 | Addressable RGB | 16 | ≤4.8W | 5v | Outer diameter: 44.5mm Inner diameter:31.6mm |
Product details
1. 5v input, safe and easy installation
2. With built-in IC, each RGB chip could be individually programmable.
3. 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
4. With 3Pin wires the pixel led ring could be connected easily
5. Many controllers support the pixel RGB ring, such as microcontroller, T-1000C and other SPI controllers
6. Circle outer diameter of 44.5mm and inner diameter of 31.6mm
7. One-wire digital control interface, no clock line

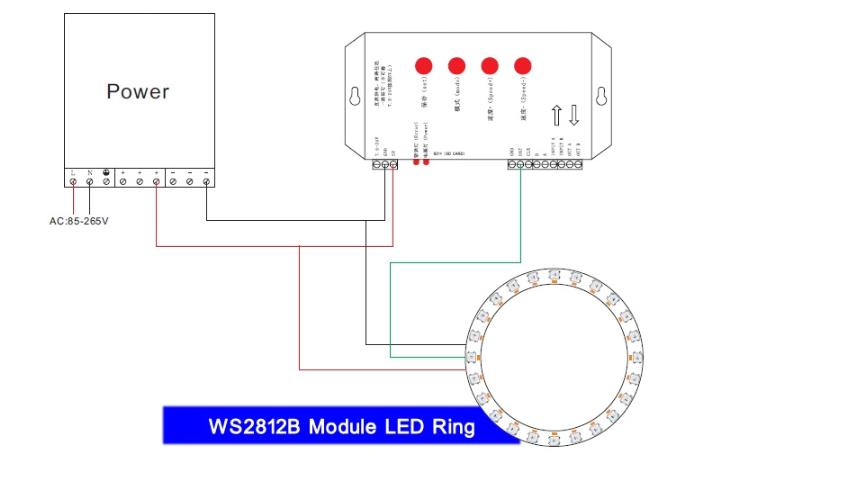

How to control the Addressable LED ring to T-1000
Control system:
Small scale: Mini controller, Max 2048 pixels.(remote control option)
Small scale: K-1000C or T-1000s controller, Max control 2048 pixels.
Larger scale: T-300K controller, Max control 8192 pixels, on/off line control.
Compatible with DMX via decoder, and Artnet Madrix control
Our team in Guangzhou lighting fair.
Programmable led ring applications:
1.Car headlights, taillights, speaker horns, car exhaust pipes.
2.Good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
3.various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for extra charge and do not pay the cost of freight.
If you have another question, pls feel free to contact us as below:
