RGB ring is with WS2812B SK6812 IC packaged in the SMD5050 RGB chip, each RGB chip is individually addressable, has its own color and brightness. Compatible with FastLED Arduino
We mainly export to Europe, Middle east and Asia.
Product introduction:
RGB ring is with WS2812B SK6812 IC packaged in the SMD5050 RGB chip, each RGB chip is individually addressable, has its own color and brightness. Compatible with FastLED Arduino
We mainly export to Europe, Middle east and Asia.
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
STNP-SK6812RGB-24-5V | 24 | Addressable RGB | 24 | ≤7.2W | 5v | Outer diameter: 65.3mm Inner diameter:52.3mm |
Product details

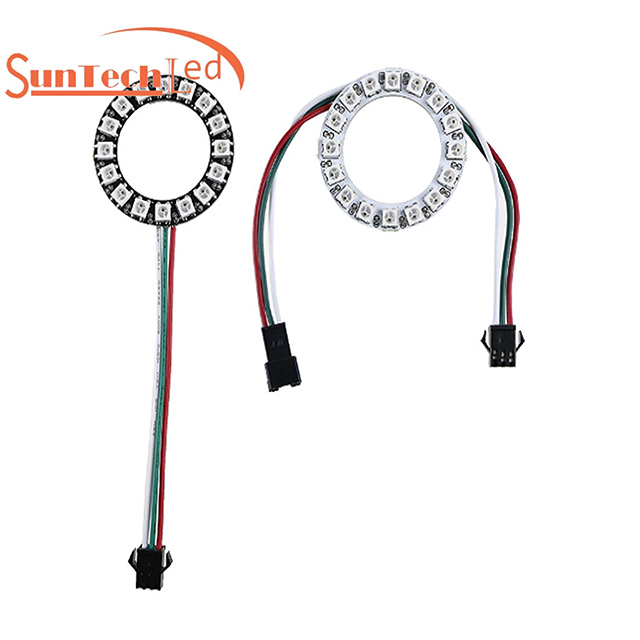

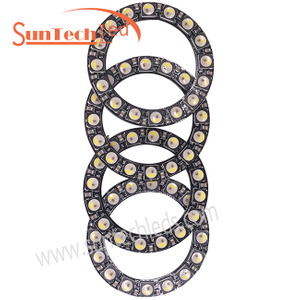

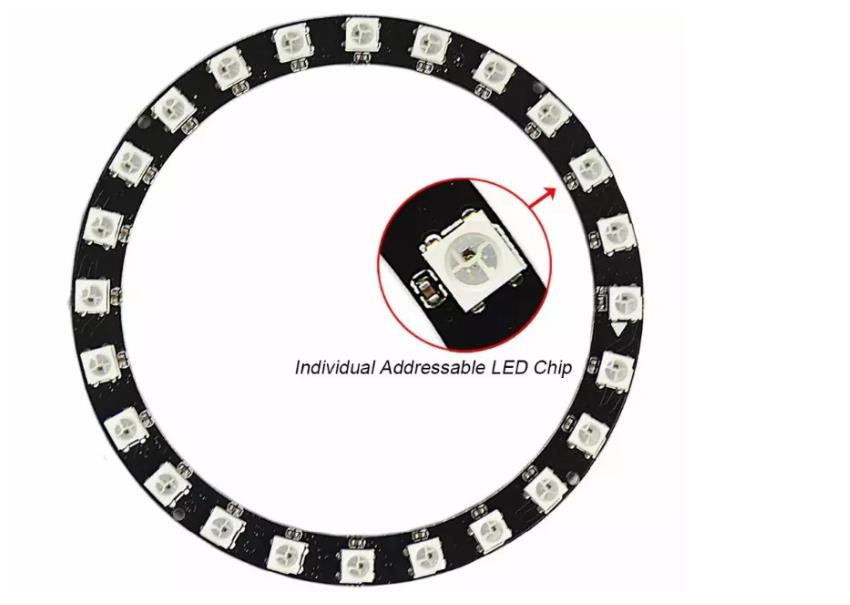

1. 24 individually addressable RGB LEDs (SK6812 WS2812B-based NeoPixels)
2.Neopixels can be SK6812 or WS2812B, they are the same color and protocol.
3. Each pixel can realize 256 highlighted, complete 16777216 colors of all true color display.

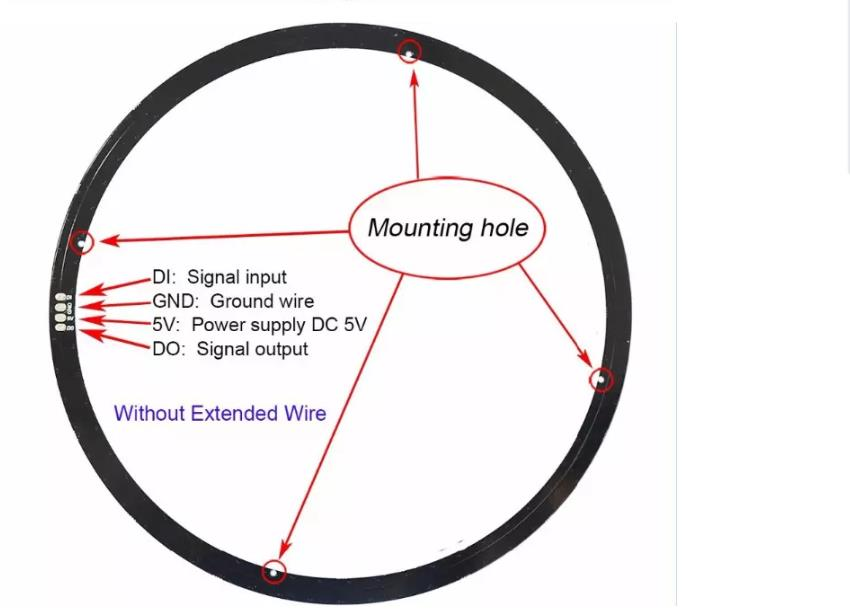

4. Each addressable RGB ring is equipped with a single data line with a very timing-specific protocol.
5. If you are chaining the RGB neopixel ring together, be sure to connect "OUT" on the first board to "IN" on the second - and so on.
6. CE RoHS approved products
7. IDEAL for DIY: Amazing led ring, you can use this to DIY whatever you can imagine..

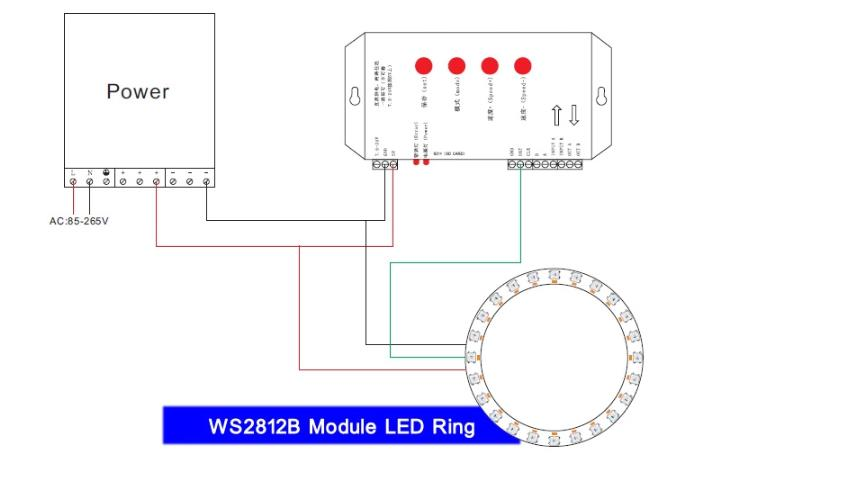

How to control the Addressable LED ring to T-1000
Control system:
Small scale: Mini controller, Max 2048 pixels.(remote control option)
Larger scale: T-300K controller, Max control 8192 pixels, on/off line control.
Compatible with DMX via decoder, and Artnet Madrix control
Welcome to visit our factory
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
