WS2812 LED ring could be addressable individually through built-in IC packaged in a SMD5050 LED chip, reach the visual impact needed for you project.
Our experienced team gives you solutions and technical support, also good prices and reliable quality. Welcome to visit our factory in Shenzhen, China
Product introduction:
WS2812 LED ring could be addressable individually through built-in IC packaged in a SMD5050 LED chip, reach the visual impact needed for you project.
Our experienced team gives you solutions and technical support, also good prices and reliable quality. Welcome to visit our factory in Shenzhen, China
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
STNP-SK6812RGB-24-5V | 24 | Addressable RGB | 24 | ≤7.2W | 5v | Outer diameter: 65.3mm Inner diameter:52.3mm |
Product details
1.LED Chip & IC:WS2812/WS2813/SK6812 SMD5050, IF=60mA

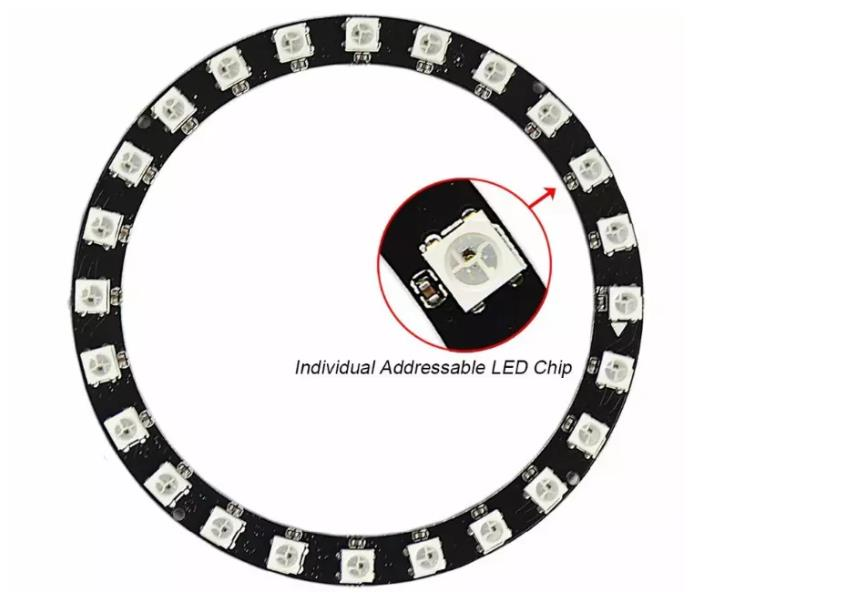

2.INDIVIDUAL ADDRESSABLE: Each LED is addressable as the driver chip is inside the LED. So each pixel can have its own color and brightness as your wish.
3.COLORFUL: 256 brightness display and full 24-bit color display. Each LED can have its own color and brightness. You can control each LED individually and set it to any color or animation you want
4.Lead Wire: 3PIN plug with UL 18awg 20cm lead wire, 300V 80 degrees centigrade Good electrical conductivity, low thermal resistance.
5. Input Voltage and Current: DC5V

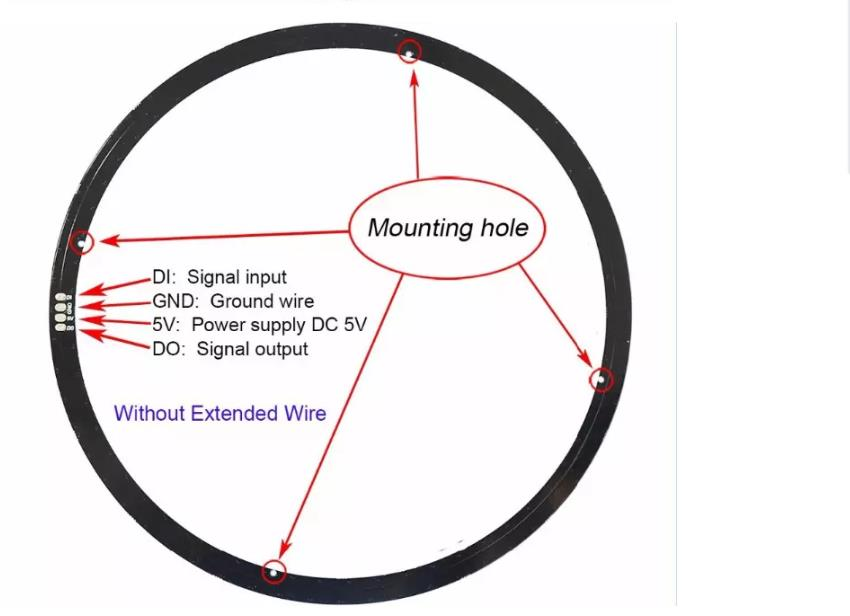

6. Circle outer diameter of 65.3mm and inner diameter of 52.3mm
7. IDEAL for DIY: Amazing led ring, you can use this to DIY whatever you can imagine..

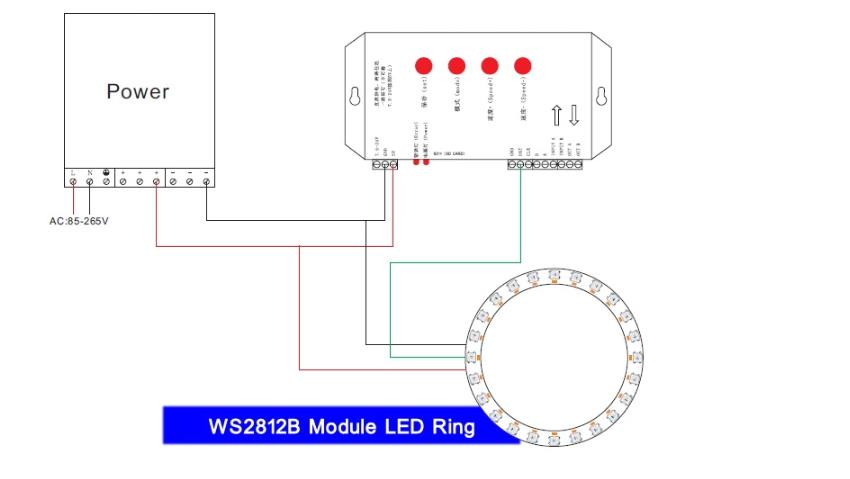

How to control the Addressable LED ring to T-1000
Control system:
Small scale: Mini controller, Max 2048 pixels.(remote control option)
Larger scale: T-300K controller, Max control 8192 pixels, on/off line control.
Compatible with DMX via decoder, and Artnet Madrix control
Our team in Guangzhou lighting fair.
Pixel led ring applications:
1.DIY electronic production.
2. Advertising ,Display.
3. Dance floor decoration.
4. DJ background, DJ Table ,Stage floor etc.
FAQ
Q1. Can I have a sample order for led ring light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Need about 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
