Do you really know Ultraviolet light?

Views: 0     Author: Site Editor     Publish Time: 2021-03-29      Origin: Site

What is ultraviolet?


Ultraviolet, abbreviated as UV, which is an electromagnetic waves with a wavelength of 10nm to 400nm. The wavelength is longer than X-rays, and shorter than visible light. The sunlight contains ultraviolet rays, and electric arcs, mercury lamps and black light lamps also emit ultraviolet rays. Ultraviolet rays are not ionizing radiation, but it can still make certain substances that cause chemical reactions fluoresce.

Ultraviolet rays below 200nm are called vacuum ultraviolet rays because they are strongly absorbed by air.

The meaning of the name is "beyond purple", and purple light is the shortest wavelength among the colors in visible light. Ultraviolet light has a shorter wavelength than violet light.

What is UV radiation?

All radiation is a form of energy, most of which is invisible. Ultraviolet radiation is just a form of radiation, which is measured at the scientific level of the electromagnetic(EM) spectrum.

Ultraviolet radiation is just one type of EM energy that you may be familiar with.

There are many other forms of EM energy:

1. Radio waves: Which transmit signals from the radio station to your loudspeaker boxes or transmit between mobile phones;

2. Microwaves:Use a microwave oven to heat food;

3. Visible light: Lights used for lighting or decoration;

4. X-rays: Like the X-ray machines used in hospitals to capture internal bone images, etc.

UV radiation

What are the effects of ultraviolet radiation?

Without adequate protection, prolonged exposure to UVA and UVB waves can endanger health. For example, a person who has been exposed to the sun for several hours will experience "tanning", which is the result of melanin gathering in the skin to absorb ultraviolet light and disperse it as heat. If exposed to the sun for a long time without protection, a person's risk of skin cancer and other dangerous cell diseases will be greatly increased. If a person spends a lot of time outdoors or in any environment receiving UVA and UVB radiation, they will experience short-term symptoms such as photokeratitis (in some cases called arc eye or snow blindness) or severe long-term UV exposure.

Classification of UV radiation:

The most common form of ultraviolet radiation is sunlight, which produces three main types of ultraviolet light: UVA, UVB and UVC.


UVA: Longer wavelength, between 315~400nm, can penetrate clouds and glass into indoors and cars, and can penetrate into the dermis of the skin, causing sunburn.

UVA can be subdivided into UVA-2 (315~340nm) and UVA-1 (340~400nm). UVA-1 has the strongest penetrating power and can reach the dermis to tan the skin. It is the most harmful to the skin, but it is also the easiest to ignore. It will cause skin damage due to the accumulated amount for a long time. UVA-2 can reach the skin epidermis just like UVB. It can cause sunburn and pain.

UVB: The wavelength is in the middle, and the wavelength is between 280~315nm. It can cause sunburn and skin redness, swelling, and pain. In severe cases, blisters or peeling may occur. However,          since it can be blocked by the ozone layer, only a small amount will reach the surface of the earth.

UVC: The wavelength is between 100nm and 280nm, but because the wavelengths below 200nm are vacuum ultraviolet rays, they can be absorbed by the air. Therefore, the UVC that can penetrate the atmosphere is between 200 and 280nm. The shorter the wavelength, the higher the radiation energy. Since the ozone layer can completely block UVC, so we will not be harmed by UVC normally.

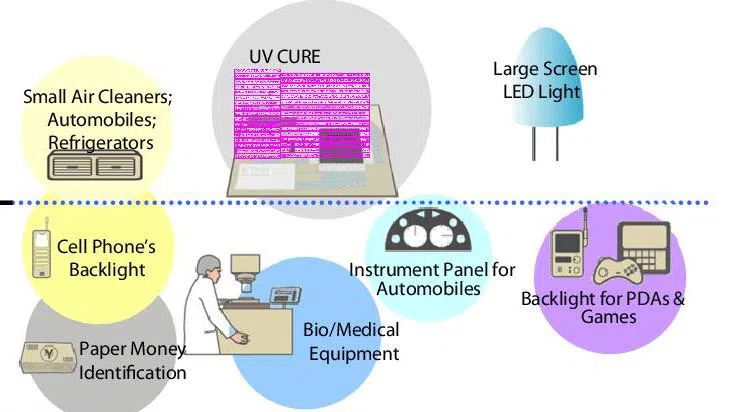

Different applications of the UV light:

The main application of UVC is disinfection, so today we mainly talk about the application of UVA and UVB.

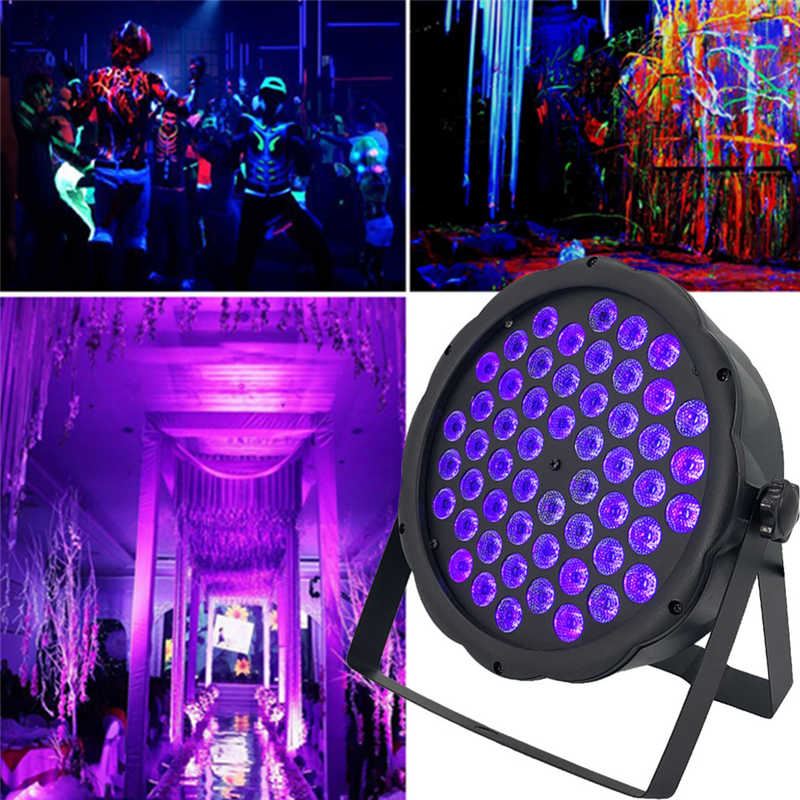

1. Black light lamp, also known as Ultraviolet lamp or Wood lamp. UVA and a small amount of visible light, generated by ultraviolet fluorescent tubes, LED or LD, which are used for the lighting of theaters      and concert halls, and can also be used to attract insects.2.

2. LED ultraviolet lamp: Many LED lamps have a wavelength limit of 365nm before, but now there is further development. LED can not only produce UVA and UVB, but also a part of UVC. For deep                  ultraviolet, LED still needs further development. LED UV lamps have been used in medical treatment and digital printing.

3. UV laser: Ultraviolet laser diodes and ultraviolet solid-state lasers can also be produced to generate ultraviolet radiation, with wavelengths including 262nm, 266nm, 349nm, 351nm, 355nm, and 375nm.      Ultraviolet lasers have been used in industry (laser engraving), medicine, secret communications, and computers (optical storage).

4. Medical applications: Such as the treatment of skin psoriasis (psoriasis) and leukoplakia (vitiligo), UVB light with a wavelength of 311nm has the best effect. And appropriate UVB irradiation can also            supplement vitamin D.

5. Other applications:

    UVA: Ore identification /stage decoration /currency check,Curing /security

    UVB: Ultraviolet health lamp/plant growth lamp/Promote mineral metabolism/ form vitamin D.
