DMX512 RGBW Pixel Strip

DMX RGBW strip we can provide RGB + 3000K, RGB+4000K, RGB+5000K, RGB+6000K according to your specific needs.
RGBW chip we use Epistar brand , high brightness , 50000 hours lifespan.

Availability:

Product introduction:

DMX RGBW strip we can provide RGB + 3000K, RGB+4000K, RGB+5000K, RGB+6000K according to your specific needs.

RGBW chip we use Epistar brand , high brightness , 50000 hours lifespan.


Product parameters:

Model

IC Qty per meter

Color

LED Qty

per meter

Power Consumption

Voltage

PCB Size

W/M

V/DC

mm

ST-DMX512RGBW-60-24V

10

Addressable RGBW

60

≤14.4W

24v

Double Copper PCB 5000*12mm


ST-DMX512RGBW-60-12V 20 Addressable RGBW 60 ≤14.4W 12v Double Copper PCB 5000*15mm


Product details

  1. DMX512 LED strip is DMX protocal whose signal is parallel, even some IC have problems, other pixels still can work.

  2. High brightness, waterproof SMD5050 RGBW LEDs are assembled on this strip.

  3. DIY cutting, 5V model: one IC drives 1 LED; 12VDC model:  one IC drives 3 LEDs; 24VDC model: one IC drives 6LEDs.

  4. With DMX512 IC, individual control and addressable full color LED strip light.

  5. 12mm/ 15mm width FPC, length could be customized.

  6. RoHS, CE, certificates approved.

  7. 3M adhesive tape on backside, easy to install.

  8. All strips are double-side PCB, at least 2 ouns PCB, low voltage drop and good heat.

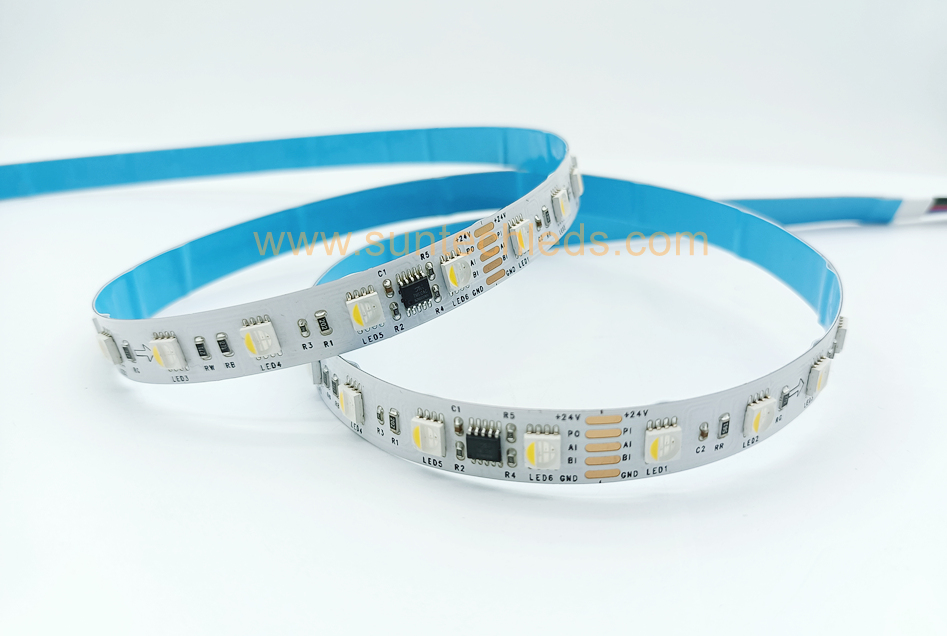

DC24V RGBW DMX512 LED strip 10 pin IC 12mm width

DMX RGBW 24V 10-pin

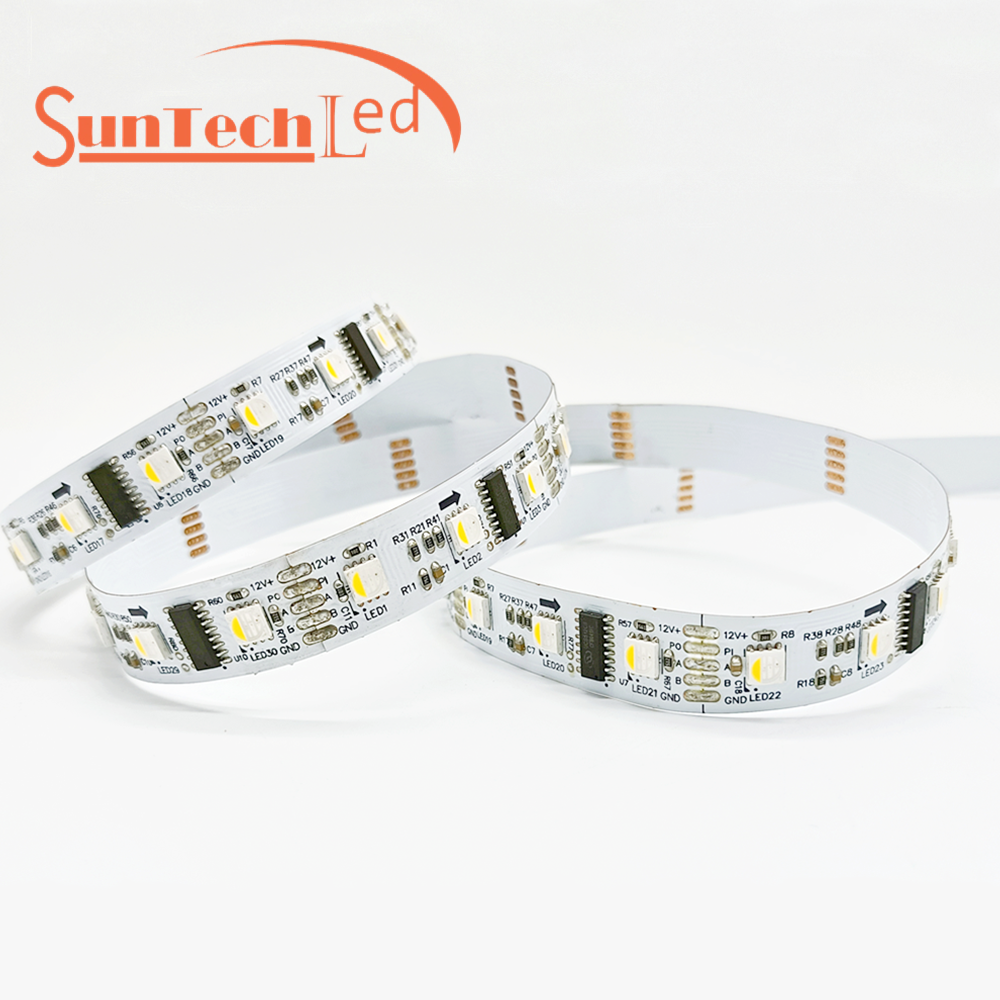

DC12V RGBW DMX512 LED tape 16 pin IC 15mm width

RGBW 12V 16pin with logo


DMX512 strip Installation and connection :

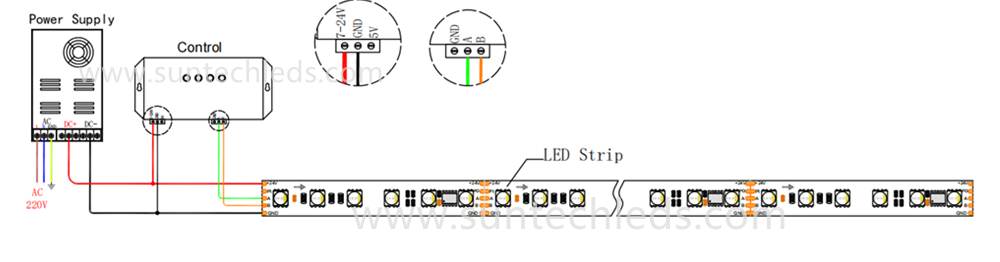

RGBW 10pin wiring diagram

Suntech booth in Guangzhou fair

Guangzhou lighting exhibition


DMX RGBW LED strip application:

1. Bars, KTV, cafes, stages and other entertaining places atmosphere rendering

2. Salons, handicrafts and other high-end counter lighting

3. Amusement park, theater & aircraft cabin mood lighting.

4. Emergency hallway lighting, auditorium walkway lighting, stairway accent lighting, concealed lighting


Shenzhen Suntech company located in Shenzhen, China, We focus on addressable led strip production since 2008 in LED lighting enterprises. It is the one of biggest addressable LED lighting factories in China .The company mainly specialize in providing high quality LED landscape decoration products, the main products are as follows

a,LED flexible strip

b,LED full-color module

c,LED Matrix display

d, Addressable neopixel ring

e,Addressable ring
