DMX RGB led strip is parallel signal transfer ,not series circuit , it is compatible with control system such as Artnet , Arduino and DMX.
DMX512 digital tape light is commonly used to control stage lighting and effects
If you need these led strip, please contact us , we can provide technical support also.
Product introduction:
DMX RGB led strip is parallel signal transfer ,not series circuit , it is compatible with control system such as Artnet , Arduino and DMX.
DMX512 digital tape light is commonly used to control stage lighting and effects
If you need these led strip, please contact us , we can provide technical support also.
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-DMX512RGB-60-12V | 20 | Addressable RGB | 60 | ≤14.4W | 12v | Double Copper PCB 5000*12mm/ 5000*15mm |
More models to choose from: DMX LED strip lights
Searching for more DMX LED lights? Please click here: DMX lighting fixtures
Product details
1. DMX512 data is transmitted over a differential pair using EIA-485 voltage levels. DMX512 electrical specifications are identical to those of the EIA-485-A standard
2. DMX512 has two twisted pair data paths, although specification currently only defines the use of one of the twisted pairs. The second pair is undefined, but required by the electrical specification
3. Flexible PCB material, Black/White PCB optional
4. Different waterproof grade for IP20/IP65/IP67/IP68.
5. Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers
6. External IC. Can make 5V , 12V , 24V
7. LED is Super bright Epistar/SanAn SMD RGB LED

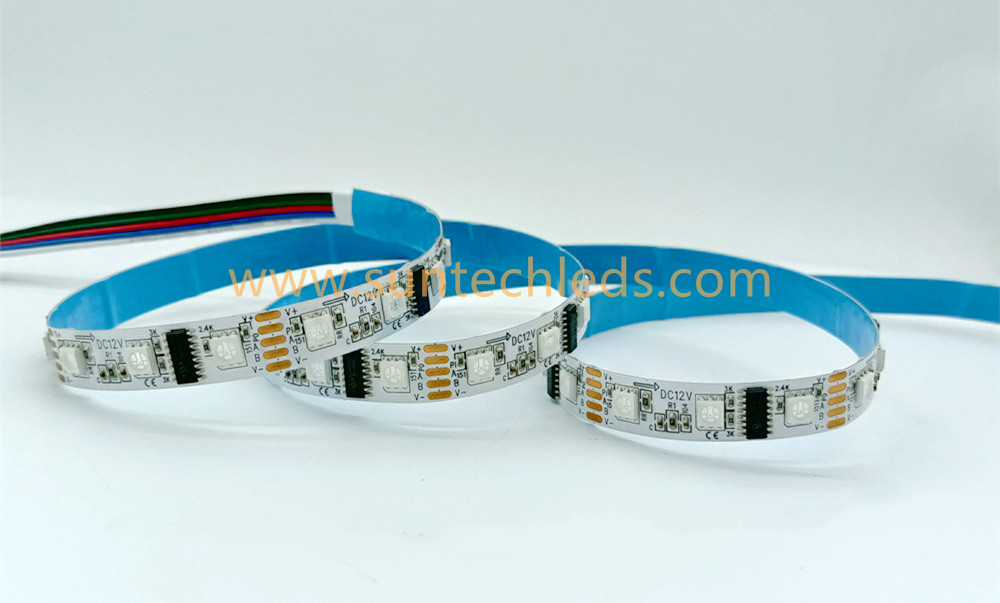

DMX512 RGB DC12V 60LEDs/m tape light 16 pin IC
* If you want to install an outdoor DMX LED lighting system, we have dmx led dot lights, dmx led flood lights, dmx led spotlights, etc. And we are experienced in customizing suitable products.

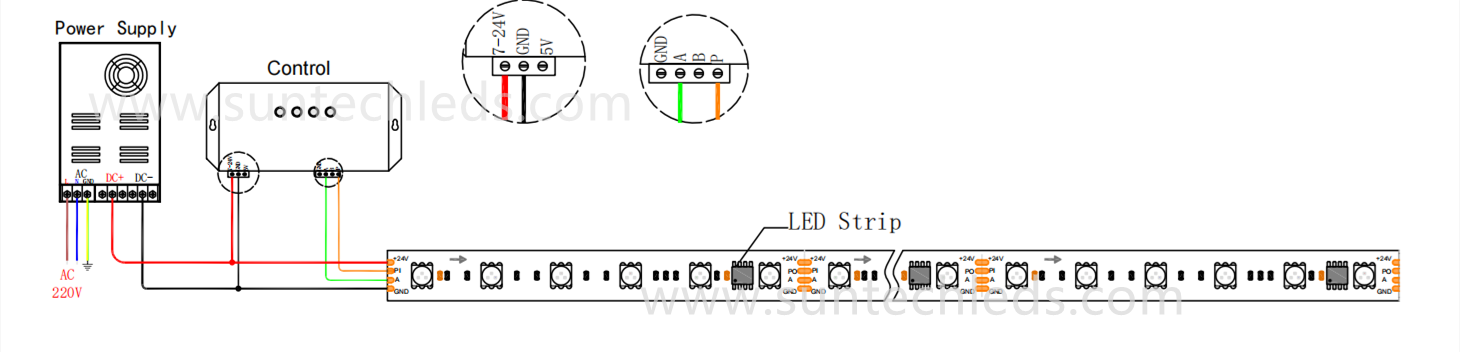

DMX512 strip connection picture:
Connetion Notice
1. The strips and accessories can’t be pressure.
2. Not damage the conductor of PCB board at installation time.
3. The installation of light under conform to safety standards, only professionals for installation.
4. Ensure the power transformer turning into load power by power supply.
5. When installed in a metal or a conductor surface needs to be in contact with the insulation environment.
6. Please pay attention to prevent static electricity at installation time.
7.To provide products with corrosion environment, for example, avoid damp and water, and other adverse .

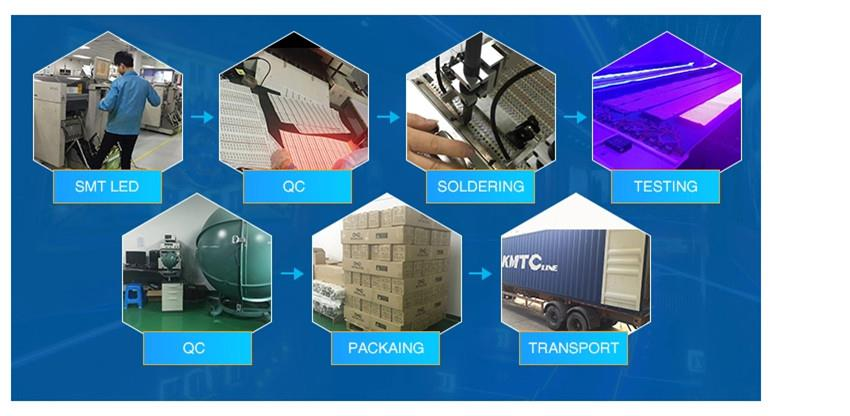

Addressable led strip production process
SMT LED -> QC -> Soldering -> Testing -> QC -> Packing-> Transport shipping
Our team in Guangzhou lighting fair
DMX Pixel led strip application:
1.Great for hotel, KTV, Bars, Restaurant and other recreation place do adornment to atmosphere of Freshness
2.It is suitable for automobile chassis adornment, body and car decoration,high brake decoration and advertisement, decoration,design city lighting project, the exhibition hall and building exterior decoration ,etc
3.It used in illuminating signs, interior lighting, cove lighting ,or exhibit lighting, large cabinet lighting, project lighting, and any sort of close application task lighting.
Service:
Payment terms:
* For sample order and trial order, it should be 100% payment.
* For large order, it will be 30% deposit and 70% balance before shipment.
* You can make the payment by T/T, Western union, or pay by Paypal,
Delivery time:
Usually, it will be 3-7 working days for us to prepare the order. It depends on the model and the quantity you need.
For wholesale products, we can send the order within 2-3 days.
After-sale service:
1. We will let you know the order producing progress by mail before sending.
2. After sending, will send you the tracking number by mail on the next day upon shippment.
3. If you get any faulty products, please offer us proof pictures and we will send you the replacement.
