DMX512 RGB LED Strip 12 Volt

DMX512 RGB led strip is different from normal SPI led pixel strips. DMX512 led strips is DMX protocol whose signal is parallel not series .
Controller system including SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet , Arduino and DMX controller
We are a China factory to supply DMX strip, welcome to send your inquiry.

Availability:
DMX512 RGB LED Strip 12 Volt
DMX512 RGB LED Strip 12 Volt

DMX RGB led strip introduction:

DMX512 RGB led strip is different from normal SPI led pixel strips. DMX512 led strips is DMX protocol whose signal is parallel not series .

Controller system including SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet , Arduino and DMX controller

We are a China factory to supply DMX strip, welcome to send your inquiry.


Product parameters:

Model

IC Qty per meter

Color

LED Qty
per meter

Power Consumption

Voltage

PCB Size

W/M

V/DC

mm

ST-DMX512RGB-60-12V

20

Addressable RGB

60

≤14.4W

12v

Double Copper PCB 5000*12mm

More models to choose from: DMX LED strip lights

DMX512 LED tape details

1. DMX led strip’s signal is parallel, each pixel works individually

2. The 5m roll strip has 20 pixels ( 30 channels), 60 led in a meter with 12mm width pcb board.

3. Flexible PCB material, Black/White PCB optional,

4. Different lighting effects could be achieved by Madrix software, Artnet

5. 4Pin JST SM connector on both end and separated Power / Ground Wires. Customized length is available

6. IP20 IP65 IP68 are all available

7. 12v input, safe for installation

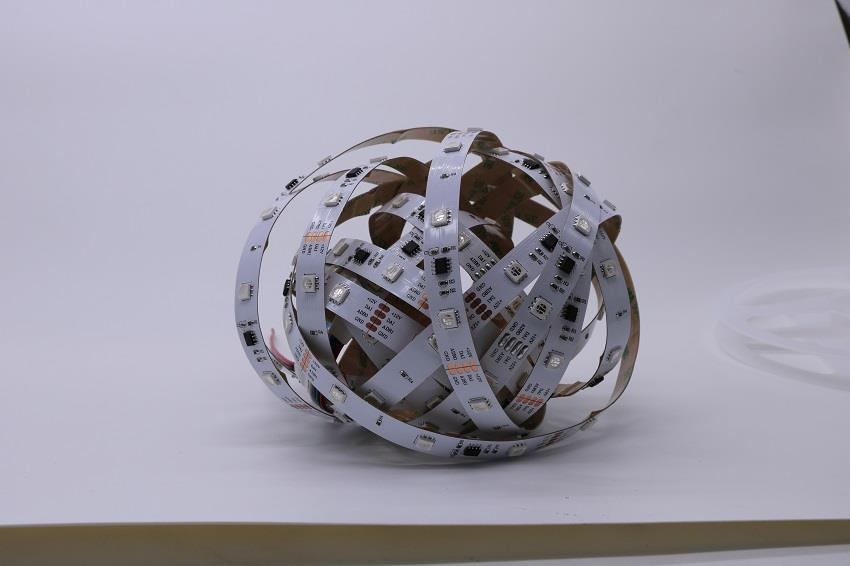

DMX512 12v led strip

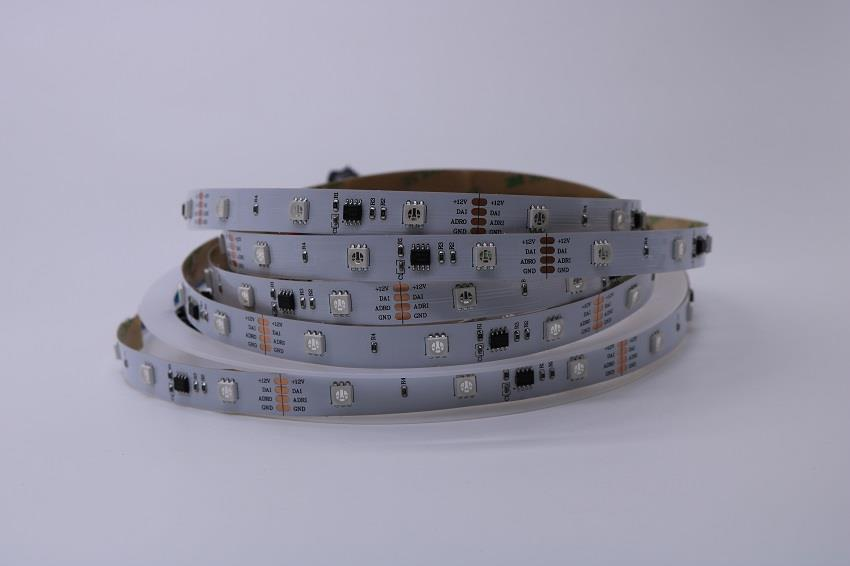

DMX 512 led tape 30 pixel

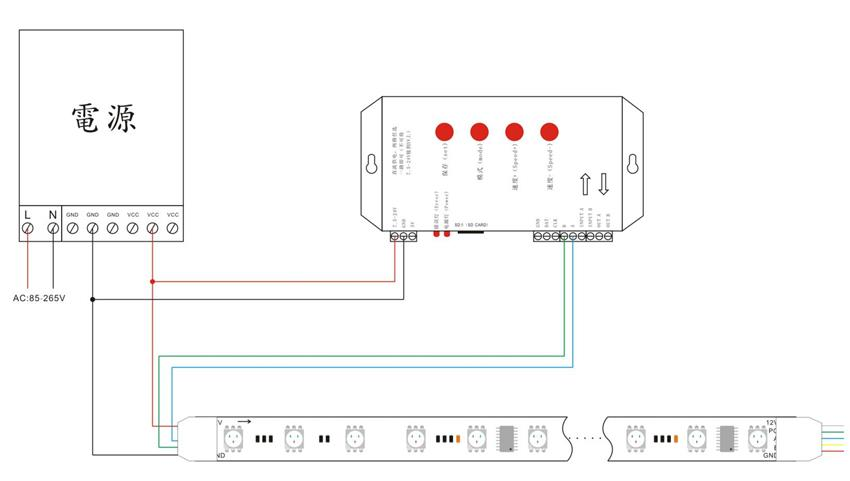

DMX512 strip connection picture:

DMX strip connection

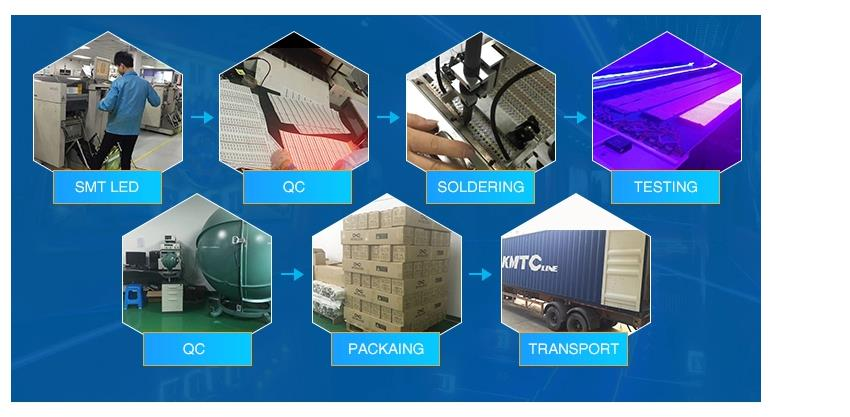

Addressable led strip production process

SMT LED -> QC -> Soldering -> Testing -> QC -> Packing-> Transport shipping

Production process


Our team in Guangzhou lighting fair.

Guanzhou lighting fair exhibition


DMX led strip application:

1. advertisement lighing and decoration

2. automabile and bicycle decoration

3. outdoor and indoor decoration

4. decoration lights for holiday, event show, exhibition

5. shopping mall


Trade Terms

1. Payment Terms:

T/T, Western Union, PayPal

2. Lead Time for DMX RGB LED strip:

We have regular PCB in stock, if less than 1000m ,a week for production

OEM products: 10--20days (Customized PCB board).

3.Warranty:

2 years warranty for DMX512 RGB strip light.

4. Delivery Way:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
