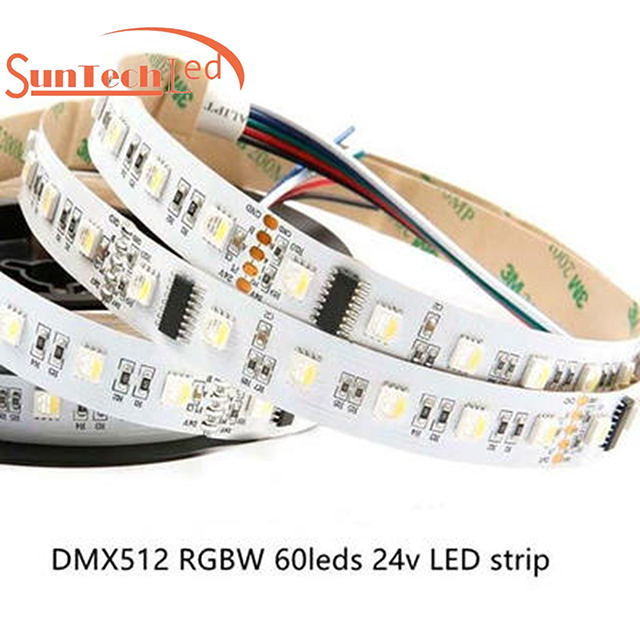

DC24V DMX512 RGBW Addressable LED Strip Light

DMX512 RGBW Addressable Pixel Strip Light

Availability:

Introduction of DMX512 RGBW Addressable Strip Light

1. RGBW addressable led strip can be compatible with SD controller , DMX controller , Art-net.

2. No matter how much IC damaged, the led strip can work normally.

3. Eliminates the lamp signal failure in the solution of the traditional LED full-color point light.

4. Compatible with extended DMX512 (1990) signal protocol, differential parallel control mode, built-in 485 decoding module, anti-interference.

Suntech company has been in LED industry since 2010, welcome to Contact US for professional suggestions.


Product parameters

Item No.

ST-DMX512RGBW-60-24V

PCB Size

Double Copper PCB 5000*12mm

Power Consumption

≤14.4w/m

PCB Color

White ,Black

Work Voltage

DC24v

Waterproof

Non-waterproof/IP20/IP65/IP66/IP68

IC Type

DMX512

Cut size

100mm/cut

LED Type

SMD5050

Working Temperature

-20 to 60 Degree

LED Qty per meter

60pcs/m

Package

Anti-Static Bag, 5m/roll

Color

Addressable RGBW

Warranty

5 Years


Product Size: mm

_20210413182544

For more product information, please download the specifications.24v-RGBW-DMX512-LED-strip.pdf

Product features

1. This DMX light strip combines the latest design technology and cutting-edge LED technology and can be applied to a variety of spaces.

2. UV protective coating to prevents damage to the SMD 5050 LED chips

3. The internal wires of the LED strip contain copper, which helps to improve product performance and service life.

4. Our lighting engineers work with you to create the lighting effects you expect.

5. Multiple waterproof grades to choose: Glue waterproof(IP54), Full silicone tube waterproof (IP67), Silicone tube + casting glue (IP68), and latest process machine extrusion (IP68).

6. Standard DMX512 controller wired with our DMX512 led strip.

7. Using the best flexible FPC as the substrate, it has good electrical conductivity, heat resistance, bending resistance, and can be bent into any shape.



Product Details

DMX512 pixel addresasble LED strip with SD/DMX controller

_20210421211647


_20210421211608

DC12V DC24V DMX RGBW digital LED strip with Art-net


dmx512-led-strip

Pixel RGBW addressable led tape controlled by DMX

DMX512 RGBW

See how we test the DMX RGB LED strip

Application of DMX512 RGBW addressable LED light

1. Public lighting: schools, libraries, hospitals, airports, subway stations, railway stations and other places.

2. Indoor lighting/ Bay lighting/ Exhibition lighting/ Large cabinet lighting/ Engineering lighting/ Short-distance application

3. Furniture concealed groove edge decoration:Doors/ Bars/ Wine cabinets/ Wardrobes/ TV cabinets, etc.

4. Irregular surface decoration design: Polygonal walls in shopping malls, advertising walls, hotels, KTV and other venues.

5. Emergency and safety lighting, advertising sign lighting.

6. Decorative lights for festivals, events, exhibitions.

7. Suitable for car decoration, frame or outline lighting.

_20210408143250(1)

Standrad DMX512 SMD5050 addressable LED strip Display


Connection Notice

1. The strips and accessories can’t be pressure.

2. Not damage the conductor of PCB board at installation time.

3. The installation of light under conform to safety standards, only professionals for installation.

4. Ensure the power transformer turning into load power by power supply.

5. When installed in a metal or a conductor surface needs to be in contact with the insulation environment.

6. Please pay attention to prevent static electricity at installation time.

7.To provide products with corrosion environment, for example, avoid damp and water, and other adverse .

201901211828369562901
