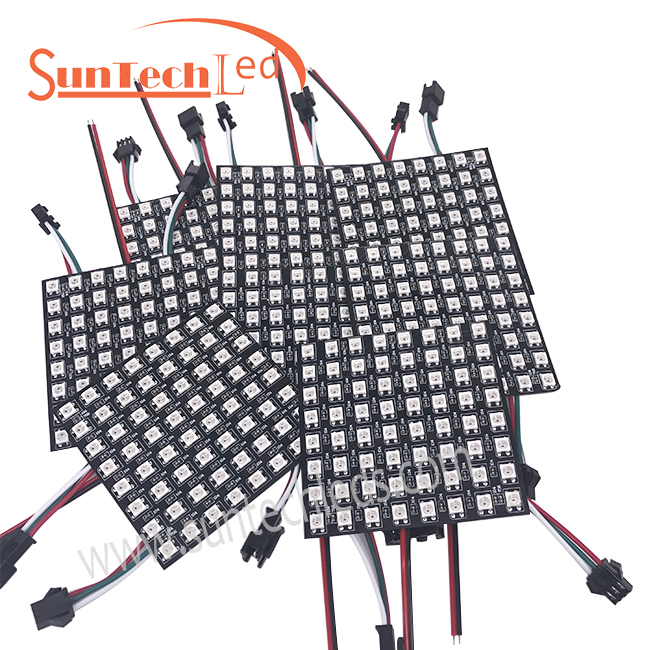

The flexible addressable matrix panel contains 64 RGB chips which could be individually controlled
5v input voltage
Size we regular do is 8x8cm, 16x16cm, 8x32cm
If you want to purchase directly from China welcome to contact us.
Product introduction:
The flexible addressable matrix panel contains 64 RGB chips which could be individually controlled
5v input voltage
Size we regular do is 8x8cm, 16x16cm, 8x32cm
If you want to purchase directly from China welcome to contact us.
Product parameters:
Model | IC Qty | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
STMX-SK6812RGB-8X8-5V | 64 | Addressable RGB | 64 | ≤19.2W | 5v | 80x80 |
Product details

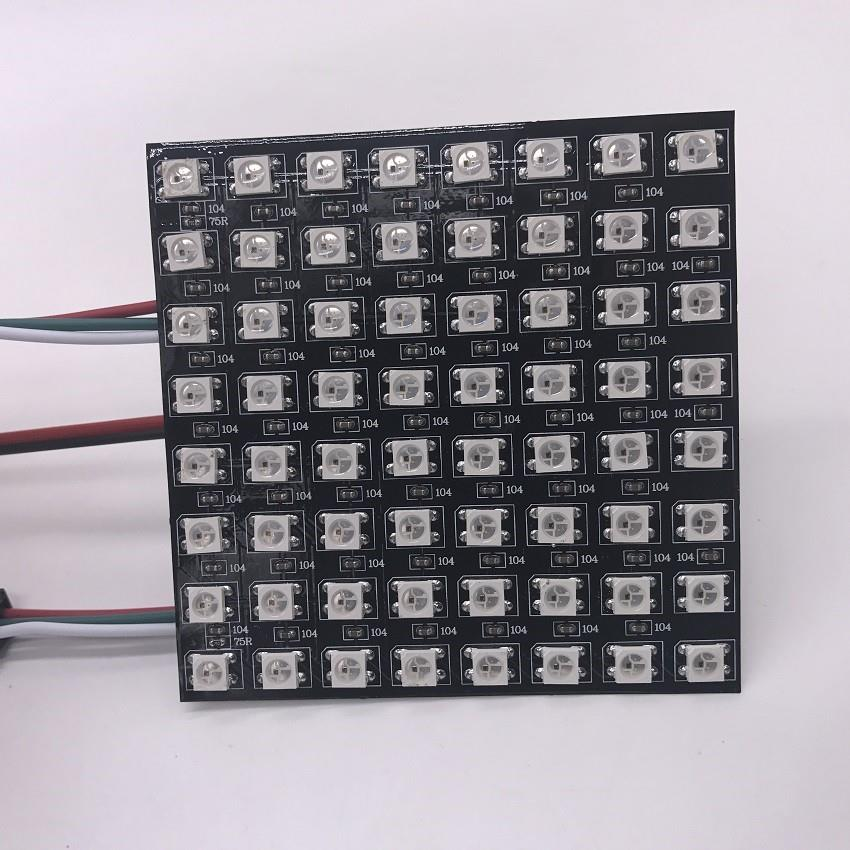

1. Thick pcb with 3oz , 8x8 cm size. The size could be customized .
2. Each led with built-in IC , normally we make is SK6812, WS2812B, APA102
3. These LED panels are controlled through an SPI protocol with Arduino , mini addressable controller , T-1000C…
4. Not only 8x8cm, we can also provide regular 16x16cm, 8x32cm size.
5. Data speed of SK6812 addressable flexible panel is 800kps, APA102 is 19.2k Hz,
6. The programmable led panel could be curved for installation
7. These products are CE & RoHS cerficated.
8. It is bendable, but do not bend too much, otherwise will influence the circuit.

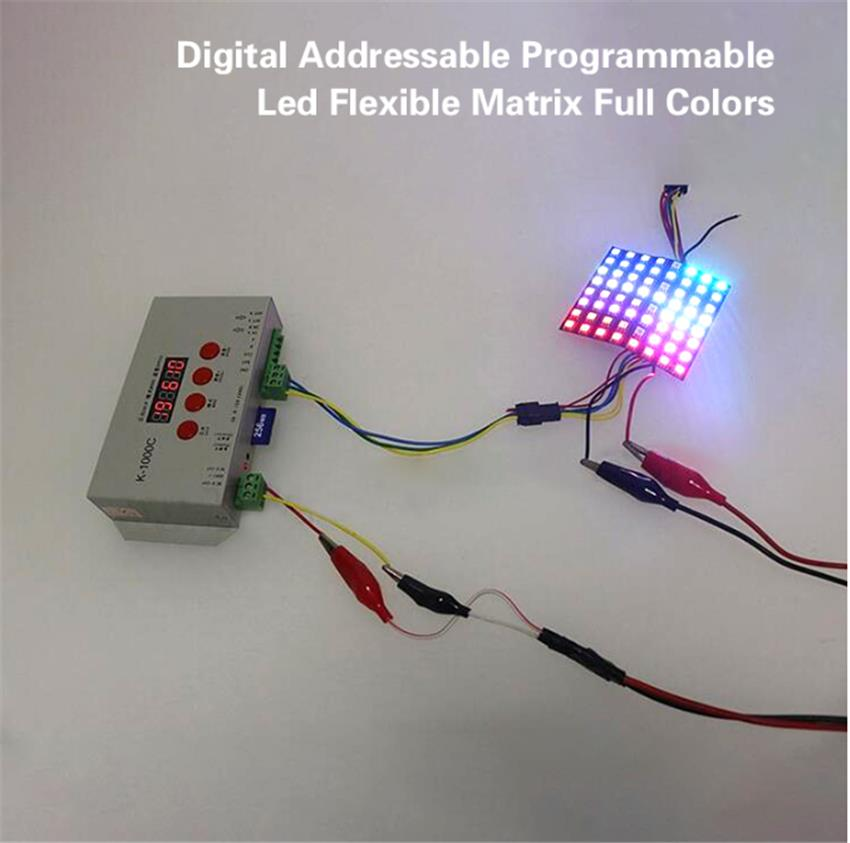

How to connect flexible led matrix panel with K-1000C , please see below:
Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when
bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
Needless to say, do NOT fold this matrix in half!
Production process
Our booth in Guangzhou lighting fair
Flexible led matrix display application:
1> The flexible led matrix will give you an atmosphere of freshness ,it could be used in illuminating signs,interior lighting,cove lighting ,or exhibit lighting,large cabinet lighting,project lighting,and any sort of close application task lighting.
2> This led matrix is super bright , safe, environmentally friendliness, long lasting but also energy saving.
Our Services
1. Samples are available;
2. New items every quarter and quick response;
3. Punctual delivery for more than 95% orders;
4. Inspected by the Inspection Institution of Bureau Veritas Certification;
5. 100% QC inspection Before Shippment;
6. We provide project solutions for you.
