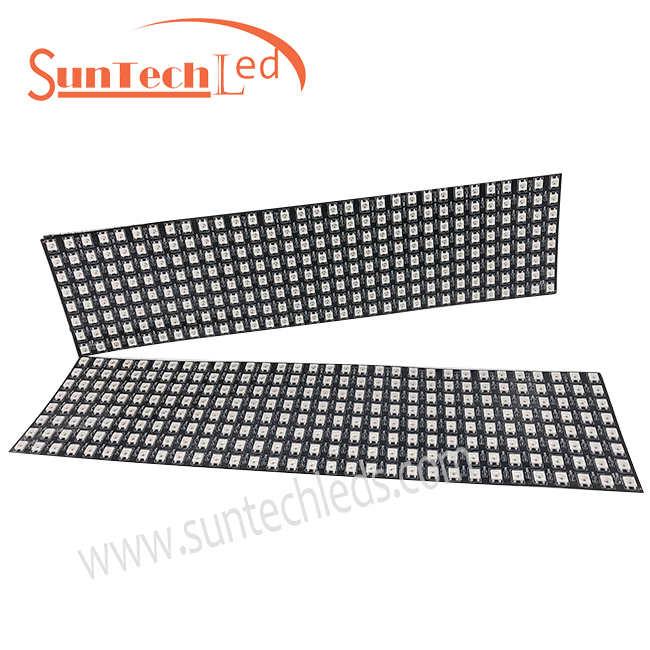

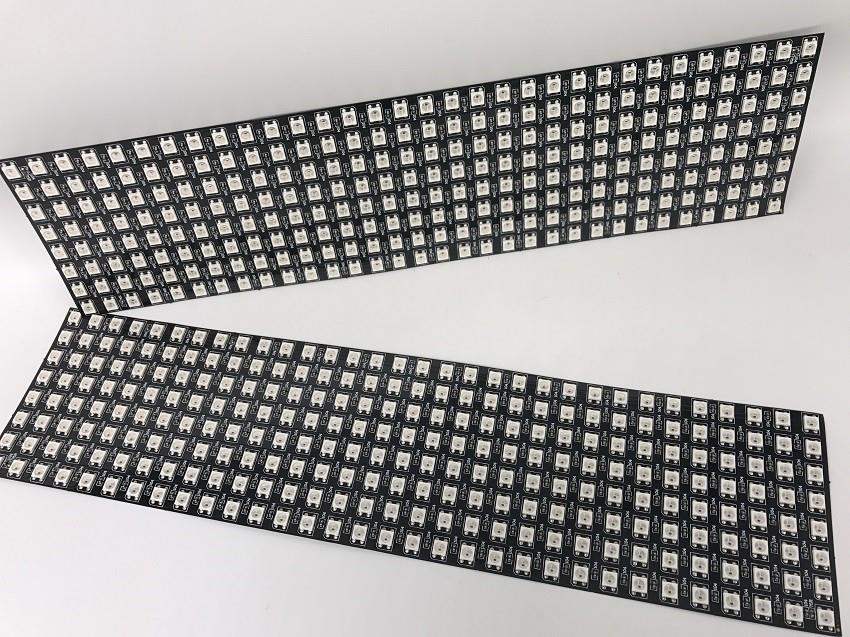

The 8x32 addressable flexible led panel is an intelligent controlled LED light source taking advantage of an onboard integrated control circuit and RGB chip.

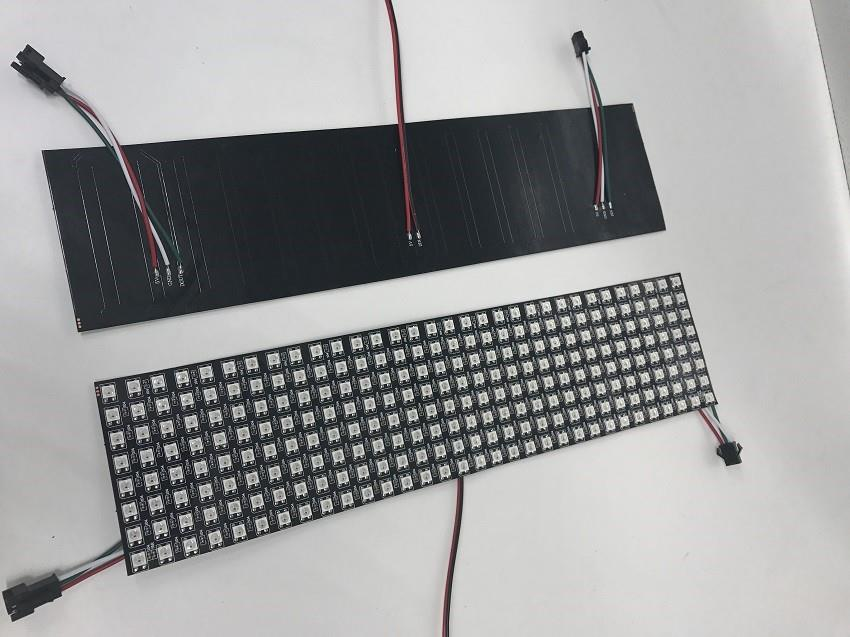

This addressable LED matrix has two connectors at each end and a ground and voltage in wire attached at the centre for injecting extra power
5v input voltage
We are directory manufacturing these products
Product introduction:
The 8x32 addressable flexible led panel is an intelligent controlled LED light source taking advantage of an onboard integrated control circuit and RGB chip.
This addressable LED matrix has two connectors at each end and a ground and voltage in wire attached at the centre for injecting extra power
5v input voltage
We are directory manufacturing these products
Product parameters:
Model | IC Qty | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
STMX-SK6812RGB-8X32-5V | 256 | Addressable RGB | 256 | ≤76.8W | 5v | 80x320 |
Product details
1. Each led with built-in IC , so each led is addressable and individually controlled.
2. These panels require a 5V low voltage input for power which needs to be able to source a good amount of current–up to 5A in most uses
3. The pitch between each LED is 5mm
4. Not only 8x8cm, we can also provide regular 16x16cm, 8x32cm size.
5. The JST SM female and male plug at each end of the matrix has 3 pins.,
6. You can use an LED controller designed specifically for this purpose like our Addressable RGB LED Controller - T-1000S with SD Card
7. CE RoHS certificates could be provided.
8. The flexible addressable panel could be curved while you install it..

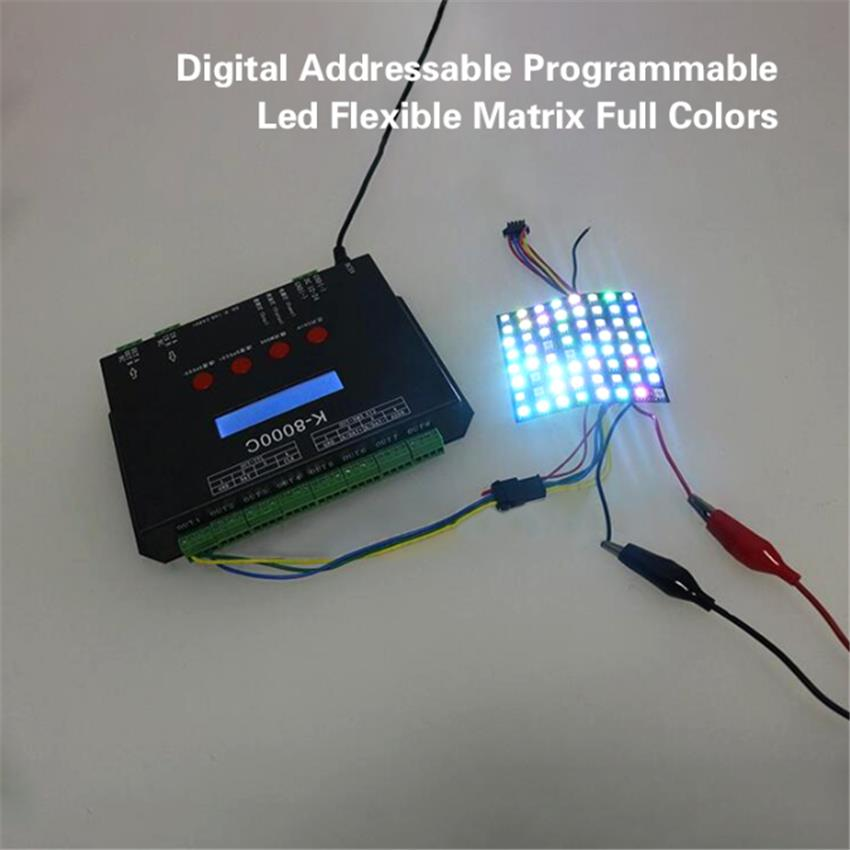

How to connect addressable led matrix panel with K-8000C , please see below:
Production process
Clients visited our factory
Programmable flexible led panel application:
1.Widely used for home decoration use, hotels, clubs, shopping malls
2.Architectural decorative lighting, boutique atmosphere lighting
3.Extensively applied in Backlighting, concealed lighting, channel letter lighting
4.Emergency & security lighting, advertisement sign lighting
5.Decorative lights for holiday, event, show exhibition
6.Applicable for automobile and bicycle decoration, border or contour lightin
FAQ
Q2. How is your company?
We had 9 years experience in LED light and LED controller design and production, company size: We located in Shiyan, Shenzhen City,1500 square meters 5 electronic engineers
Q3.How long is the delivery time?
Usually, we had material in stock, regular order delivery time 3--7 days after the order (PI) paid.
Custom products 8--15 days (Custom PCB)
Q4.Can you custom-made products?
Yes, we are really good at this, can customize LED and LED controller system for customers.
Q5. How much tax should I pay for custom when we buy goods from you?
The different country had different import policy, you need to figure out with Custom we don't have an exact answer about this, but most of country 25% of the invoice value
Q6. Can you design an animation before we do business?
We have animation and program designers in our company, even if we don't have business before we will be happy to do an animation design or program file for you and it will be free.
