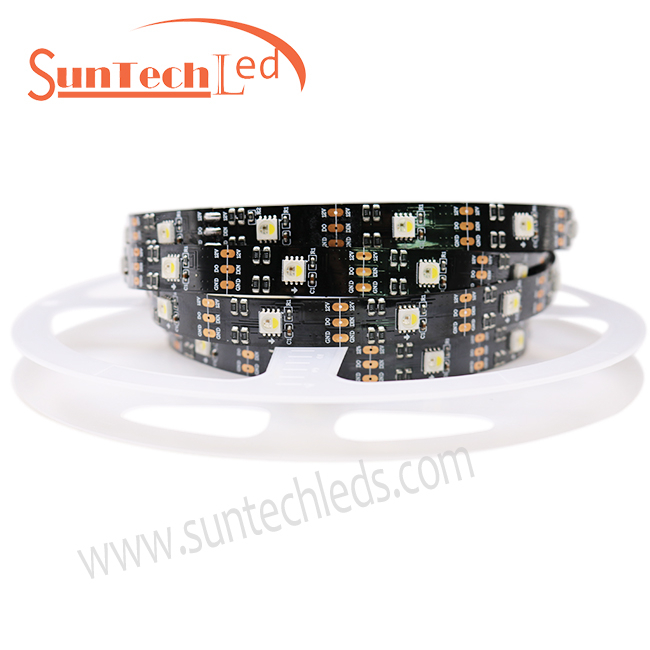

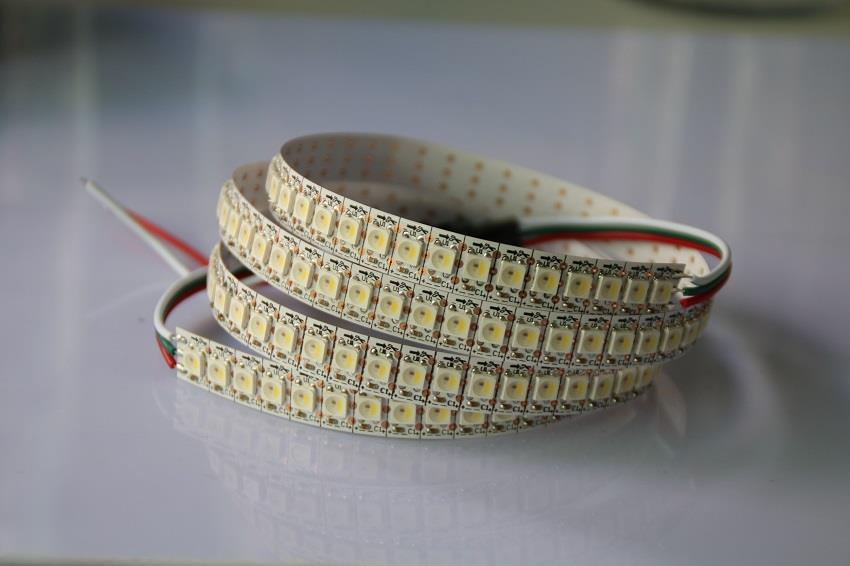

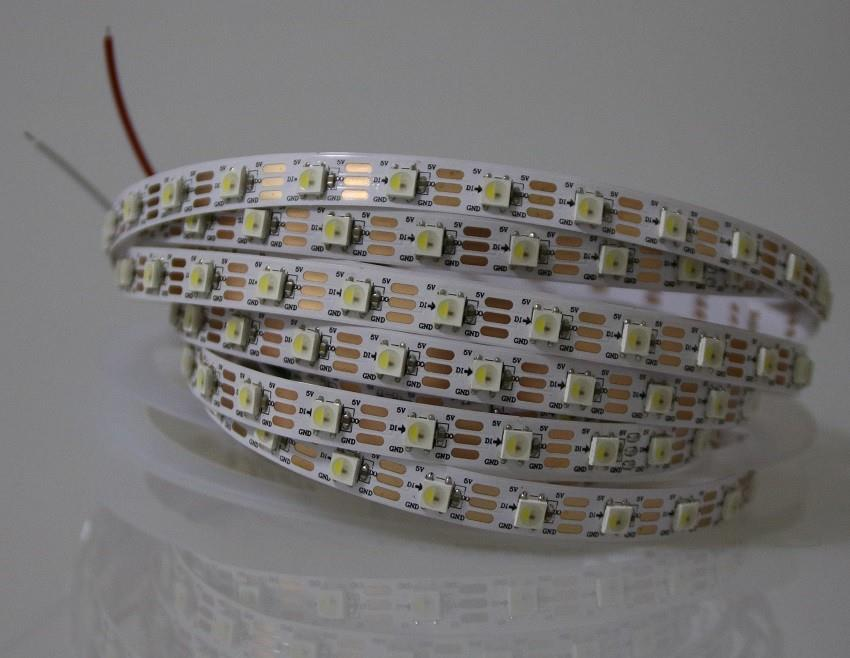

WS2812B RGBW led strip 144 pixels is good option for high density visual impact project, each led is individually controlled. 2700K 4000K and 6000K are all available.
We are the manufacturer located in Shenzhen, China
Product introduction:
WS2812B RGBW led strip 144 pixels is good option for high density visual impact project, each led is individually controlled. 2700K 4000K and 6000K are all available.
We are the manufacturer located in Shenzhen, China
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-WS2812BRGBW-144-5V | 144 | Addressable RGBW | 144 | ≤43.2W | 5v | Double Copper PCB 5000*12mm |
Product details
1. 30leds/meter, 60leds/meter, 96leds/meter 144leds/meter for option.
2. IP20 IP65 and IP68 are all available
3. White PCB and black PCB are both available
4. Each SMD 5050 has an IC(WS2811) inserted in ,each LED individually address controlled, great for DIY.
5. This strip can be used to make led screen, led wall, advertising board and widely applied to hotel, KTV, bars, Outdoor advertising signs, wedding party lighting, home and car decoration, city skyline, building outline and so on.
6. This programmable strip only has date Pin for signal transfer , no clock Pin it has an extra white channel. 256 gray levels adjustable and 32-bit color display.
Installation attention :
1. Do not use power voltage that is bigger than 5v, otherwise will be burned

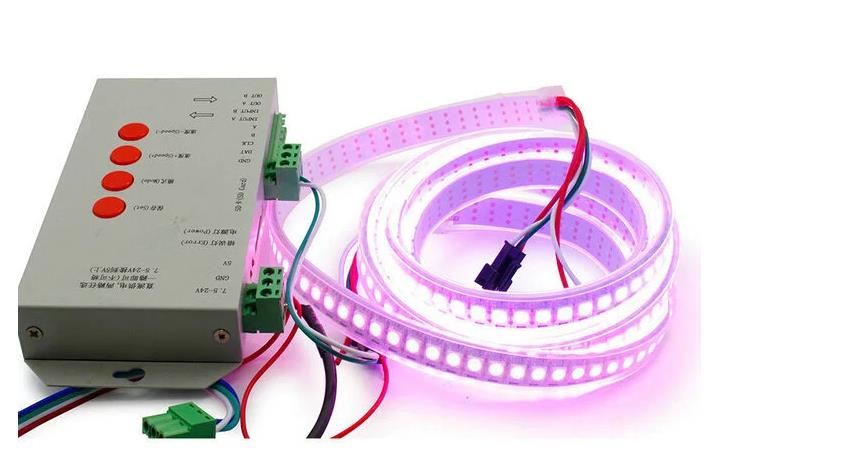

2. Please connect to both end of the power supply in case of voltage drop
3. With 3M tape on back of the strip, no need use screws.
Lighting fair booth in HK
Trade Terms:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping .or Western Union /Paypal for small amount .
2. Lead time : normally in 1-5 days after deposit received
3. Sample policy : Samples are always availble for each model
4. Shipping port: Shenzhen , China
5. Discounts : We offer discount for big quantity WS2812B RGBW digital strip 12v
