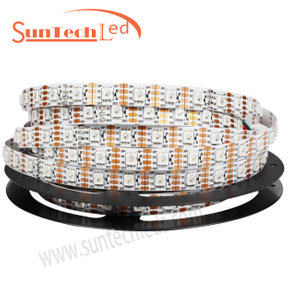

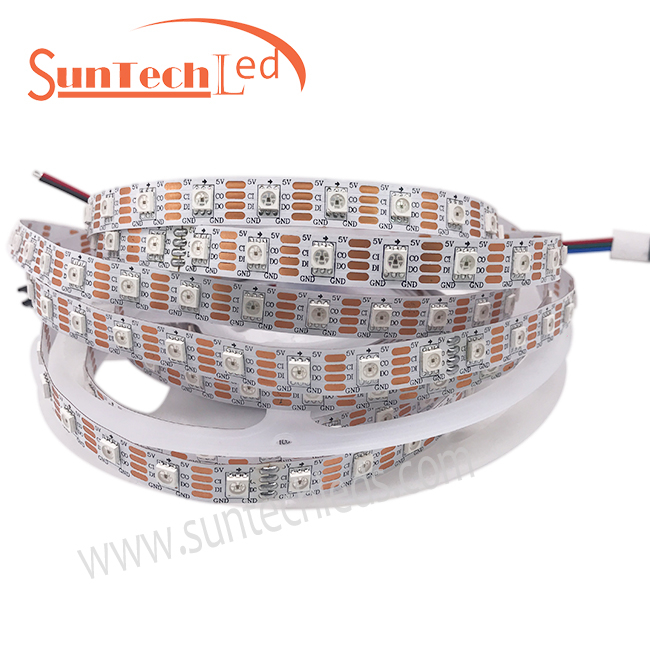

SK9822 programmable strip light can be controlled through SPI interface with super high PWM frequency. Each chip is individually controlled. A good option to replace APA102 LED strip
All our products are CE & RoHS approved, Europe is our main market
Product introduction:
SK9822 programmable strip light can be controlled through SPI interface with super high PWM frequency. Each chip is individually controlled. A good option to replace APA102 LED strip
All our products are CE & RoHS approved, Europe is our main market
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-SK9822RGB-60-5V | 60 | Addressable RGB | 60 | ≤18W | 5v | Double Copper PCB 5000*10mm |
Product details
1.APA102 chip is from Taiwan with high frequency 19.2 kHZ much higher than regular WS2812B chip which is around 400 Hz. But APA102 is always short supply, so we have SK9822 replacement, its PMW is slower around 4.7K Hz, but much quicker than WS2812B
2. With IC inside the SK9822 strip light could be controlled individually through SPI controller
3. 5v strip could be used for computers, cars…. making unique lighting effect
4.SK9822 has dual signal one is data line, the other is clock line, for project that transfer big signals, it will not stuck better than SK6812 or WS2812B
5. Each led could be cut
6. R,G,B and IC are encapsulated in SMD5050 chip.

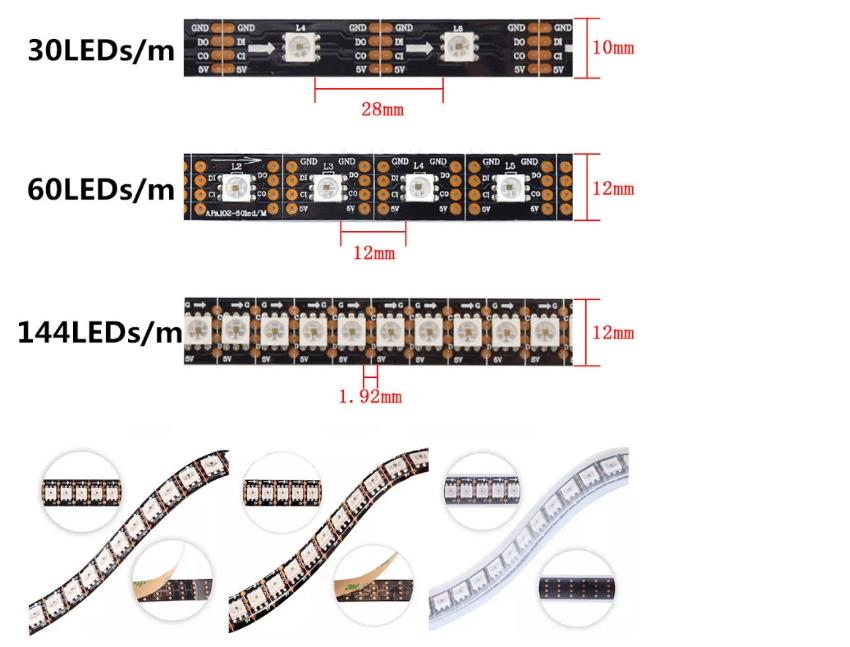

Different option to choose

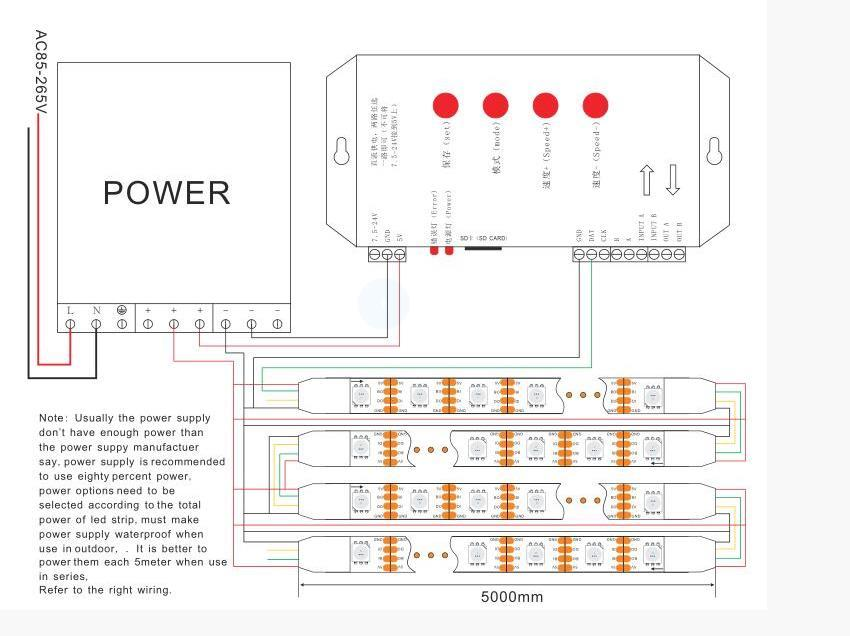

SK9822 strips connected to the controller

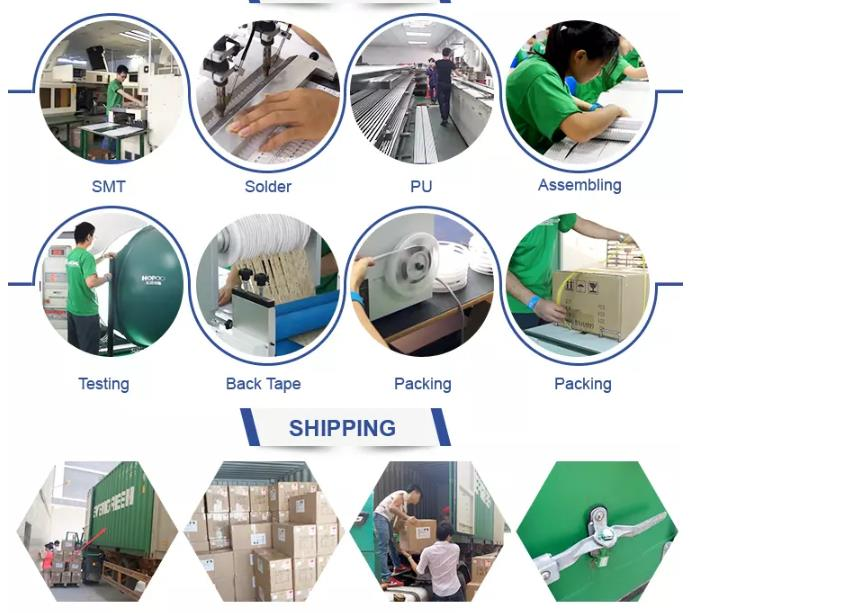

Production process of SK9822 LED strip

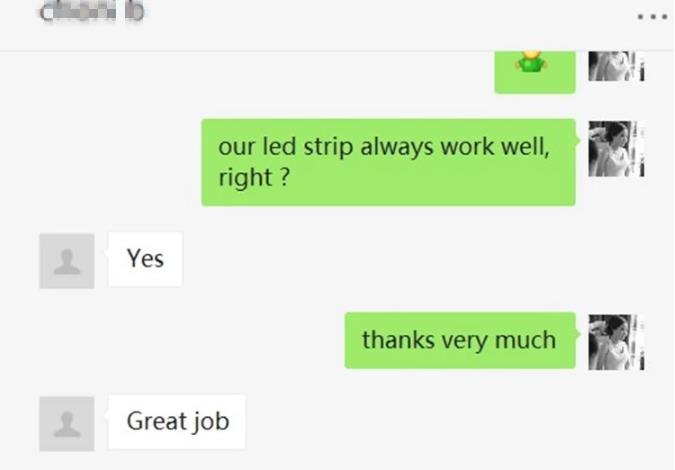

Feedback from our client

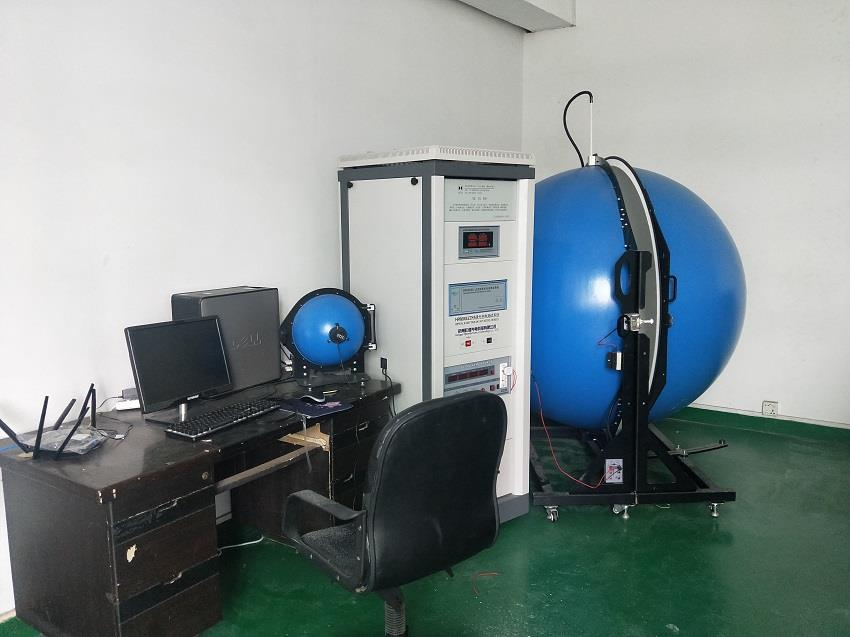

Our testing facility
About Suntech
Shenzhen Suntech company located in Shenzhen, China, We focus on addressable led strip production since 2008 in LED lighting enterprises. It is the one of biggest addressable LED lighting factories in China .The company mainly specialize in providing high quality LED landscape decoration products, the main products are as follows
a, LED flexible strip
b, LED full-color module
c, LED Matrix display
d, Addressable neopixel ring
