Ultra thin flexible LED strip light product introduction:
1.5mm 2.5mm 3mm width PCB flexible strip light,we provide single color led strip, like warm white,cold white, green, red,pink and so on.
If you need addressable RGB 3mm led strips, Please click here to know more info.
1.5mm 3mm very thin flexible led strip light product model and parameters:
Model | Color | LED Qty | Power Consumption | Voltage | PCB Size |
per meter | W/M | V/DC | mm | ||
STSN-138-W0402 | Single color (White,Green,Red,pink...) | 138 | ≤4W | 3v | Double Copper PCB 5000*1.5mm |
STSN-120-W0403 | Single color (White,Green,Red,pink...) | 120 | ≤4W | 12v | Double Copper PCB 5000*2.5mm |
STSN-196-W0404 | Single color (White,Green,Red,pink...) | 196 | ≤4W | 12v | Double Copper PCB 5000*3mm |
STSN-240-W0405 | Single color (White,Green,Red,pink...) | 240 | ≤4W | 12v | Double Copper PCB 5000*3mm |
STSN-200-W0406 | Addressable RGB | 200 | ≤4W | 12v | Double Copper PCB 5000*3mm |
For more product information, please download the specifications.
1.5mm-led-strip.pdf
Ultra thin flexible LED strip product details
1. 1.5mm width designed, we supply 2.5mm , 3mm and 4mm also.
2. High quality slim LED chip.
3. Super bright Epistar led chip, high intensity and reliability.
4. DC3v DC12v input are all available .
5. CE Certificated and RoHS compliant,
6. Colors: Warm White/Nature White/Cold White.
7. Dimmable by using dimmer controller.
8. Long life span 50,000 hours.
9. Every 3leds can be cut, cutting point is 1.53mm.

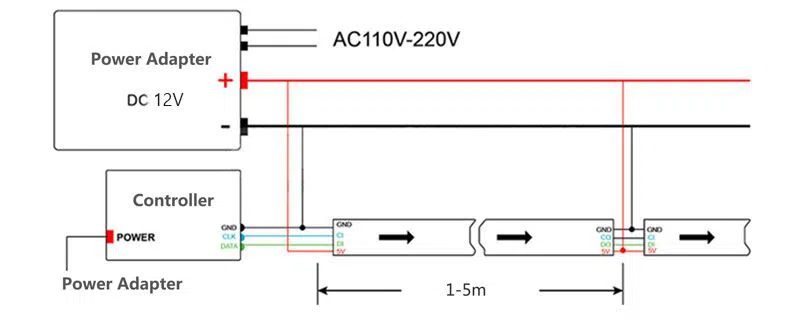

LED Strip wiring diagram:
Ultra thin flexible tape light picture: White & Red
1.5mm led light strip VS 2.5mm led light strip:
Ultre thin led strip light picture after lighting:

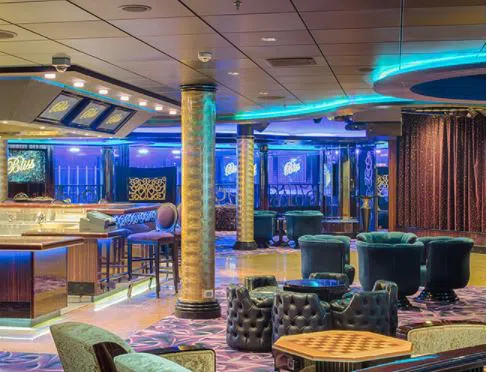

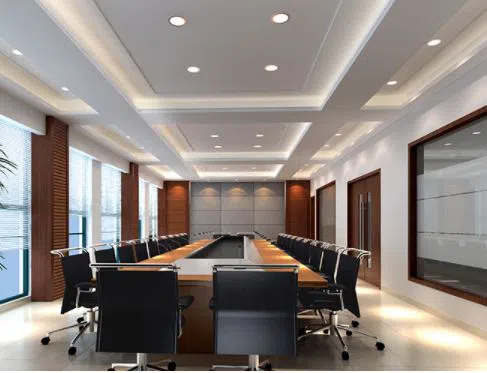

Application:
1) Architectural decorative lighting
2) Path and accent lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
Our led strip CE and RoHS Certificate
Package And Shipping
(Brown box,white box and customized packing welcomed)
1. Payment term: Paypal, Western Union for small amount. Mass production by T/T.
2. Lead time: shipping by DHL and TNT normally in 5~10 days after deposit received.
3. Sample policy: Samples are always availble for each model, Samples can be ready in 3~7 days once payment received.
4. Shipping port: Shenzhen,China
OUR MISSION:
To this day,Newes Industrail continues to cultivate and revolutionize the lighting industry with its expertise in LED lighting.
Our goal will always be to supply quality energy-saving products to our customers.
Our company aims to be a customer-centered company and dedicated to helping clients save energy and resources by:
-Creating energy savings with our LED lighting products.
-Supplying products superior in all areas of performance,including longer lifespans,durability,and light quality,etc.
-Providing a user-friendly and enjoyable shopping experience,including easy installation and timely technical support.
-Creating a highly interactive community where LED light products users can share and gain valuable information.
