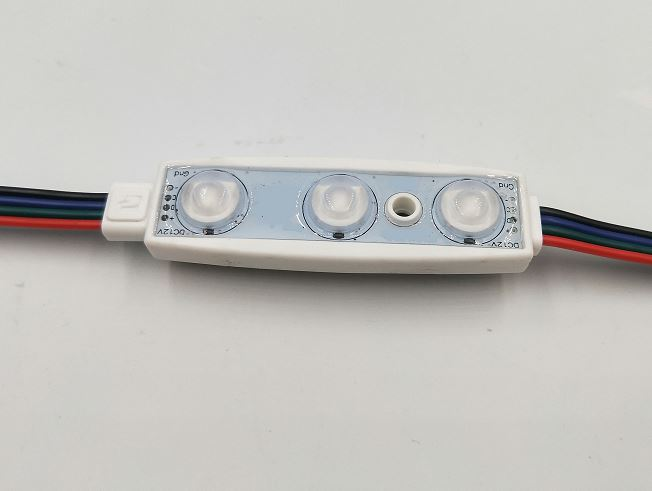

Product introduction:
DMX LED module are designed for flexible installations around curves and corners.
Product parameters:
Model | IC Qty per module | Color | LED Qty | Power Consumption | Voltage | Module Size |
W/M | V/DC | mm | ||||
STLC-5050RGB-DMX512 | 1 | Addressable RGB | 3 | ≤0.72W | 12v | 72*20*0.98 |
For more product information, please download the specifications.
DMX-3LEDs-Module-Specification-Suntech.pdf
DMX LED module Product details
1. Full RGB color programmable, could be designed as RGBW LED module also
2. DMX parallel signal,one pixel defect others can still work;
3. Can be applied outdoor;
4. Super bright RGB LED chip Epistar from Taiwan;
5. 12V input, safe and easy for installation;
6. CE, RoHS approved;
7. 20pcs as a chain;
8. Grey level: 256;
9. Low power consumption and good heat dissipation;
10. RGB chip brightness specification: Red ~600mcd, Green ~500mcd, Blue~150mcd;
11. This DMX512 addressable LED modue could be controlled through DMX controller, SD card controller, Artnet, Arduino etc..

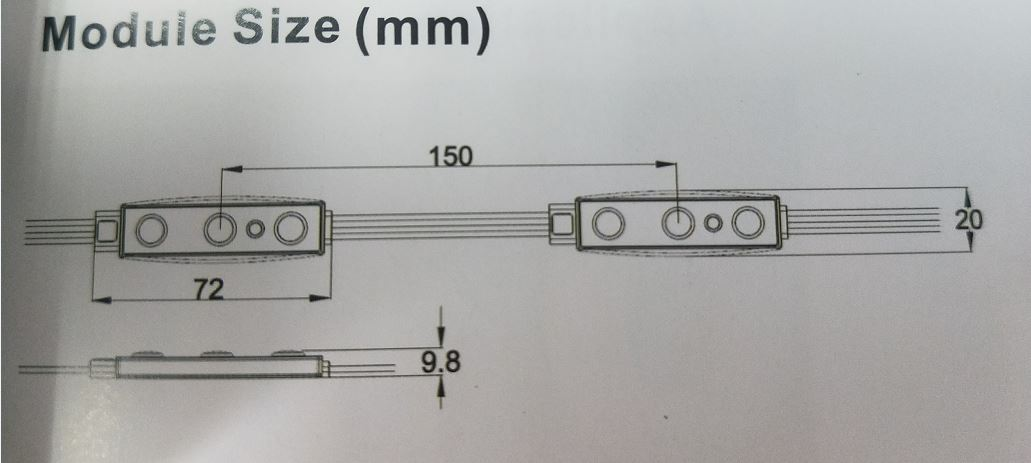

DMX pixel LED module size:

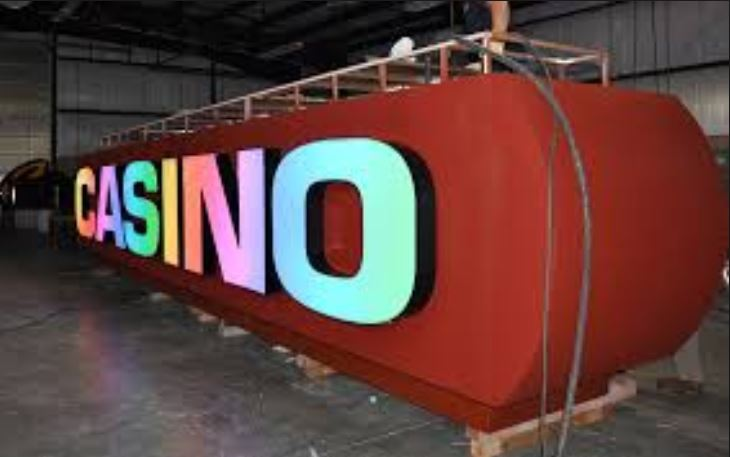

Smart RGB LED module Application
Product introduction:
DMX LED module are designed for flexible installations around curves and corners.
Product parameters:
Model | IC Qty per module | Color | LED Qty | Power Consumption | Voltage | Module Size |
W/M | V/DC | mm | ||||
STLC-5050RGB-DMX512 | 1 | Addressable RGB | 3 | ≤0.72W | 12v | 72*20*0.98 |
For more product information, please download the specifications. DMX-3LEDs-Module-Specification-Suntech.pdf
DMX LED module Product details
1. Full RGB color programmable, could be designed as RGBW LED module also
2. DMX parallel signal,one pixel defect others can still work;
3. Can be applied outdoor;
4. Super bright RGB LED chip Epistar from Taiwan;
5. 12V input, safe and easy for installation;
6. CE, RoHS approved;
7. 20pcs as a chain;
8. Grey level: 256;
9. Low power consumption and good heat dissipation;
10. RGB chip brightness specification: Red ~600mcd, Green ~500mcd, Blue~150mcd;
11. This DMX512 addressable LED modue could be controlled through DMX controller, SD card controller, Artnet, Arduino etc..
DMX pixel LED module size:
Smart RGB LED module Application
