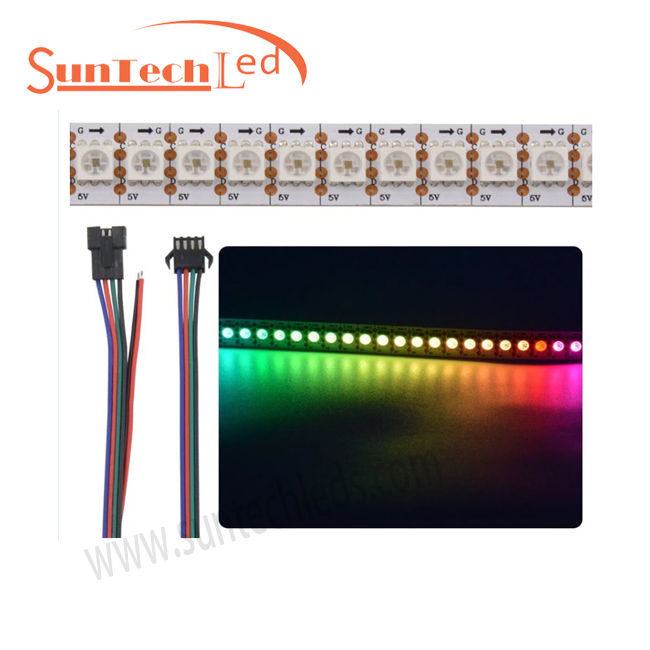

APA102 strip 144 leds can be controlled through SPI interface with super high PWM frequency. This digital strip has double line signal transmission even one led dies, the signal still pass through.
We export our products to EU, America , Canada , Middle east countries...
Product introduction:
APA102 strip 144 leds can be controlled through SPI interface with super high PWM frequency. This digital strip has double line signal transmission even one led dies, the signal still pass through.
We export our products to EU, America , Canada , Middle east countries….
Product parameters:
Model | IC Qty per meter | Color | LED Qty | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-APA102RGB-144-5V | 144 | Addressable RGB | 144 | ≤43.2W | 5v | Double Copper PCB 5000*12mm |
Product details
1. Digital APA102 chip is from Taiwan with high frequency 19.2 kHZ much higher than regular WS2812B chip which is around 400 Hz. So it is better for persistence of vision applications.
2. Both white and black PCB are available for this programmable led strip light.
3. APA102 chip has 2 signals one is data line the other is clock line
4.Digital led strip is widely used as decorative or guidance lighting for homes, under cabinet, gardens, stores, yachts, bars, automobiles, party, cinemas, theaters, etc.

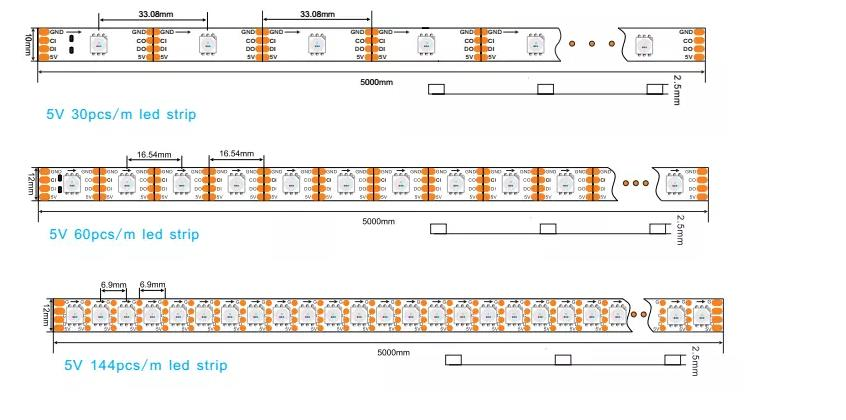

Product diagram

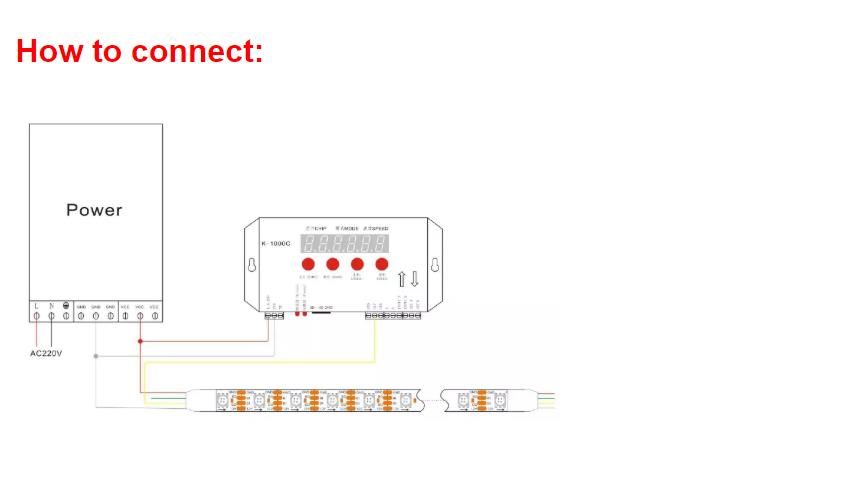

Addressable LED strip connection

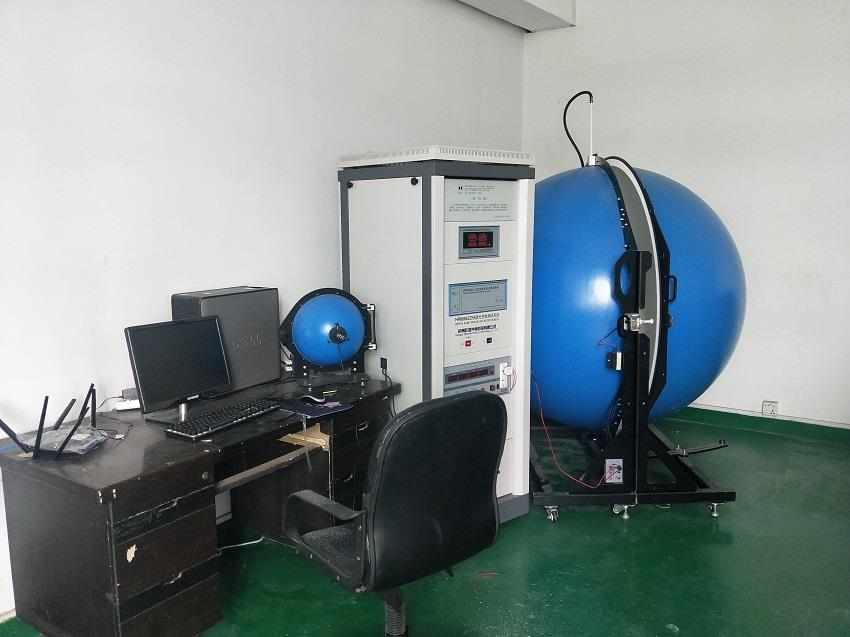

Testing equipment
FAQ
1. What is company's main product?
We focus on strips manufacturing, regular LED strip, LED neon strip, programmable LED strip….
2. What certificates do you have for the digital led strip 144 pixels?
Our product is CE & RoHS approved
3. Do you have completed products in stock?
For normal addressable strip such as WS2812B, SK6812… we have 2000 meters PCB in stock, so if delivery is quick.
