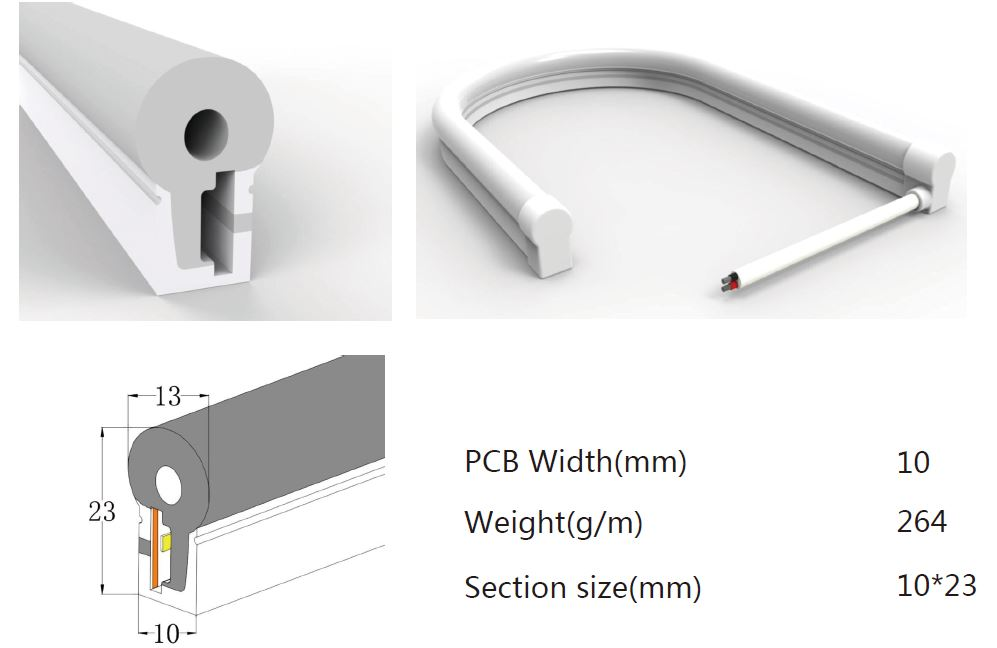

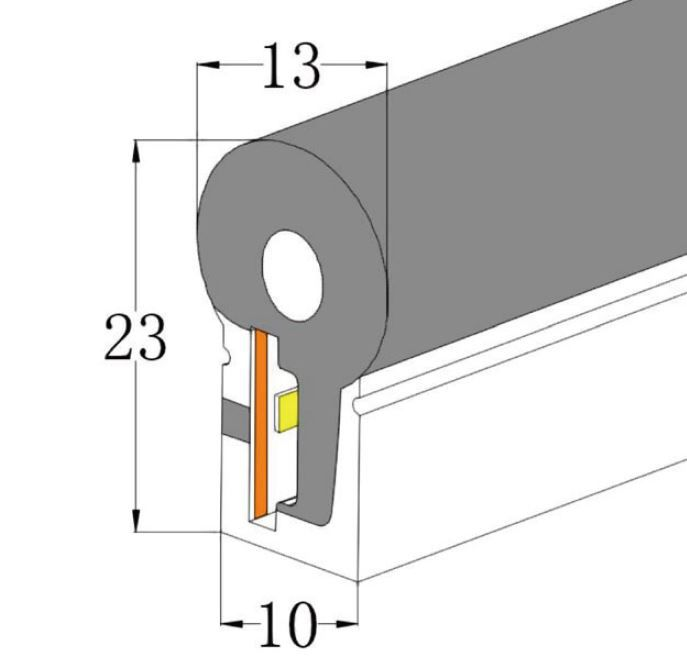

SideView10*23(mm) DMX512 LED neon Flex:
Model | Color | LED Qty | Power Consumption | Voltage | Neon Tube Size |
W/M | V/DC | mm | |||
STNE-60RGB5050-10x23 | DMX White/RGB | 60 | ≤14W | 12/24v | 10x23 |
1. Control IC UCS512, supporting numerous color-change effects .
2. It comes in 5 meters per reel with 3Pin female/male JST SM connector on both end.
3. Flexible PCB material, customized length is workable .
4. 60LEDs/M . DC12V/24V low voltage input.
5. 10mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thick with silicon tube for waterproof type .
6. IP65 IP68 are both available
7. 3 & 5 years warranty
DMX Neon Lights Product introduction:

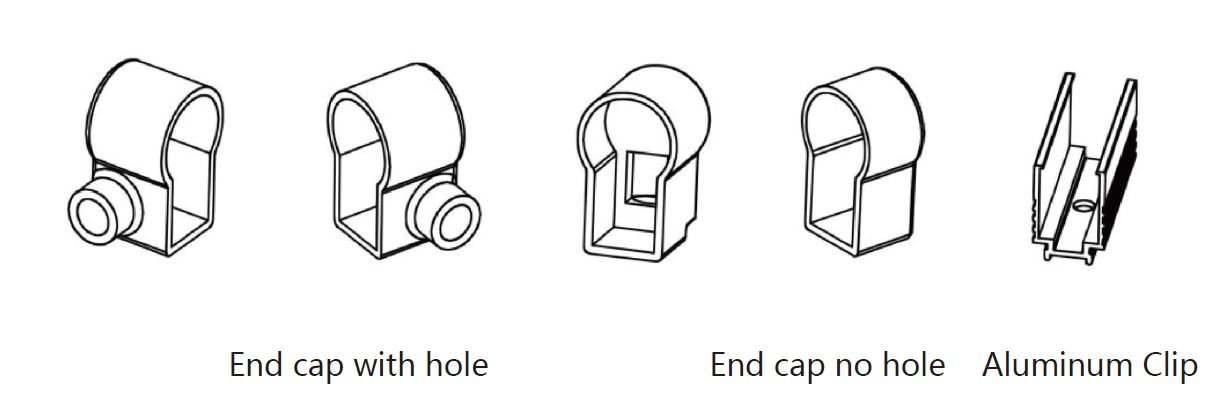

DMX512 LED neon flex light accessories;

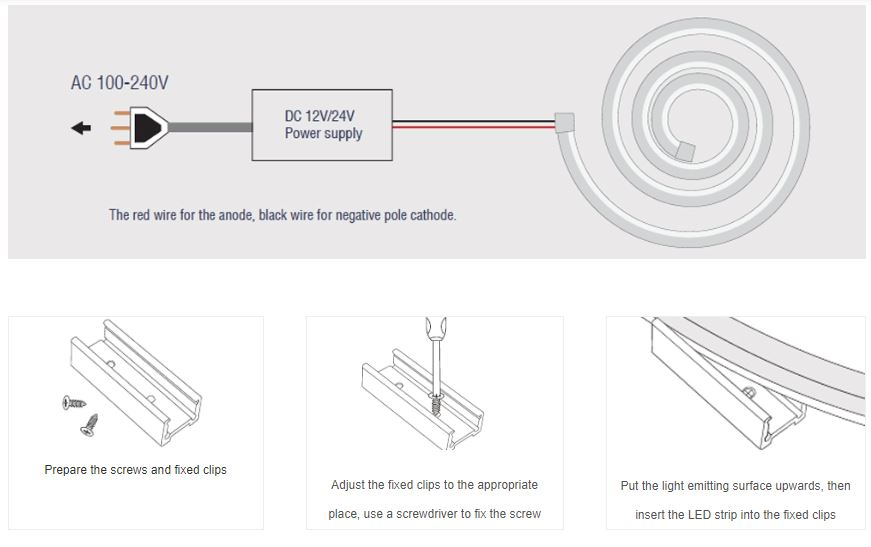

Installation of DMX512 LED neon lights 10x23:
10*23mm DMX flex LED neon strip light

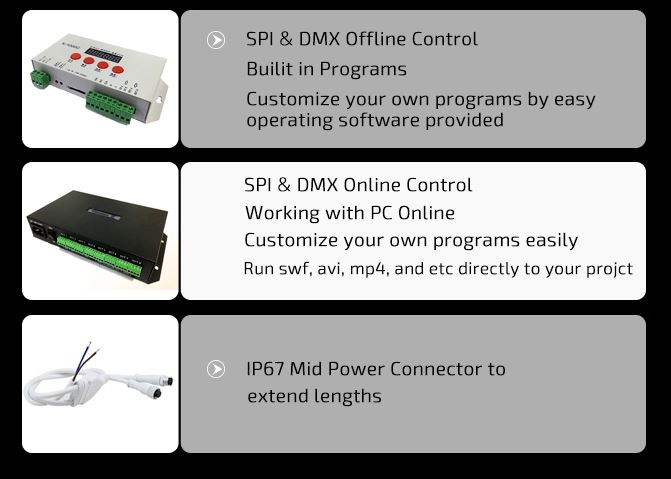

Controller system for DMX512 neon lights :
Art-net controller system for DMX LED neon flex

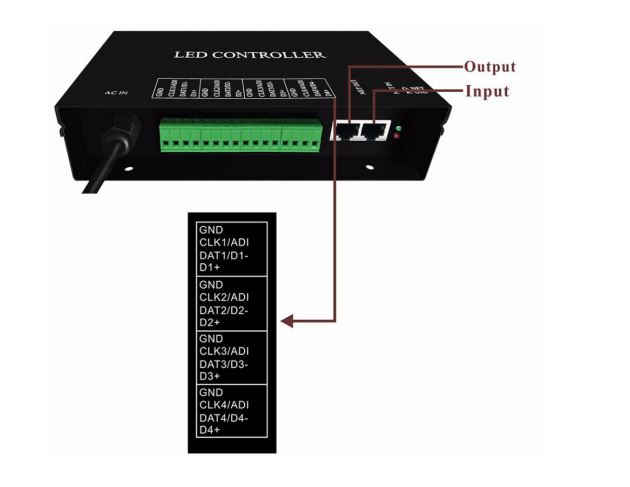

Art-net controller ST802RA

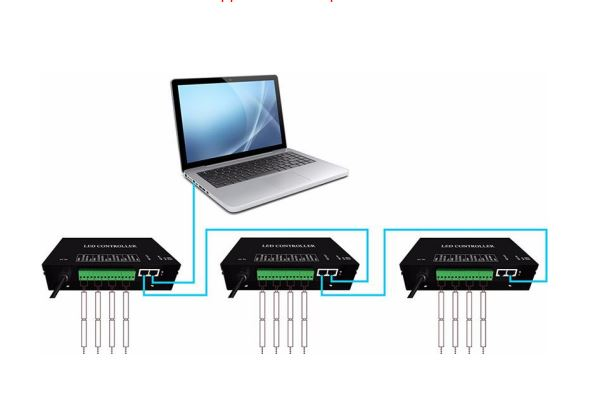

Art-net control online:
