How to Set Up LED Strip Lights: Installation, Connection, and Placement Guide

Installing LED strip lights is simple, but a clean and professional result needs proper planning. This guide will show you how to choose, install, connect, and place LED strips for reliable, long term performance.

What to Consider Before Buying an LED Strip

Before choosing an LED strip, think about how you plan to use it.

• Lighting purpose: Would you like ambient lighting to create an atmosphere, or task lighting to enhance visibility?

• Color type: Choose single color, RGB, or RGBW depending on your needs.

• Control method: Decide between basic control or smart options like WiFi or Bluetooth.

Then measure your installation area and plan the strip path, including corners and connections. Remember to leave a little extra length to ensure a smooth installation and a clean result.

Select the Right LED Strip

• High density strips provide more uniform light

• COB LED strip create smooth, dot free lighting

• 24V LED strip are better for long runs

• DMX LED strip provides stable signal control and precise lighting performance.

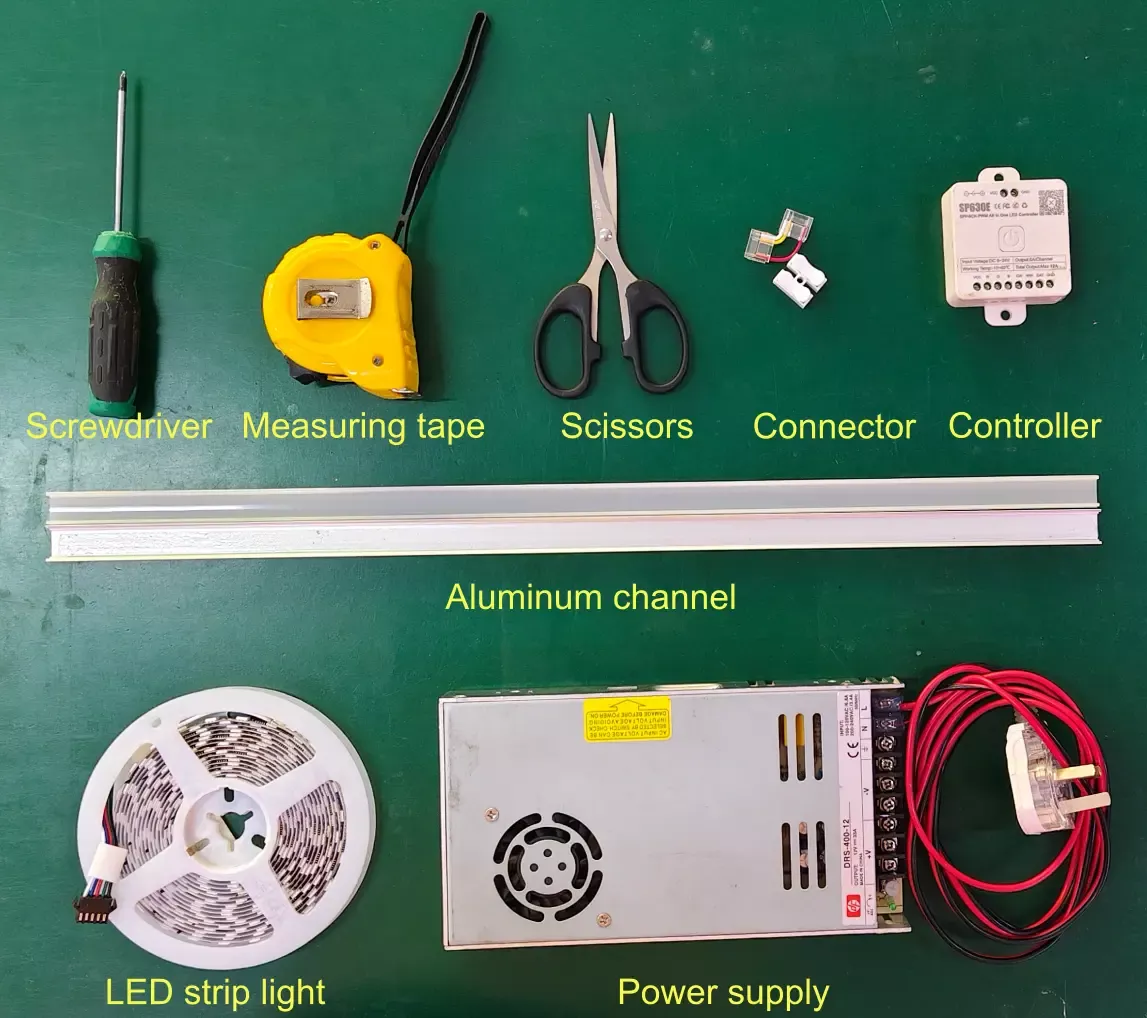

Things You Need to Prepare Main products: LED strip, power supply, and controller. Tools: a cleaning cloth, scissors, a screwdriver, and a measuring tape. Accessories: Connectors , extension cables. Optional: Aluminum channels for better heat dissipation and appearance.

Installation Methods

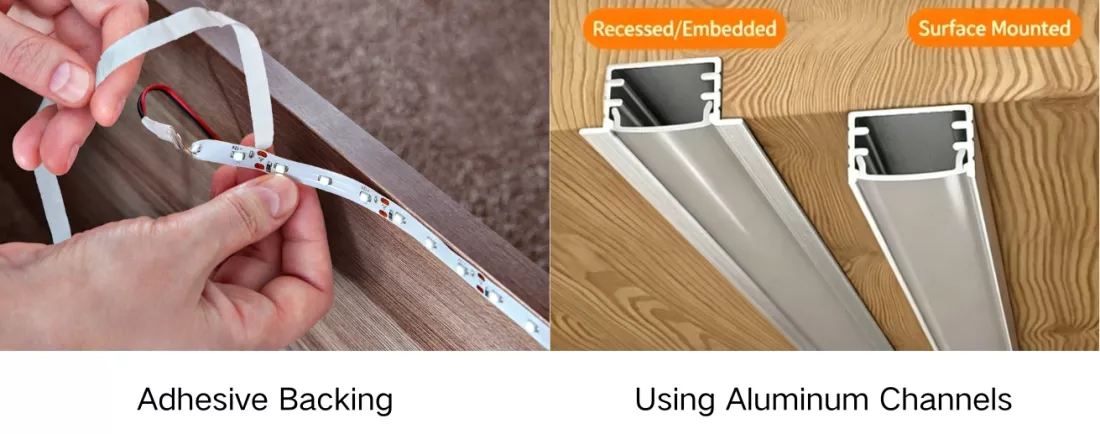

Method 1: Peel off the backing and stick the strip onto a clean surface. Method 2: Fix the aluminum channel, place the strip inside, and cover it for better heat dissipation and light quality.

How to Cut and Wire LED Strip Lights Properly

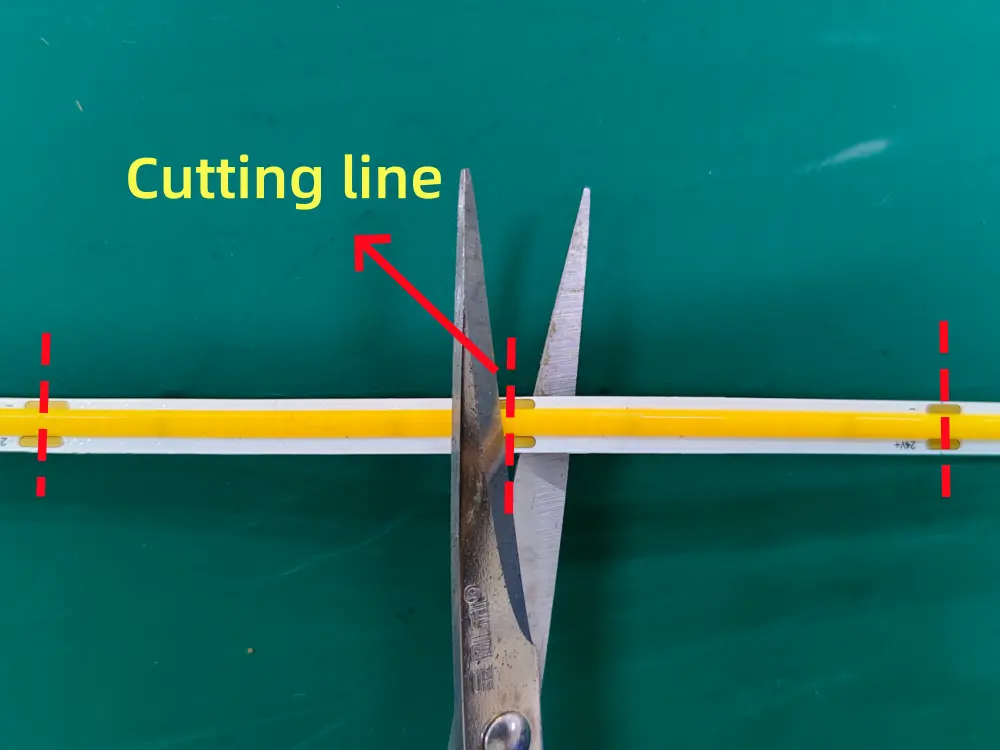

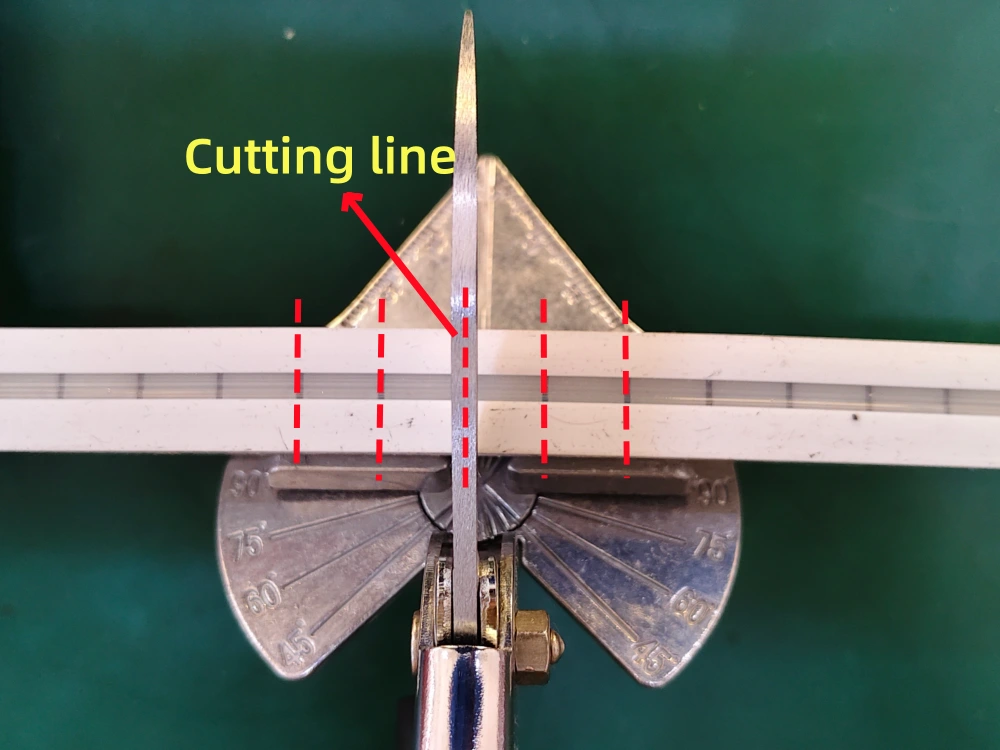

Precise Cutting:

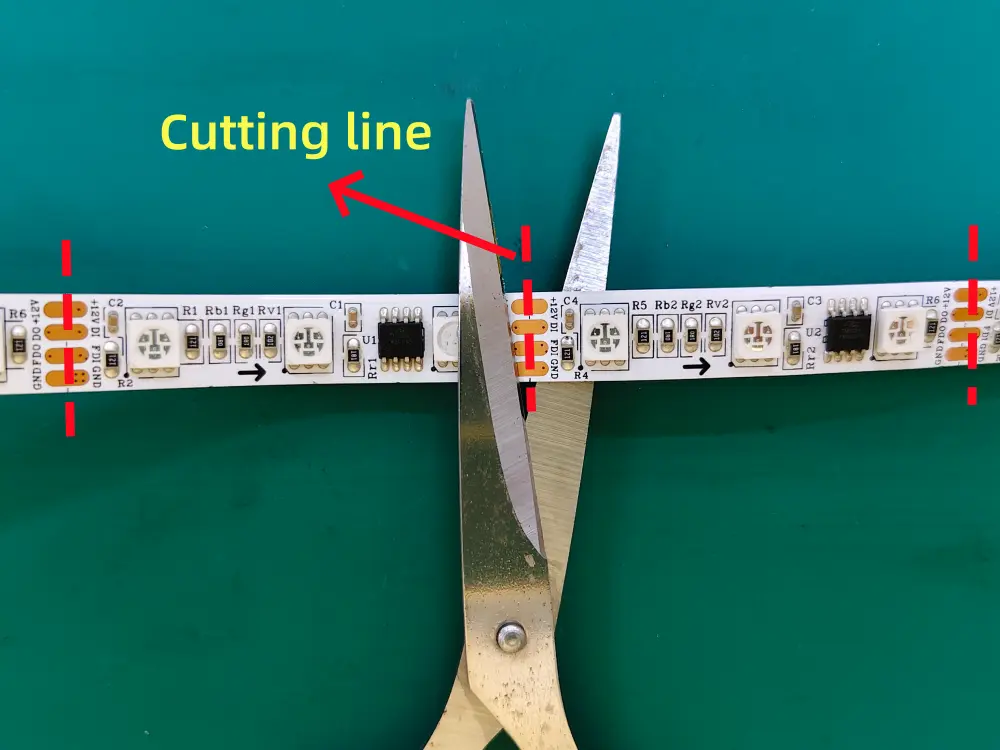

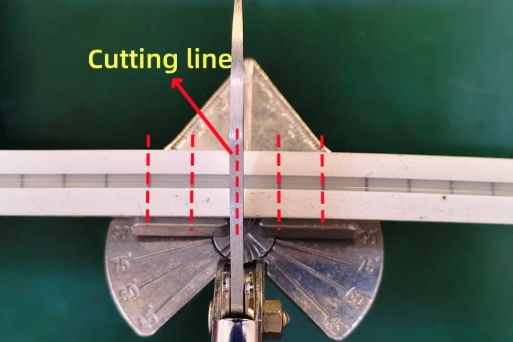

LED strips can be cut only at the marked cut points. As shown in the figure below.

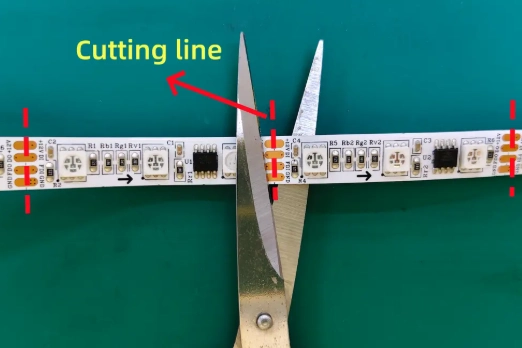

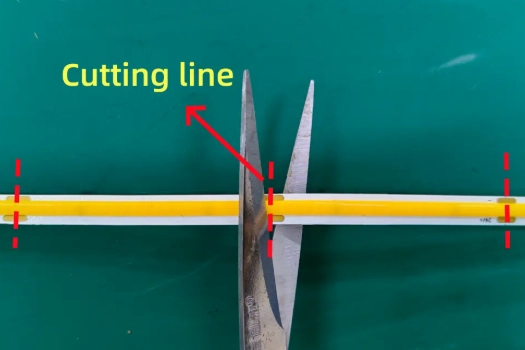

SMD LED Strip	COB LED Strip	Neon LED Strip

Circuit Connection:

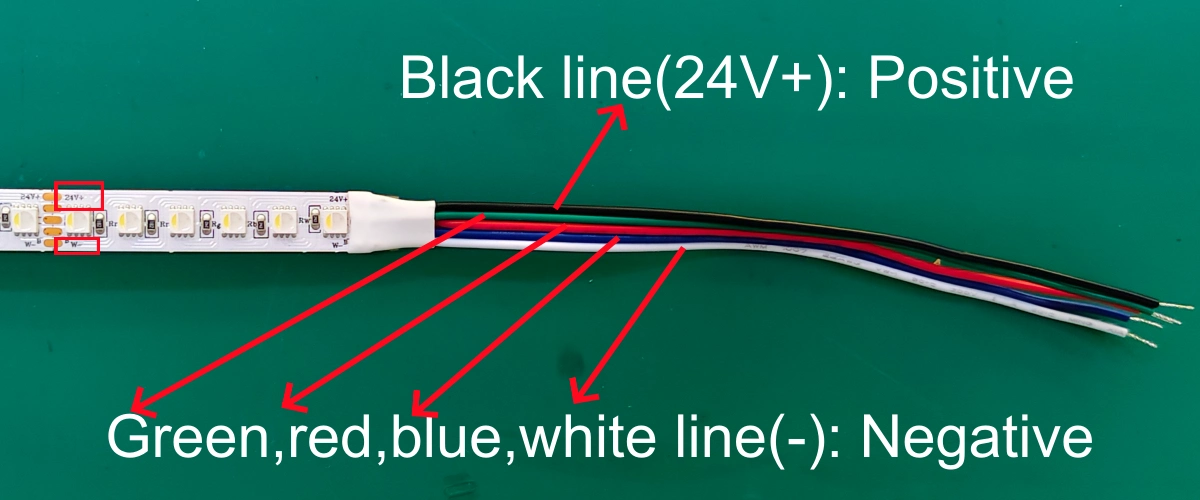

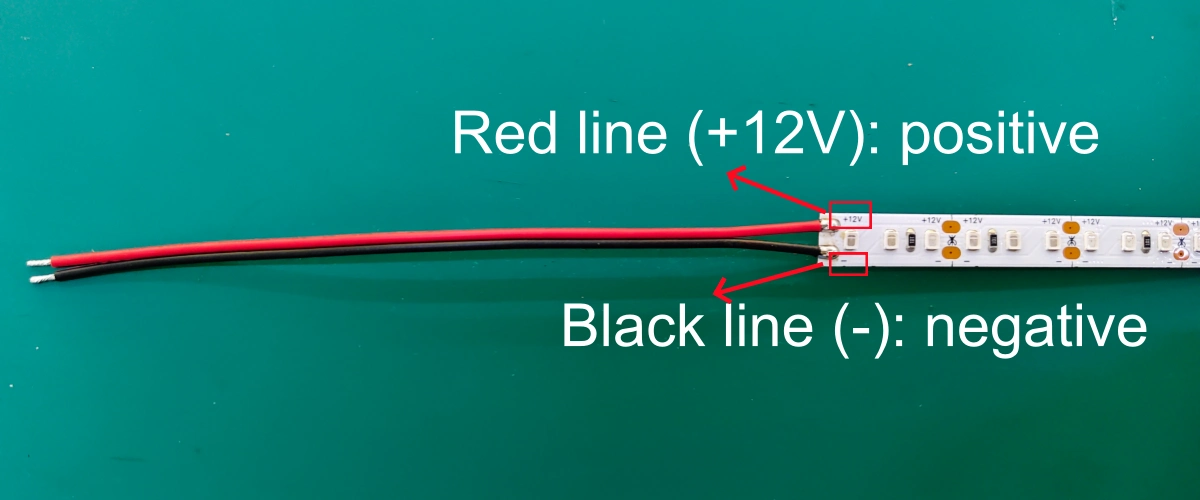

① Power Connection

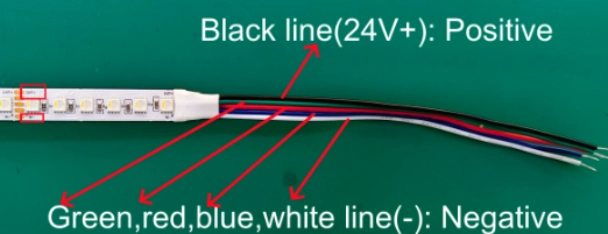

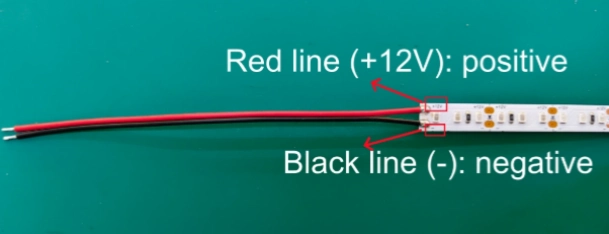

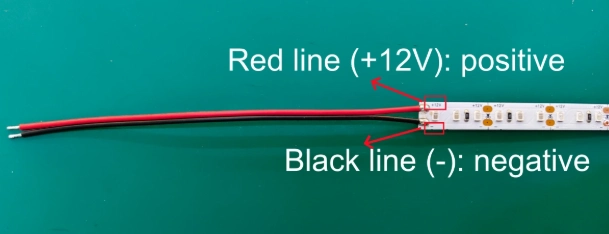

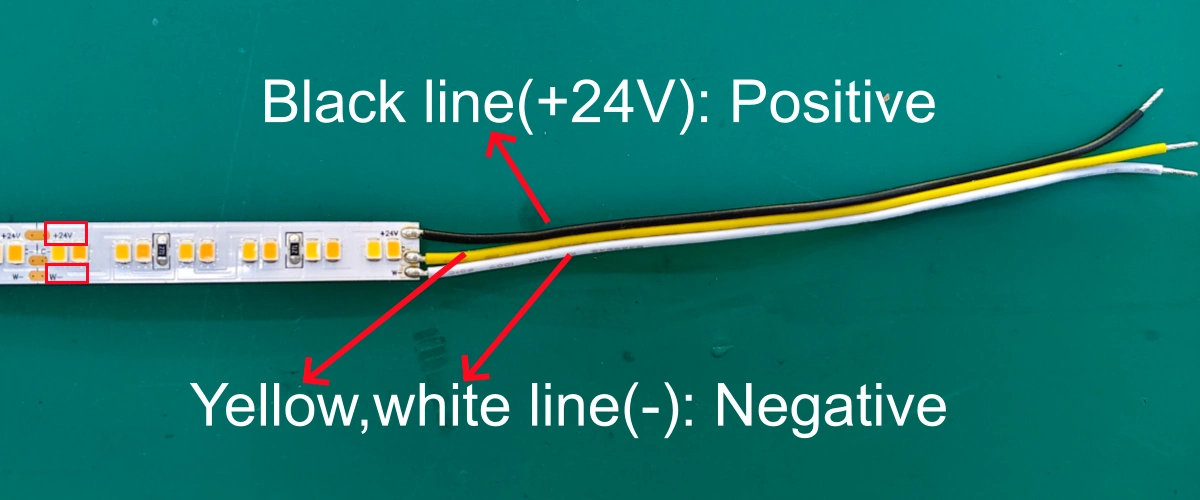

White LED Strip	CCT LED Strip	RGB LED Strip

LED strips only work with a complete circuit. Connect the power supply by matching the positive (+) and negative (–) terminals. Incorrect polarity will prevent the strip from lighting. For longer runs, add power injection to maintain consistent brightness.

Choosing the right power supply is essential for stable performance.

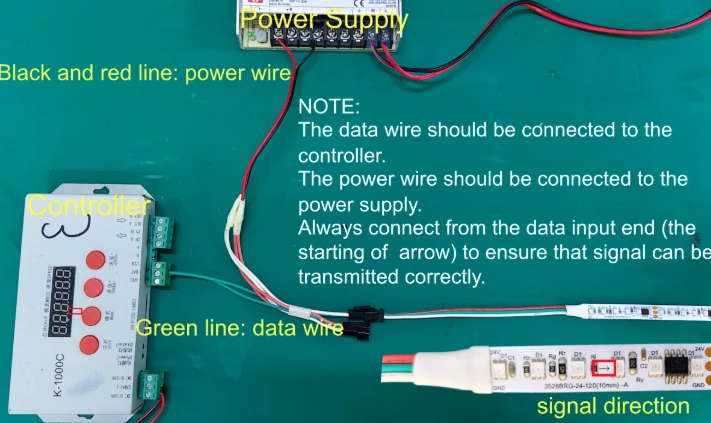

②Control Connection

For RGB, RGBW, or addressable LED strips, you need a controller between the power supply and the strip. The controller adjusts color, brightness, and effects. Make sure you connect the signal wires correctly to avoid color or control issues.

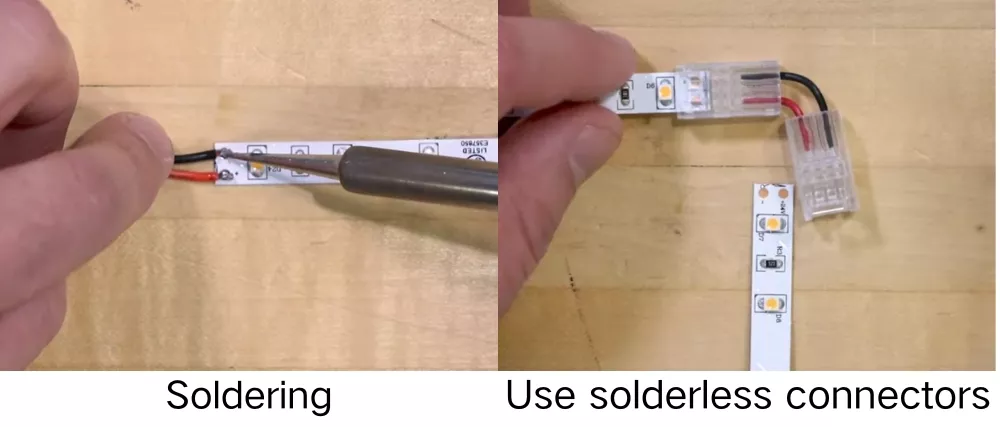

③Wiring Methods

Solderless connectors are very easy to use. You simply insert the LED strip and press the connector closed. No tools are required. They are ideal for beginners or temporary setups, but they may become loose over time. Soldering connects wires directly to the strip using solder. It requires some basic tools and practice. The connection is strong and reliable, which makes it a better choice for long term use.

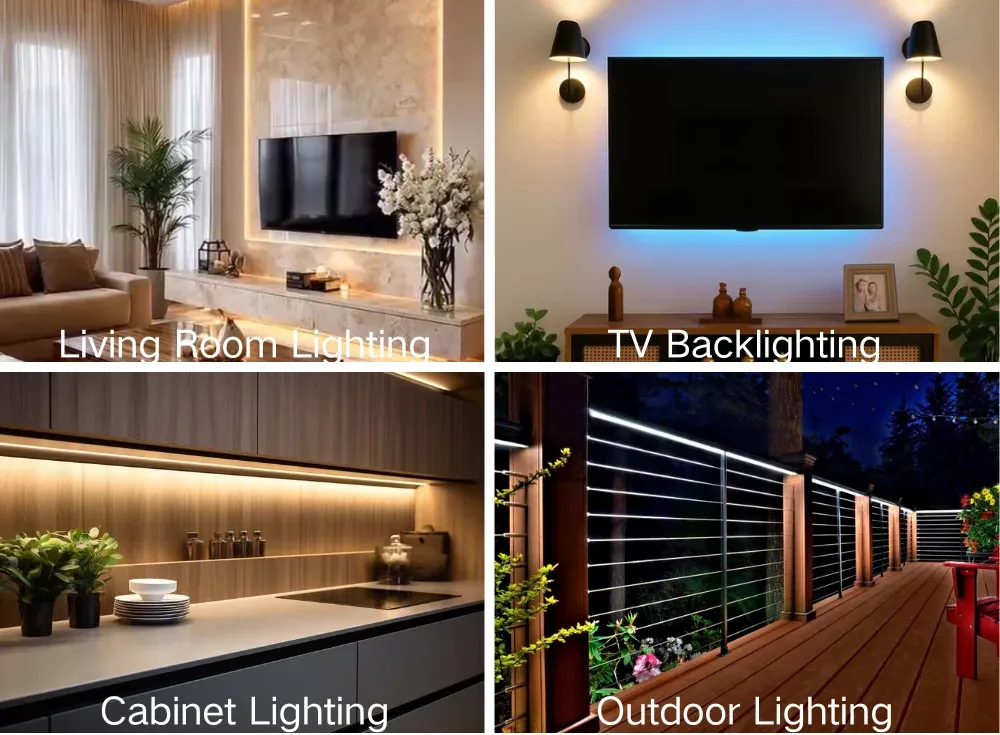

Common Placement Scenarios

The final result depends a lot on where you put LED strip lights. When you put things in the right place, they look clean and comfortable. When you put things in the wrong place, they can cause glare or uneven light.

Living room: For a soft, relaxing feel, use warm white or indirect light. Backlighting for TVs: Use RGB or addressable strips for moving effects and more comfortable viewing. Cabinets: Use COB LED strips for light that is smooth and has no dots. Outside: Use waterproof strips that are properly sealed and installed securely.
