800W 960W 1200W Football Night Light Specification Table | |||
---|---|---|---|
Part Number | LSHM-800W-LV(XXK)MAX | LSHM-960W-LV(XXK)MAX | LSHM-1200W-LV(XXK)MAX |
Input Voltage | 800W | 960W | 1200W |
Chip Brand | Luminleds 5050 | Luminleds 5050 | Luminleds 5050 |
Efficiency | 180LM/W, 190LM/W | 170LM/W | 160LM/W |
Lumen | 144,000Lm / 152,000Lm | 163,200Lm | 192,000Lm |
Driver/ Power Supply | Meanwell Driver 4*ELG-240-48A | Meanwell Driver 4*ELG-240-48 | Meanwell Driver 4*ELGC-300-H-A |
IP Rating IK Rating | IP66 & IK10 | IP66 & IK10 | IP66 & IK10 |
Product Dimension | 668.6x744.6x147mm | 668.6x744.6x147mm | 668.6x744.6x147mm |
Product Weight | 16 KG | 22.5 KG | 24.5 KG |
For more details, please click here to get the product specification: LSHM-800W-LV(XXK)MAX LSHM-960W-LV(XXK)MAX LSHM-1200W-LV(XXK)MAX.pdf
1000W 1500W Wharf Lighting High Mast Light Specification Table | ||
---|---|---|
Part Number | LSHM-1000W-LV(XXK)MAX | LSHM-1500W-LV(XXK)MAX |
Input Voltage | 1000W | 1500W |
Chip Brand | Luminleds 5050 | Luminleds 5050 |
Efficiency | 180LM/W | 160LM/W |
Lumen | 180,000Lm | 240,000Lm |
Driver/ Power Supply | Meanwell Driver 5pcs ELG-240-48 | Meanwell Driver 5pcs ELGC-300-H-A |
IP Rating IK Rating | IP66 & IK10 | IP66 & IK10 |
Product Dimension |
819x744.6x147mm | 819x744.6x147m |
Product Weight | 18 KG | 29 KG |
For more details, please download the 1500 watt LED sports light specification: LSHM-1000W-LV(XXK)MAX LSHM-1500W-LVXXK)MAX.pdf
800W 960W 1200W soccer night light:
1500 watt LED sports light:
Want to know more about outdoor LED floodlights? Please check: Airport High Mast Lighting

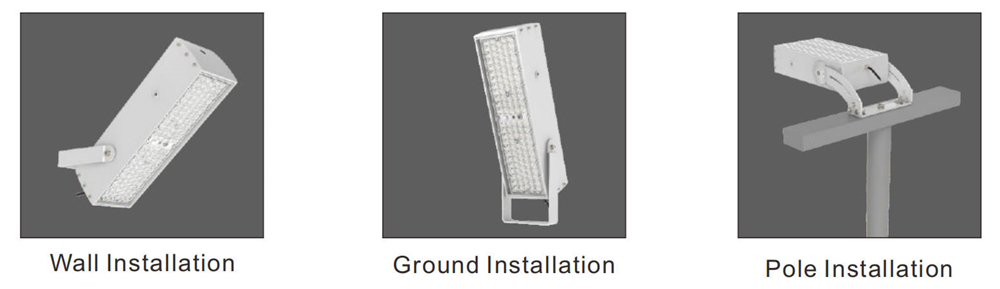

Airports, golf course, factories, plants, warehouse, exhibition halls, gym, sport fields, seaport, shopping centers, highway, high mast lighting and etc.
1. Place the laser pointer holder downward and button it on the heat sink of slim plus led high mast light.

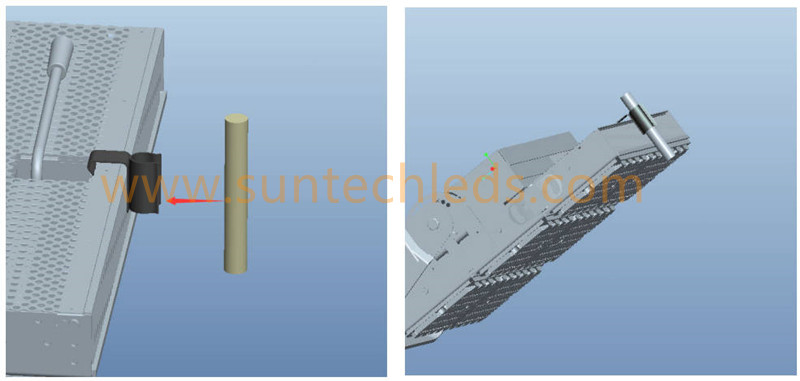

2. Fasten the laser pointer to the mounting bracket and complete the installation.The laser pointer is perpendicular to the module and points of light is in the direction of the lens.
