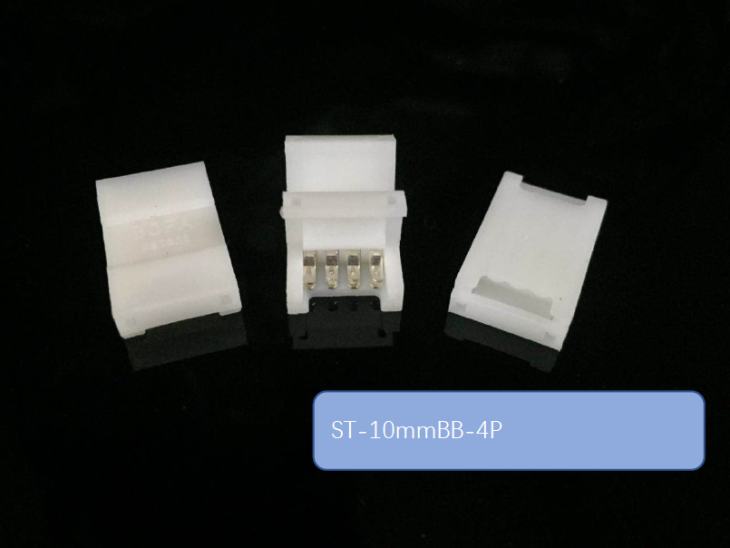

RGB LED Strip Connector 4 Pin

4 pin RGB LED strip connector for 10mm width LED strip light

How to connect 4 pin RGB LED strip connectors

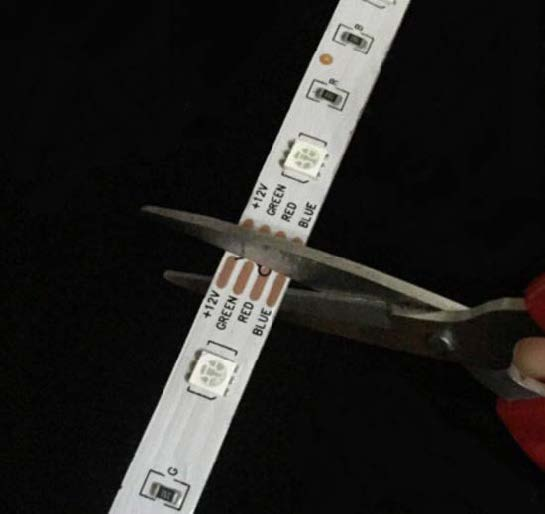

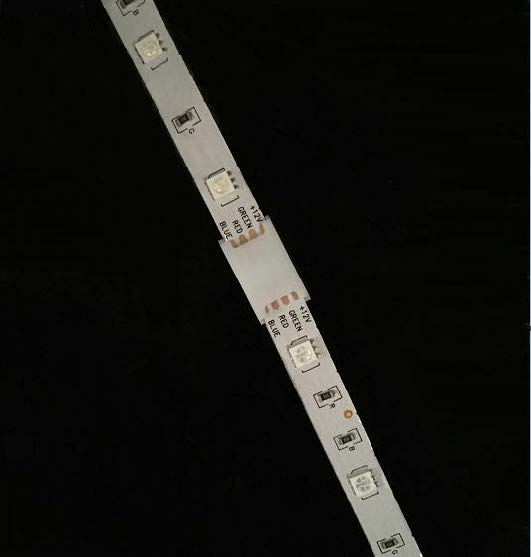

1. Cut the RGB LED strip

4p LED strip RGB connector

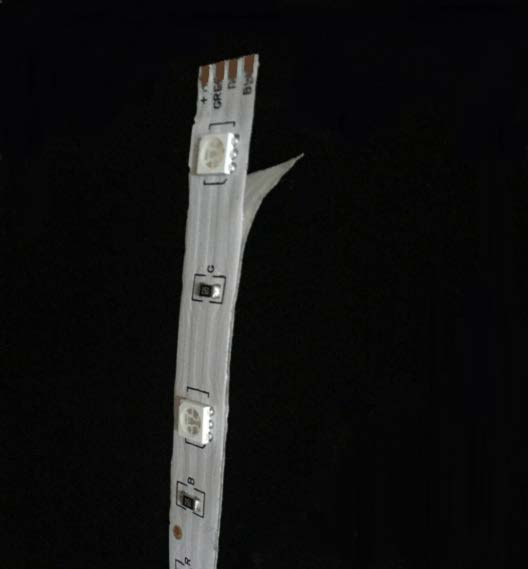

2. Take off the tape

RGB LED strip light

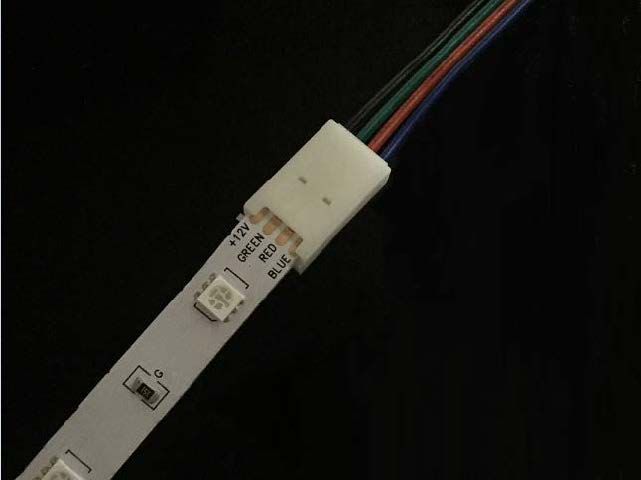

3. RGB LED strip connect to RGB strip light through 4 pin connectors

4 pin RGB connection

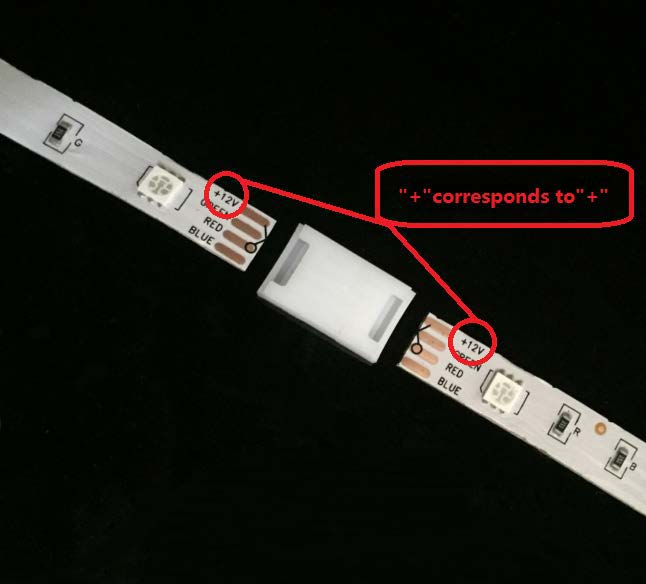

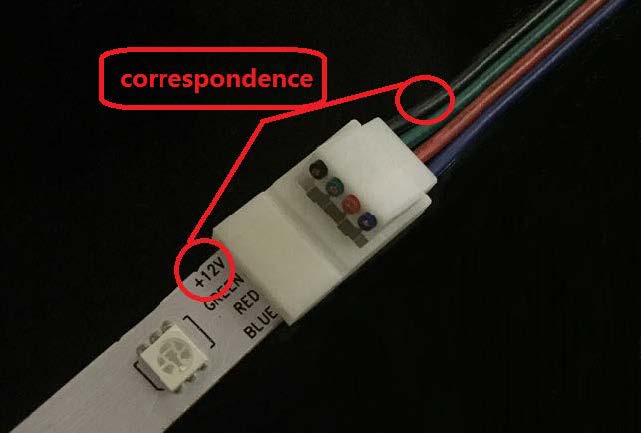

4.Take care of positive and negtive polar.

RGB LED strip to LED strip connector

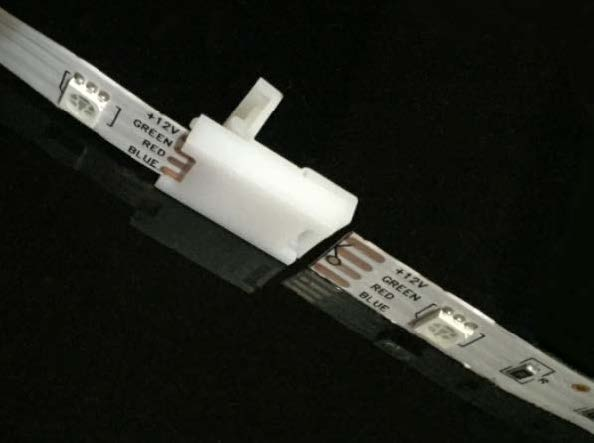

5. 4 Pin connection job is done!

Connection done

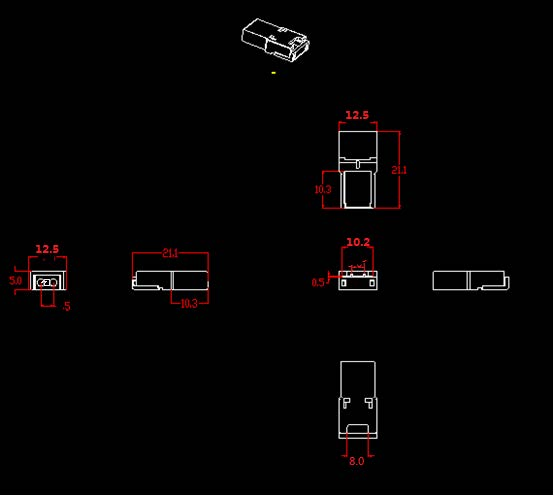

4 PIN RGB LEＤ strip connetor diagram

4 pin RGB connector diagram

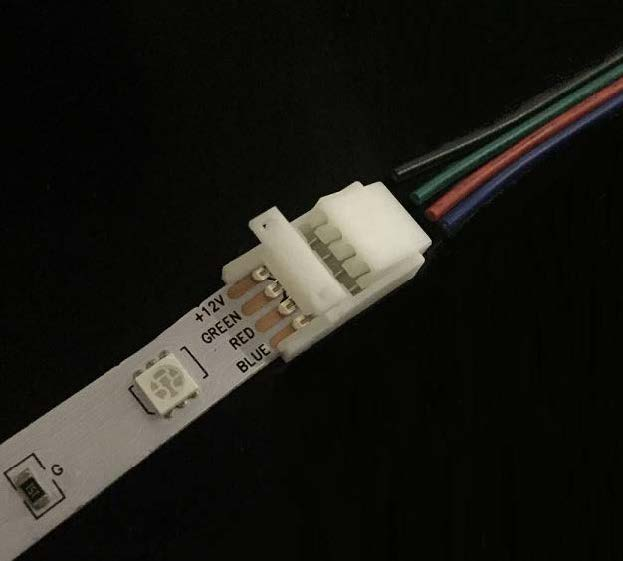

One side with wire RGB LED strip connectors connection

4 pin RGB LED strip connector

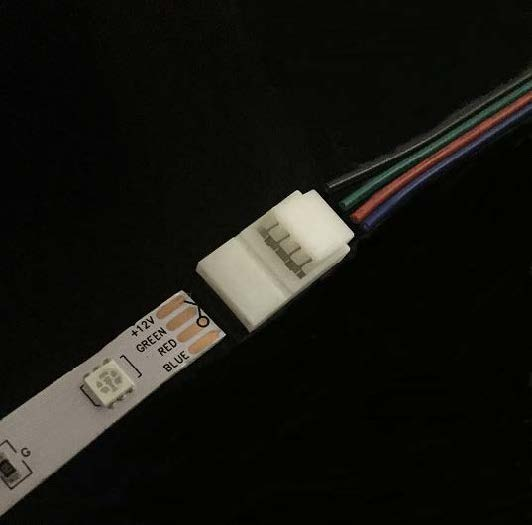

Strip light connection

4pin strip light connector

Connector connection done

Many different 4 pin RGB LED strip connectors for choices

4 pin connector two sides connetors

4 pin RGB two sides connector

4 pin RGB connector one side wire, one side strip

RGB connector one side wires

RGB connector two sides
