Product code: SLA028 Lamp type: LED linear lights Light source: 2835/3535/5050 Material: Aluminum Body+PC Cover IP rating: IP67 Warranty: 5 years Outdoor LED linear lighting wall washer applies to facade lighting, Landscape Lighting, and architectural lighting.

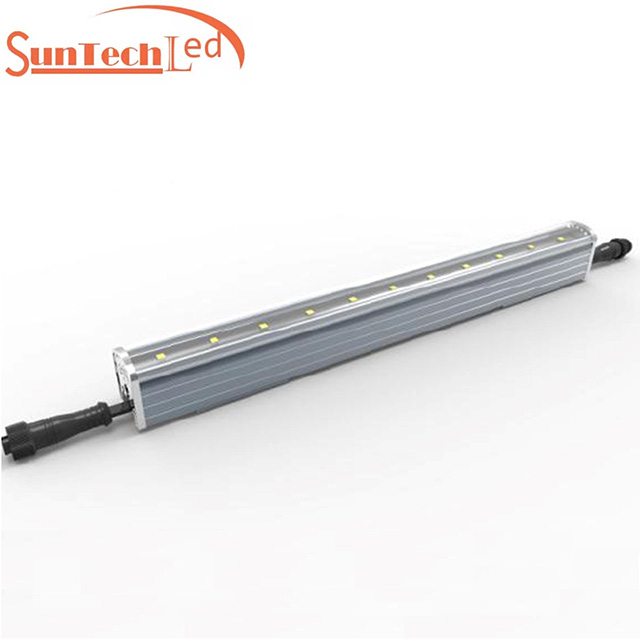

SLA028 28mm Linear Light
The SLA028 linear light is a low-power LED strip product designed for outdoor landscape lighting. It adopts aviation-grade 6063 extruded aluminum shell, flame-retardant plastic PC end cover, and is waterproof by high thermal conductivity and weather-resistant PU glue; the light bar is small in size and exquisite in appearance; the light strips are connected by national standard flexible cable; the product length and color can be Customized, can adapt to the installation of large curves or curved surfaces; suitable for the contour of the building facade, the interior, and exterior surfaces are brightened.
Product Features
★ A new generation of TTL serial technology design
★ Standard DMX512 Control Protocol
★ Industry-leading wireless button-type anti-smash connection design
★ High thermal conductivity glue full potting waterproof design
★ Outdoor lightning protection and Electrostatic (ESD) special protection design
★ The top cover of the product is optional: support PC flat cover or milky white cover
★ The product uses an original hidden mounting slider
★ Support RGB/W current separately adjustable (low light and high gray)

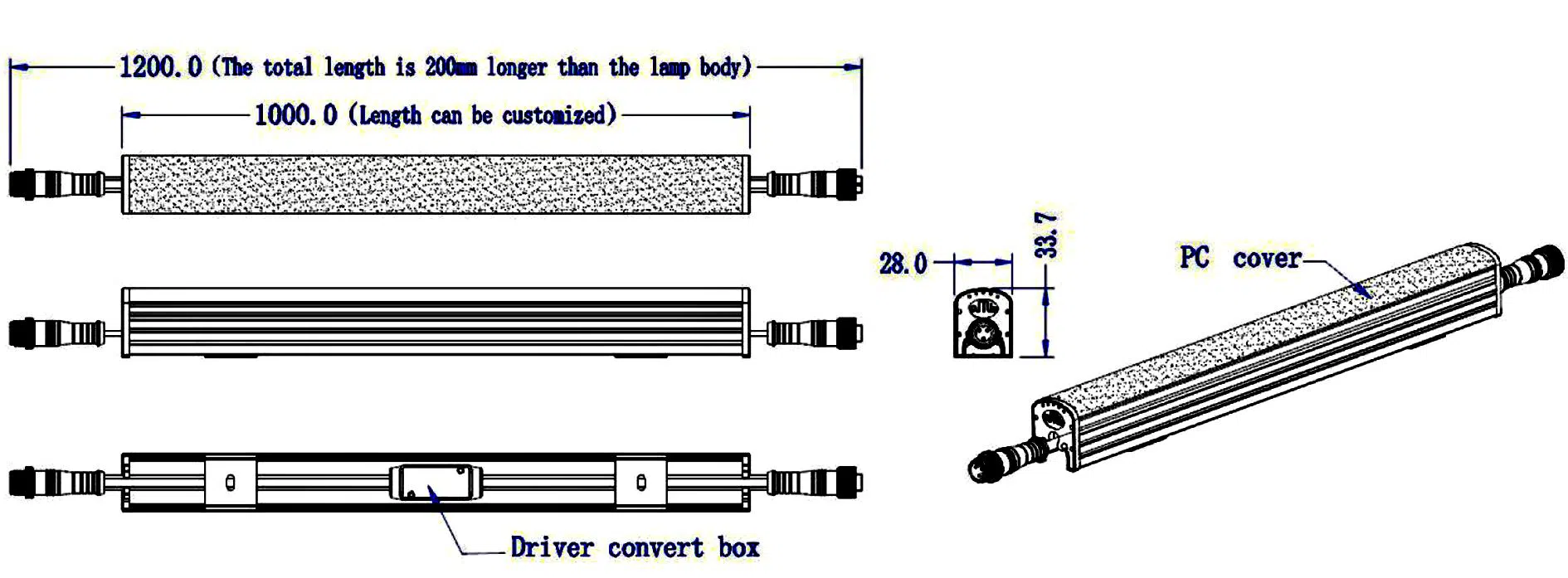

Product Size (Unit: mm)

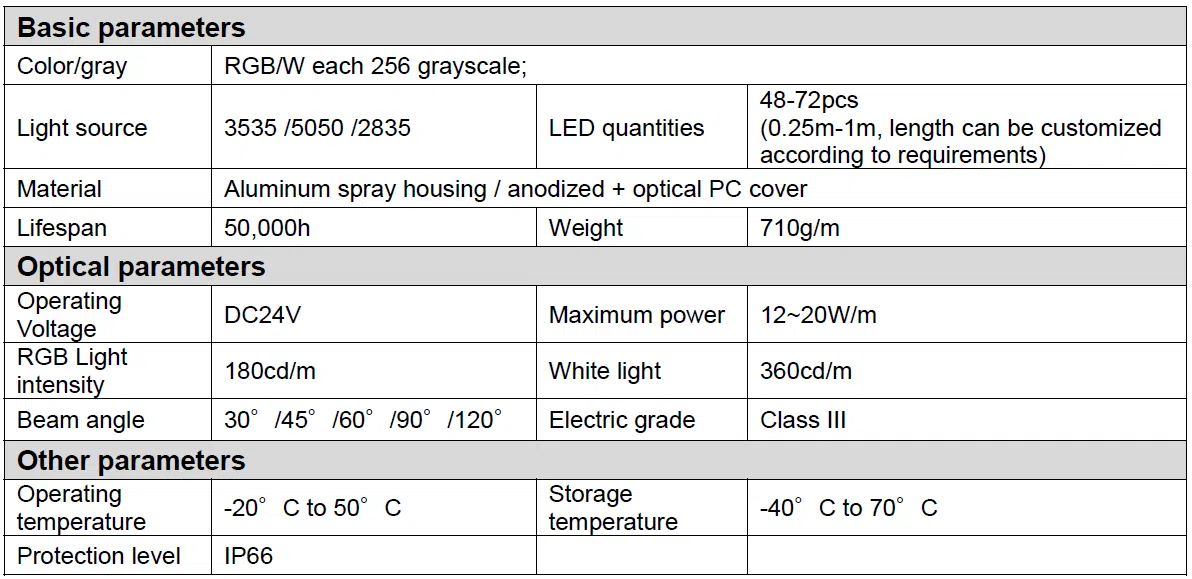

Technical Parameters

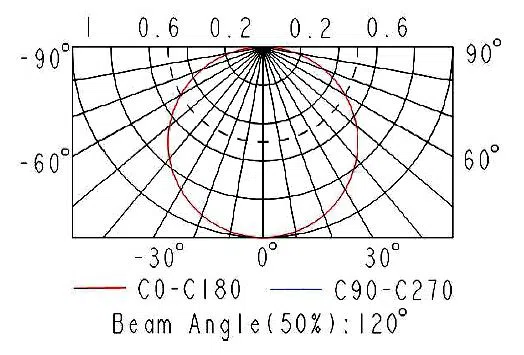

Light Distribution Curve
Mounting Parts Dimensions
Mounting base measurement drawing (mm)

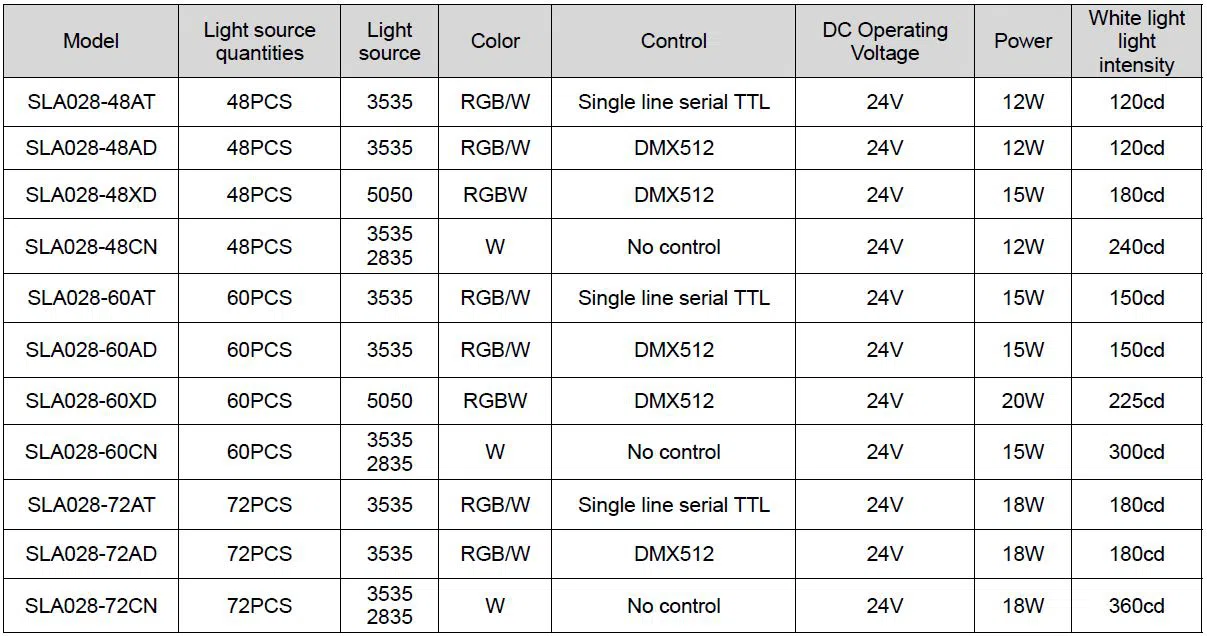

Product Selection Table
* If you are looking for more architectural facade lighting products, please go to this page: exterior linear wall washer
Installation Method of the Fixed Installation Base
System Connection
1、The main controller is equipped with a sub-controller and signal adaptor. The main control and sub-control working voltage are AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.
2、Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX
sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200
meters long-distance transmission.
3、The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from the signal adaptor to the first pixel light is no more than 2 meters.
4、It is recommended that the maximum point spacing should not exceed 2.5 meters and each intermediate power supply can support the power supply distance of 6 meters left and right (can be adjusted according to the project conditions).
System Schematic
Notes
1. Please read the installation manual carefully before using the product.
2. The product is handled gently and gently to avoid damage to the product. Installation, maintenance, and maintenance must be handled by professionals;
3. The external power supply must be cut off during wiring to prevent people from getting an electric shock or damaging the lamp;
4. When the external power cord is connected, the corresponding measures of waterproofing and water
leakage must be taken;
5. The male and female waterproof protective covers for the products shall not be removed before the
products are installed and connected;
6. Quality Assurance: Under normal conditions of use, quality assurance is based on the proper storage,
installation, use, and maintenance of the product.
(Note: Product damage caused by improper installation and use, in violation of product operating procedures, is not within the scope of product quality assurance.)

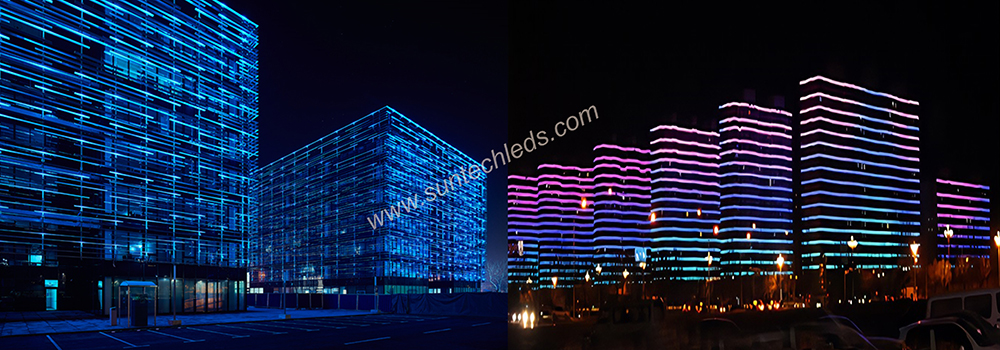

Product Applications
IP67 DMX led wall washer linear light. The program control, the illusion of a variety of wall washing effects, so that the lighting is extraordinarily colorful. The wall-washing lamp has a special length of use, which can ensure long-term continuous use outdoor. Our outdoor LED linear facade lighting makes ordinary landscapes, industrial areas, parking lots, facades, and other outdoor locations into one-of-a-kind environments. We cater to various wattages, color temperatures, aesthetics, and mounting options to meet your specific requirements.
This video is the actual installation effect of our product taken at night. The length and color of the product can be customized, which can be adapted to the installation of large curves or curved surfaces; it is suitable for contouring of building facades, and decoration and brightening of internal and external surfaces.
Color temperature effects show
Color temperature-LED linear light provides a wide range of color temperatures, which will affect the way the eyes interpret light. From cold white to warm white, different temperatures can be used to create the mood and atmosphere of the space. Neutral white, or 4000 Kelvin using its technical name, is recommended for offices and retail areas that provide the most comfortable environment.
Linear lights allow you to adjust the brightness and color temperature of the light according to the scene and design needs to better illuminate and render ambiance in the space.
Color temperature
For more details, please download specifications for reference on this page.
SLA028-specification-Suntech.pdf
We are the leading outdoor LED linear facade lighting manufacturer and wholesale supplier in China. We can produce single color, RGB, RGBW color-changing LED linear facade lights. No matter if you are looking for an LED linear lights supplier or if you need custom-made linear lights, we can all help. Send inquiry to get an instant quote now!
