1.The lamp body adopts the glue-filled waterproof method and the air pressure balanced plug to achieve the purpose of waterproofing..
2.Using high-quality tempered glass, strong impact resistance, long life 50000 hours, safety,,
3.Using ADC12 die-cast aluminum lamp body, the surface is spray-plasticized according to the environmental color
4.Waterproof IP65, suitable for outdoor use.
LED flood light light parameters | LED flood light light LED chip parameters | ||
Beam angle | 25 * 45°/ 30°/ 60° | LED chip Brand | Osram / Cree |
Body material | Aluminium profile , | Chip size | SMD3030 |
Lamp cover | Acrylic or PC | Color | Singlce color |
IP Rate | IP65 | Lifespan | 50000 hours |
Power | 18-24w | Other parameters | |
Input voltage | DC24v | Wire standard | Silicone or PVC |
Lighting efficiency | 85lumen/w | Wire's connector | |

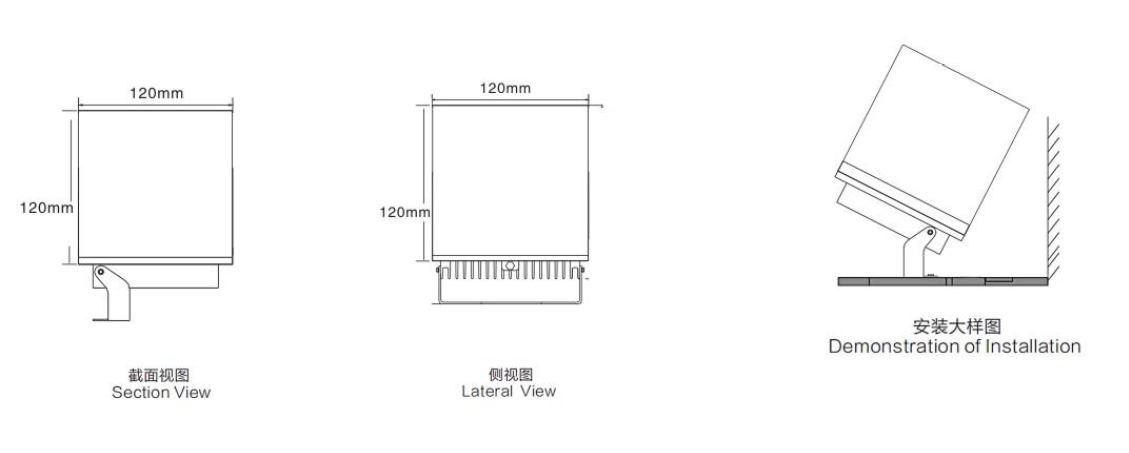

Beam angle adjustment | Available | Size | L120*H120*W120mm |
Wires's direction | Middle of bottom | Wire's length | 55cm |
Max connection quantity | Mounting brackets | 6063 aluminium | |
Control way | Single color | Net weight | 1.8kg |
Working temperature | -20℃-55℃ | ||
