DMX RGB led strip is compatible with control system such as Artnet, Arduino and DMX. You can get numerous lighting effects by program the DMX led ribbon
DC5v, DC12v, DC24v are all available
Directory factory price, welcome to your inquiry
Availability: | |
---|---|
Product introduction:
DMX RGB led strip is compatible with control system such as Artnet, Arduino and DMX. You can get numerous lighting effects by program the DMX led ribbon
DC5v, DC12v, DC24v are all available
Directory factory price, welcome to your inquiry
Product parameters:
Model | IC Qty per meter | Color | LED Qty per meter | Power Consumption | Voltage | PCB Size |
W/M | V/DC | mm | ||||
ST-DMX512RGB-30-12V | 10 | Addressable RGB | 30 | ≤7.2W | 12v | Double Copper PCB 5000*12mm |
Product details
1. DMX512 data is transmitted over a differential pair using EIA-485 voltage levels. DMX512 electrical specifications are identical to those of the EIA-485-A standard
2. DMX IC we use the 5 cable dmx512 double signal,256 gray scale high brightness fast data transfer fast screen refresh etc.
3. Low voltage DC power supply safety, Convenience.
4. Using international standards DMX512 protocol products with one and multi point damage does not affect other parts of the strips and continue work etc..
5. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on
6. External IC. Can make 5V, 12V, 24V.
7. No matter what or how many ic broken, the led strip will work normally..

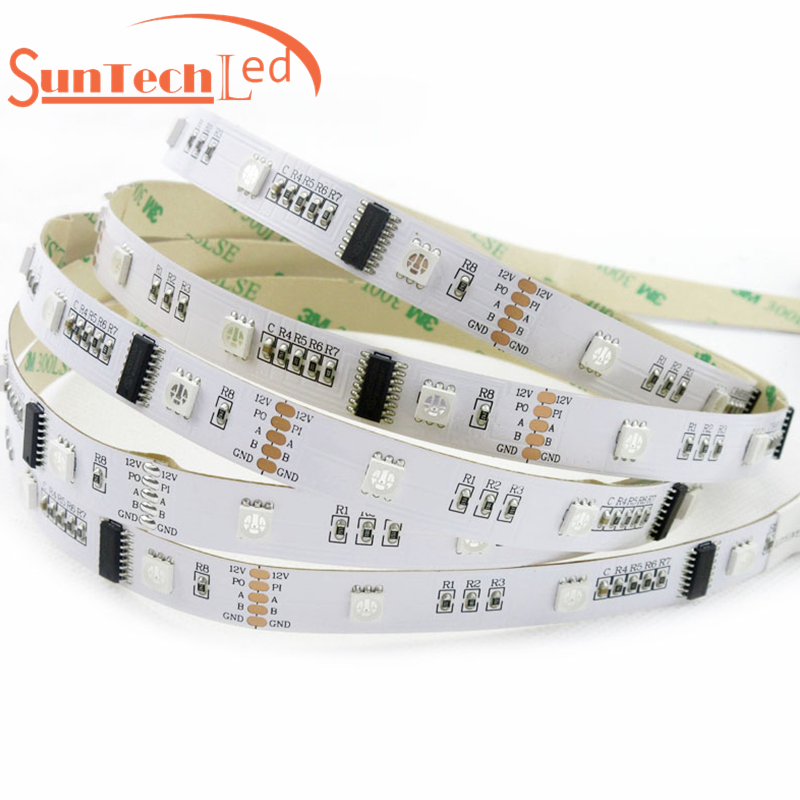

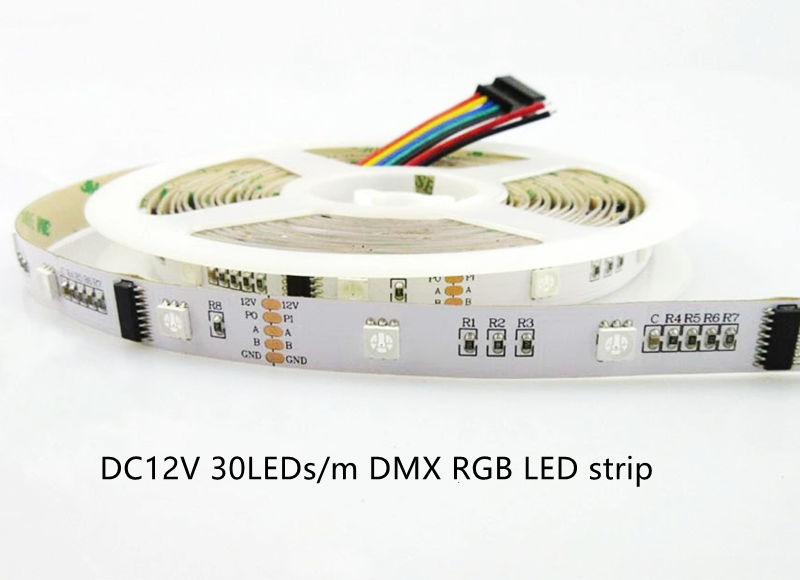

Picture of DMX RGB LED strip

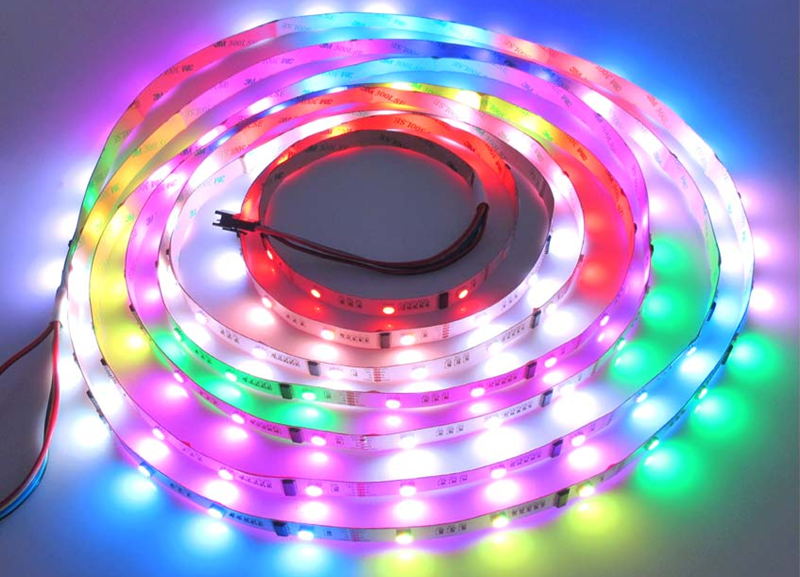

DMX RGB LED strip lighting effect:

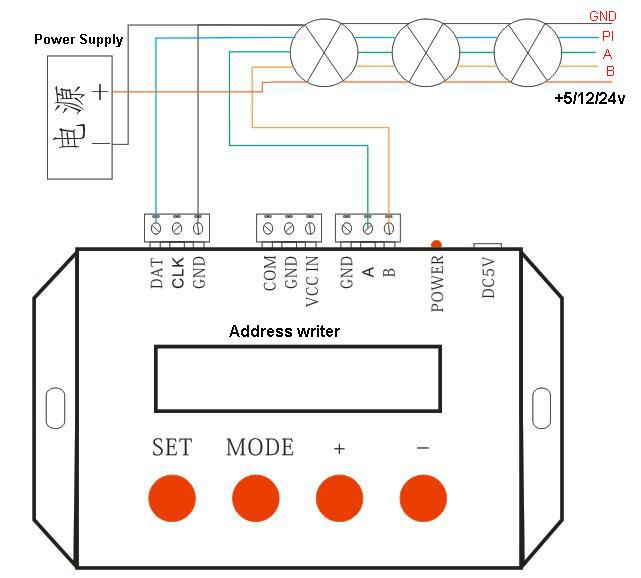

Please see DMX LED ribbon connection below:
Connetion Notice
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI:Write the address,one address cable
GND: connect to power supply GND & controller GND

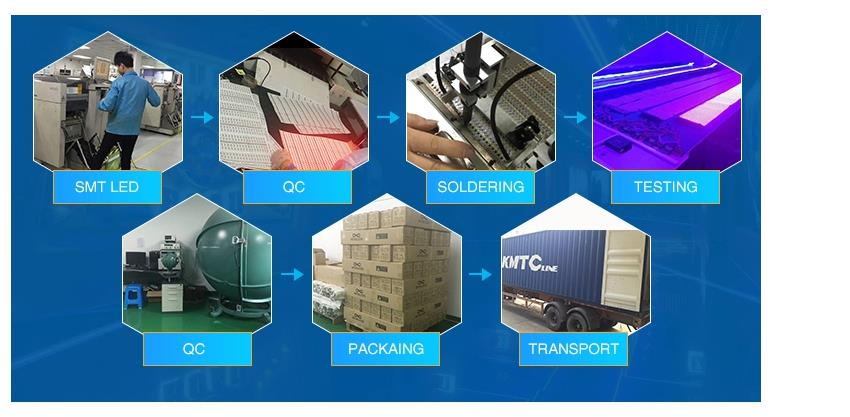

Addressable led strip production process
SMT LED -> QC -> Soldering -> Testing -> QC -> Packing-> Transport shipping
Our team in Guangzhou lighting fair
FAQ:
Payment Terms:
1. Samples: Bank TT or PayPal, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
2-3 years warranty for programmable DMX led strip
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not
urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers' questions with 24 hours;
2. If anything goes wrong with the products' quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the digital dmx strip will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its;
temperature after 24 hours,Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
